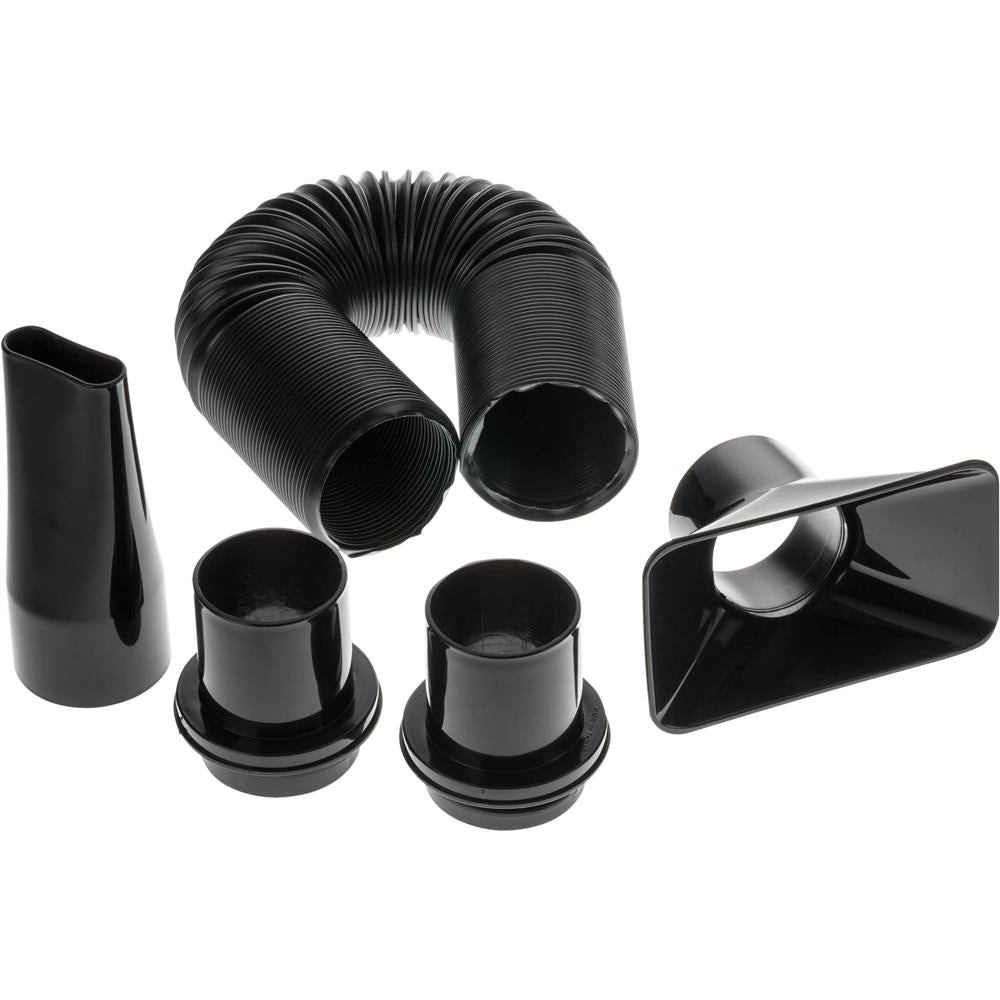

This kit is great for collecting dust from machines without built-in dust ports.
With two different end nozzles and hose end fittings, convert the 2-1/2" x 12" to 36" expandable and shapeable plastic hose into a system for collecting waste material using your shop vacuum.
Use the wide mouth nozzle to collect ambient fine dust or direct the narrow tapered nozzle to collect heavier dust and wood chips.
Includes: one dust hose, two vacuum hose end fittings, one rectangular nozzle, and one tapered nozzle.

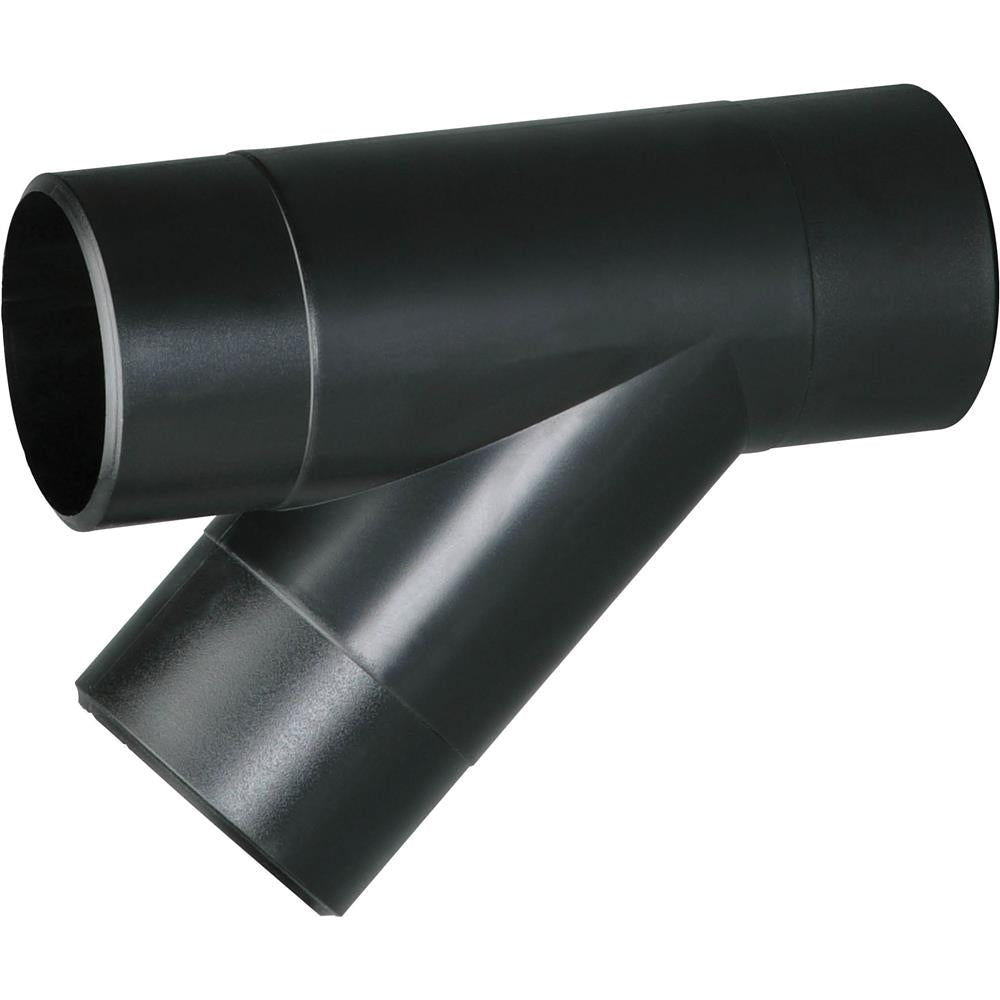

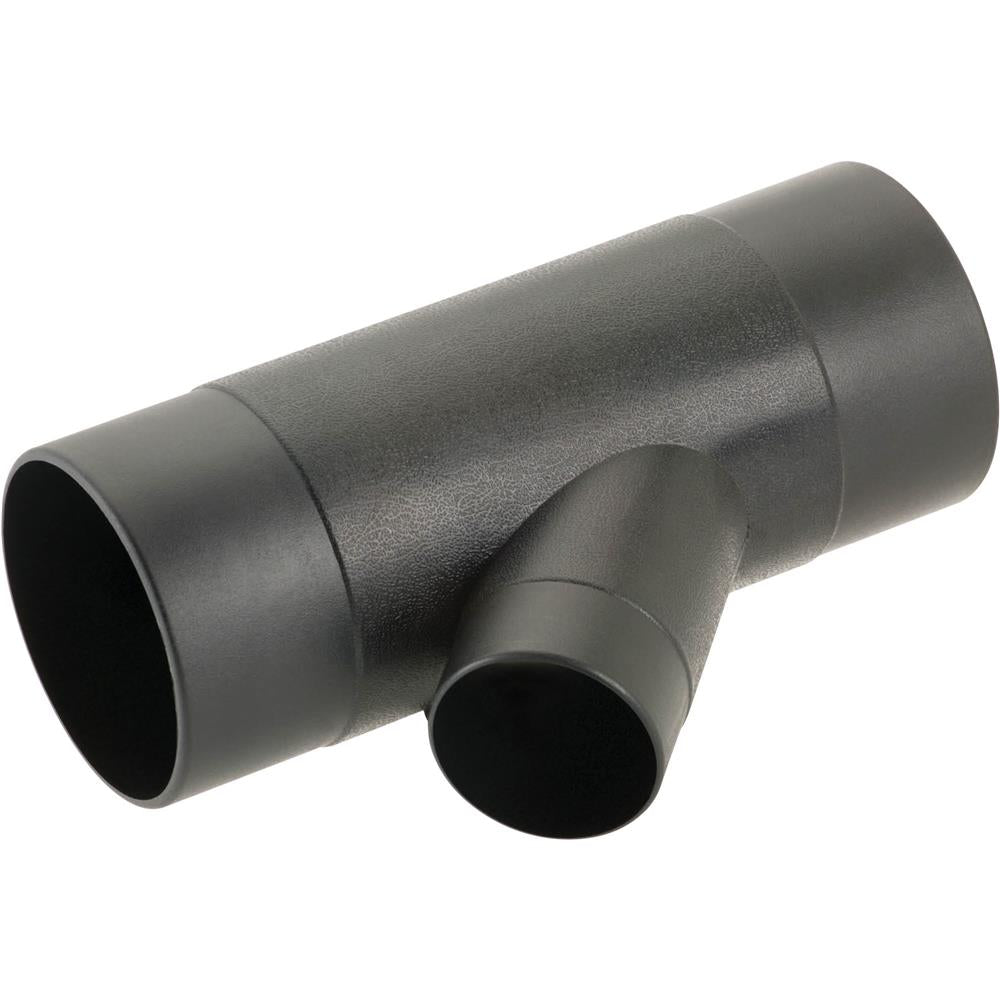

4" to 2.5" Y Fittings:
These fittings provide a step down from a larger main line to smaller branch lines.
This step-down increases air velocity near the machine where it's needed most.
This Y-Fitting has a 2-1/2" diameter lateral port for connecting to a 4" diameter line.
Specifications: 4" X 2-1/2"

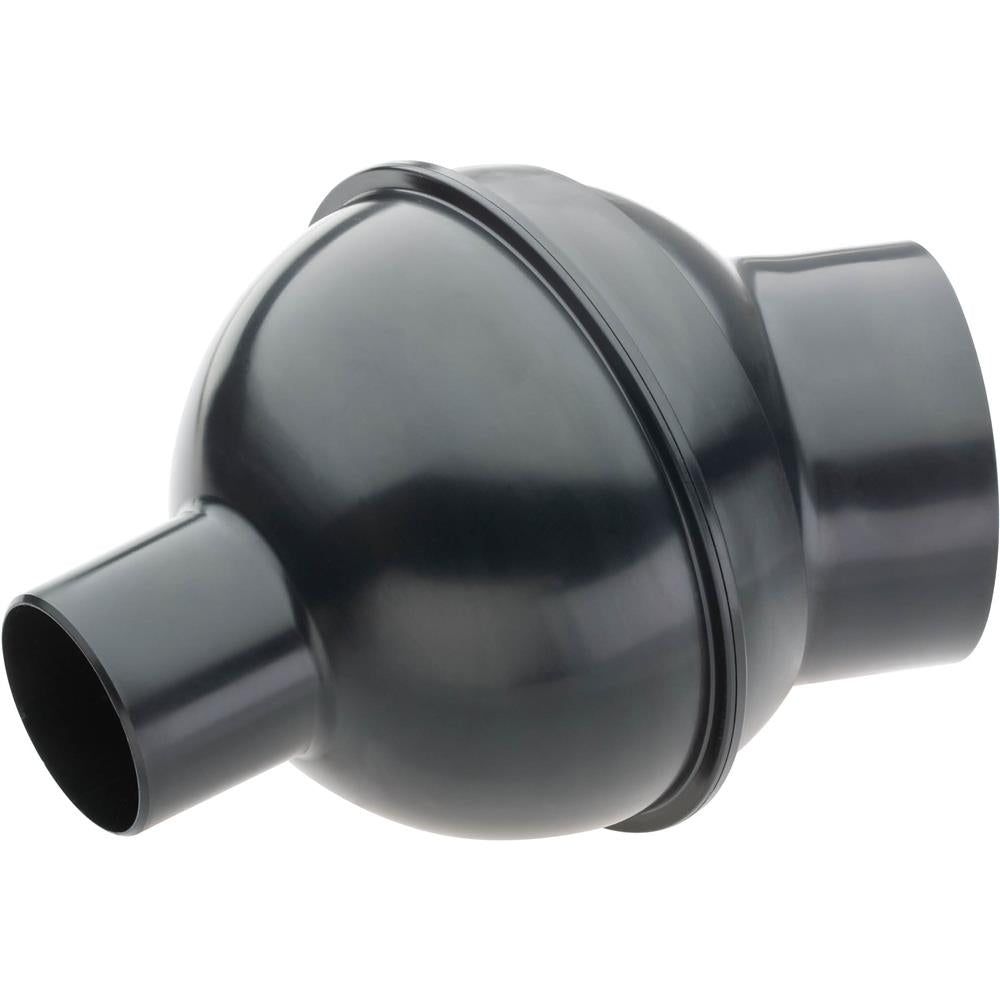

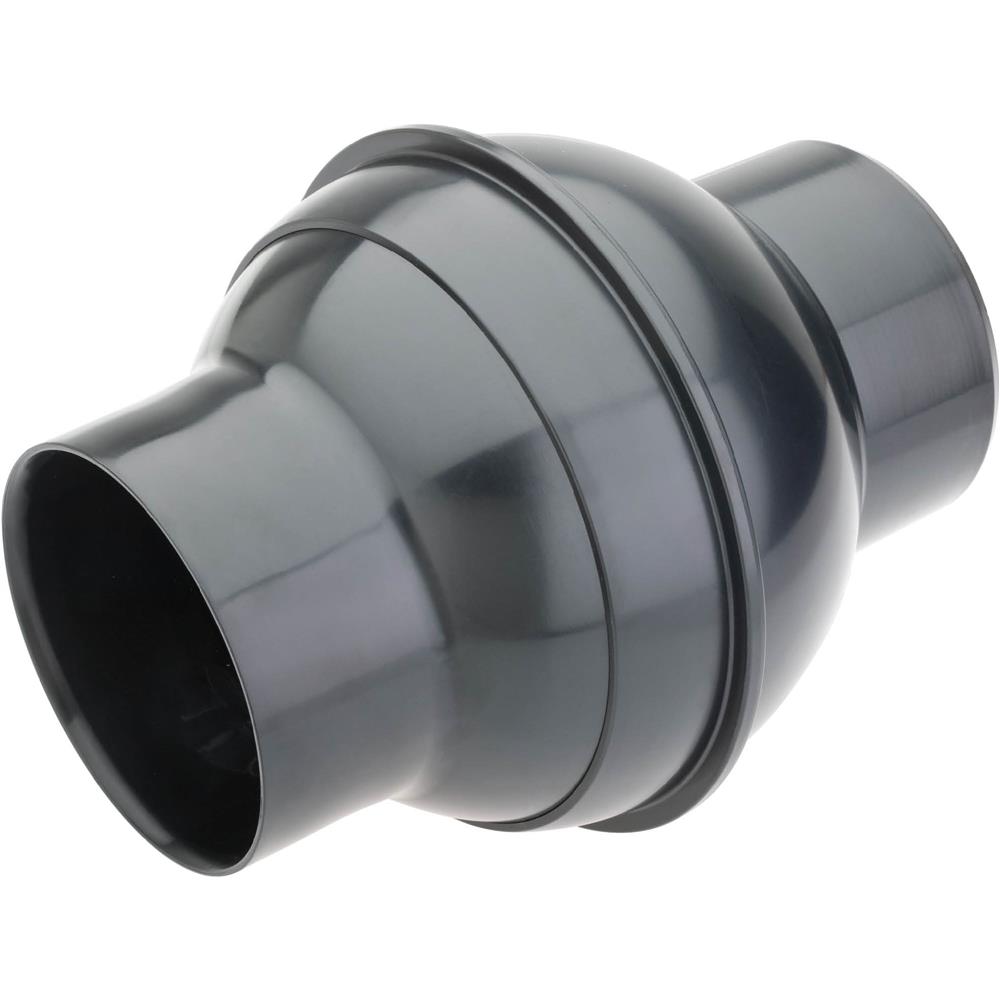

The 4" Swivel Ball Joint provides flexibility in duct layout and features a swivel design that allows up to 20° direction change.
Swivel Joint provides flexibility in duct layout
Swivel design allows up to 20° direction change
4" Swivel Ball Specs: 4-1/4" OD x 3-15/16" OD hose connection
4" to 2.5" Swivel Ball specs: 4-1/4" OD x 2-1/2" OD hose connection.
T / Y and Taper Fittings:

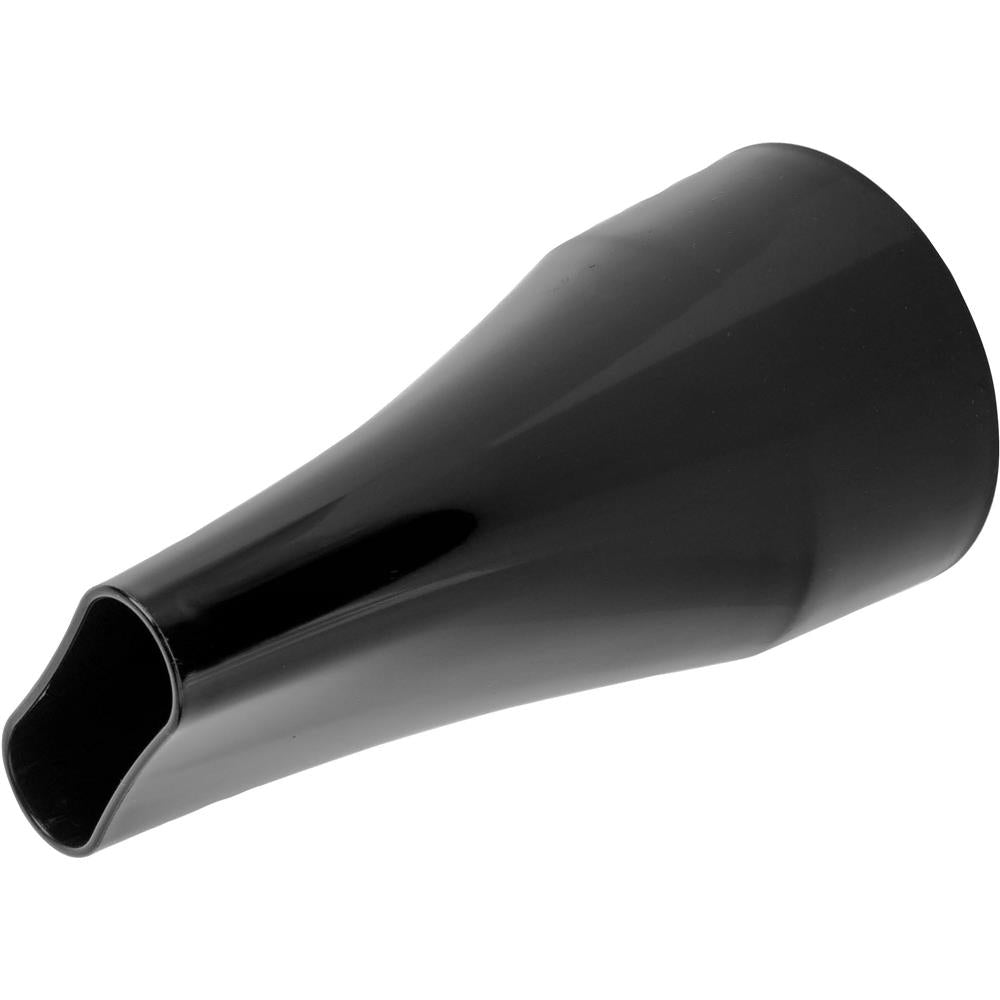

4" Taper Oval Nozzle. Oval End: 3" x 1". 3-3/4" OD

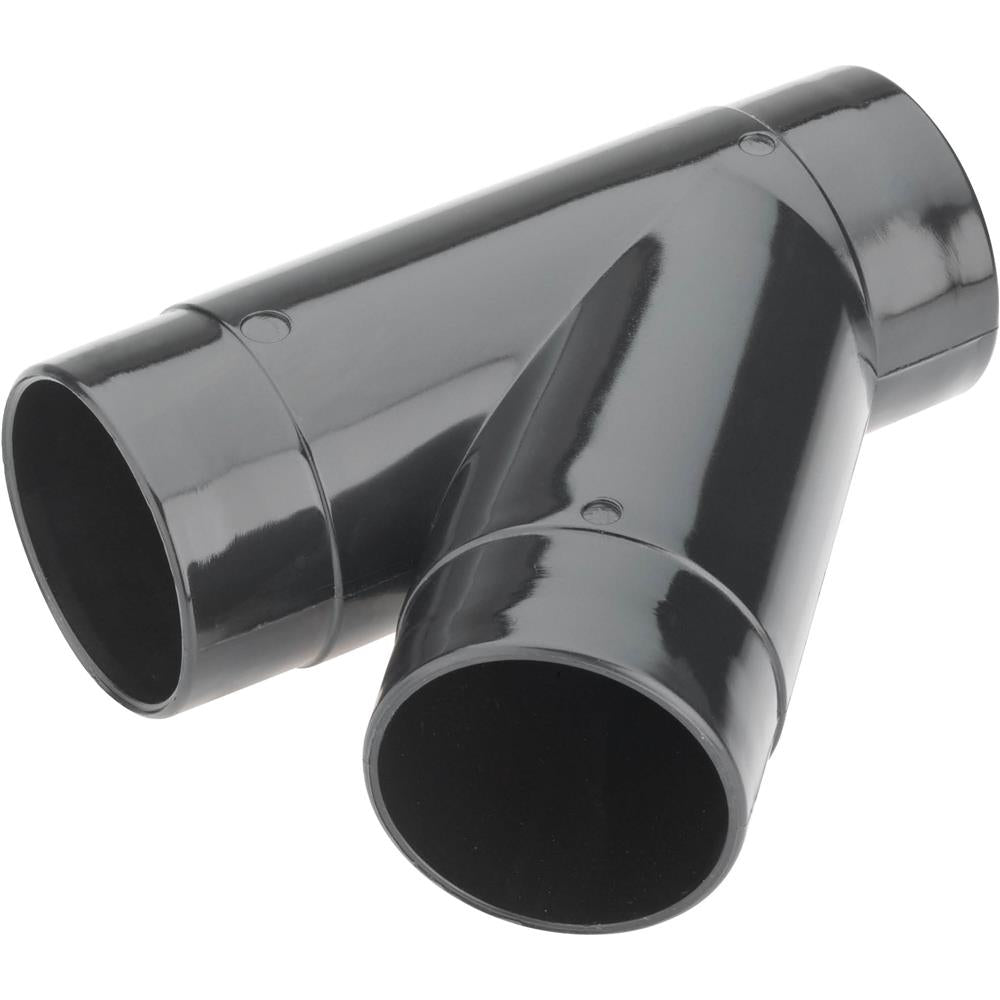

Y's are used to attach branch lines to service more than one machine. This design provides increased lateral air flow and efficiency over other types of fittings. Angled Y provides less air resistance than 90-degree T-fittings. 2.5" Specifications: Angled Y provides less air resistance than a 90° Tee fitting, 2-1/2" x 2-1/2" x 2-1/2" OD, Fits most larger shop-vacuum type hose for use as a stationary dust collection system. 4" Specifications: 4" Outside Diameter, ABS Plastic

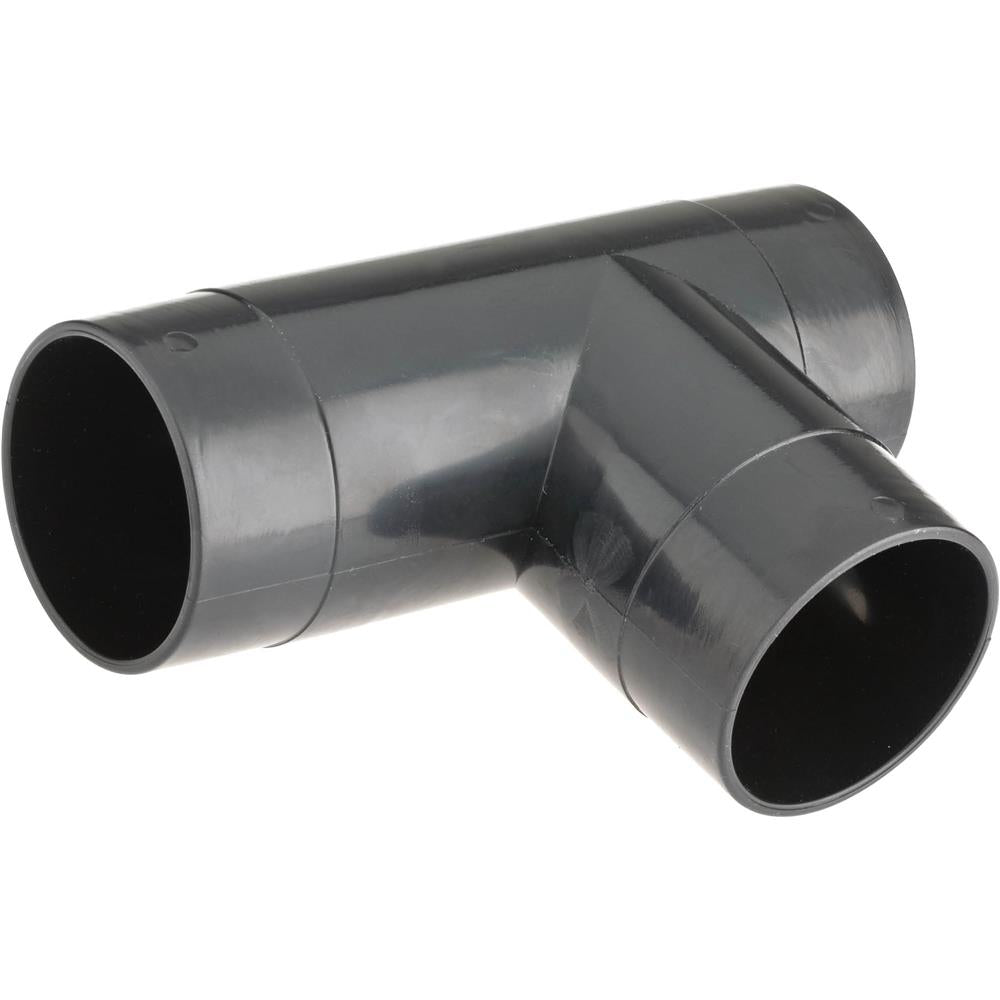

T-fittings provide the option of adding branches to a system to service each machine in a shop. T's are very helpful when space or design constraints prohibit the use of Y's. 2.5" Specifications; 2-1/2" x 2-1/2" x 2-1/2", Fits most larger shop-vacuum type hose for use as a stationary dust collection system
