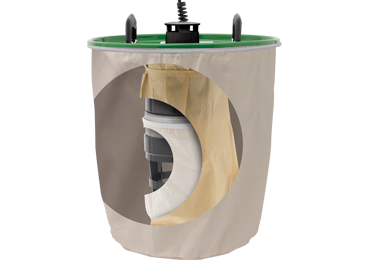

This compact wall mounted machine has a large 150 liter capacity and is ideal for serving extraction systems in smaller workshops. The waste is collected in reusable bag which is fitted to the exterior of a strong steel cage to retain its shape. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of
the bag.
The lid features an acoustic outlet for the motor - When the optional hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.
Now includes ZAMV 2 Meters of 100 mm Dust Extraction Hose and DX100X Easy-Fit Cuff
Voltage:220V
Filtration: 0.5 microns
Air Flow: 108 liters / second
Capacity: 150 liters
Motor input P1: 2 x 1 kW
Inlet Diameter: 4"
Weight: 13 kg
Size: W370 x D412 x H875 mm
Three-Stage Filtration to 0.5 Microns
The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.
