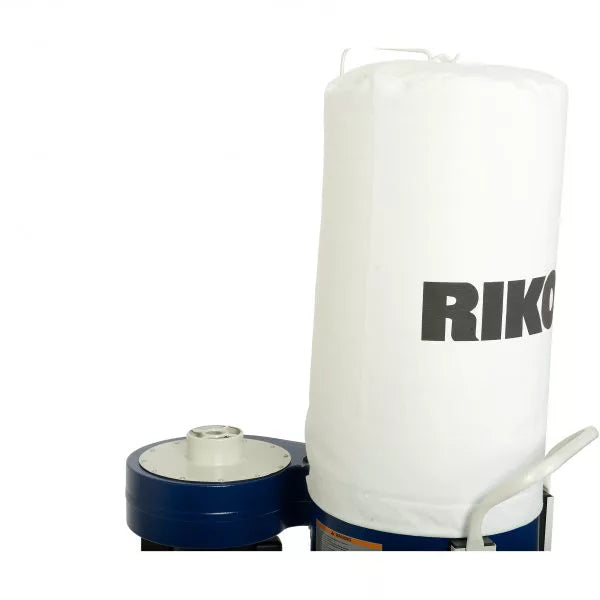

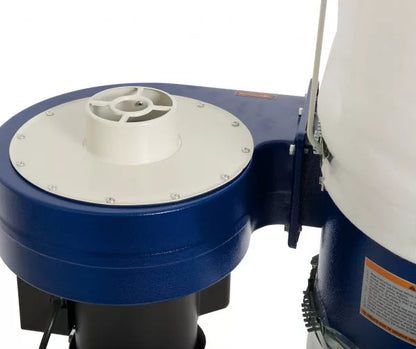

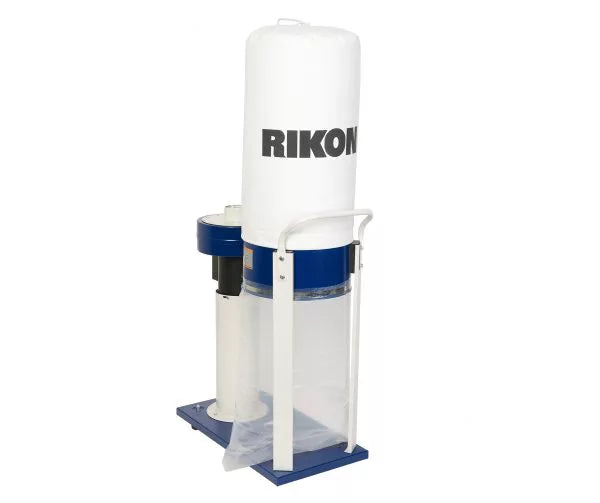

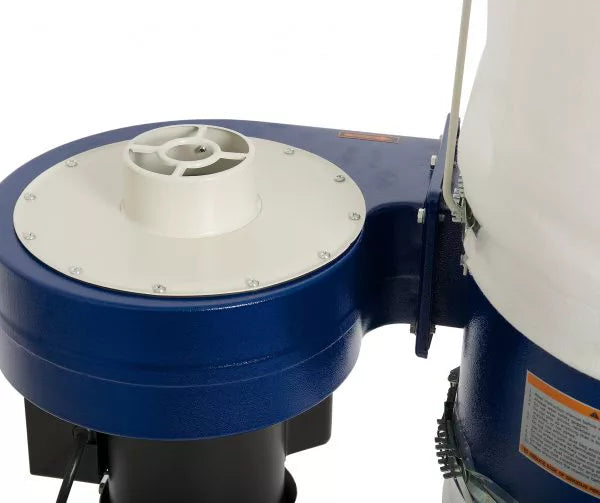

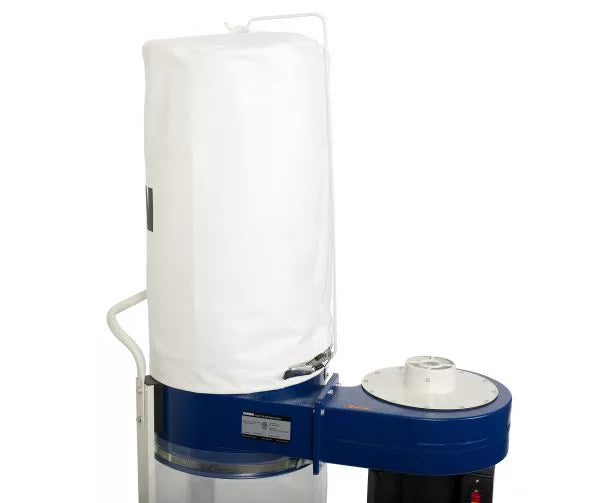

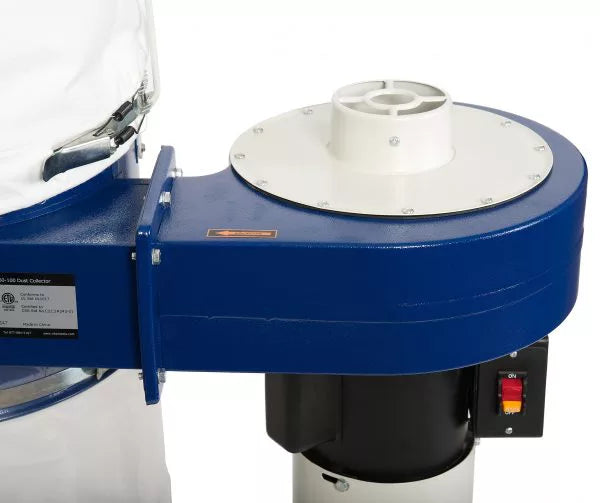

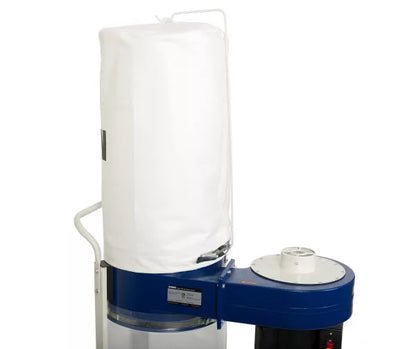

Rikon 60-100: 1HP Dust Collector
• Dust Collection Keeps Your Shops Air Breathable
• 1 HP Motor
• Casters For Mobility
• 4″ Hose Inlet
• Safety Lock Toggle Switch
1 HP Dust Collector #60-100 is a great size for use in a small shop. Single 4” dust port draws 624 CFM, more than enough vacuum power for big chip makers, like jointers and planers. Built-in casters and handle make moving it
about easy. Includes top cloth filter bag, lower disposable plastic chip bag, quick-release band clamps, and safety on/off switch. Collector is wired for use with 3-wire 120V receptacles.
Motor
| Horsepower | 1 HP |
| Amps | 7 |
| Volts | 115V, 60Hz |
| RPM | 3,450 |
| Blower Wheel Diameter | 9” |
| Blower Wheel Material | Steel |
| Air Flow @ 4″ Diameter | 624CFM |
| Static Pressure (Water Column) | 3.25in.w.c |
| Sound Rating @ 3 Feet | Less than 78 dB |
| Bag Filtration | 5 Microns |
| Bag Diameter | 14-3/4” |
| Bag Capacity | 2.1 Cubic Feet |
| Bag Length | 26” |
| Hose Connection | 1@4” |
Overall
| Length | 32-1/4” |
| Width | 15” |
| Height | 60” |
| Net Weight | 60 lbs. |
| Shipping Weight | 68 lbs. |
| Shipping Carton | 30” x 18” x 18-1/4” |
| Warranty | 5 Years |
