Laguna Flux - Dust Collectors

Laguna Flux - Dust Collectors

Regular price $4,499.00 USD
Regular price Sale price $4,499.00 USD
Sale Sold out

**Drop Ship is based on Laguna Stock - please contact us for availability

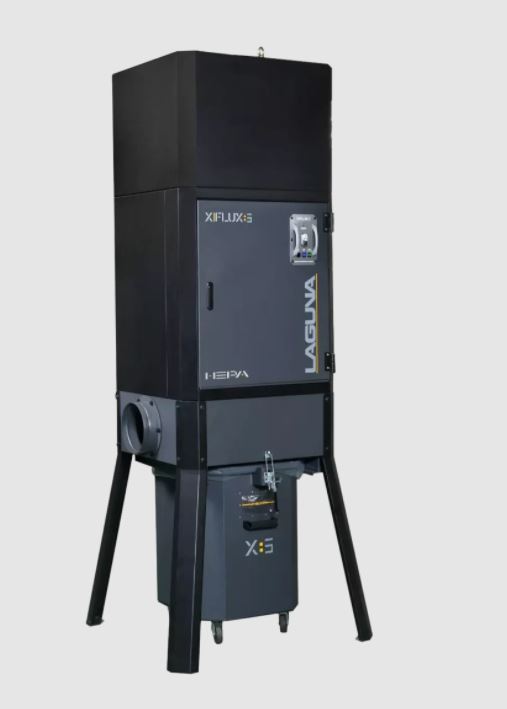

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM.  Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action.  Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors



The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM.  Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action.  Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.

Manual


Specs:


Motor Specs:  5 HP

Electrical Specs:          220V / 60Hz / 1PH / 3450 RPM

Running AMP (8” inlet) 21.5 A at 220V

Air Volume:    1823CFM (cubic feet per minute)

Max. static pressure  12 Inches of water

Fan size           14.5”

Inlet:   8”

Remote Control: High frequency

Collection capacity     39 gallon Octagon drum x 1 set

Packing Size:

(L x W x H)       35.4” x 28.3” x 81.5”

(90 x 72 x 207 cm)

Machine weight         456 lbs. (207 kgs)

Shipping weight         544 lbs. (247 kgs)

Assembled Dimensions:

(L x W x H)       36” x 38” x 91”

Filter Media    filtering area: 32.3 sq/ft (3m2)

Cartridge Filter           HEPA 19.7” x 19.7” (50 x 50cm) x 1pc ; (0.3-0.4 micron @ 99.7% efficiency)

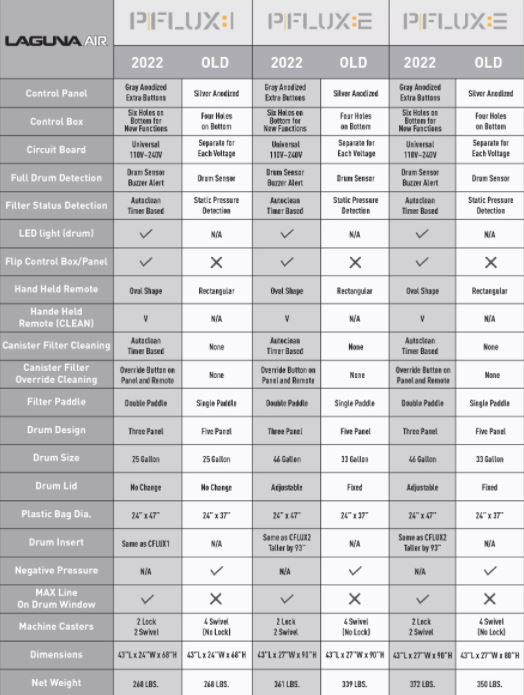

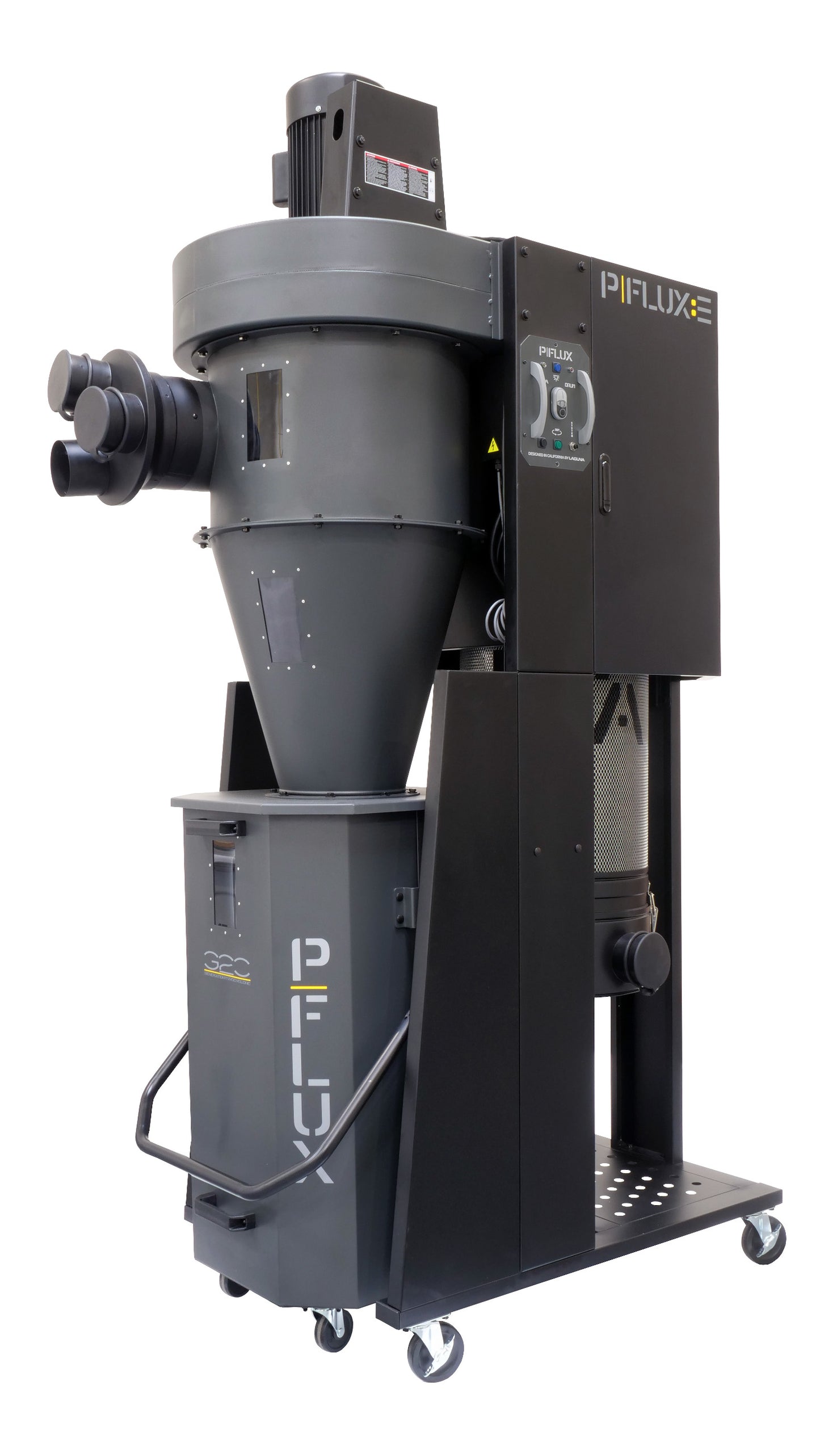

P|Flux

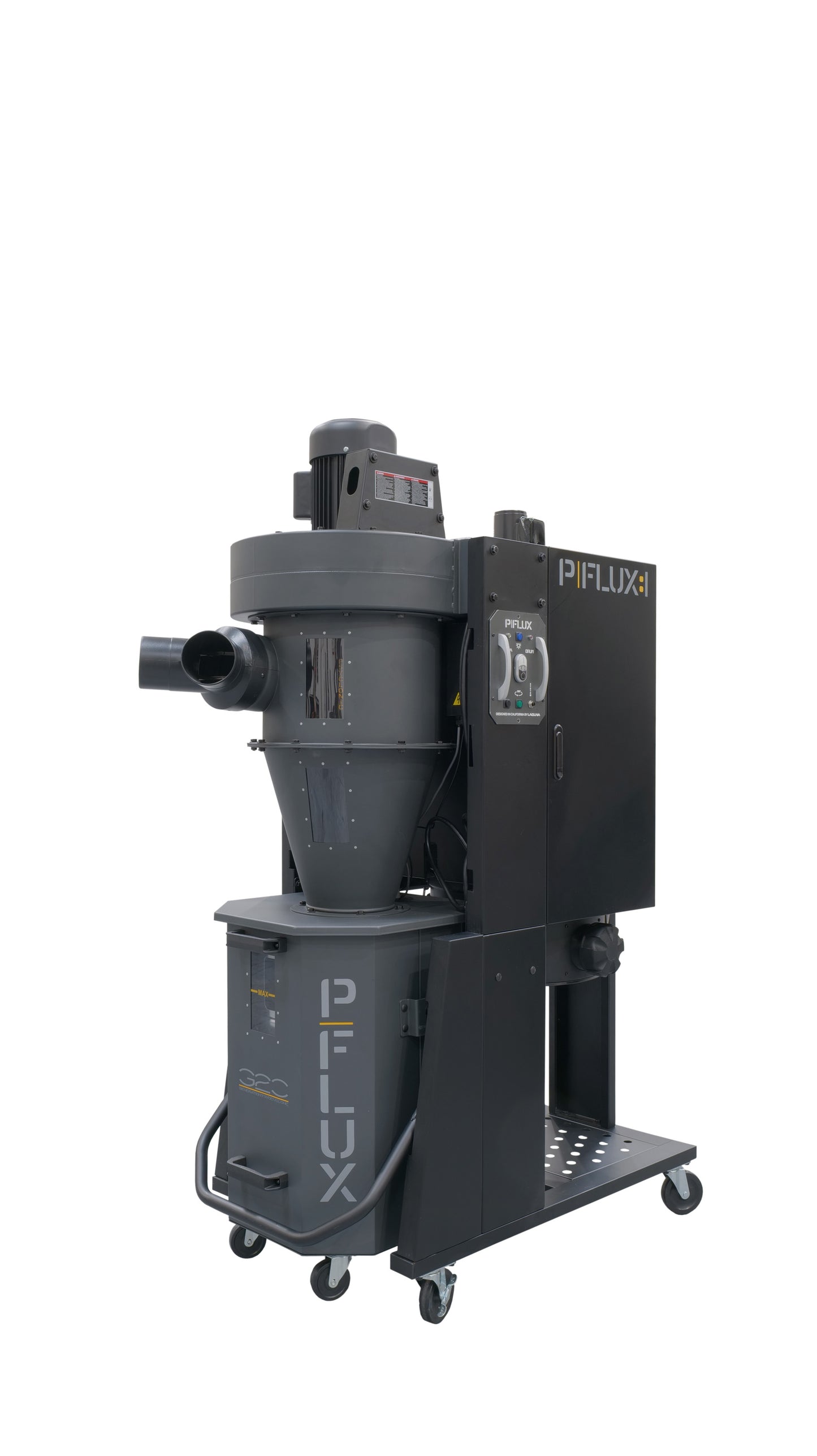

The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line.  The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models.  Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.

Manual

Specs:

Motor Specs: 1.5 HP

Electrical Specs:  110V/220V / 60Hz / 1PH / 3450 RPM

Running AMP: (with 6” inlet) 18.8A at 110V; 9.4A at 220V

Air Volume: 900CFM (cubic feet per minute)

Max. static pressure: 10.1Inches of water

Fan size: 13.5”

Inlet: One 6” or two 4” ports

Remote Control: High frequency

Collection capacity: 25 gallon Octagon drum

Packing Size: (L x W x H)

45” x 28.3” x 47”

(114.5 x 72 x 119.5 cm)

Machine weight: 232 lbs. (105 kgs)

Shipping weight: 287 lbs. (130 kgs)

Assembled Dimensions:

(L x W x H)       42” x 25” x 68”

Filter Media: filtering area: 48.4 sq./ft. (4.5 m2)

Cartridge Filter: HEPA 15.74” x 19.68” (40 x 50cm) x 1pc

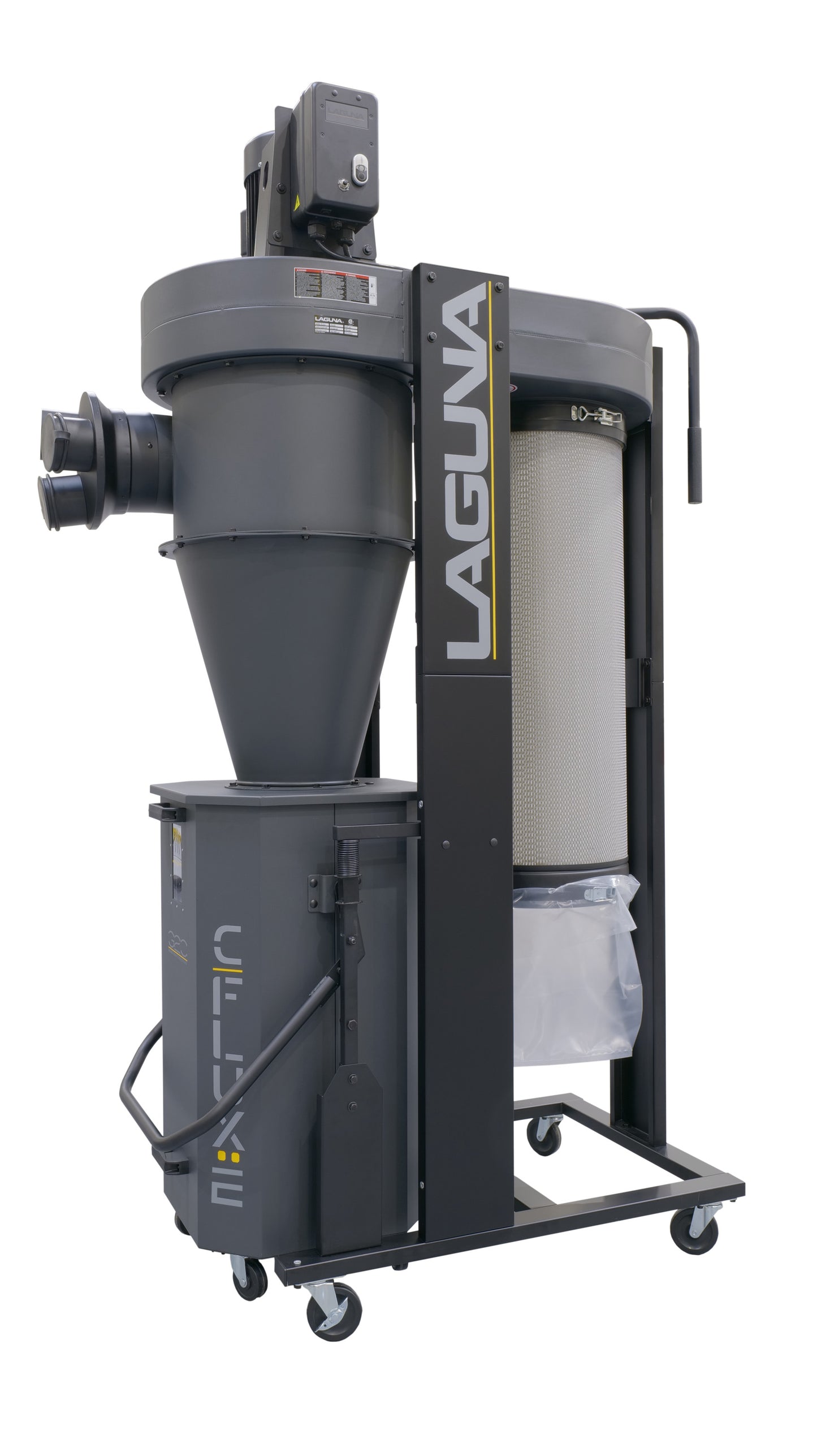

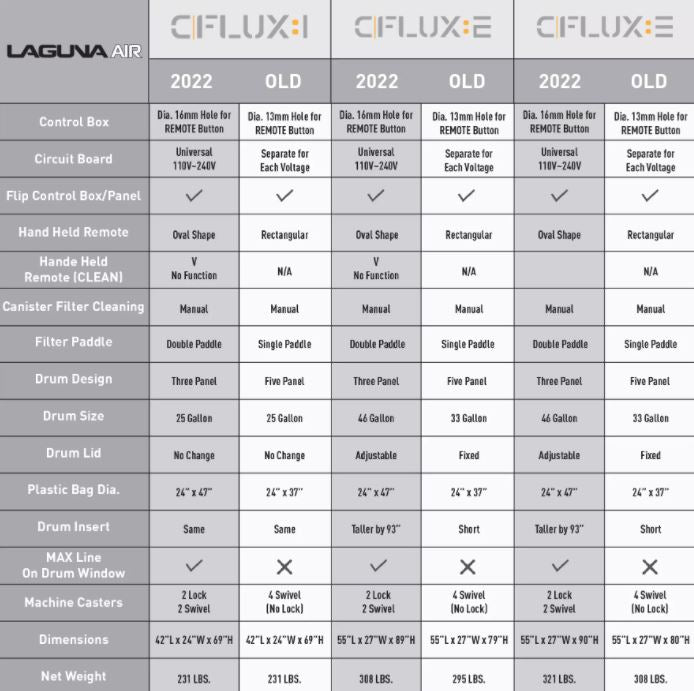

C|Flux

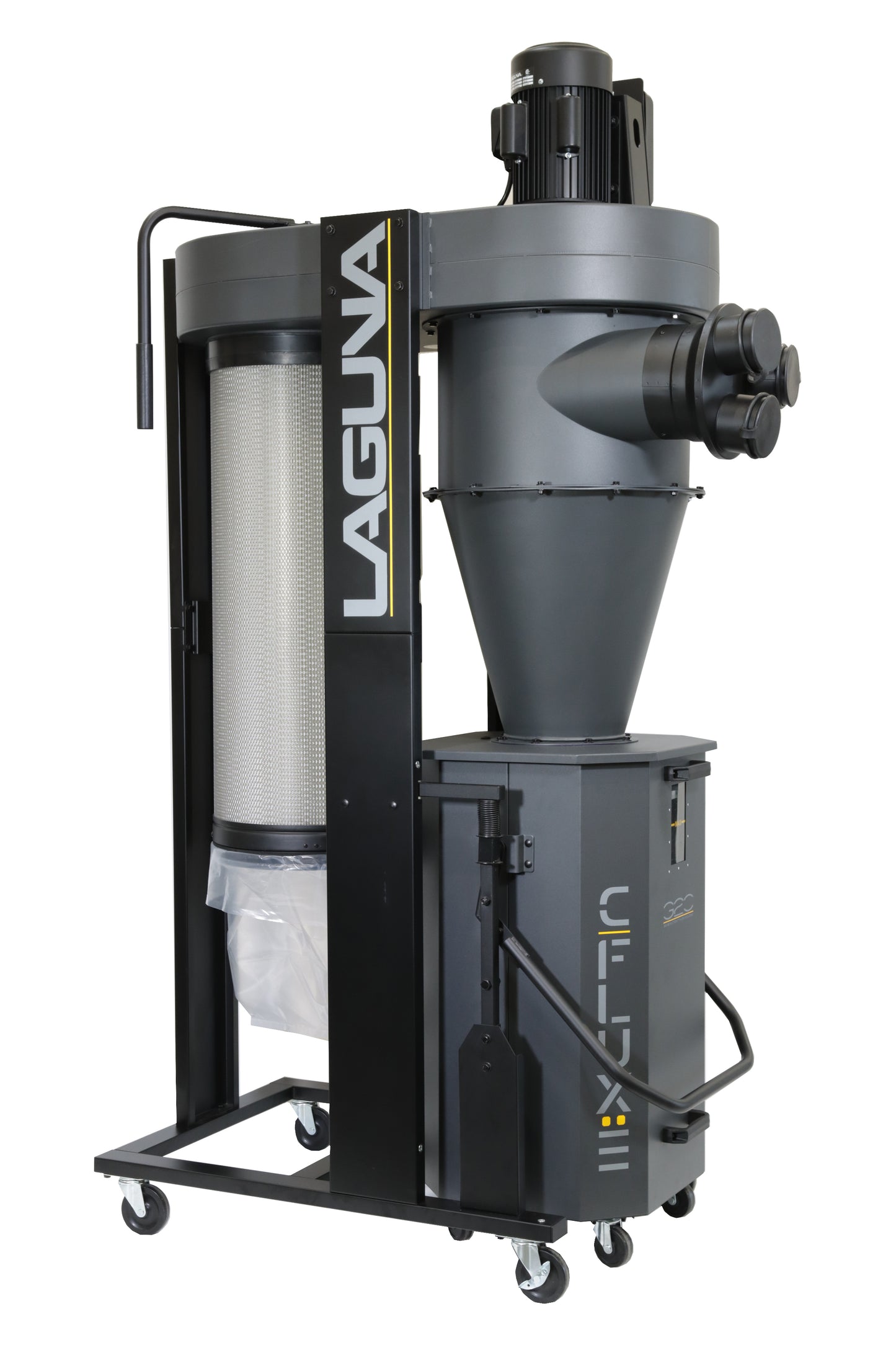

 For the popular C|Flux cyclone dust collectors, we've kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity.  The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the added locking casters provide additional stability.


Manual


Specs:

Motor Specs:  1.5 HP

Electrical Specs:          110V/220V / 60Hz / 1PH / 3450 RPM

Running AMP (with 6” inlet) 18.8A at 110V; 9.4A at 220V

Air Volume: 900CFM (cubic feet per minute)

Max. static pressure: 10.1 Inches of water

Fan size: 13.5”

Inlet:   One 6” or two 4” ports

Remote Control: High frequency

Collection capacity: 25 gallon octagon drum

Packing Size:

(L x W x H)      45” x 28.3” x 47”

(114.5 x 72 x 119.5 cm)

Assembled Dimensions:

(L x W x H)       42” x 25” x 68”

Machine weight: 232 lbs. (105 kgs)

Shipping weight: 287 lbs. (130 kgs)



Filter Media: Filtering area: 48.4 sq./ft. (4.5 m2)

Cartridge Filter: 1 Micron,  15.74” x 19.68” (40 x 50cm) x 1pc
