Sweet 16 Lathe - Robust Tools

Sweet 16 Lathe - Robust Tools

Drop ship item - please call Chad to order: 480-590-2003

Product Specs

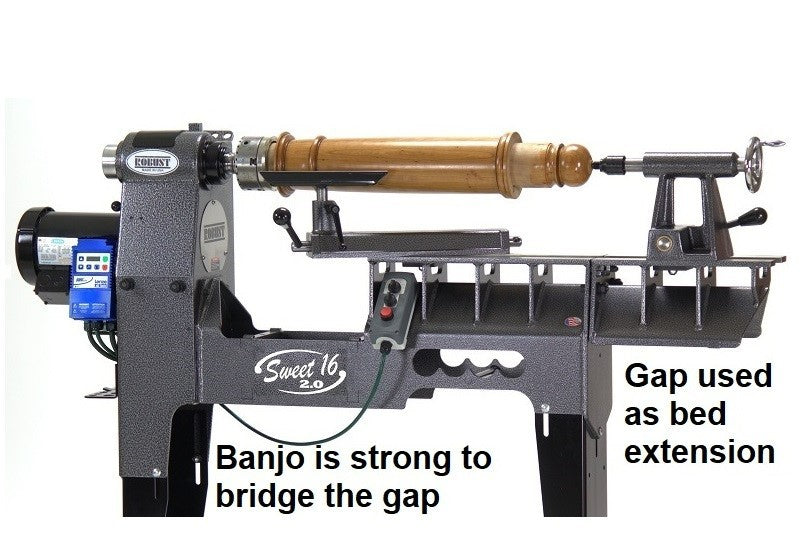

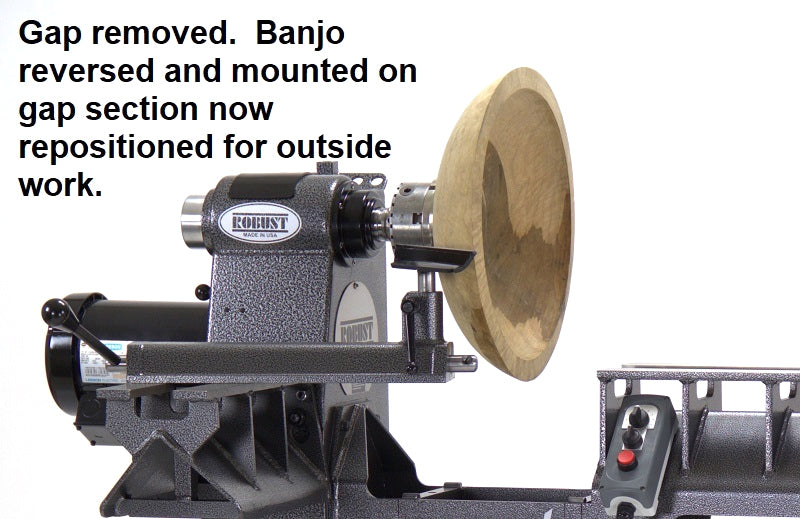

  • REMOVABLE GAP: The main feature of the S16 is its removable bed section. Removing the section creates a gap to let you turn a bowl or platter up to 32". Moving the section to the end of the lathe increases spindle turning capacity by 14". The Sweet 16 video demonstrates these features in action.

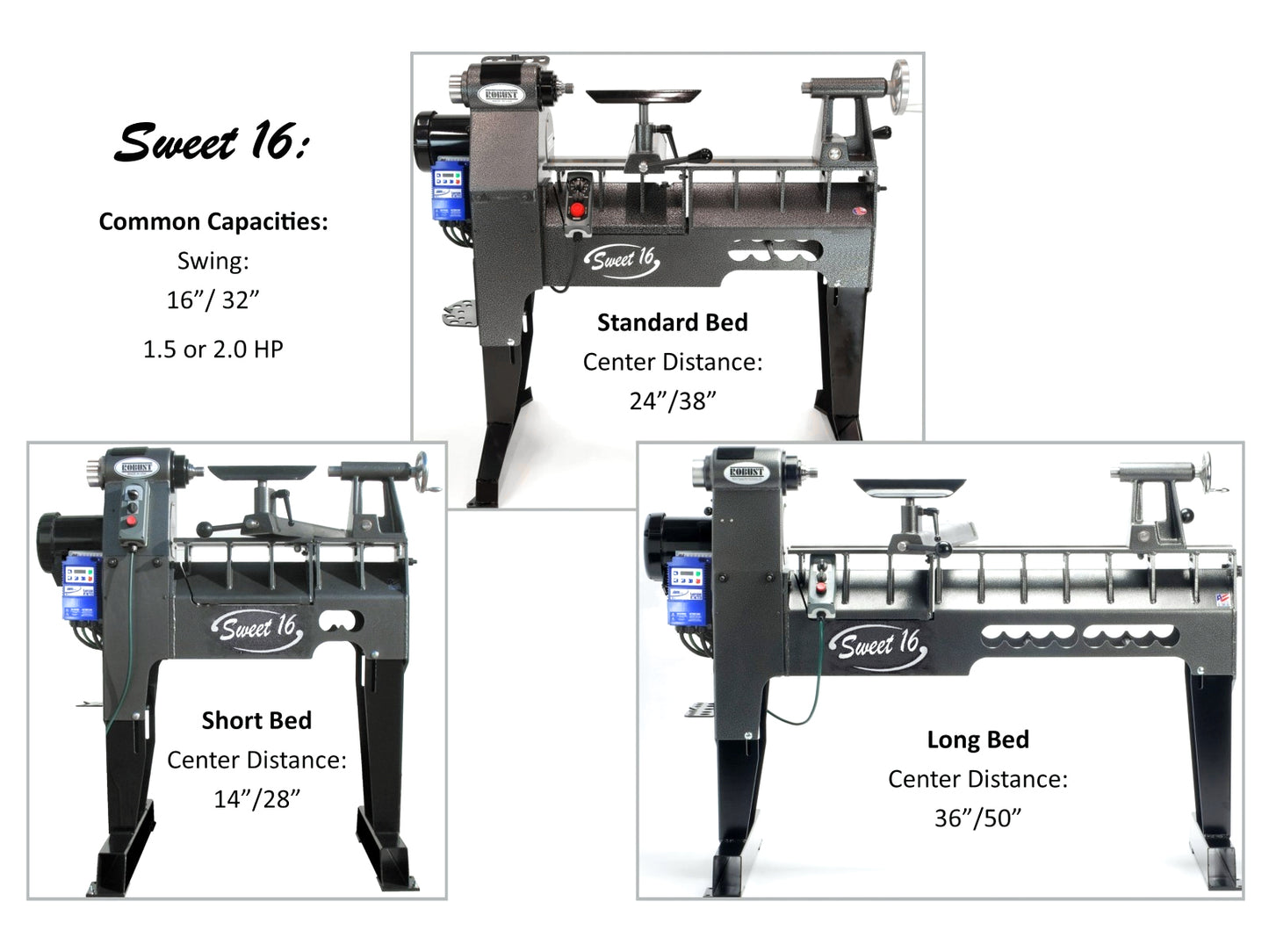

  • BED DETAILS: The S16 is available with a Short, Standard or Long bed. Like our other lathes, it adjusts to your height. Ways are stainless steel.

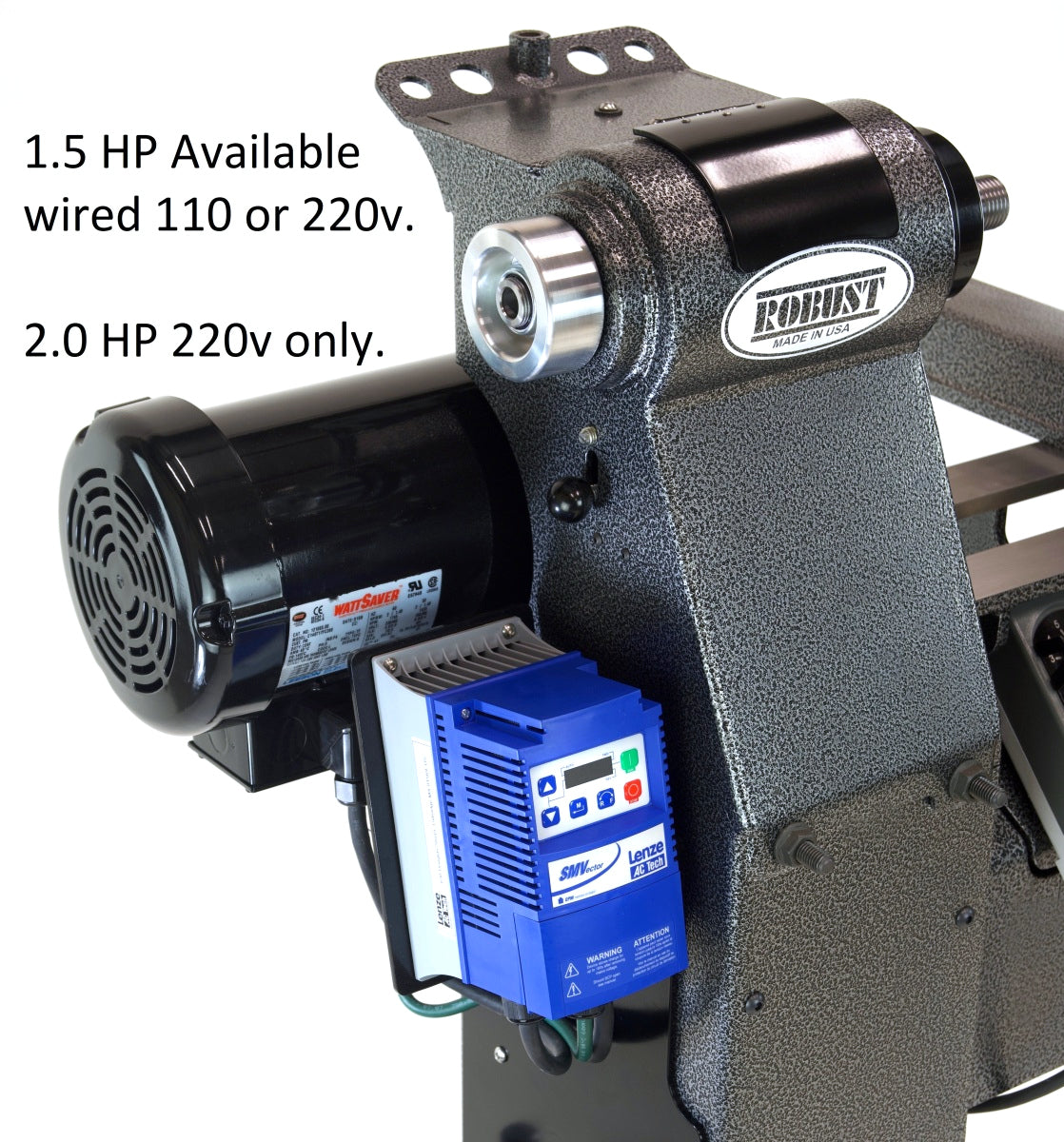

  • MOTORS: All motors are high efficiency and industrial grade. The standard 1-1/2 HP motor can be wired either 110 or 220 volt. If you have 220v available, most people opt for the 2HP motor. There is no belt changing and the RPM range is 50-2900

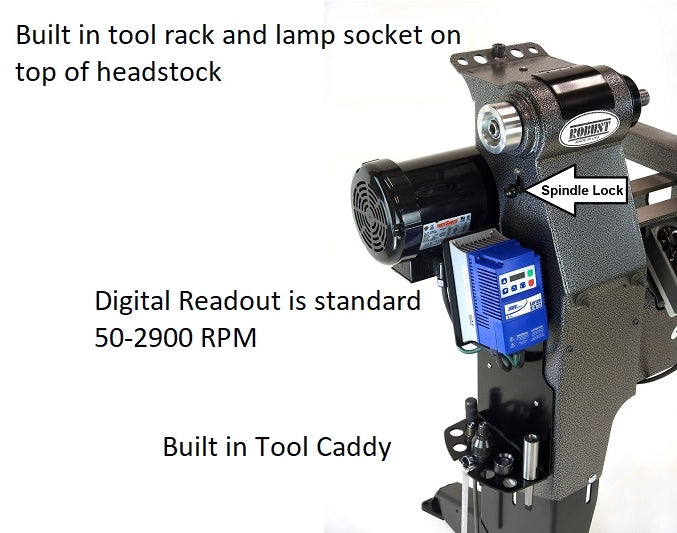

  • DRIVE: The USA made VFD (aka "Inverter") is mounted on the left side of the headstock and displays the spindle RPM. . Low end torque is ensured the use of a vector style motor drive and further augmented by using a smaller pulley on the motor than on the spindle.
  • DRIVE: The USA made VFD (aka "Inverter") is mounted on the left side of the headstock and displays the spindle RPM. . Low end torque is ensured the use of a vector style motor drive and further augmented by using a smaller pulley on the motor than on the spindle.

Standard Features:

  • Removable gap section to increase diameter and length capacity
  • Digital RPM readout
  • Adjustable Spindle Height
  • Corded Pendant Controller with Variable Speed, Forward/Reverse and Stop
  • 1.5 HP/110 or 220 volt or 2.0 HP 220 volt
  • Premium Vector Drive with Auto-Tune
  • Graduated Quill

Popular Options:

  • Short, Standard or Long Bed
  • 2HP upgrade- $295

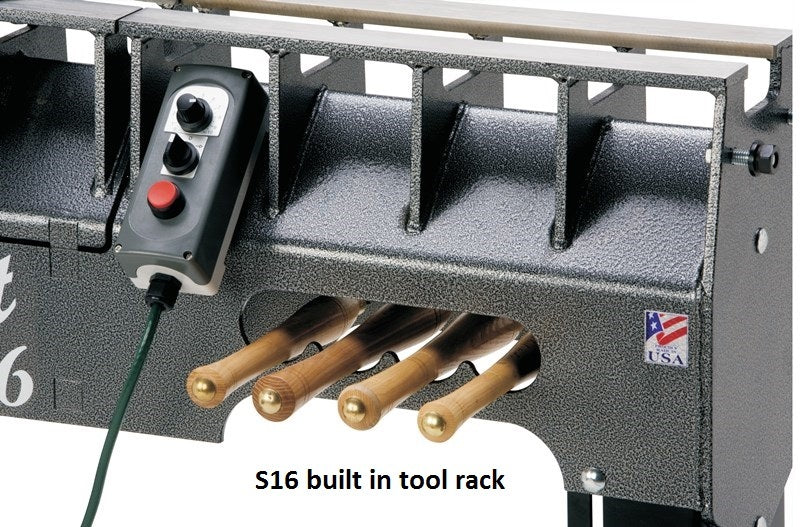

  • Tool & Tailstock Rack- $65
  • Vacuum Adapter- $109
  • Caster Kit- $545
  • Bed Extension- $645

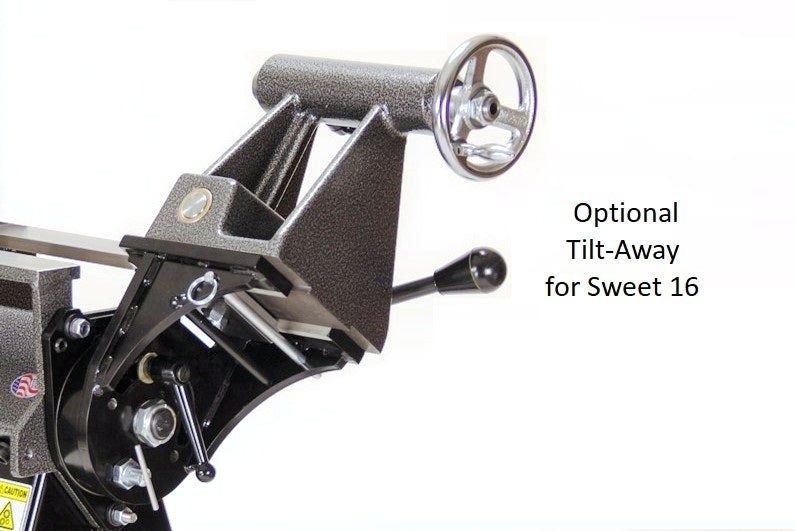

  • Tilt Away- $645

Standard Bed 1.5 HP

  • Most popular bed length for the Sweet 16.
  • Spindle capacity is 24” in normal configuration and 38” with the gap used as an extension.
  • Standard accessories: Drive center set, live center, 3.5″ faceplate, 12″ Low-Profile Rest, knock-out rod, tailstock extension, foot pads and manual.

Long Bed 1.5 HP

  • If you have the room, you can’t go wrong with the Sweet 16 Long bed.
  • Great for people doing longer work and folks who like to make furniture.
  • Spindle capacity is 36” in normal configuration and 50” with the gap used as an extension.
  • Standard accessories: Drive center set, live center, 3.5″ faceplate, 12″ Low-Profile Rest, knock-out rod, tailstock extension, foot pads and manual.
Lathe Options
$9,195.00 USD
$9,195.00 USD
Sale Sold Out

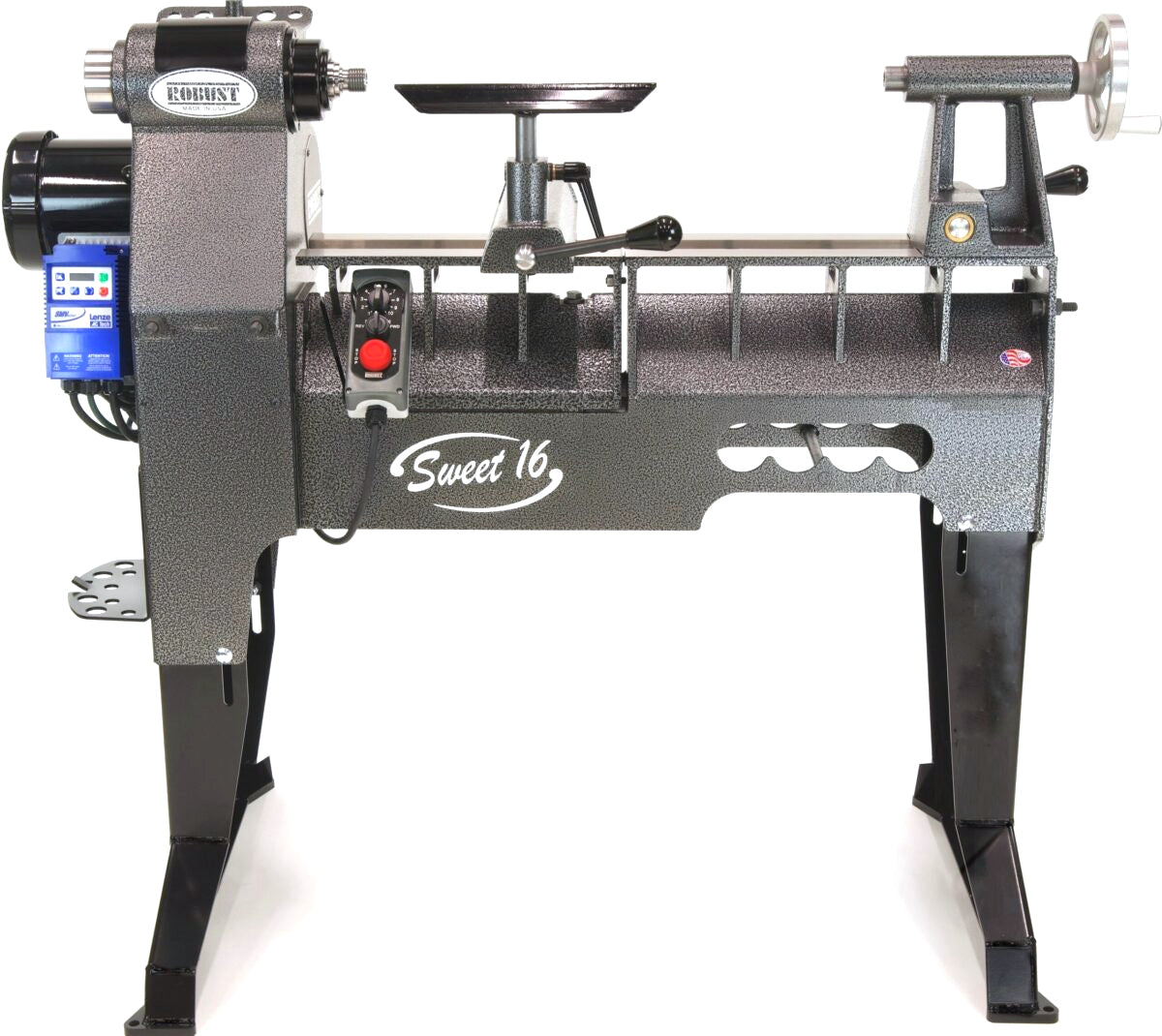

Sweet 16 - "Compact Capacity"

It’s not easy to improve something as good as our Sweet 16 lathe, but we listened and made a few changes we think you’ll like. We’ve added digital readout and moved the bolts that attach the gap section to a more convenient spot on top. Our improved caster design keeps the casters on the lathe and engage with a flip of a lever.  Learn more by reading below and clicking on the tabs above.

Instructions

Instructions Page



View full details
1 15
View all

Robust Tools

Our goal is to bring you the finest in woodturning lathes and accessories. We pride ourselves in listening to you, our customers and non-customers, and incorporating the very best of your ideas into our product line.

We recognize that when you buy Robust lathe, you buy the lathe of a lifetime, and we pledge to do our best to make that dream come true. Lathes are made to order, and you can expect a lead time of 6-12 weeks. Please call or email for a more accurate time frame. Lathes can be purchased direct from us or from one of our woodturning professionals, all of whom are committed to woodturning, just like you.
