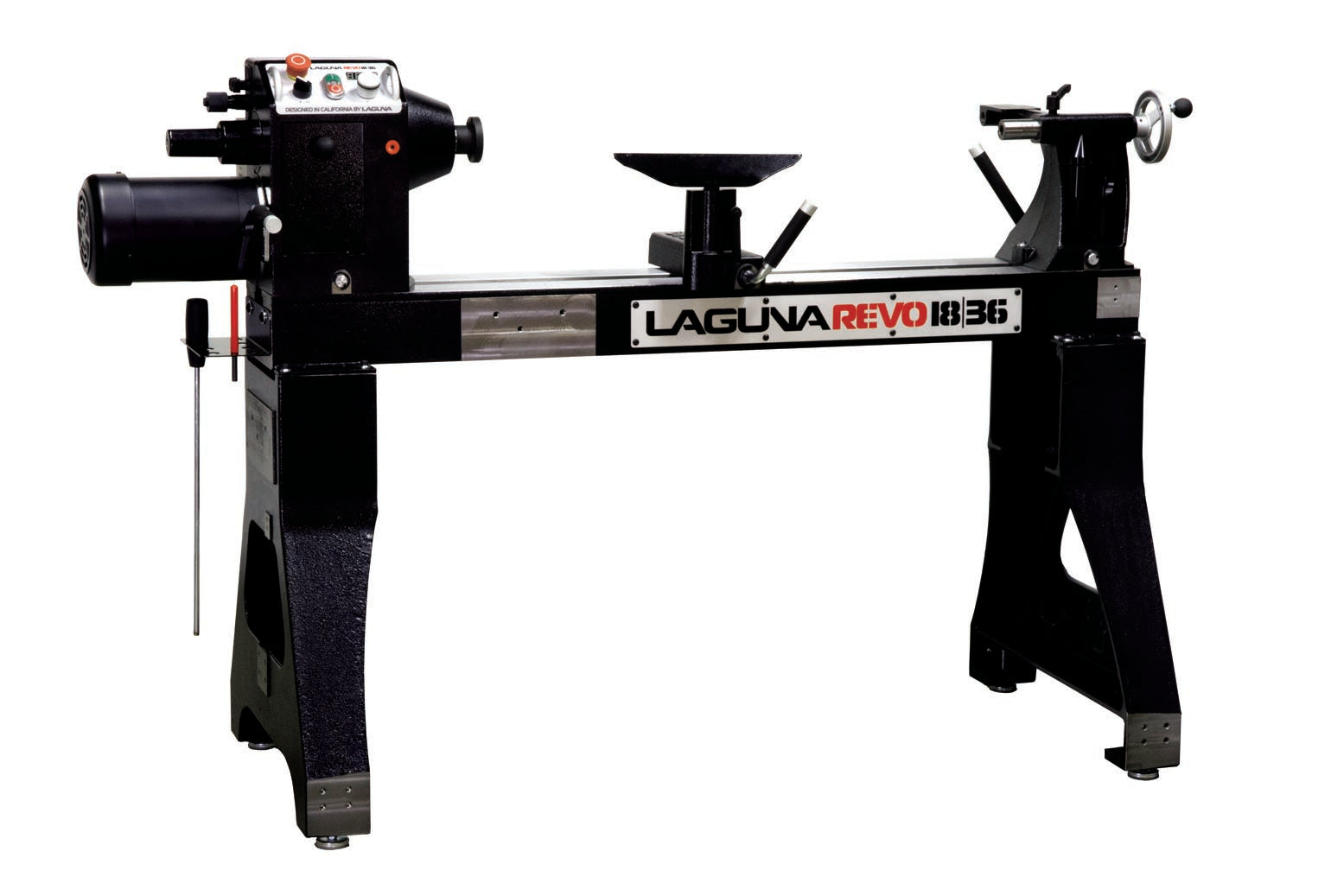

Laguna Revo 1836 Lathe

  • Sale
  • Regular price $2,999.99

*Drop ship based on Laguna stock - please contact us for availability*

The 18|36 Lathe features a brand new design & details that will excite any serious bowl turner!

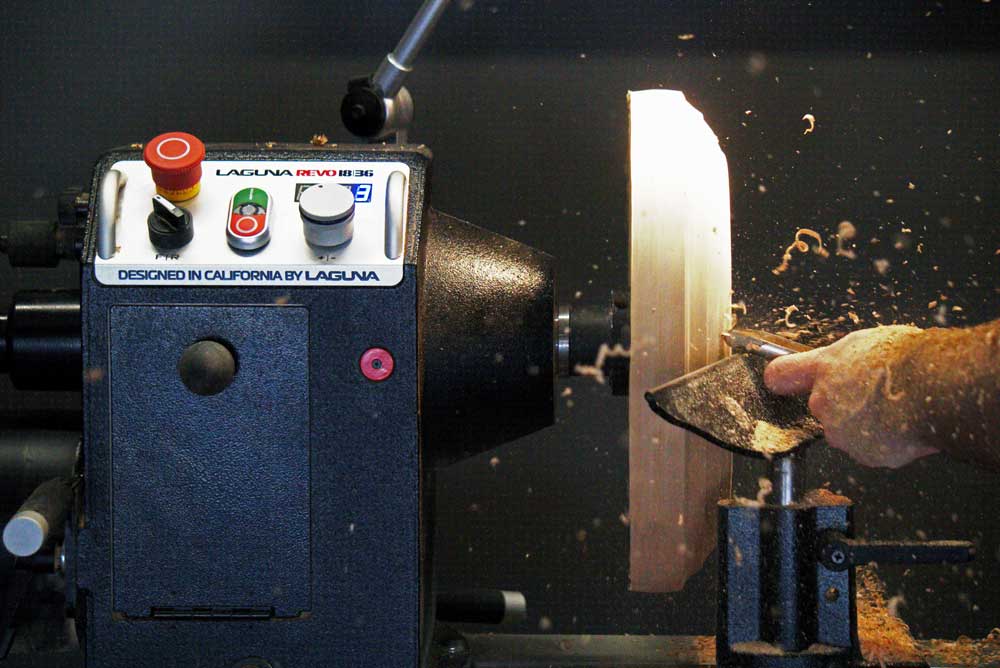

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.

The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength.

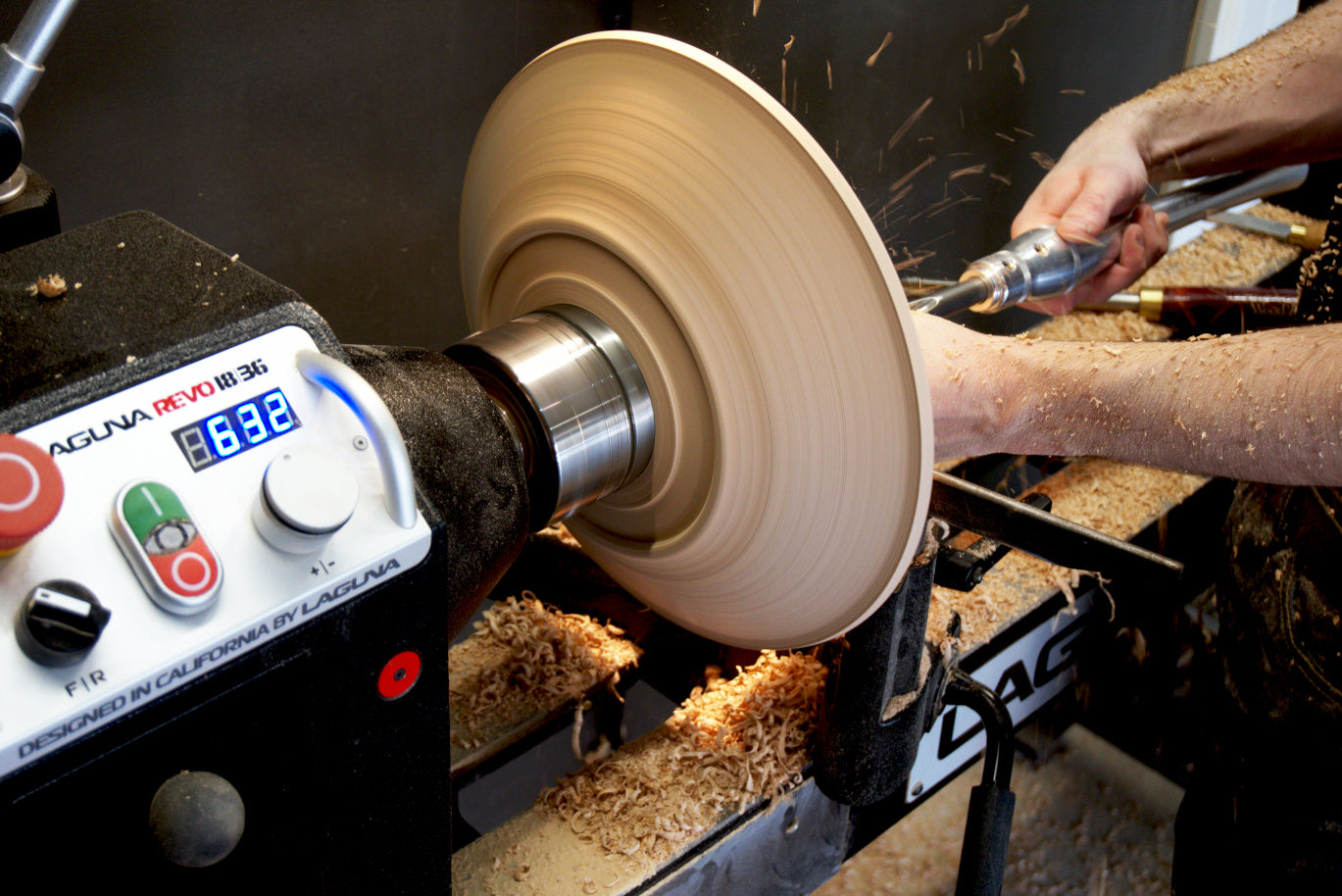

Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.

The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work
flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Electrical: Choose from  1.5HP, 110 Volt, 60 hz or 2HP, 220 Volt, 60 hz
Motor: Induction, 1725 RPM, TEFC
VFD: Delta S1 Variable Frequency Drive
Phase: 1 Phase input, 3 Phase output
Poly-Groove Drive Belt w EZ Access
Recommended Breaker: 20 Amp
Spring Loaded Spindle Lock
Max. Outboard Swing: 32
Swing over Banjo: 13 ½
Steel Bed: ASTM A36
Spindle Taper: MT#2
Swing over Bed: 18
RPM High:135-3500
RPM Low: 50-1300
Tailstock Quill: 4 ½ , Engraved, Self-Ejecting
Floor to Spindle Center: 41 ½ w Pads
Front Bearing: TPI Taiwan 6207LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index #: 14/36/48 w Lock
Distance between Centers: 36
Heads Headstock Through-Bore: 3/8
Headstock Travel: Full Length
Tailstock Through-Bore: 3/8
Tailstock Storage of centers
Spindle Size: 1 ¼ X8 TPI RH
Floor to Bed: 32 ½ w Pads
Floor Space: W 60 D 26 H 47
Weight (Net/Ship): 427/480 Lbs.
