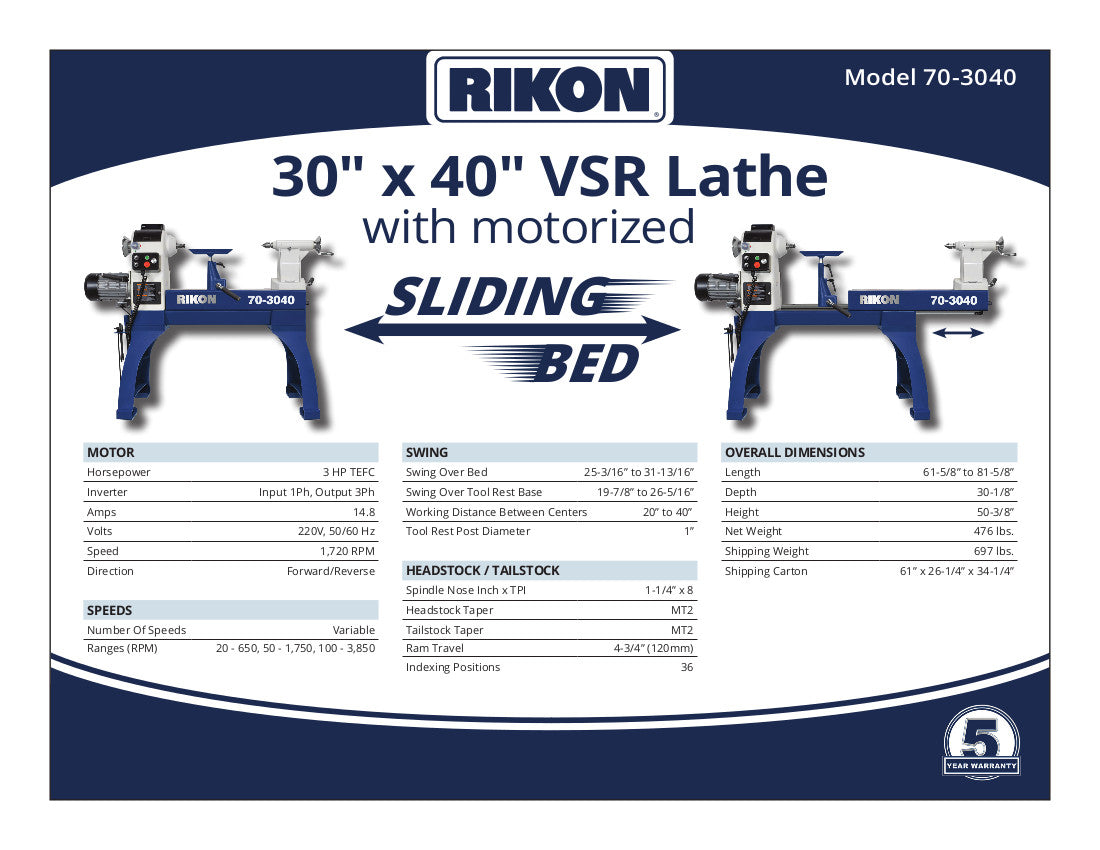

Model 70-3040:
30” x 40” VSR Lathe with Sliding Bed

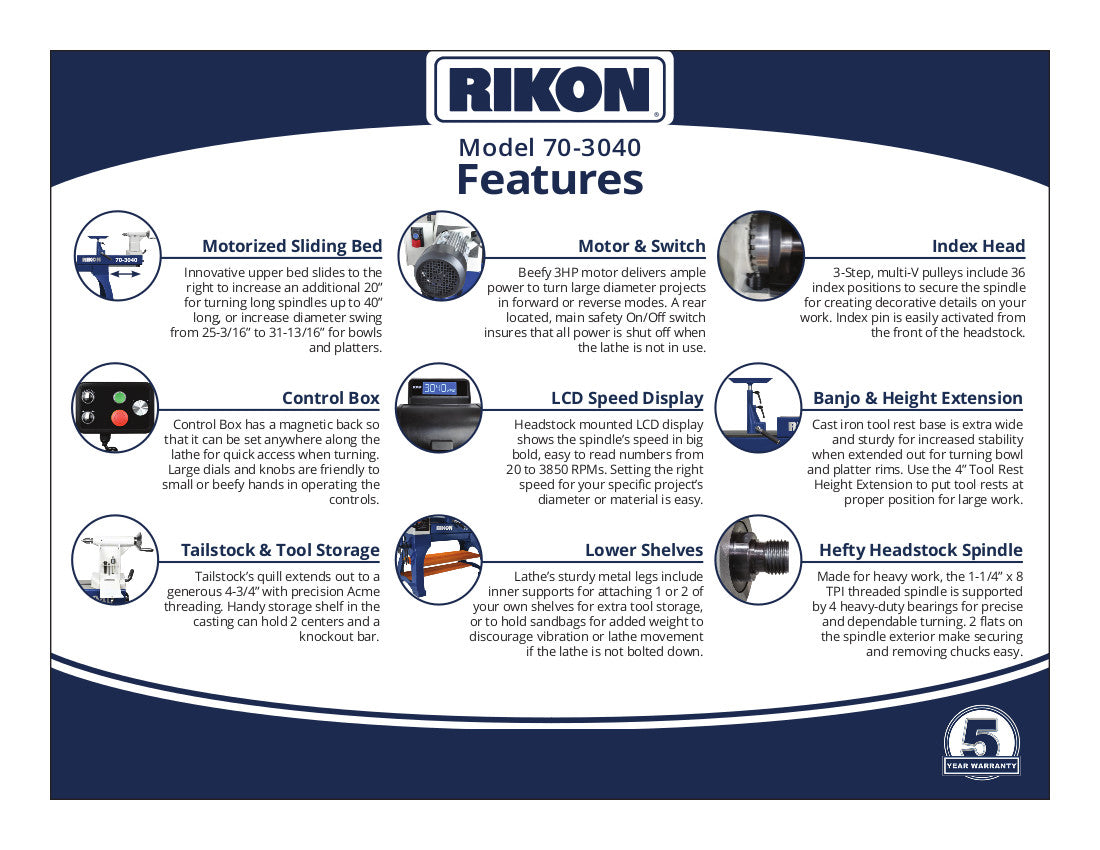

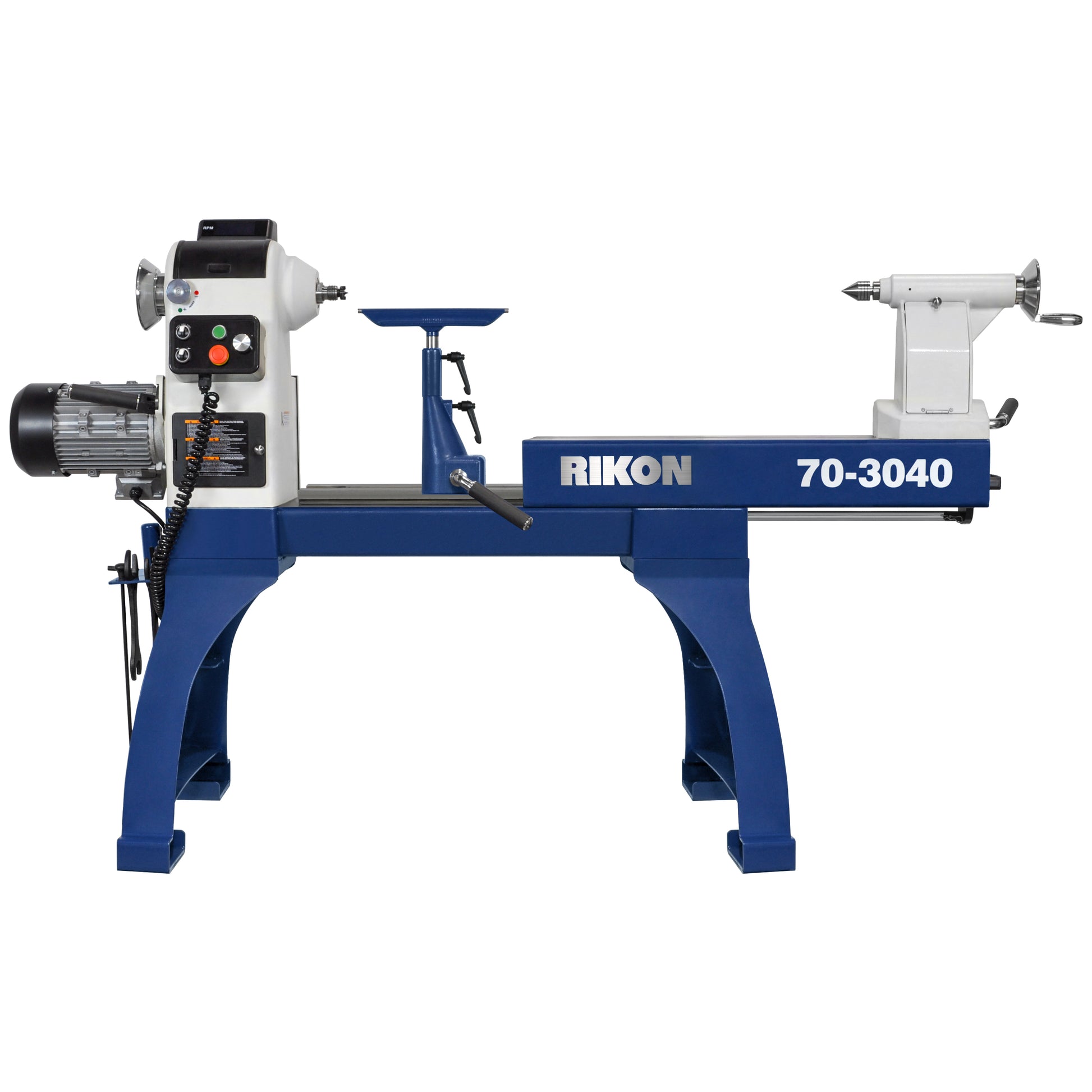

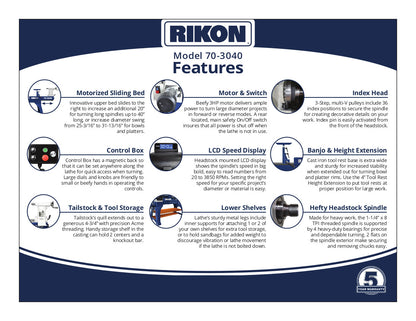

• Motorized Sliding Bed – Increase spindle length 20” up to 40”

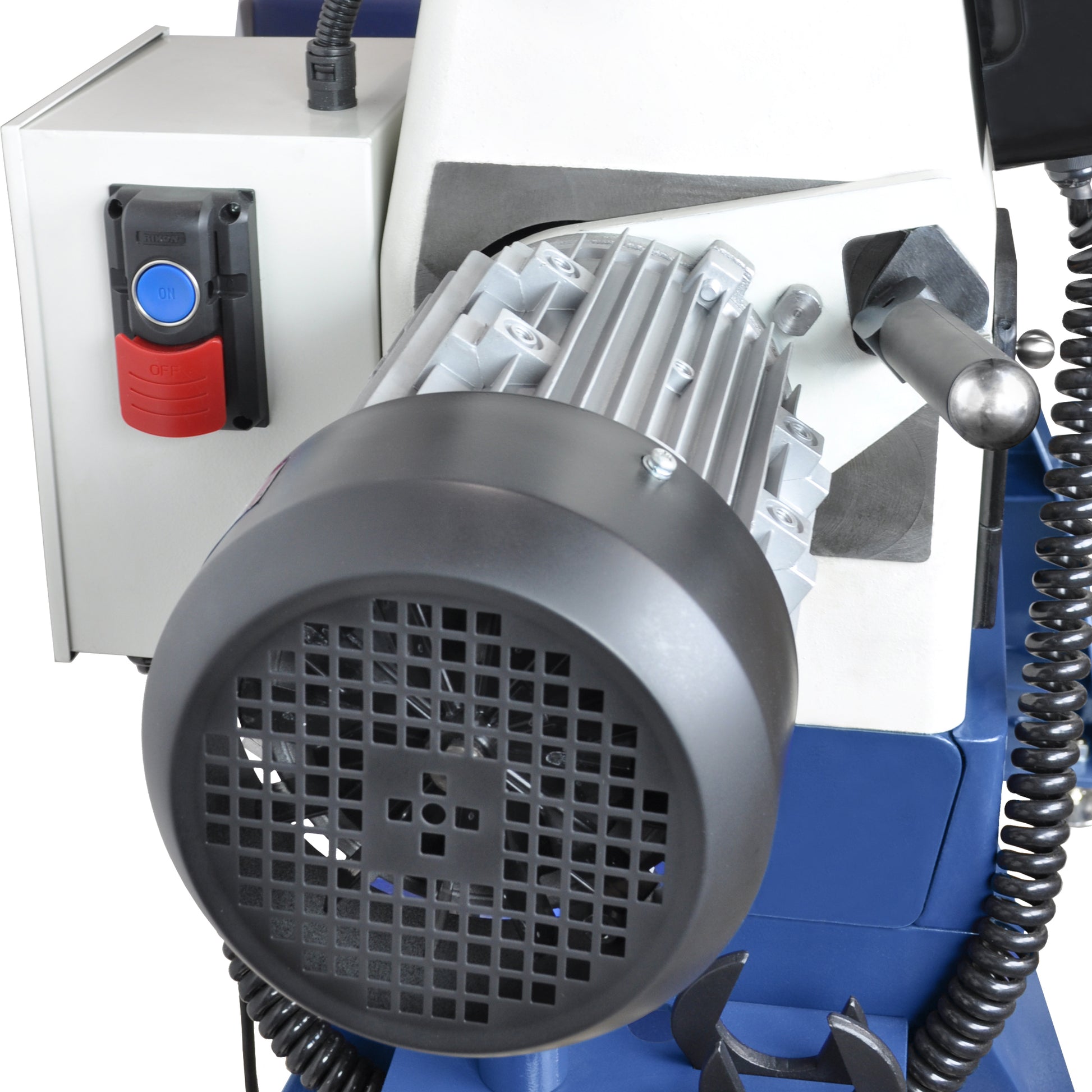

• Motor & Switch – Beefy 3HP motor delivers ample power
• Index Head – 3-Step, multi-V pulleys include 36 index positions

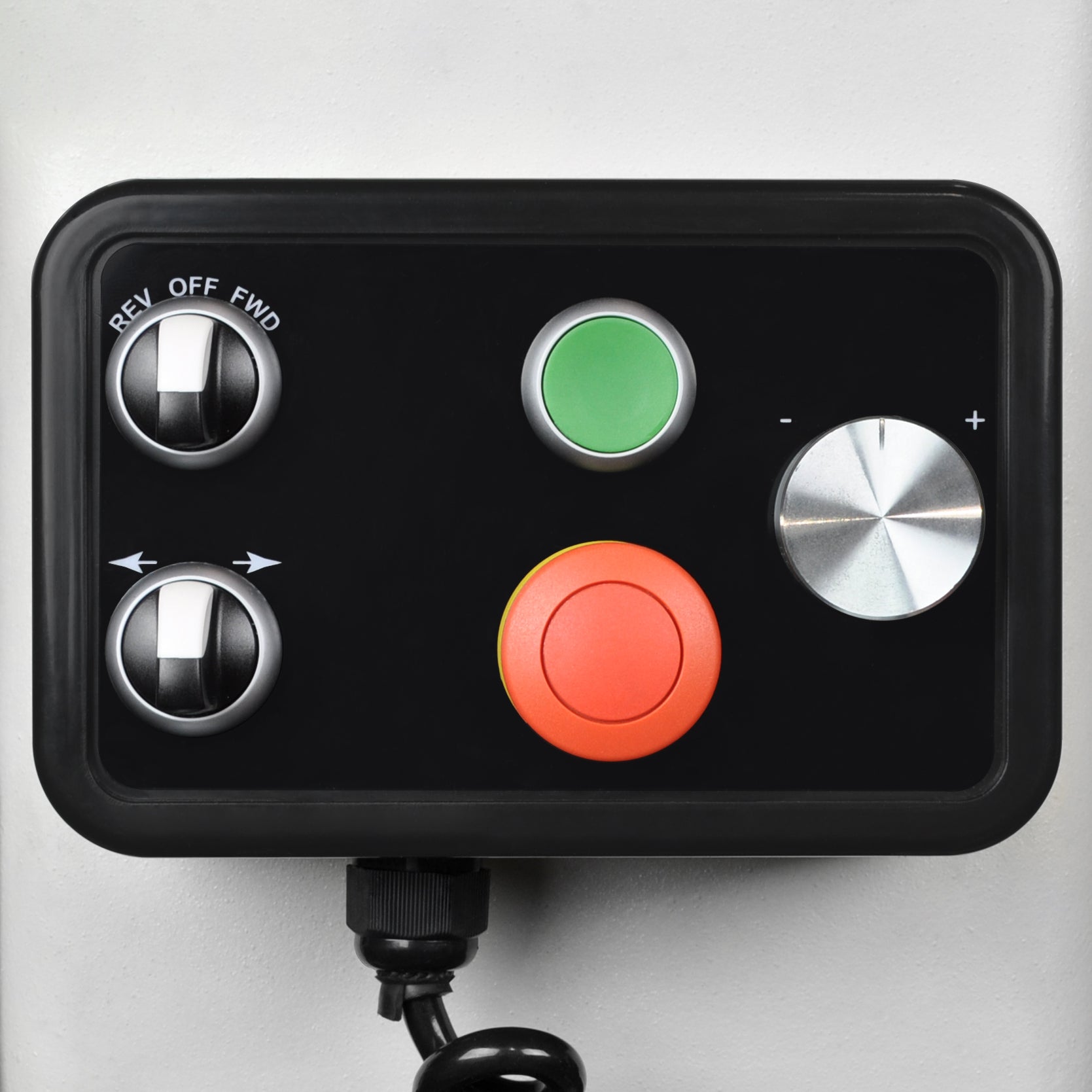

• Control Box – Magnetic back positions controls anywhere on long bed

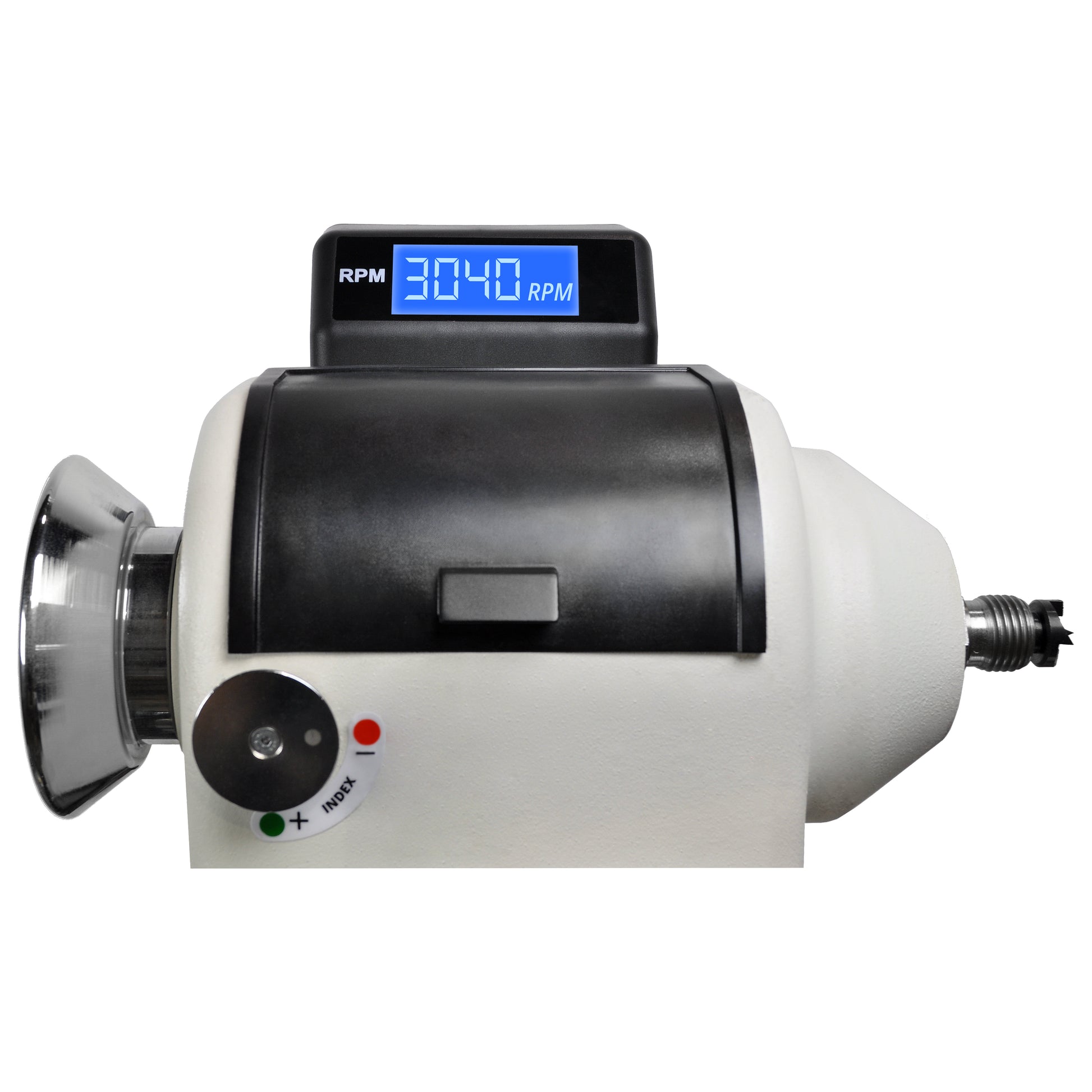

• LCD Speed Display – Big easy-to-read speeds from 20 to 3850 RPMs
• Banjo – Cast iron tool rest base is extra wide and sturdy

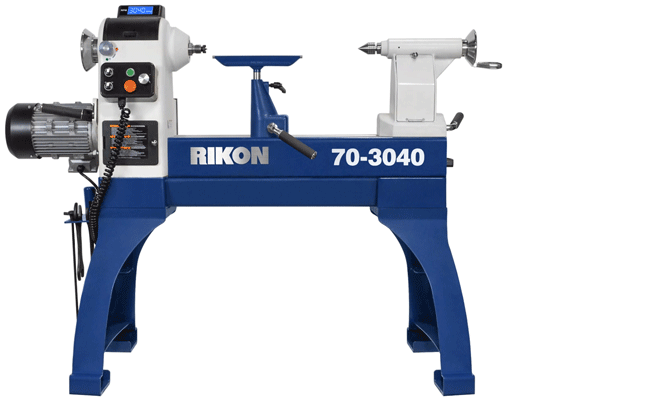

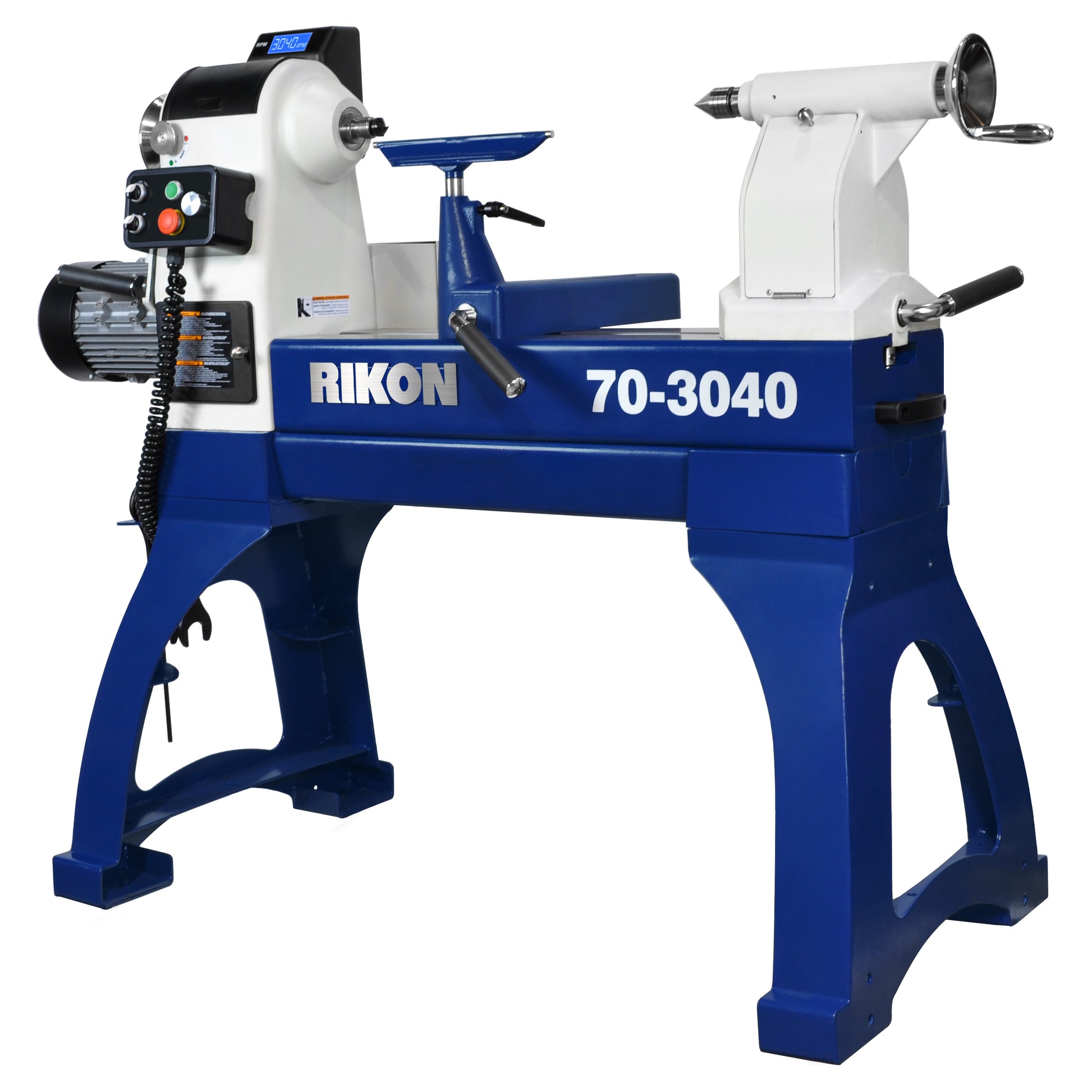

RIKON’s Heavy Duty 70-3040 Variable Speed Lathe features an innovative SLIDING BED that increases your turning capacity with just a turning of a switch! The special motorized upper bed effortlessly moves to the right
away from the headstock to double the standard between-centers distance from 20” to 40”! Moving the sliding bed also increases the swing from 23-7/32” to 31-1/4” over the lower bed! Ideal for turning large bowls or platters. This space-saving lathe is extra heavy-duty, made of solid cast iron and steel construction to provide professional turners with a robust machine that will take the stress when turning large diameter bowls or spindles. The 3HP TEFC, 220V motor combined with 4 heavy-duty bearings in the headstock and digital speed controls provide all the power and precision needed for this versatile lathe.
This Item drop ships please contact us for shipping times.
Motor
| Horsepower | 3 HP TEFC |
| Inverter | Input 1Ph, Output 3Ph |
| Amps | 14.8 |
| Volts | 220V, 50/60 Hz |
| Speed | 1,720 RPM |
| Direction | Forward/Reverse |
Speeds
| Number Of Speeds | Variable |
| Ranges (RPM) | 20 – 650 / 50 – 1,750 / 100 – 3,850 |
Swing
| Swing Over Bed | 23-7/32” to 31-1/4” |
| Swing Over Tool Rest Base | 17-13/32” to 25-7/16” |
| Working Distance Between Centers | 20” to 40” |
| Tool Rest Post Diameter | 1” |
Headstock / Tailstock
| Spindle Nose Inch x TPI | 1-1/4” x 8 |
| Headstock Taper | MT2 |

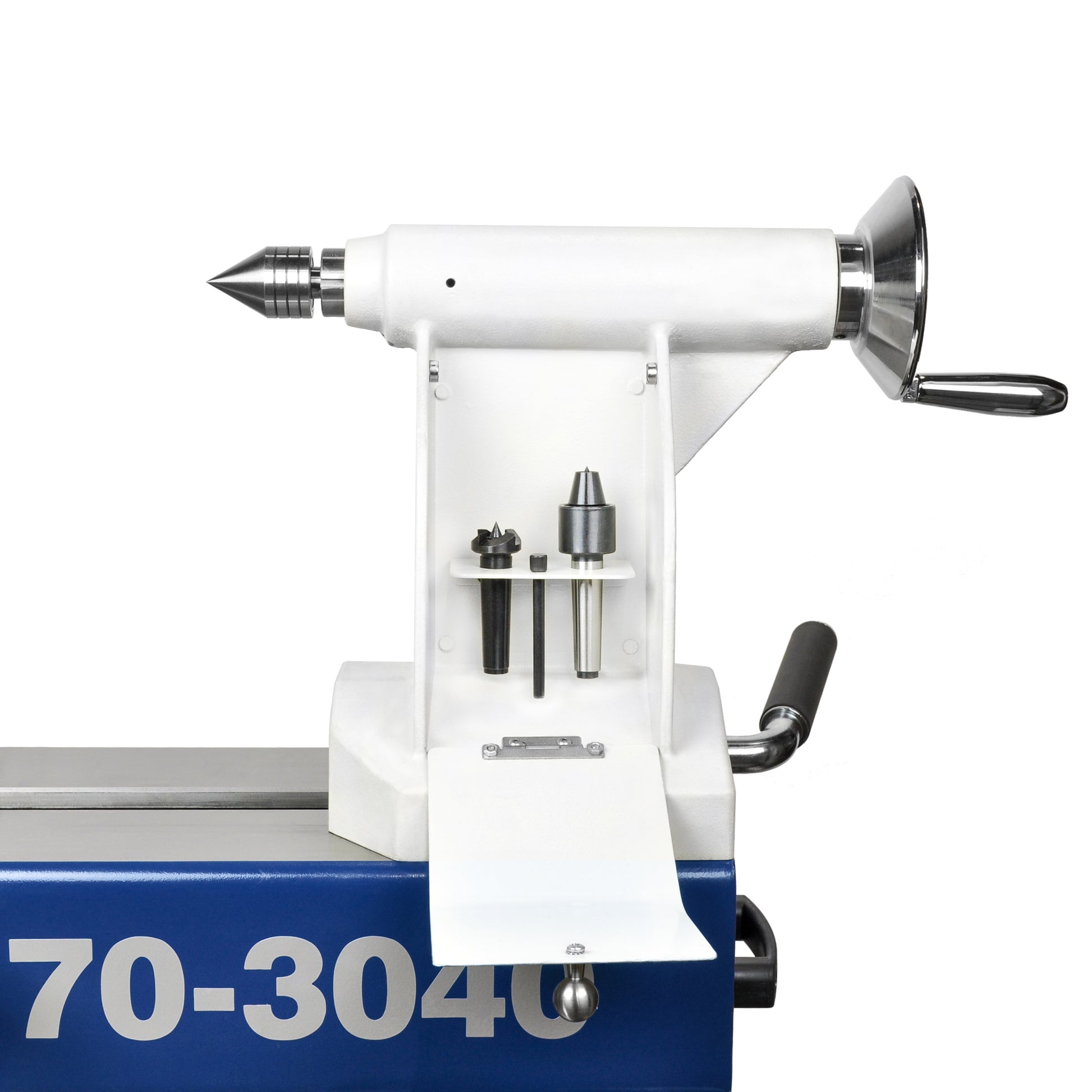

| Tailstock Taper | MT2 |
| Ram Travel | 4-11/16” (120mm) |
| Indexing Positions | 36 |
Overall Dimensions
| Length | 61-5/8” to 81-5/8” |
| Depth | 30-1/8” |
| Height | 50-3/8” |
| Net Weight | 546 lbs. |
| Shipping Weight | 665 lbs. |
| Shipping Carton | 61-3/4” x 26-5/16” x 34-1/4” |
| Warranty | 5 Years |
