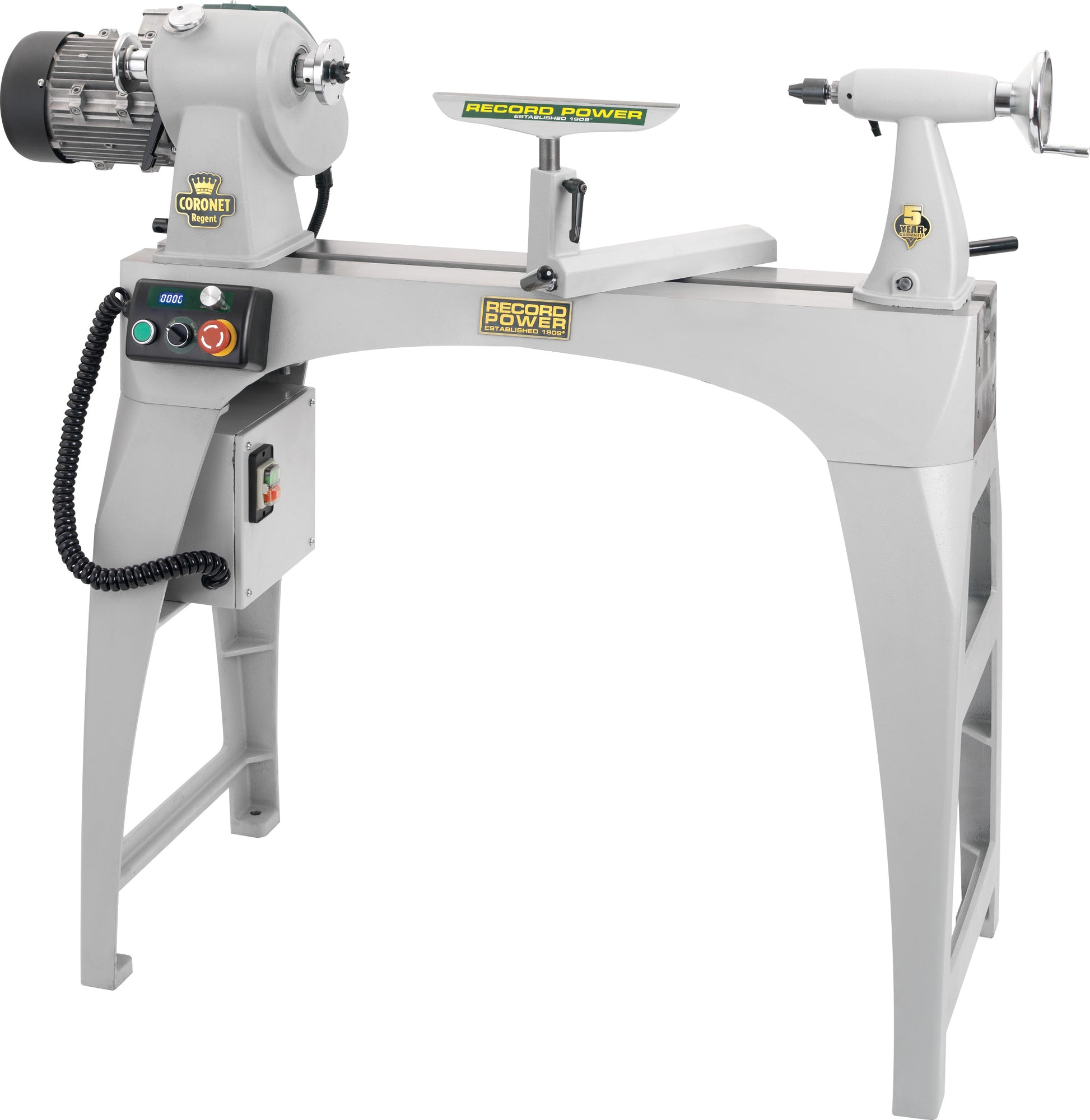

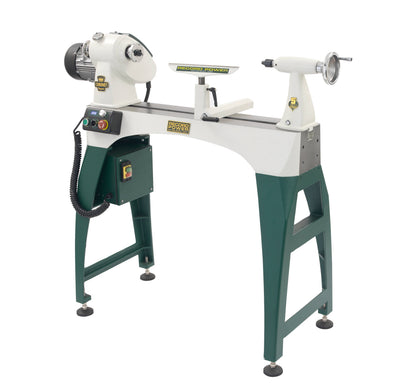

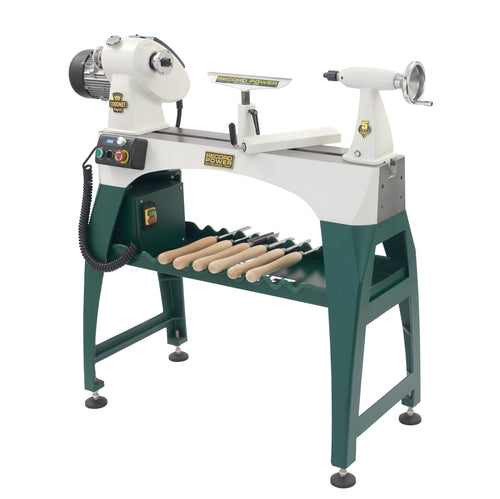

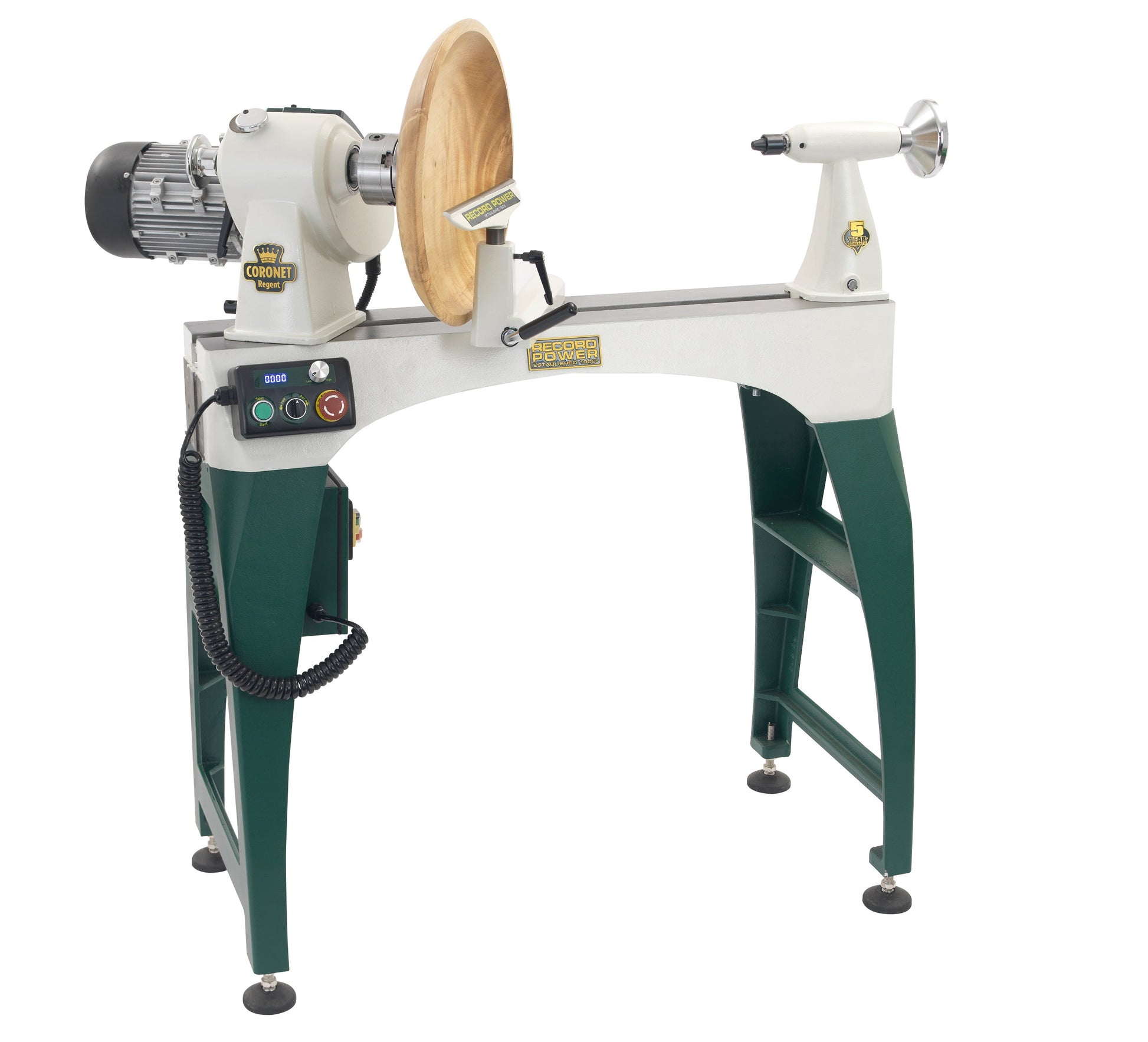

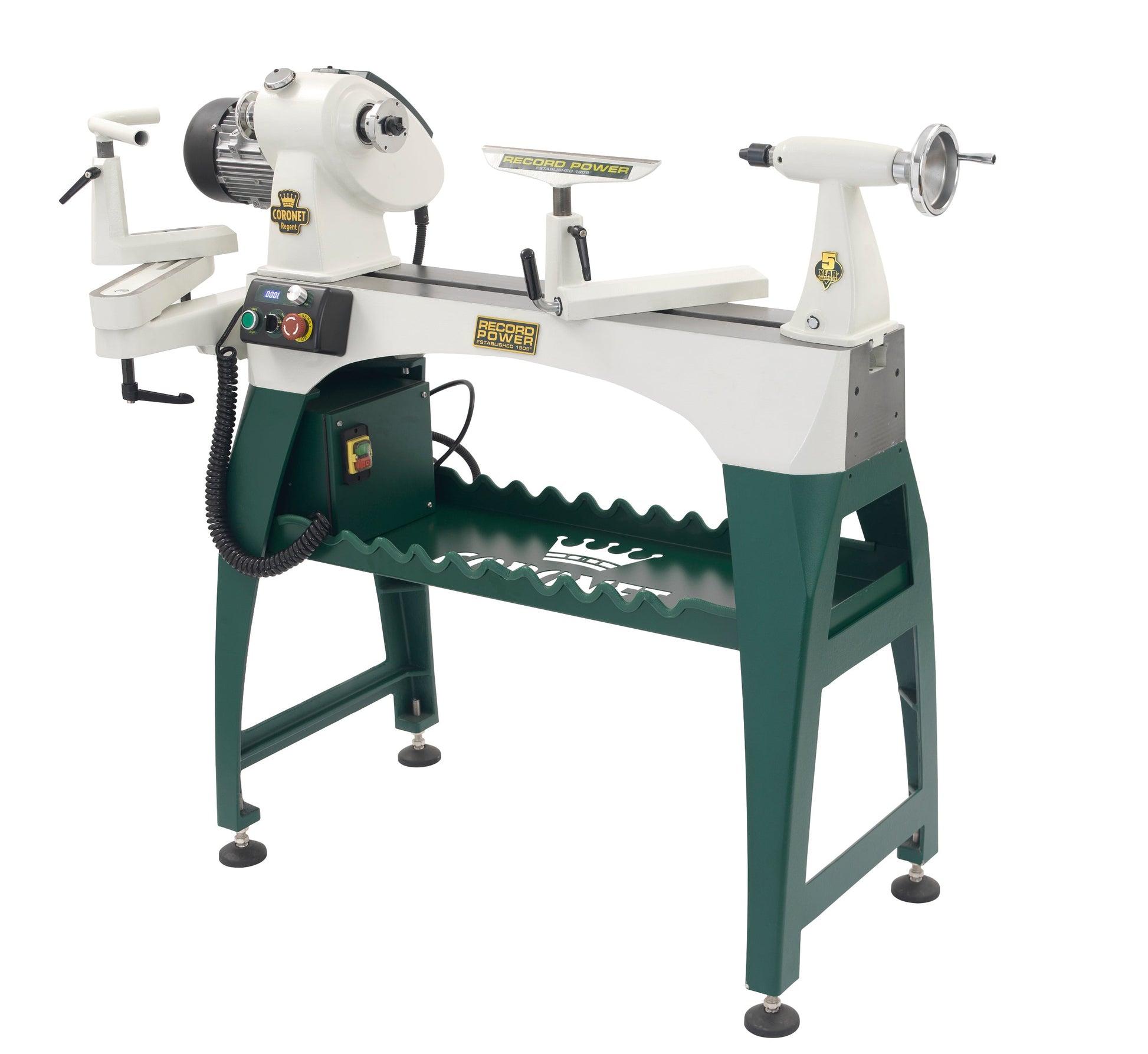

Record Power Coronet Regent 18" x 24" Swivel Head Lathe
The Regent is the largest lathe in the exclusive range of Coronet lathes from Record Power and is ideal for the woodturner who regularly needs the power, stability and capacities necessary for very large scale work. It is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers. The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use.

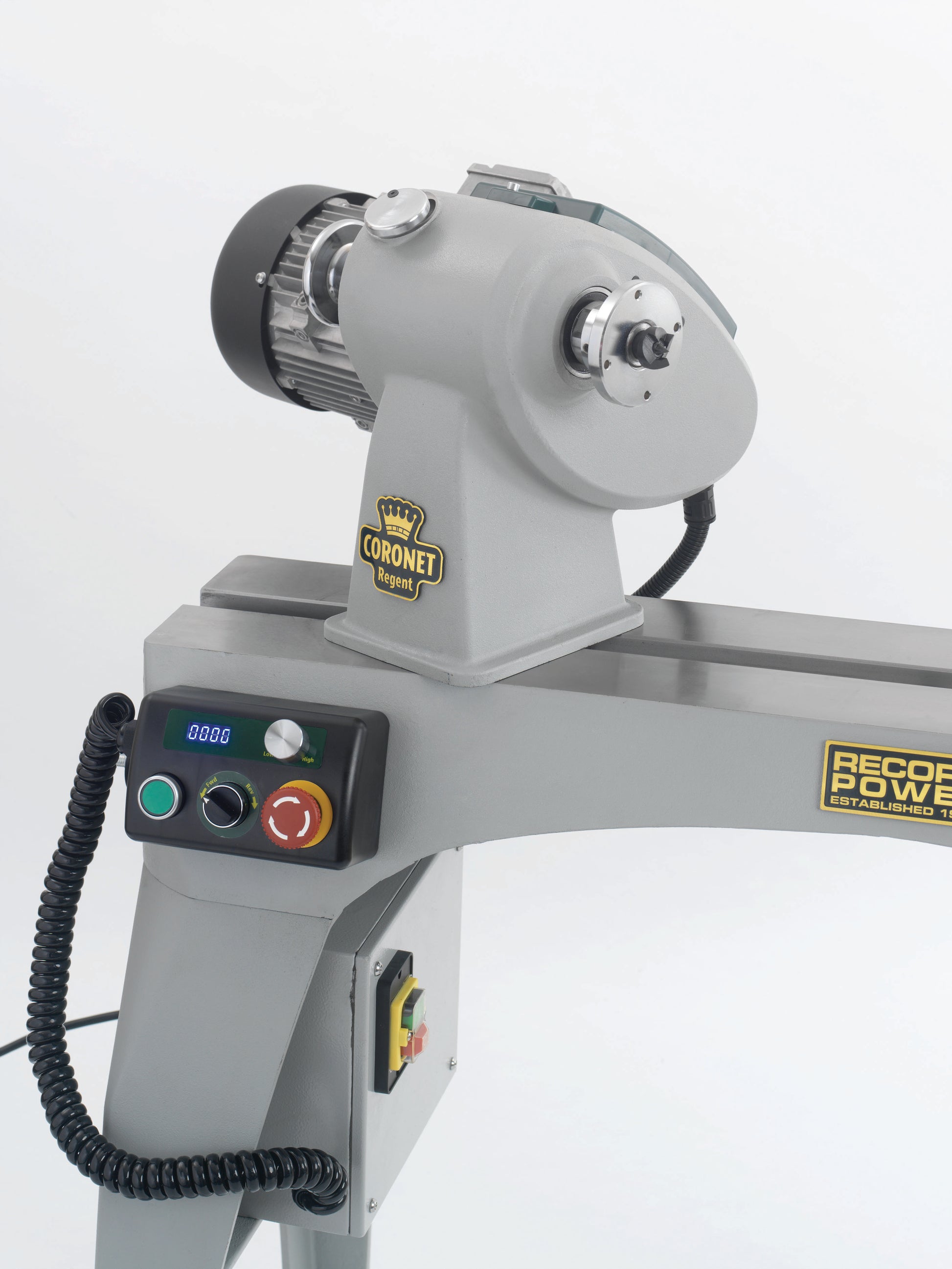

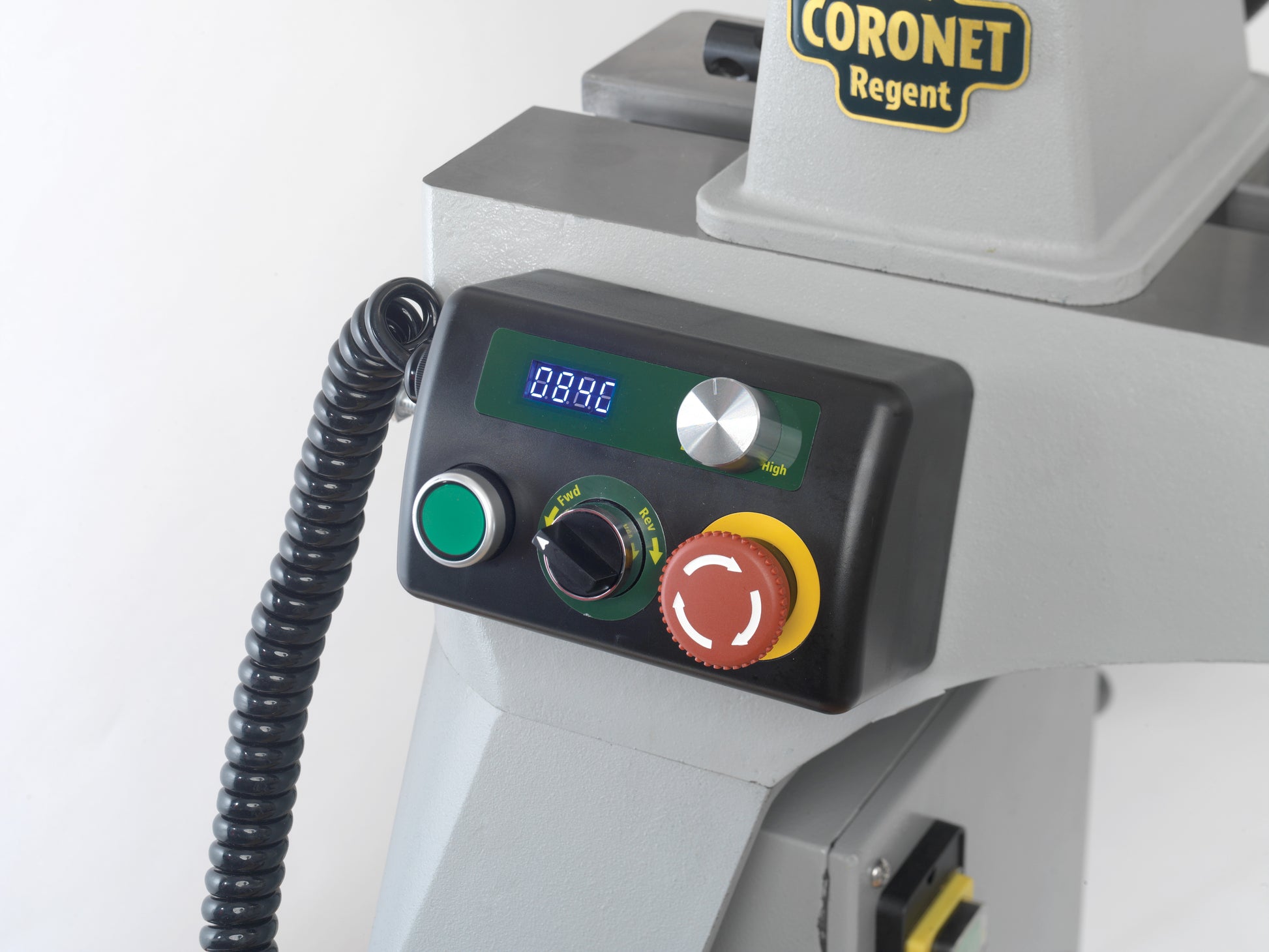

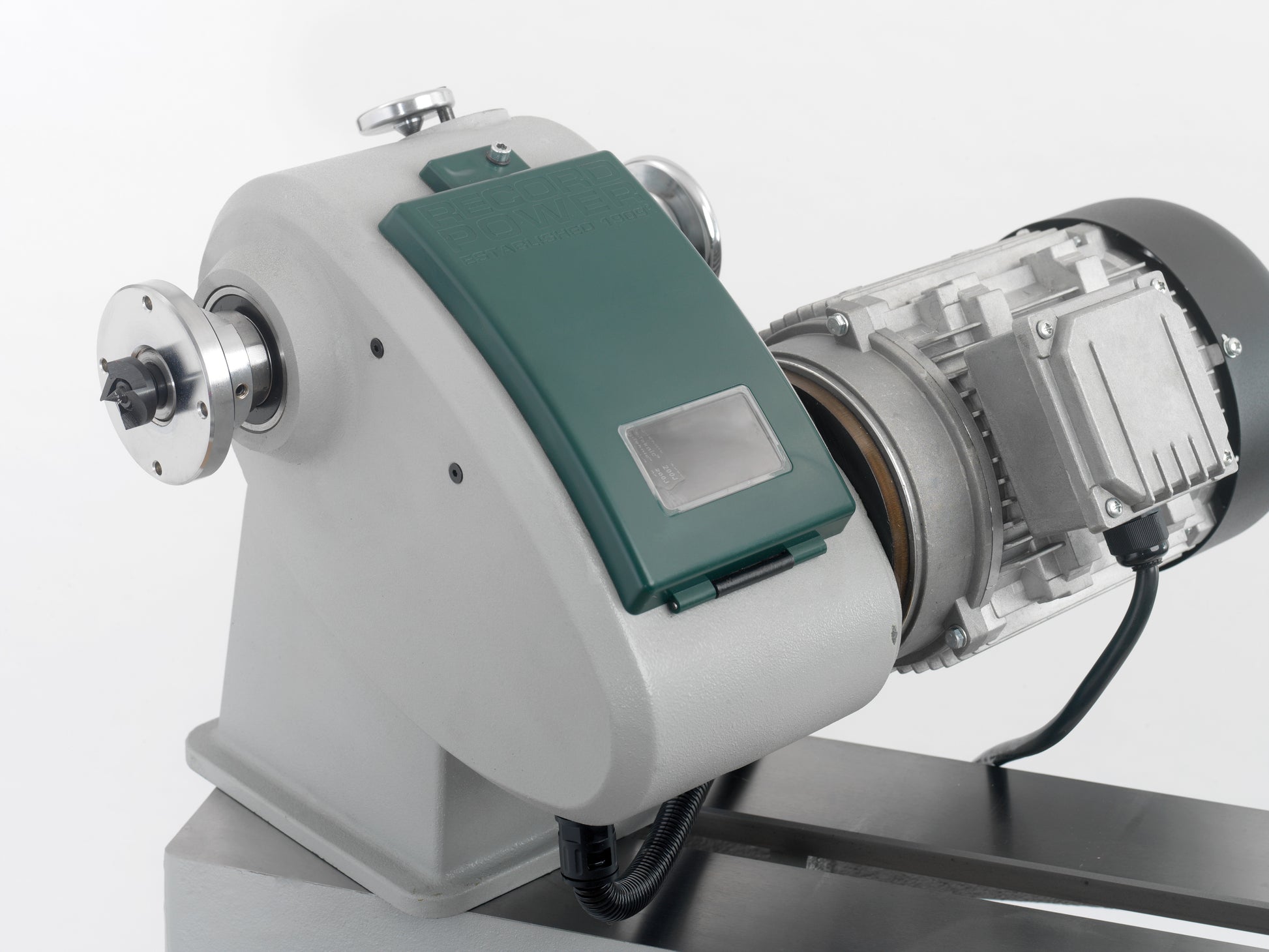

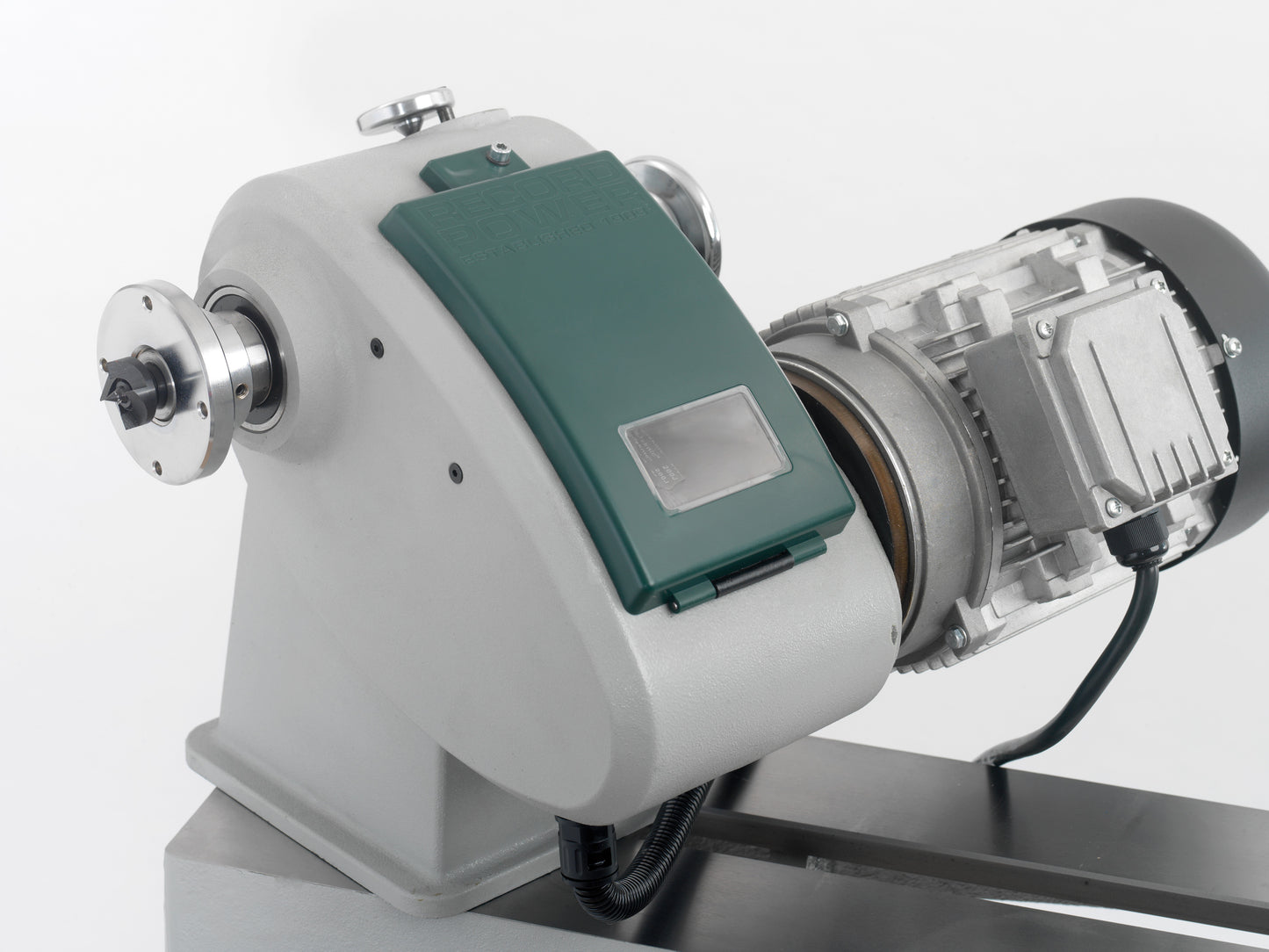

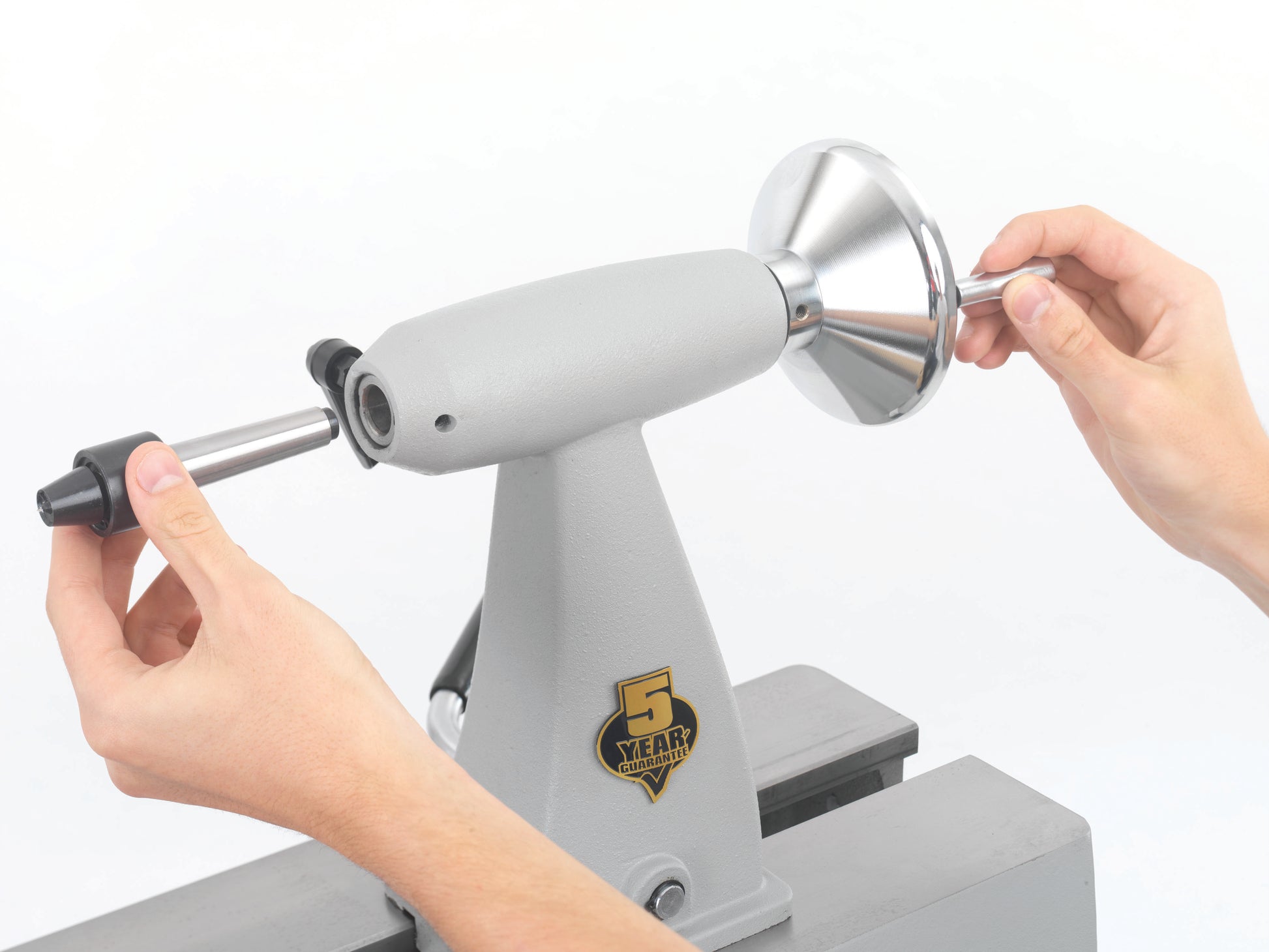

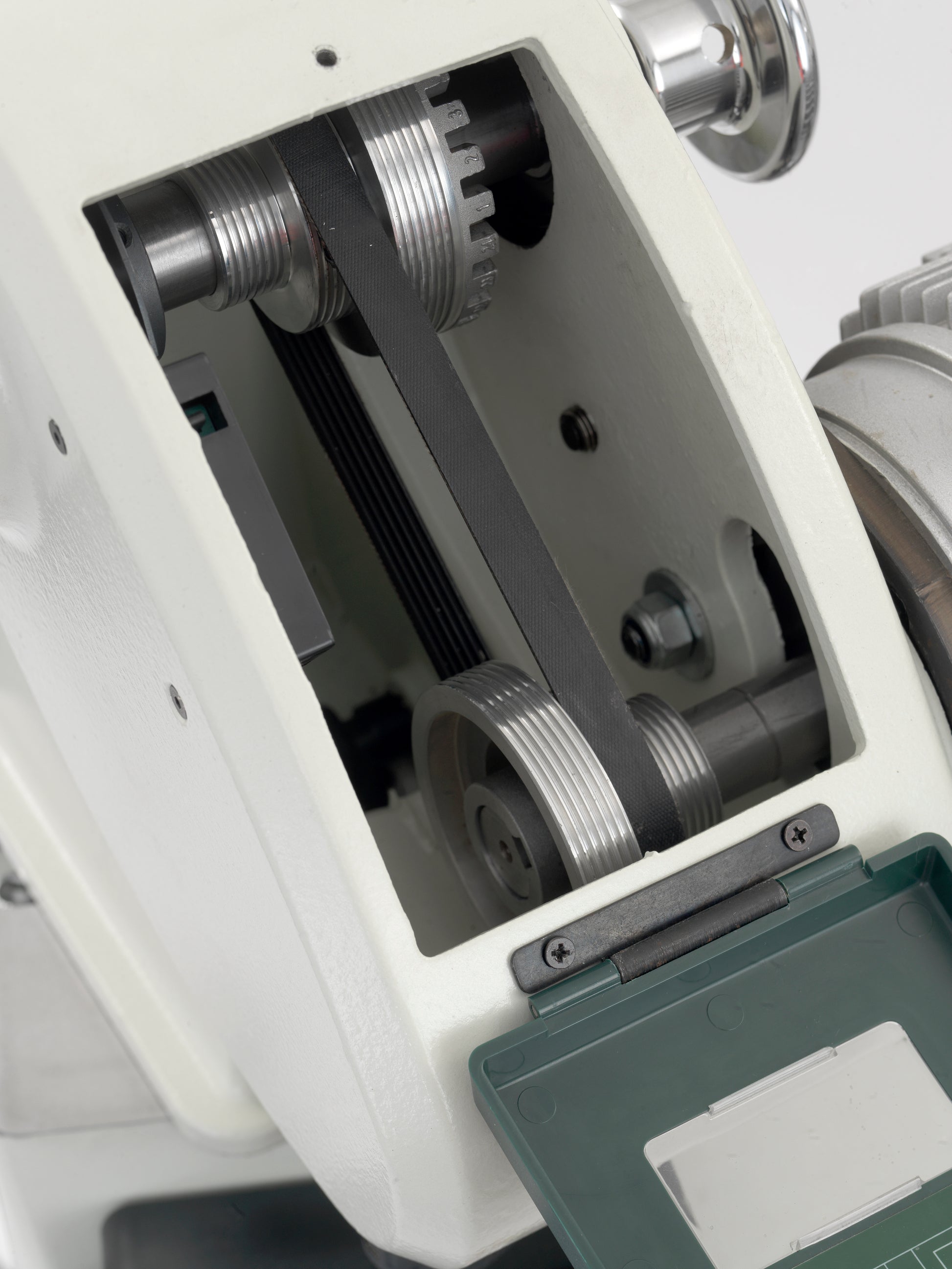

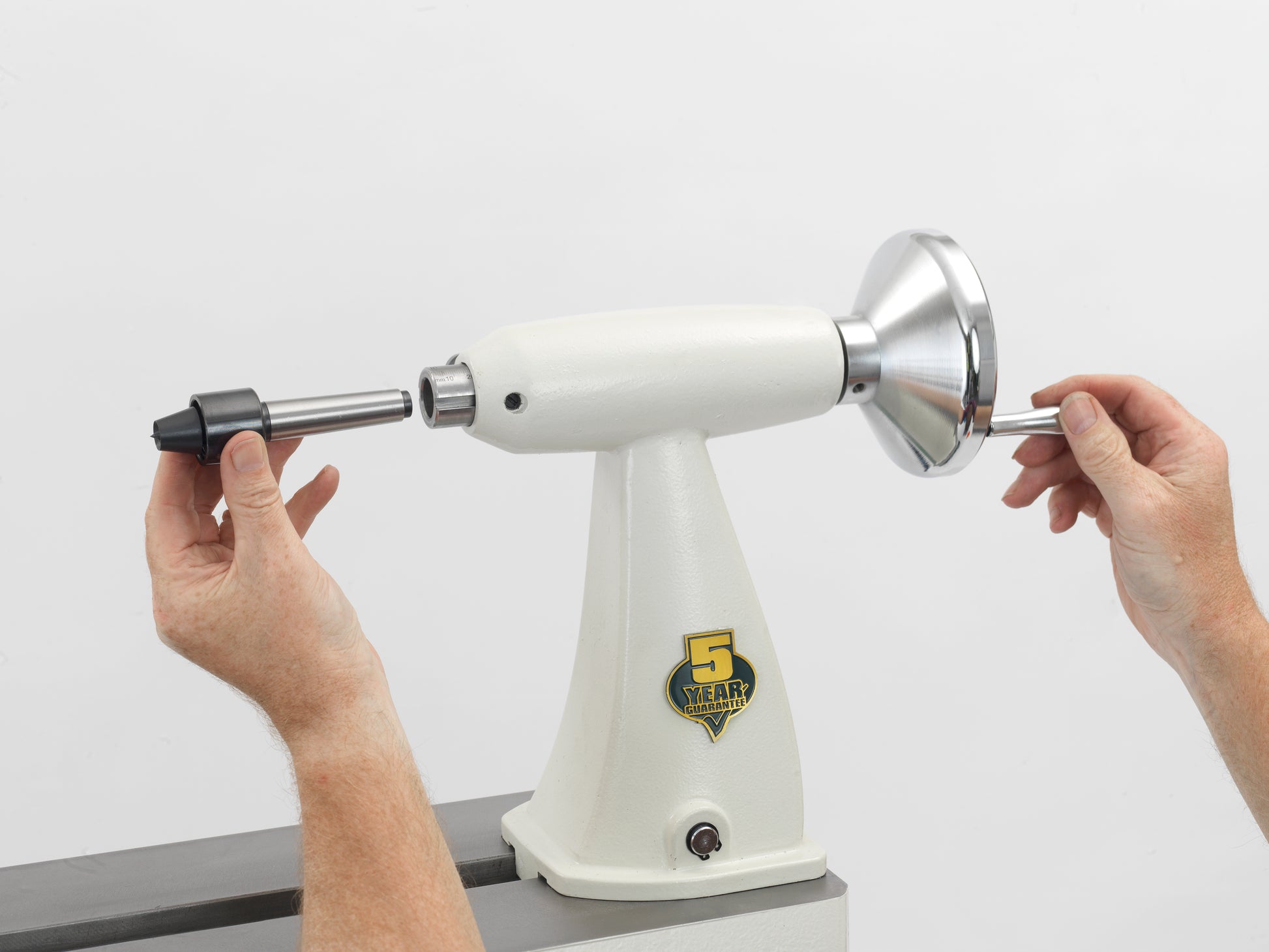

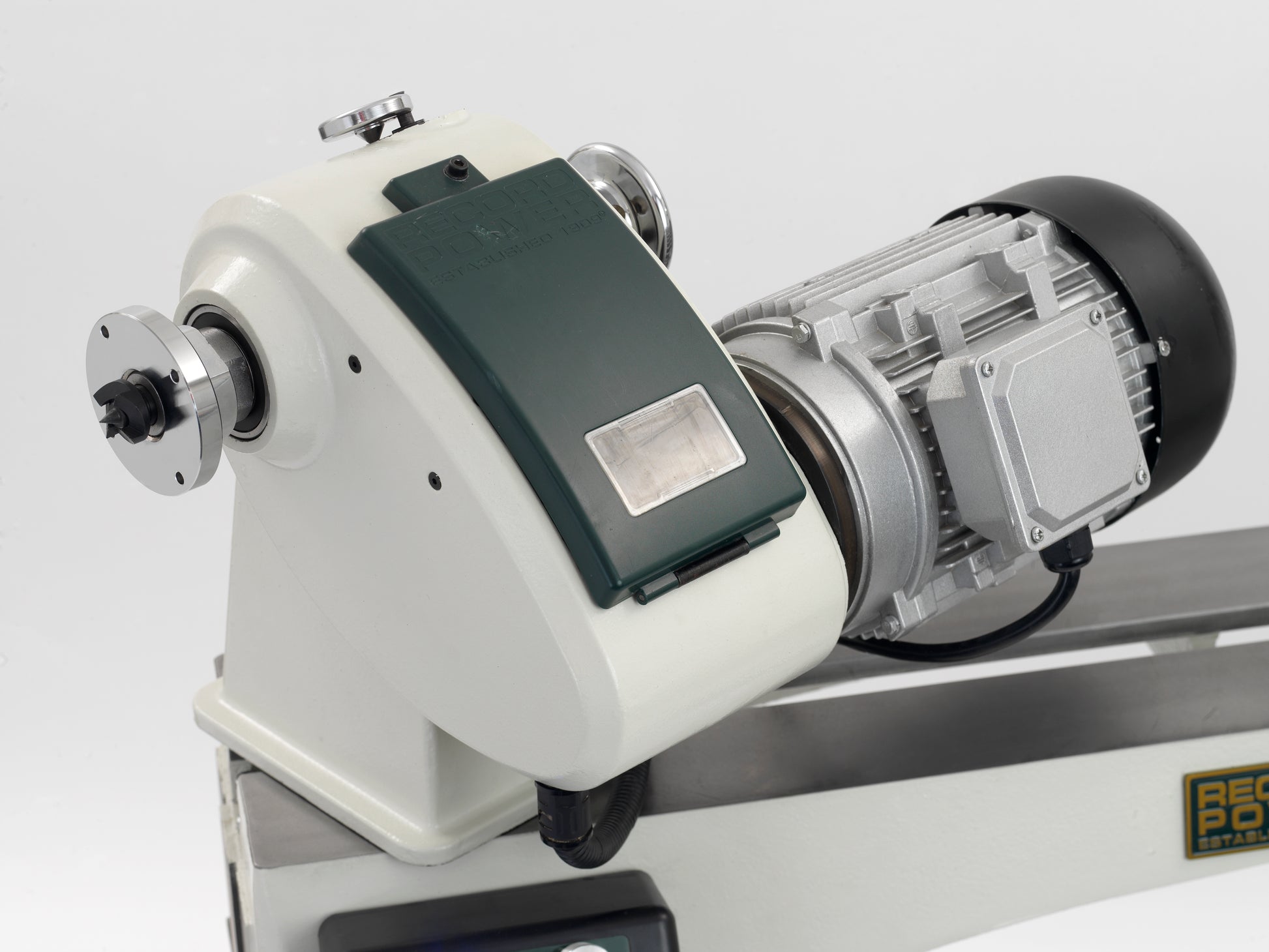

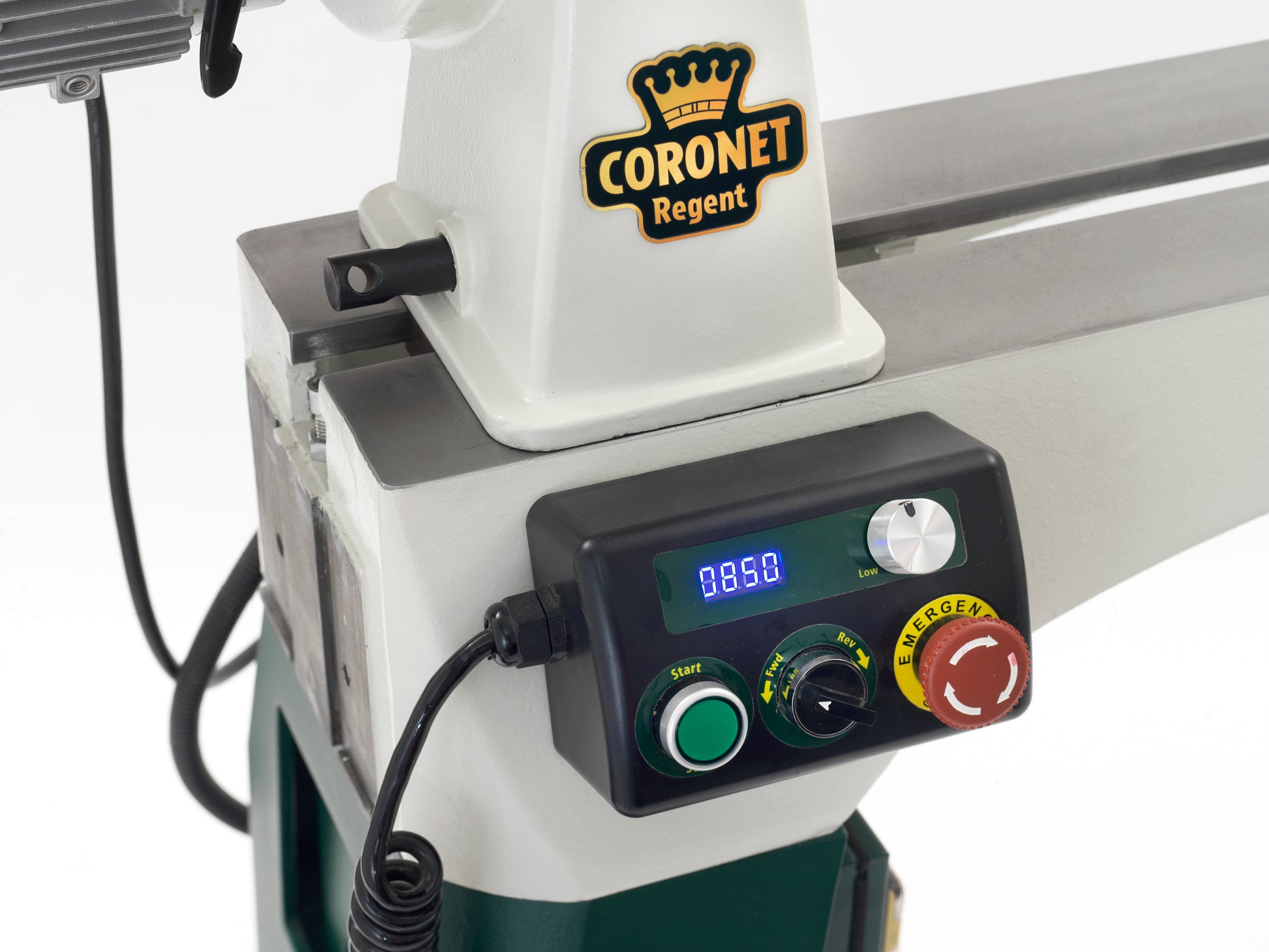

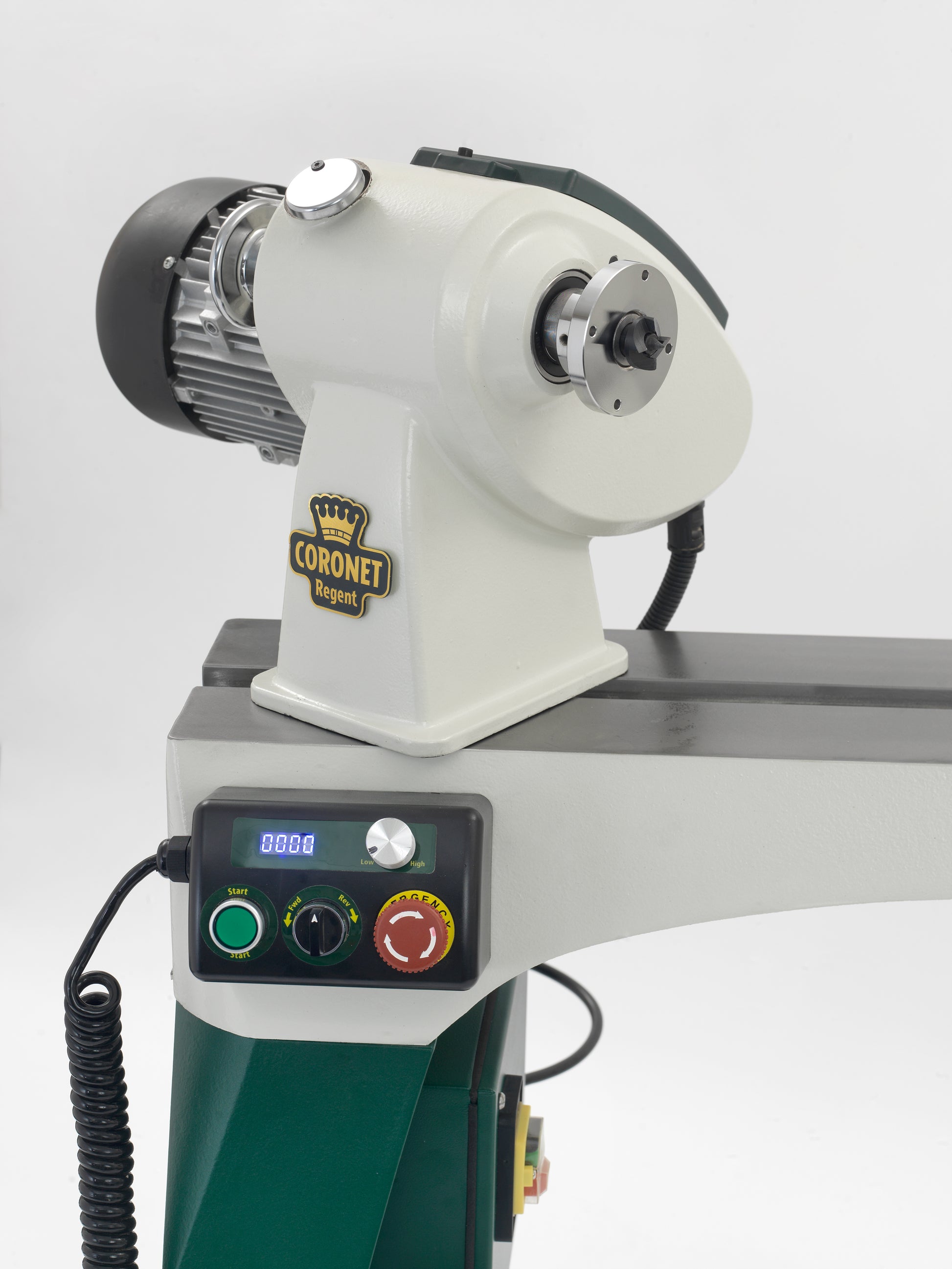

The Regent offers unrivaled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes. Rotating and Sliding Headstock Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimizing access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required. Self-Ejecting Tailstock The self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity. Re-position-able Control Panel The control panel of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes. 3-Step Pulley A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.
Motor Horsepower 1.5kW Output(2.0kW Imput) (2HP at the spindle) Amps 6A Volts 230V/50Hz
Capacity Swing over bed 460mm (18")
Swing over tool rest base 370mm (14.5")
Working distance between centers 610mm (24")
Outboard Turning Capacity 1000mm (39")
Speed Range 250-3800RPM Headstock/Tailstock
Spindle 1 1/4" 8TPI Headstock taper MT2 Tailstock taper MT2
Ram Travel 90mm (3.5") Ram Travel Scale
Package Size 1340X520X1220mm (53"x20"x48")
Weight 145/170kg (320lbs/375lbs)
Toolrest 305mm / 12"
Cast iron Lathe Stand Legs
Shipping in the lower 48 states only.
