Rikon 70-150VSR Variable Speed Mini Lathe

Rikon 70-150VSR Variable Speed Mini Lathe

Product Specs

  • Horsepower: 1HP
  • Amps: 6A, 60Hz
  • Volts: 115V
  • RPM: 3200
  • Number of Speeds: 3
  • Speed Ranges: 250-850 / 430-1,450 / 950-3,200 RPM
  • Swing Over Bed: 12"
  • Swing Over Tool Rest: 9.25"
  • Working Distance between centers: 16.5"
  • TPI: 1" x 8 TPI
  • Morse Taper: MT2

Description

  • Made from substantial iron castings, it weighs 95 lb, giving it the mass needed to dampen vibration, yet it’s easy to move around the workshop
  • It has impressive stock-holding capacity, both in swing (12") and distance between centers (16 1/2"); for larger work, it permits outboard turning, and can be used with an optional bed extension, sold separately.

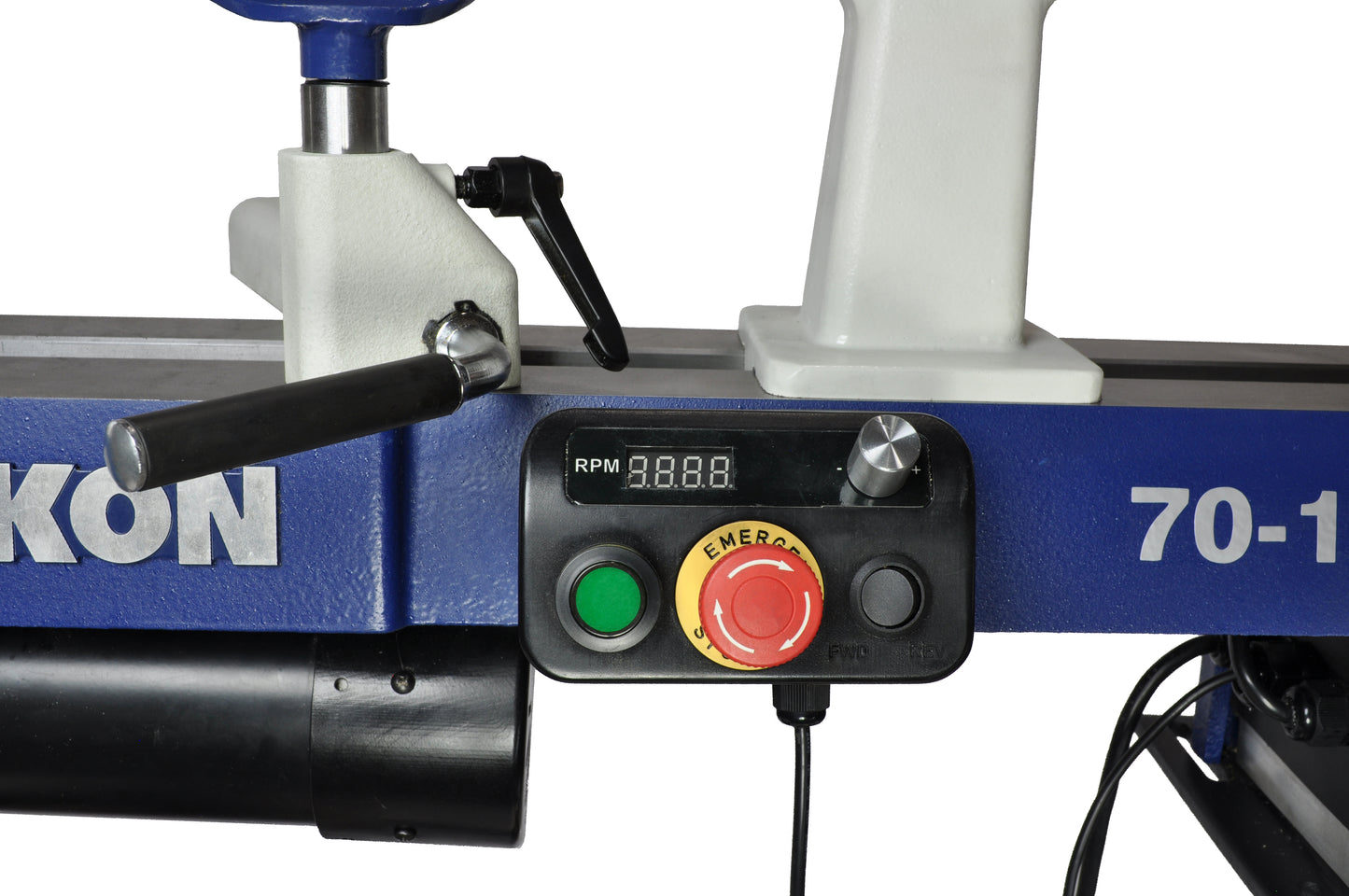

  • Digital controller makes setting spindle speed quick and convenient – just select a range (250 to 850 rpm, 430 to 1450 rpm or 950 to 3200 rpm) by moving the drive belt between pulleys, then turn a knob to dial in a precise speed within that range, shown on an LCD screen.
  • The control box has a magnetic back so you can mount it anywhere on the lathe bed for easy access without obstructing your work.
  • Fitted with a graduated indexing head for locking the spindle at 15° increments, the lathe uses a 1" × 8 tpi spindle and a #2MT headstock and tailstock for compatibility with a wide range of standard accessories.
  • It comes with a spur center, a live center, a 3" faceplate, a 6" tool rest with a 1" diameter post, a knock-out bar, wrenches, hex keys and a tool holder.
  • Stand Optional not included with lathe.
  • *Drop ship based on Rikon stock, please contact us for availability
$740.97 USD
$899.99 USD $740.97 USD
Sale Sold Out

With a sturdy iron casting and a weight of 95 lbs, the Rikon 70-150VSR Mini Lathe is able to reduce vibration while remaining portable for easy maneuvering in your workshop. Perfect for any woodworking project, this lathe offers both stability and mobility.

*Drop ship based on Rikon stock, please contact us for availability
