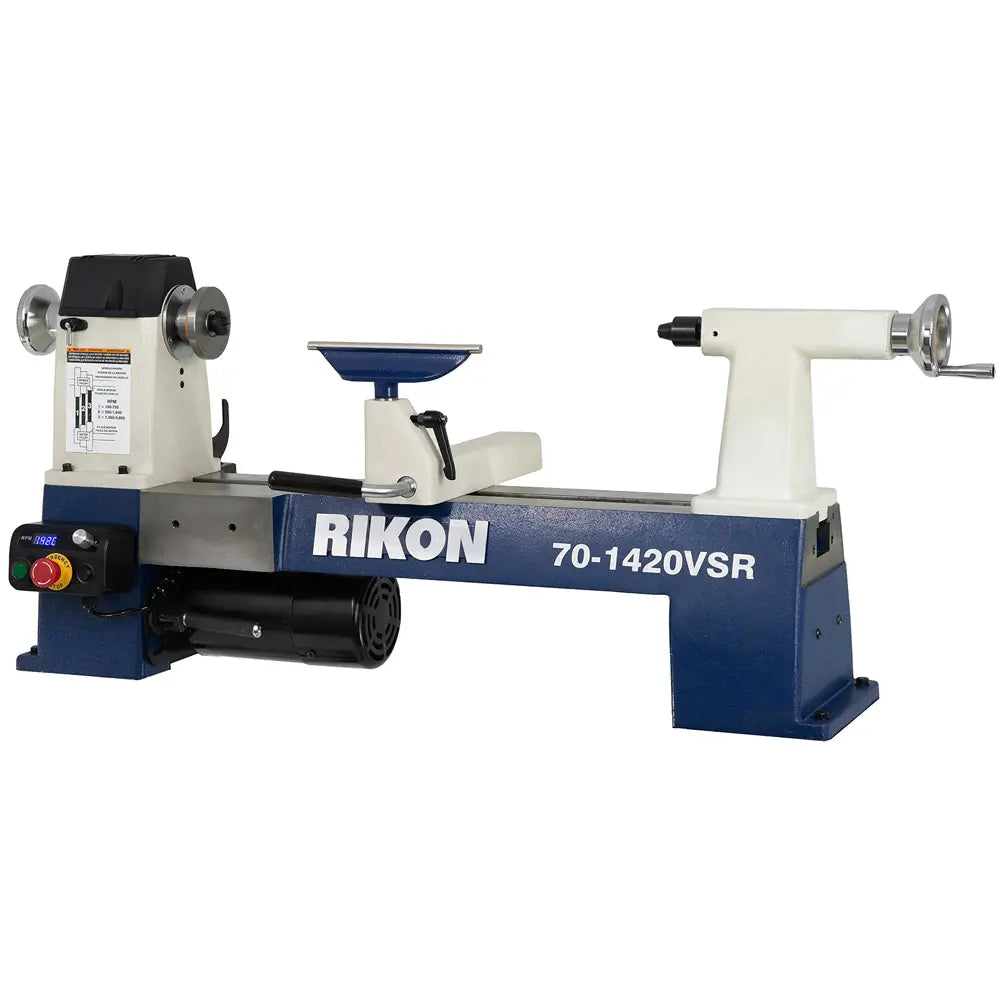

Rikon 70-1420VSR Variable Speed Midi Lathe

  • Sale
  • Regular price $1,299.99


Rikon 70-1420VSR Variable Speed Midi Lathe

*Drop ship based on Rikon stock, please contact us for availability



• Increased Spindle Height for creating greater diameter spindles, bowls and platters.
• Lathe Bed Has Machined Ends and Front for Adding Extensions to Increase Turning Capabilities
• Powerful 1-1/2 HP DC Motor
• Magnets on Back of the Control Box Allow it to be Placed Anywhere Easily Accessible to Turners for Quick Controlling of the Lathe Speeds or Emergency Stopping.
• Machined Bed and Matching Components give Precise Alignment
• Ball-Bearing Construction for Smooth, Precise Spindle Operation
• Adjustable Locking Handles Keep Components Positioned Securely
• Pivoting Belt Cover for Easy Access when Changing Belt Speeds
• 8” PRO Tool Rest Features Hardened Steel Top Rod to Provide Extra Control of Tools When Turning

14” X 20” VARIABLE SPEED MIDI LATHE 70-1420VSR is the largest benchtop lathe in the RIKON line of machinery. This upgraded model gives woodturners increased spindle-to-bed height so that larger diameter work can be done. The addition of 3 machined surfaces to mount optional extensions increase the working dimensions even further. Use the headstock’s outboard threaded spindle and optional 13-1/2” Extension (70-903) to add 4” of extra turning diameter capacity.
Mount this same extension to the front of the lathe bed, and with the remounted tool rest the outside edges or backs of bowls and platters can be safely turned. Lastly, the right bed end of the lathe is machined to attach the optional 13-1/2” or the longer 24” extension (70-904), for increasing the working distance from 20” to 44” for spindles.



Motor
Horsepower 1 1/2 HP TEFC
Amps 6A. 60HZ
Volts 115V, 1 PH
RPM 2,900 RPM
Direction Forward (C-Clockwise) & Reverse (Clockwise)
Speeds
Number of Speeds 3
Ranges 150-720 / 550-1,650 / 1,300-3,850 RPM
Swing
Swing Over Bed 14” (355.6 mm)
Swing Over Tool Rest 10-5/8” (268.732 mm)
Working Distance Between Centers 20” (508 mm)
Tool Rest Post Diameter 1” (25.4 mm)
Headstock / Tailstock
Spindle Nose Inch x TPI 1-1/4” x 8 TPI
Headstock Taper MT2
Tailstock Taper MT2
Ram Travel 4″ (101.6 mm)
Indexing Positions 24
Overall
Length 43-3/8” (1101 mm)
Width 17-3/8” (441 mm)
Height 18-1/4″ (463 mm)
Base Size 36-3/4” x 8-3/8” (933.45 x 212. mm)
Net Weight 137 lbs (62 kg)
Warranty 5 Years
Bottom of base to spindle 15-9/32” (388mm)
