Diamond, Negative Rake Carbide Insert Cutter only. Mainly used to add thin line details on turnings, the spear-point tip is great for undercutting and creating small beads. Ideal for pen turning and any hard materials – plastics, acrylics, resins and dense woods.
- Diamond shaped Insert Cutter, 12.6mm long sides
- Made of hardened Tungsten Carbide
- Designed with second top bevel grind for more controlled cutting action
Round, Negative Rake Carbide Insert Cutter only. Ideal for pen turning and any hard materials – plastics, acrylics, resins and dense woods. Very effective cutting contoured surfaces.
- Round shaped Insert Cutter, 14mm diameter
- Made of hardened Tungsten Carbide
- Designed with second top bevel grind for more controlled cutting action
R2 Square, Negative Rake Carbide Insert Cutter only for 70-800. Ideal for pen turning and any hard materials – plastics, acrylics, resins and dense woods. For quick shaping of turnings down close to your final design, where other cutters can then take over for the clean, finish cuts.
- Square shaped Insert Cutter, 14mm sides with 2-inch radius cutting edges
- Made of hardened Tungsten Carbide
- Designed with second top bevel grind for more controlled cutting action
70-816
Fingernail Carbide Insert Cutter only for 70-800. Extended curved profile is ideal for bowl turning. Cutter can be positioned 90° left to 90° right on the turning tool shaft for undercutting, relief cuts.
- Carbide Insert Cutter
- Can be resharpened
- For use with 70-800 system.

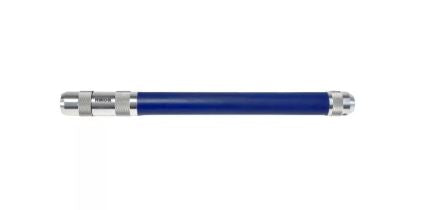

70-805 Shaft only
