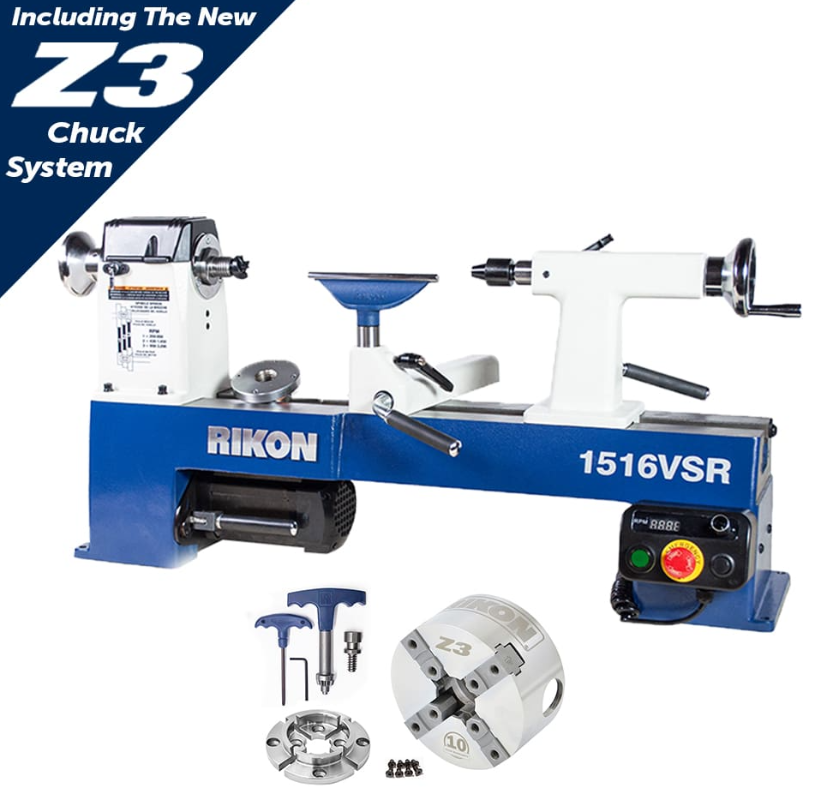

Rikon 70-1516VSR Variable Speed Midi Lathe

Rikon 70-1516VSR Variable Speed Midi Lathe

Product Specs

  • Horse Power: 1.25 HP TEFC
  • Voltage: 120V, 60HZ
  • Amps: 10 A
  • High Speed Range: 950 - 3200 RPM
  • Mid Speed Range: 430 - 1450 RPM
  • Low Speed Range:250 - 850 RPM
  • Swing Over Bed: 12"
  • Swing Over Tool Rest: 9-1/4”
  • Between Centers: 16-1/2”
  • TPI: 1" x 8 TPI
  • Morse Taper: MT2
  • Ships Via: UPS
  • Only available to ship in lower 48 in USA

Description

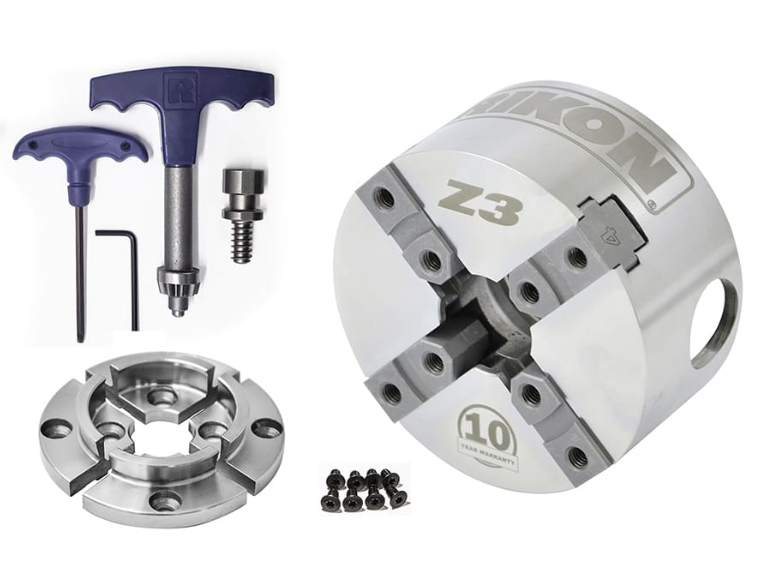

  • LATHE INCLUDES: Z3 Chuck System, 2”/50MM Jaw Set, Spur Center, Live Center, 3” Faceplate, 6” Pro Tool Rest with 1” Diameter Post, Knock-Out Bars, Wrenches and Tool Holder.
  • Powerful 1.25 HP DC BRUSHLESS Motor

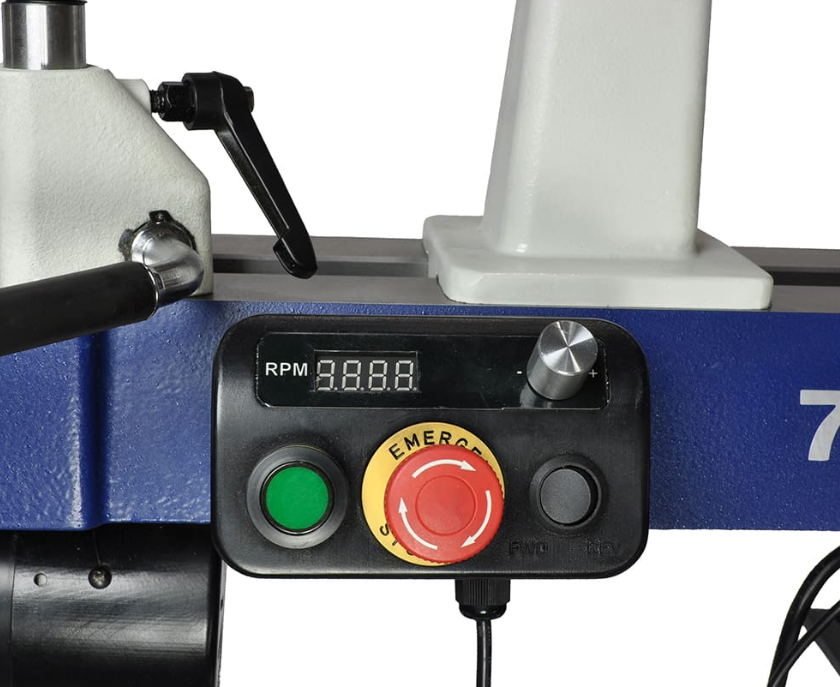

  • Magnets on Back of the Control Box Allow it to be Placed Anywhere Easily Accessible to Turners for Quick Controlling of the Lathe Speeds or Emergency Stopping.

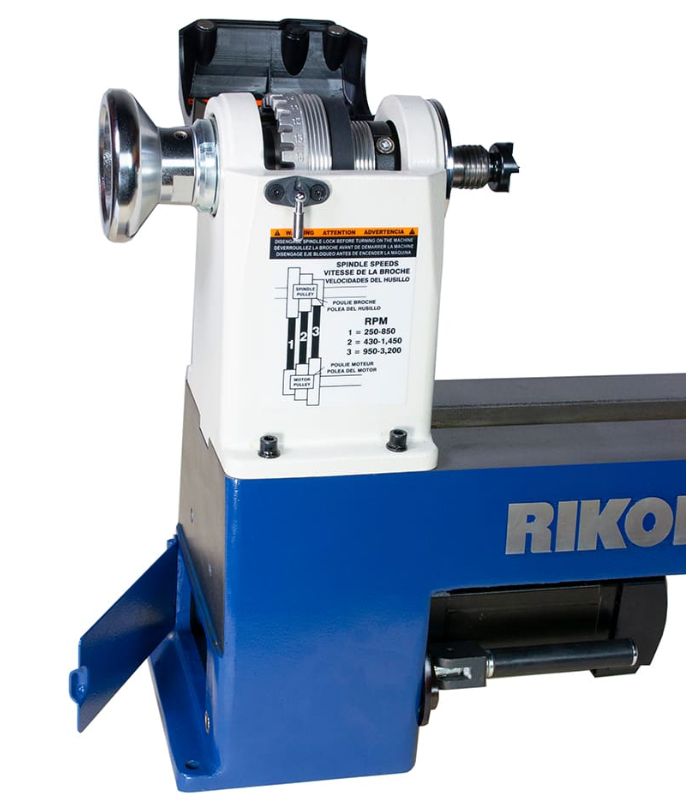

  • Pivoting Belt Cover for Easy Access when Changing Belt Speeds
  • Ball-Bearing Construction for Smooth, Precise Spindle Operation
  • Machined Bed and Matching Components give Precise Alignment
  • Adjustable Locking Handles Keep Components Positioned Securely
  • 1” Diameter Tool Rest Post
  • Lathe Bed Has Machined Ends for Adding Extensions to Increase Spindle Capacity
$1,299.99 USD
$1,299.99 USD
Sale Sold Out

The Rikon 70-1516VSR Variable Speed Midi Lathe brings industrial-grade features to the novice or professional turner. Its powerful 1.25HP DC brushless motor, electronic variable speed controls, and ample diameter and spindle length turning capacities make for a versatile and efficient lathe. Easily control the speed with the convenient corded control box, which can be magnetically attached to the cast iron lathe bed for easy access.
