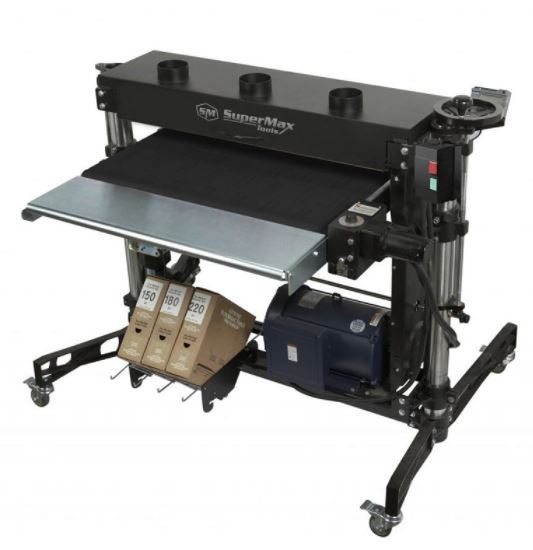

Laguna 37x2 Double Drum Sander 1PH
**Drop Ship is based on Laguna Stock - please contact us for availability
Sand two grits in a single pass with a 37×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor. Available in Single and 3 Phase power.
| Sanding Capacity: | Maximum Width (in): 25, 37, 50 Minimum Length (in): 3-1/2 Maximum Thickness (in): 25 model: 6 37 & 50 models: 12 Minimum Thickness (in): 1/32 |
| Dimensions HxWxD (in): | 25 model: 43 x 46 x 31 37 model: 43 x 58 x 31 50 model: 50 x 71 x 31 |
| Drum (in): (extruded aluminum) | 25 model: 5 x 25 37 model: 5 x 37 50 model: 5 x 50 |
| Drum speed: | 1740 RPM |
| Dust Hood: (Steel hood, hinged at back | 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37 & 50 models: (3) – 4? vacuum ports, min. 1800 CFM recommended |
| Ball bearings (1”): | 4, sealed and permanently lubricated |
| Conveyor Motor: | 25 & 37 models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM 50 model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM |
| Drive Motor (TEFC): | 25 & 37 models: 5 HP 50 model: 7-1/2 H |
| Power Requirements: | 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service |
| Shipping Weight (lbs): | 25 model: 475 37 model: 525 50 model: 820 |

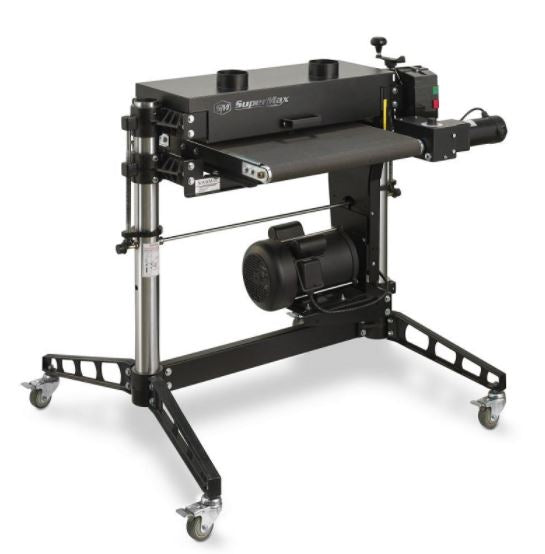

Laguna 25x2 Double Drum Sander 1PH
Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor. Available in Single and 3 Phase power.
| Sanding Capacity: | Maximum Width (in): 25, 37, 50 Minimum Length (in): 3-1/2 Maximum Thickness (in): 25 model: 6 37 & 50 models: 12 Minimum Thickness (in): 1/32 |
| Dimensions HxWxD (in): | 25 model: 43 x 46 x 31 37 model: 43 x 58 x 31 50 model: 50 x 71 x 31 |
| Drum (in): (extruded aluminum) | 25 model: 5 x 25 37 model: 5 x 37 50 model: 5 x 50 |
| Drum speed: | 1740 RPM |
| Dust Hood: (Steel hood, hinged at back | 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37 & 50 models: (3) – 4 vacuum ports, min. 1800 CFM recommended |
| Ball bearings (1”): | 4, sealed and permanently lubricated |
| Conveyor Motor: | 25 & 37 models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM 50 model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM |
| Drive Motor (TEFC): |
25 & 37 models: 5 HP 50 model: 7-1/2 H |
| Power Requirements: | 208-230V, 60HZ; 1 Ph, 30 amp service |
|
Shipping Weight (lbs): |
25 model: 475 37 model: 525 50 model: 820 |

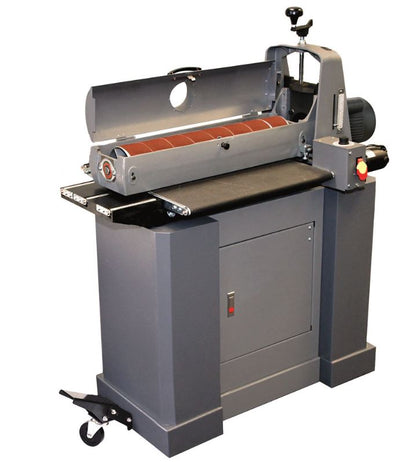

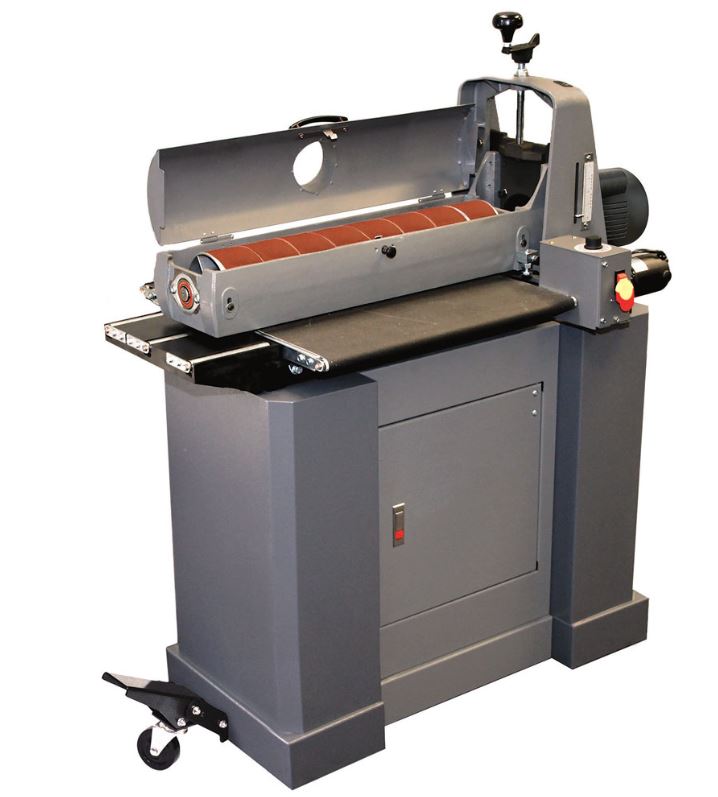

Laguna Supermax 25-50 Drum sander with stand
The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25? in a single pass, and up to 50” in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!
The 25-50 Drum Sander is the newest member of SuperMax Tools drum sander family which was designed with new features to improve productivity.
Patented Quick Adjustment Lever: reduces set-up time. Turbo Vented dust port: increases airflow to your dust collector by 15%. Rear placement of the Gear Motor: improve conveyor belt tracking. These new features complement the same great features SuperMax Tools have provided for years.
Patented Fast Lever: allows quick adjustments for wide and narrow stock
INTELLISAND Technology: prevents gouging, damaging, or burning material.
Features:
Simple alignment feature: just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy. Indexed alignment setting Has an indexed alignment setting for narrow and wide stock.
When sanding stock wider than 25”, the index lever will properly adjust the conveyor for flawless wide sanding. Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments. Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.
INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging or burning stoc. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed.
Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander. Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner.
Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap. Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools. Self-cooling drum prevents overheating and extends abrasive life. Tension rollers are adjustable in height and hold down pressure, eliminating snipe. Excellent dust extraction as dust cover is formed to shape of drum. Metal, not plastic, is formed to maximize air flow and dust extraction. Heavy-duty cast iron construction for strength, rigidity and reduced vibration. Mobile Base allows for stand and machine to be to moved easily.
Optional Accessory Available: DRO (digital read out): maintain material thicknesses to increase accuracy and quality.
| Sanding Capacity: | Maximum Width (in): 50 (two passes) Minimum Length (in): 2-1/4 Maximum Thickness (in): 4 Minimum Thickness (in): 1/32 |
| Dimensions (in): | 27D x 46W x 53H (on stand) |
| Drum: | 5 x 25 extruded aluminum |
| Drum Speed: | 1740 RPM |
| Dust Hood: | 1- 4" vacuum port, min. 600 CFM recommended |
| Conveyor Motor: | 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM |
| Drive Motor (TEFC): | 1-3/4 HP |
| Power Requirements: | 110 V 20 amp |
| Shipping Weight (lbs): | 369 (3 boxes incl. stand) |

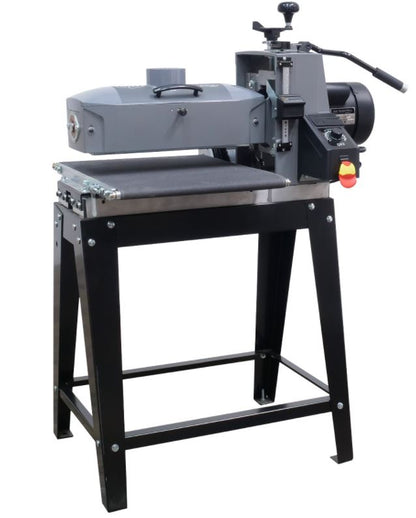

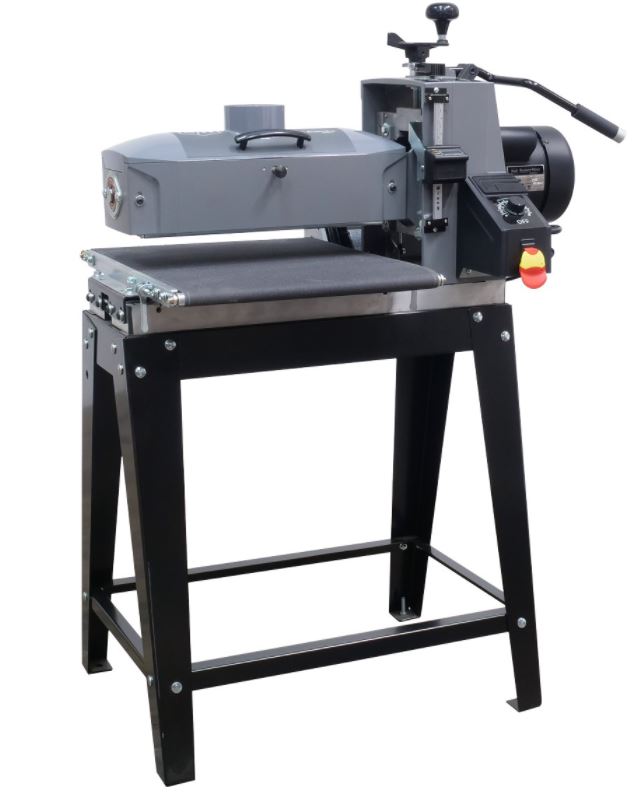

Laguna Supermax 16-32 Drum Sander with stand
| Drum Speed | 1740 RPM |
| Maximum Sanding Width | 32" |
| Minimum Sanding Length | 2-1/4" |
| Maximum Sanding Thickness | 3" |
| Minimum Sanding Thickness | 1/32" |
| Drum | 5" x 16" extruded aluminum |
| Dust hood | Turbo Vented – 1×4", vacuum port (min. 600 CFM recommended) |
| Conveyor Speed | 0-10 FPM |
| Drive Motor | 1-1/2 HP |
| Power Requirements | 110 V, 15 Amp, 20 AMP Service |
| Shipping Weight | 158 lbs (1 box including stand) |
| Assembled Dimensions (Footprint) | W: 34" | D: 22" | H: 48" (without casters) |

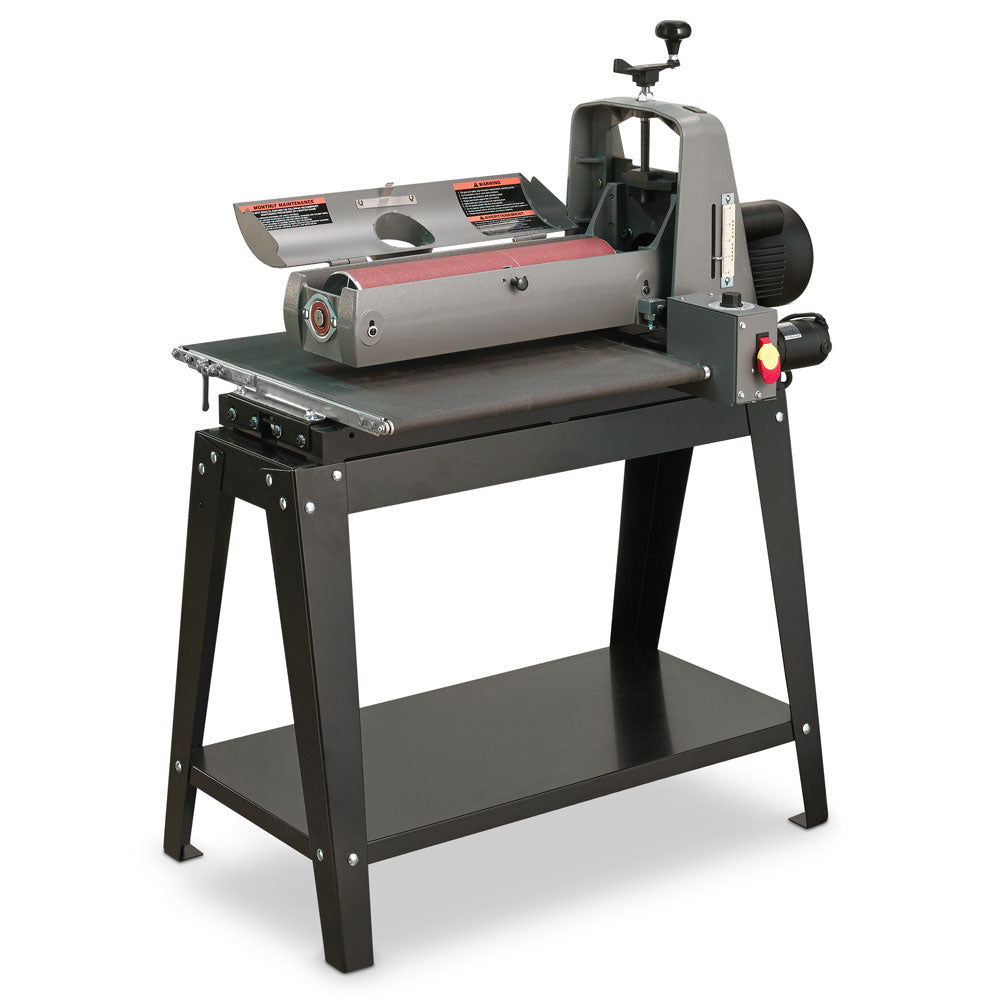

Laguna Supermax 19-38 Drum Sander with stand
| Sanding Capacity: | Maximum Width (in): 38 (two passes) Minimum Length (in): 2-1/4 Maximum Thickness (in): 4 Minimum Thickness (in): 1/32 |
| Dimensions (in): | 27D x 46W x 52H (on stand) |
| Drum (in): | 5 x 19 extruded aluminum |
| Drum Speed: | 1740 RPM |
| Dust Hood: | 1- 4" vacuum port, min. 600 CFM recommended |
| Conveyor Motor: | 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM |
| Drive Motor (TEFC): | 1-3/4 HP |
| Power Requirements: | 110 V, 15 amp |
| Shipping Weight (lbs): | 286 (3 boxes incl. stand) |
