Laguna Fusion Tablesaw

**Drop ship based on Laguna stock - please contact us to check for availability**

***For In store Table Saw - Due to freight and shipping charges you will be charged a base shipping rate. There may be circumstances where you may get a refund if you are in a zone where it is less expensive. However if you are in a distant zone we will contact you if there are additional shipping costs.
By purchasing this item you agree to this and understand shipping costs may vary***

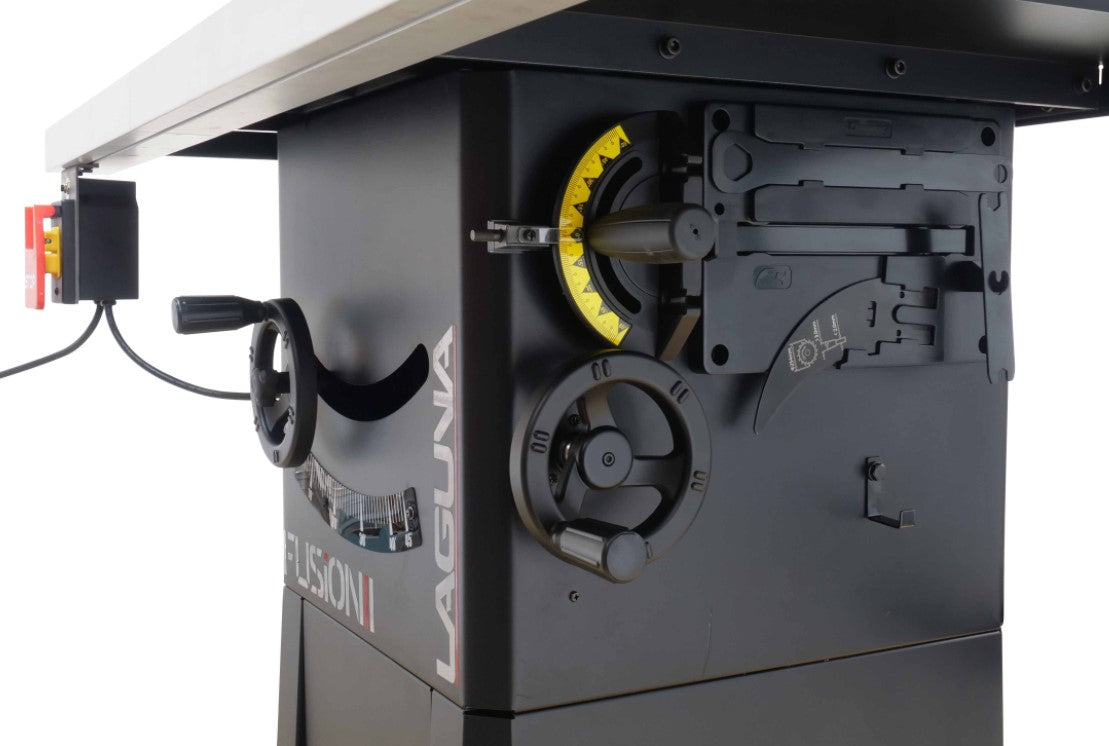

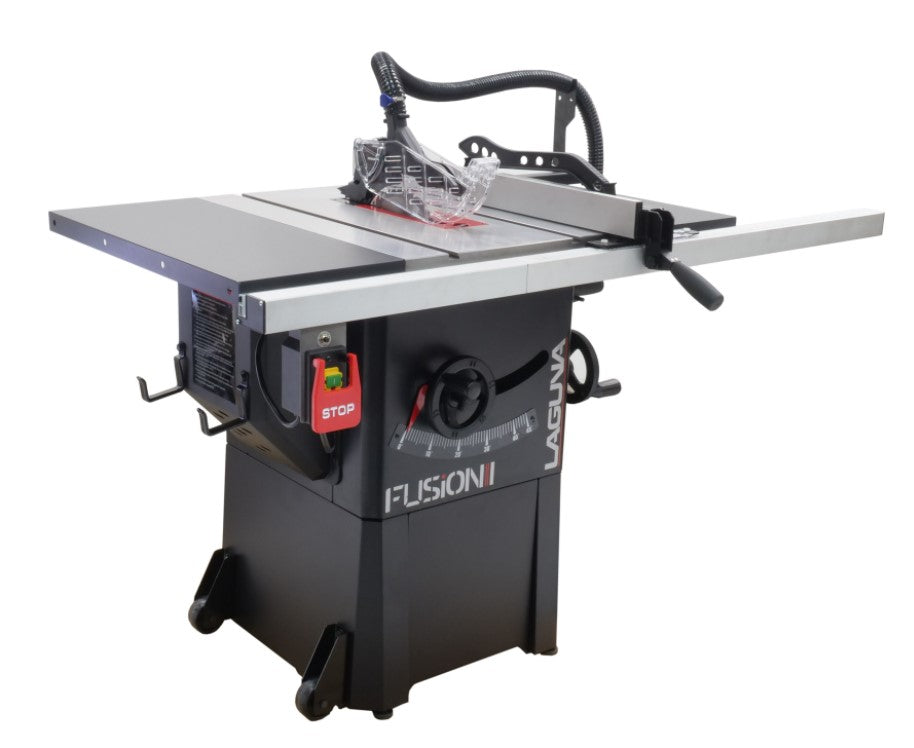

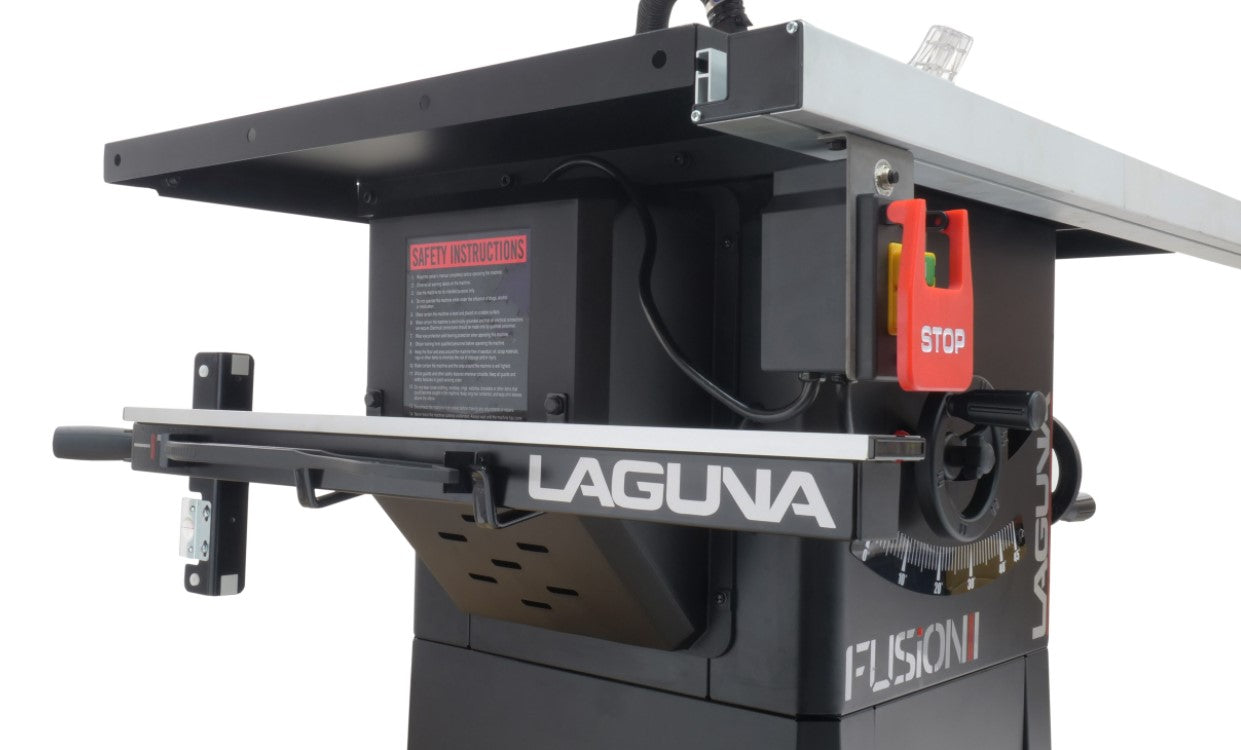

Laguna Fusion Tablesaw - F1

FINALLY! An affordable fusion table saw. We have packed all the features that our users have come to love in an affordable, sleek, and very precise package.

The new Laguna Fusion line was developed for demanding woodworkers.

Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. Permanently lubricated bearings & Acme screws are part of the internal DNA. Maybe the biggest surprise, this is a high quality hybrid saw under $1200!

Download Manual

Electrical:

Power Requirements:110V-1PH-60HZ*

Amperage (FLA): 12 AMP

Motor Power: 1.5 HP

Motor Speed: 3450 RPM

Starter Switch: Magnetic

Plug Included: 5-15

Circuit Breaker Req.: 110V - 20 AMP

Receptacle Req.: 5-15

General :

Certification: CSA C/US 175370

Net Weight: 200 lbs.

Shipping Weight: 280 lbs.

Shipping Dimensions: L30" W40" H30"

Overall Size: L39-3/4" W59-5/8" H38"

Table saw:

Rip Capacity: 30"

Blade Size: 10"

Vertical Cut Height: 3 1/8”

45° Cut Height: 2 1/8"

Tilt: 0-45° Left

Min. Kerf: 3mm ~1/8" (actual: 0.1875")

Max. Kerf (Dado Blade): 13/16"

Arbor Speed: 4000 RPM

Arbor Diameter:  5/8"

Miter Slot: 3/4" to 1" T

Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment

Fence: Single Rail Cam Action

Dimensions:

Overall Size: L39-3/4" W59-5/8" H38"

w/ 52" Extension: +16" to W in Overall Size

Base: L19" W20"

Floor to To Table: H34-3/4"

Table: L27" W20"

Extension Wing: L27" W12" (x2)

Throat Plate: L14-5/8" W4-1/16" th1/2"

Dust Collection:

Dust Port Outer Diameter: 3-7/8"

CFM Requirement: 350 CFM

Dust Port Outer Diameter: 3-7/8"

Materials:

Table: Cast Iron

Table Wing: Sheet Steel

Cabinet : Sheet Steel

Throat Plate: Die Cast Iron

Arbor Wheels: Die Cast

Fence: Aluminum Rail, Steel Body

Upper Trunnion : Cast Aluminum Alloy

Lower Trunnion: Cast Aluminum Alloy

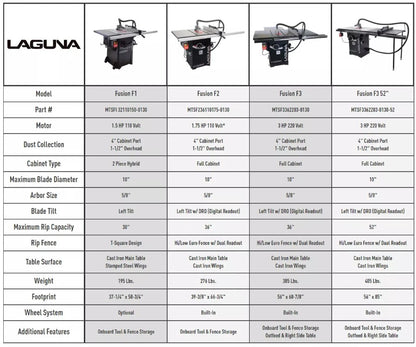

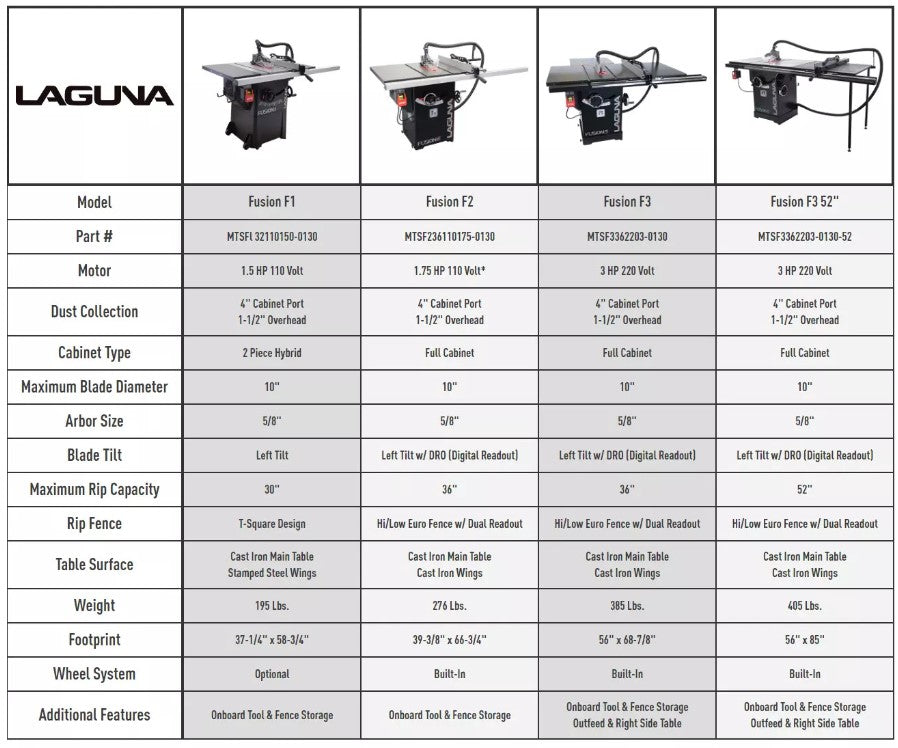

Features & Comparison:

Industrial Use: NO

Enclosed Cabinet: NO

Integrated Mobility: NO

Quick Release Guards: YES

Quick Blade Change: YES

Integrated Tool Holder: YES

TEFC Motor: YES

110V Power: YES

Iron Upper Trunnion: NO

Accessories & Options:

Dado Throat Plate:  PTSF236110175-001

Thin Kerf Riving Knife: PTSF132110150-0130-000

Right of wing table: NO

Outfeed Table Attachment: NO

Dust Collection Guard: Included with purchase

Miter Gauge: Included with purchase

Blade Guard: Included with purchase

Arbor Wrench: Included with purchase

Riving Knife: Included with purchase

Standard Throat Plate: Included with purchase

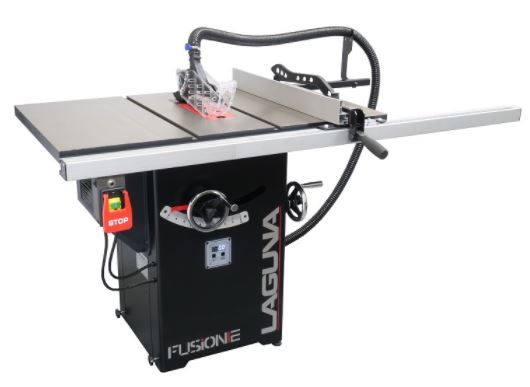

Laguna Fusion Tablesaw - F2

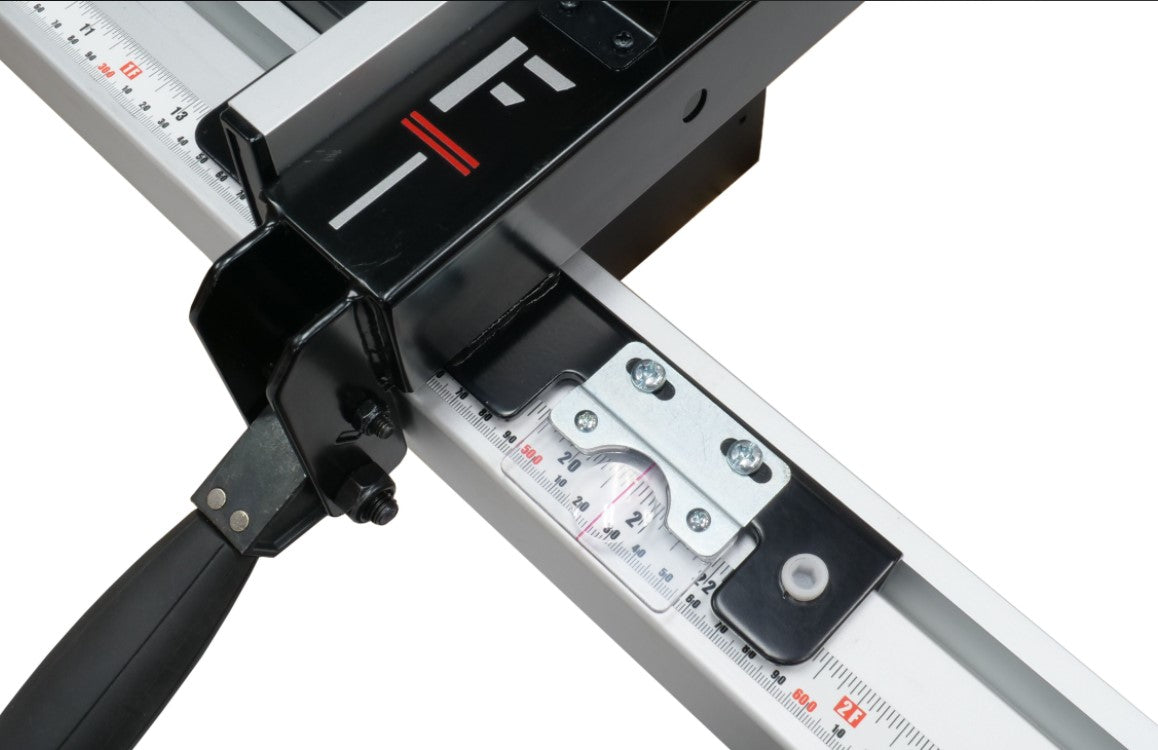

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.

The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position.

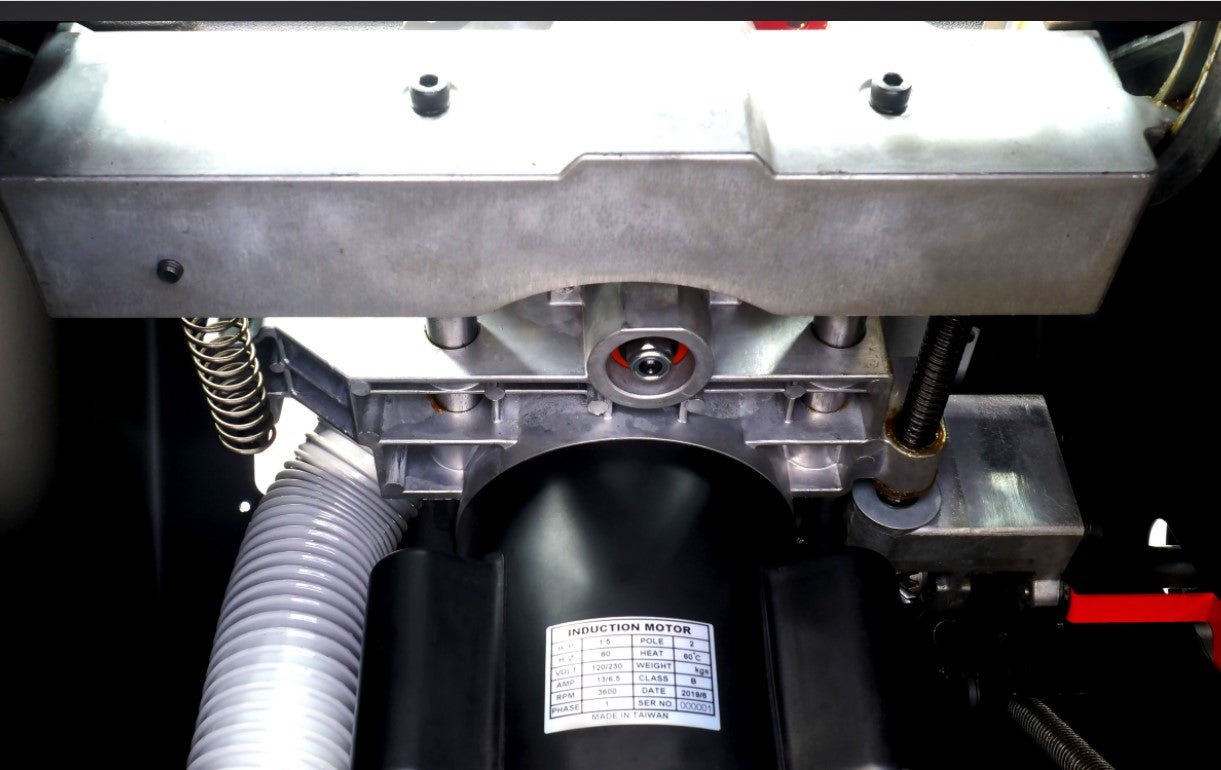

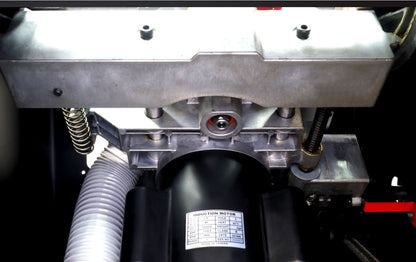

Permanently lubricated bearings & Acme screws are

part of the internal DNA.

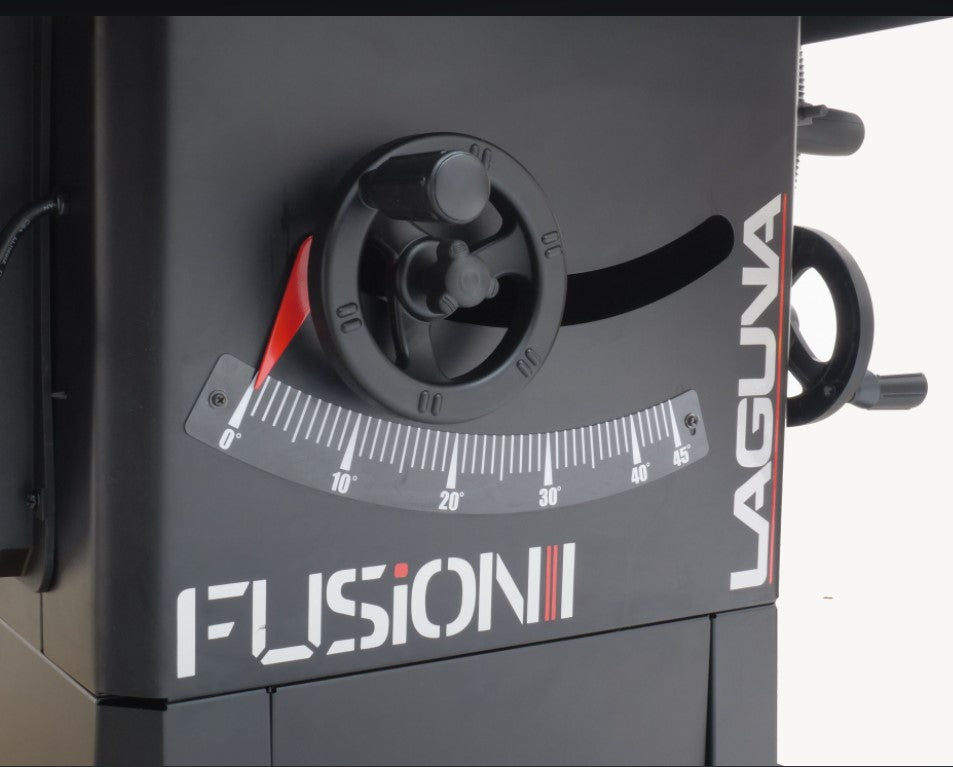

Fusion 2 is the true successor to the original Fusion Table Saw.

The task was simple: make a saw that was more refined, more precise, and cleaner.

• robust and versatile fence
• cabinet mounted trunnion
• mechanically assisted blade movements

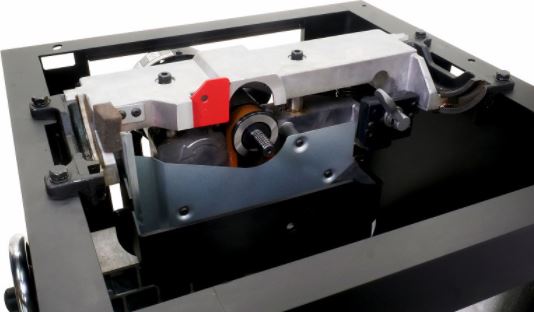

• hybrid cabinet saw with trunnion that rides on two solid steel 1" posts

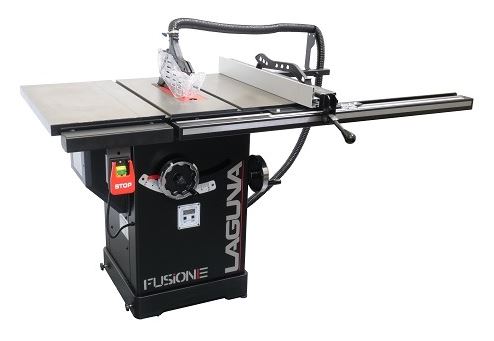

2 New Features Now Standard On F2 & F3 Fusions

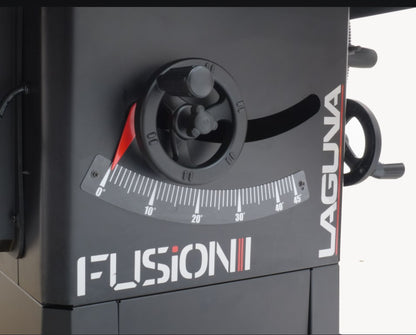

• DRO For The Tilt Angle Of Blade
• Double Window With Hairline For Hi/Low Fence

Download Manual

DRO Manual

Specs:

Electrical:

Power Requirements: 110V-1PH-60HZ*

Amperage (FLA) :14 AMP

Motor Power: 1.75 HP

Motor Speed: 3450 RPM

Starter Switch: Magnetic

Plug Included: 5-15

Circuit Breaker Req.: 110V - 25 AMP

Receptacle Req. : 5-15

General:

Certification: CSA C/US 175370

Net Weight: 275 lbs (125 Kgs)

Shipping Weight: 368 lbs (167 Kgs)

Shipping Dimensions: L29-3/4" W46-5/8" H42-5/8"

Overall Size: L39-3/4” W65-5/8” H38”

Tablesaw:

Blade Size: 10"

Vertical Cut Height: 3 1/8”

45° Cut Height: 2 1/8"

Tilt: 0-45° Left

Min. Kerf: 3mm ~1/8" (actual: 0.1875")

Max. Kerf (Dado Blade): 13/16"

Arbor Speed: 4500 RPM

Arbor Diameter: 5/8"

Mitre Slot: 3/4" to 1" T

Throat Plate: Zero Clearance Square Composite, w/ adjustment

Fence: Double Rail Cam Action

Dimensions:

Overall Size: L39-3/4" W65-5/8" H38"

w/ 52" Extension: +16" to W in Overall Size

Base: L18-5/8" W19-1/4"

Floor to To Table: H34-3/4"

Table: L27" W20"

Extension Wing: L27" W12" (x2)

Throat Plate: L14-5/8" W4-1/16" th1/2"

Dust Collection:

Dust Port Outer Diameter: 3-7/8"

CFM Requirement: 350 CFM

Dust Port Outer Diameter: 3-7/8"

Materials:

Table: Cast Iron

Table Wing: Cast Iron

Cabinet: Sheet Steel

Throat Plate: Composite

Arbor Wheels: Iron

Fence: Aluminum Rail, Steel Body

Upper : Trunnion Cast Aluminum Alloy

Lower Trunnion : Cast Aluminum Alloy

Features & Comparison :

Industrial Use: NO

Enclosed Cabinet: YES

Integrated Mobility: YES

Quick Release Guards: YES

Quick Blade Change: YES

Integrated Tool Holder: YES

TEFC Motor: YES

110V Power: YES

Iron Upper Trunnion: NO

Accessories & Options:

Dado Throat Plate: PTSF236110175-001

Thin Kerf Riving Knife: PTSF132110150-0130-000

Right of wing table: NO

Outfeed Table Attachment: NO

Dust Collection Guard: Included with purchase

Mitre Guage: Included with purchase

Blade Guard: Included with purchase

Arbor Wrench: Included with purchase

Riving Knife: Included with purchase

Standard Throat Plate: Included with purchase
