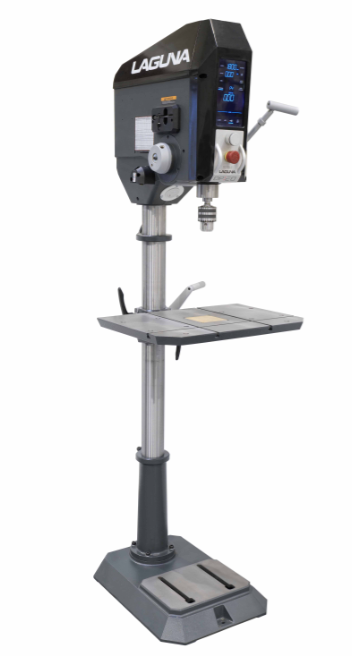

DP:20 Drill Press | Laguna

DP:20 Drill Press | Laguna

Product Specs

  • Horsepower: 1.5 HP
  • Voltage: 115V
  • Breaker: 15 amp. min.
  • Power Cord: 72” (1830 mm)
  • Table, cast iron: 15”x22” (380 mm x 560 mm)
  • Table Tilt: +/- 90 Degrees
  • Table Swivel: 360 Degrees
  • Laser Light: Included
  • Working Light: LED, 5W
  • Swing: 20” (510 mm)
  • Spindle Taper: MT2
  • Spindle Travel: 6” (152.4 mm)

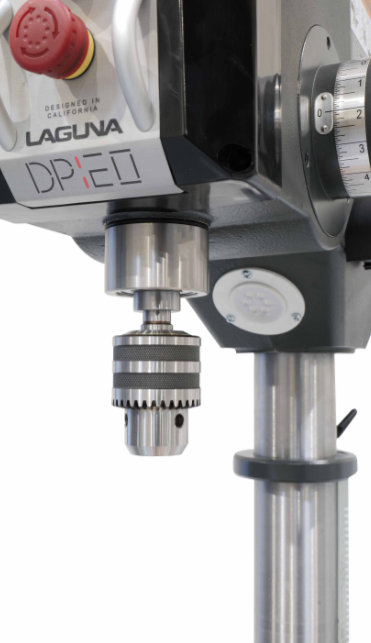

  • Chuck: 5/56” – 5/8” (2-16 mm)
  • Quill Diameter: 2.17” (55 mm)
  • Quill Flange/Collar Diameter: 2.6” (66 mm)
  • Spindle to Column, max.: 10” (255 mm)
  • Spindle to Table, max.: 29-5/16” (745 mm)
  • Spindle to Base: 49.5” (1257 mm)
  • Spindle Speed Range: 60-3600 RPM (electronic & variable)
  • Column Diameter: 3.15” (80 mm)
  • Machine Dimensions (LxWXH) vertical, base footprint: 23-7/8”x17”x72.5” (607 mm x 432 mm x 1842 mm)
  • Industrial Work Light: One LED included within headstock

Key Features

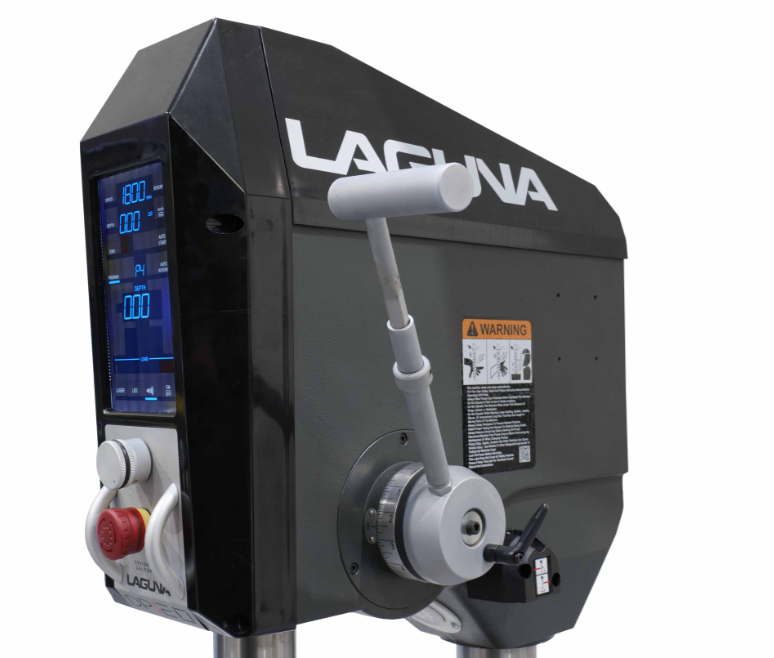

  • Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout
  • 1.5 hp PWM Motor: Constant torque with forward and reverse functions.
  • Auto-Start Function: Starts and stops with the movement of the quill.

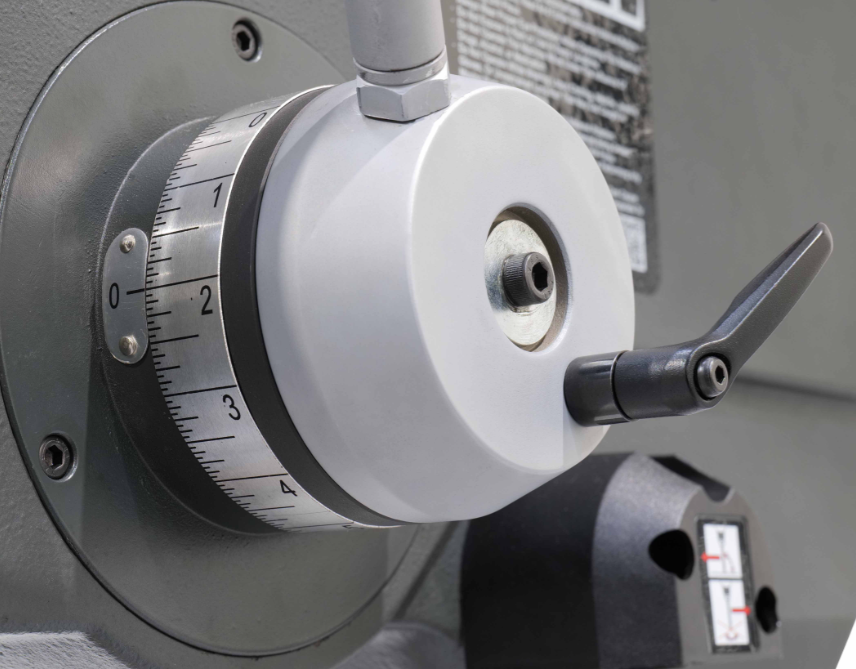

  • Precision Depth Control: Electronic depth setting.

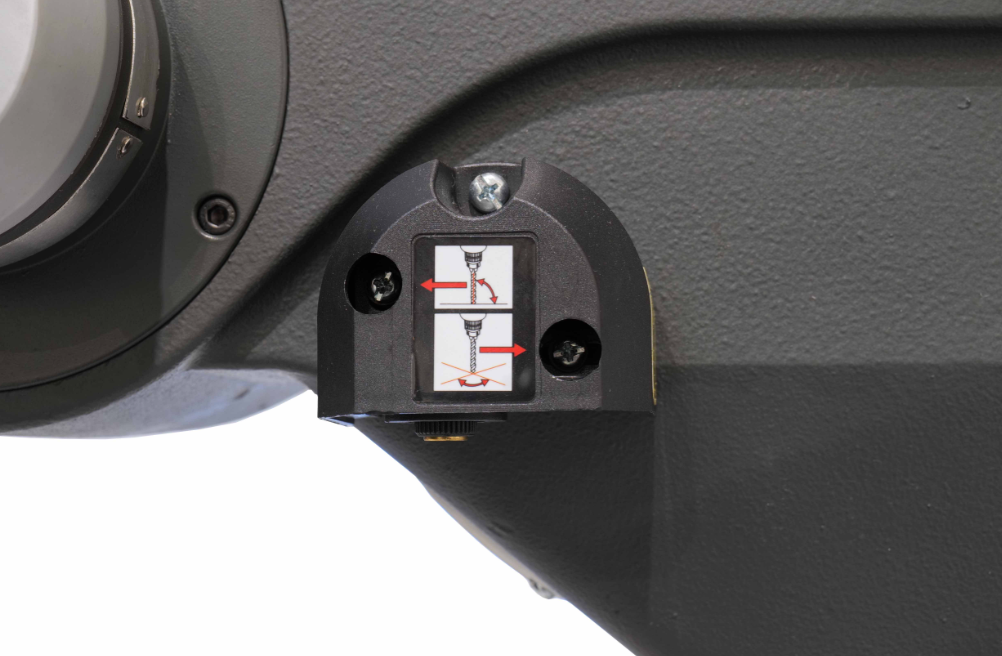

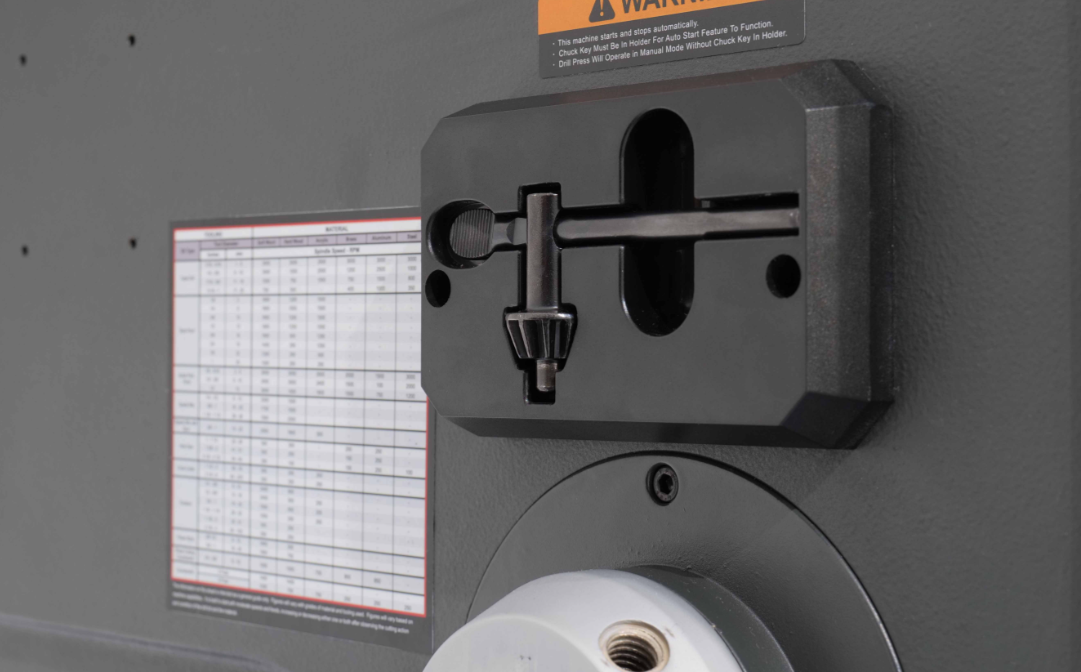

  • Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes.
  • Customizable Memory Settings: Five programmable speed and depth settings.
  • Extended Quill Travel: 6 inches of precise drilling capacity.

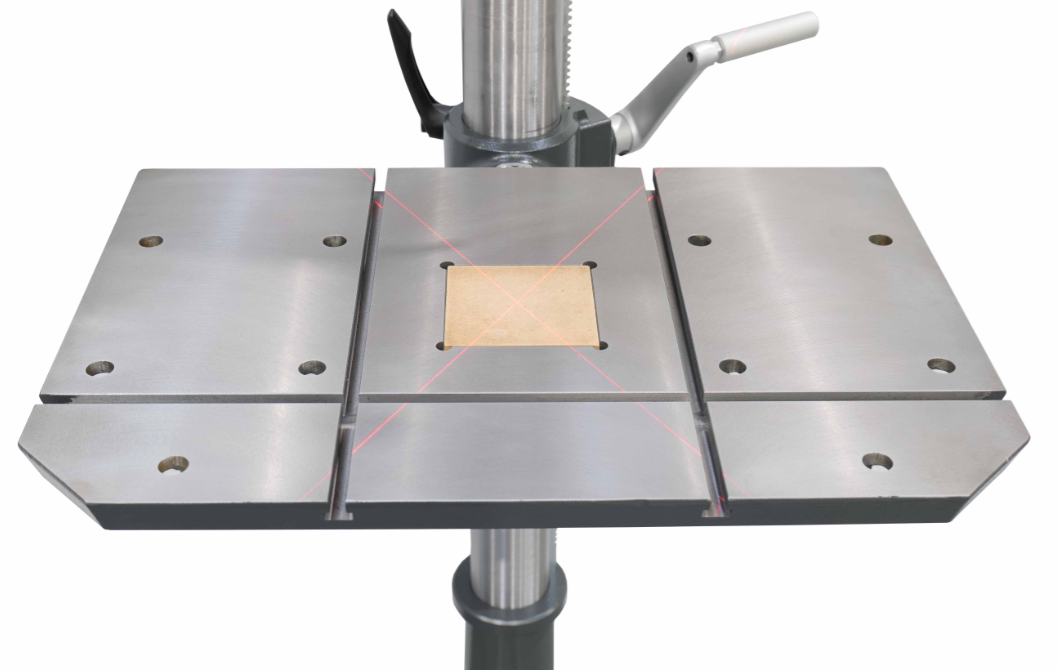

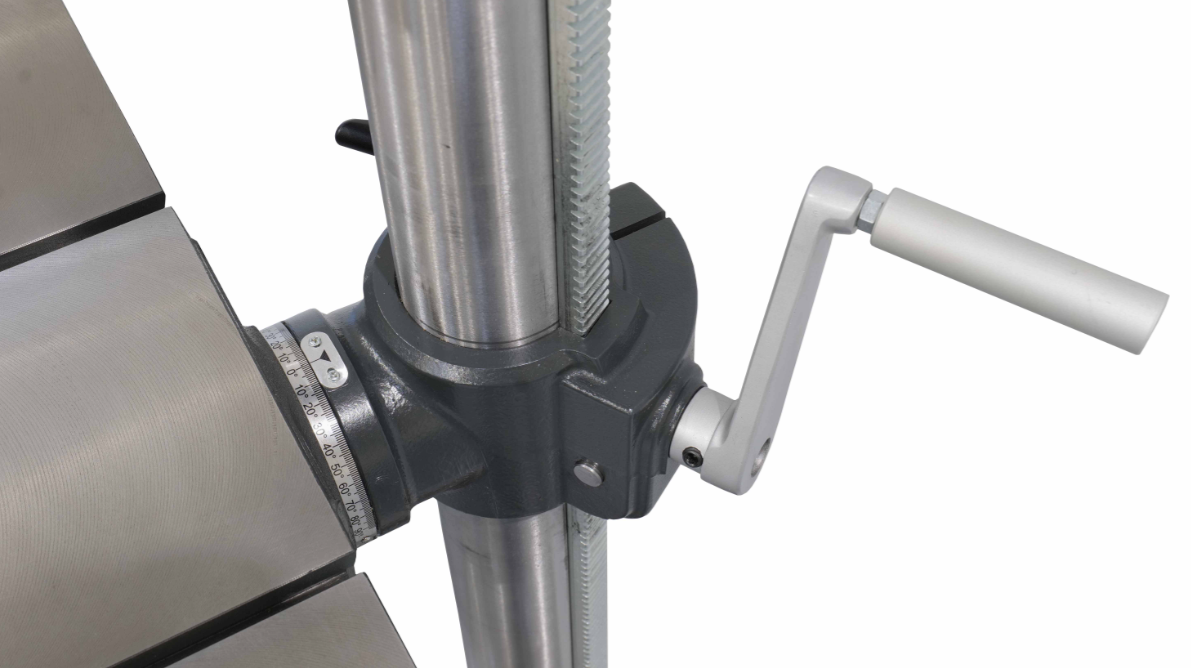

  • Versatile Worktable: Large 15” x 22” cast iron table tilts up to 90 degrees left and right, rotates 360 degrees, with T-slots and 10 clamping holes.

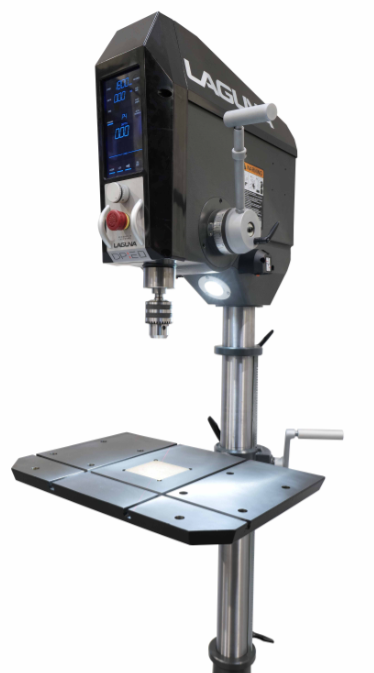

  • High-Output LED Work Light: Onboard 5W LED for optimal visibility.
  • Crosshair Lasers: Ensures precise material positioning.
  • Modern Design: Sleek aesthetic from headstock to table control handles.
  • User-Selectable Screen Increments: Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter.
Regular price $1,999.99 USD
Regular price Sale price $1,999.99 USD
Sale Sold Out

Introducing the new DP20: Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4" x 6-7/8" touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.

**Drop ship from Laguna is based on Laguna Inventory, please contact us for availability*
