Axminster Chuck Jaws - Pen, Pin, Hollow, Cylinder

• Compatible with SK100 and SK114 Chucks:
• Potential gripping range: Round 16mm to 44mm
• Potential gripping range: Square 16mm to 41mm
• Drawing dimensions taken when jaws form a true circle
• Highly accurate method of drilling pen blanks
• Drill bit and blank centered on same axis
• Compatible with GK88 Chucks:
• Specifically designed for pen turning
• Grips square and round blanks
• Accurate and centered results

• Potential gripping range: Hole Diameter 22mm to 41mm
• Recommended for SK100 and SK114 chucks
• Drawing dimensions taken when jaws form a true circle

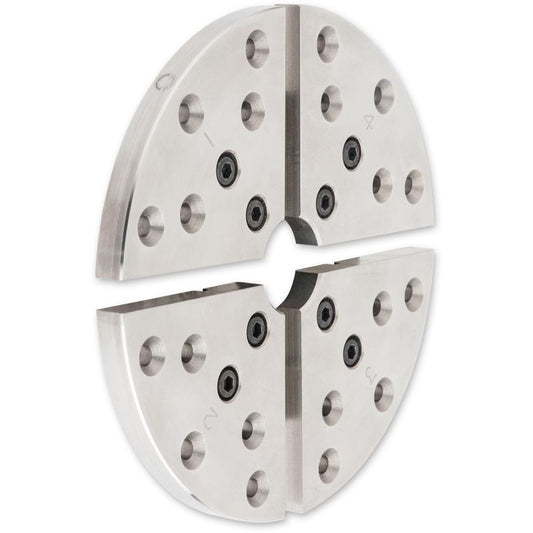

• Designed to give maximum grip in green wood
• Enables initial mounting of logs, burls and odd shapes

• Potential gripping range: Internal recess 88mm to 118mm
• Potential gripping range: External dovetail 108mm to 135mm
• Deep and ribbed internal faces ensure solid vice like grip
• Secure solution providing tremendous grip for hollow form turning
• Stainless steel jaws to fit the SK100 and SK114 chucks

• Cylinder Jaws 50mm:
• Potential gripping range: Cylinder 45mm to 57mm
• Internal and external dovetails on end of jaws
• Potential gripping range: Internal dovetail 41mm to 60mm
• Potential gripping range: External dovetail 60mm to 73mm
• Recommended for SK100 and SK114 chucks
• Drawing dimensions taken when jaws form a true circle
• Grips blank along a substantial length
• Cylinder Jaws 25mm:
• Potential gripping range: Cylinder 20mm to 38mm
• Internal and external dovetails on end of jaws
• Potential gripping range: Internal dovetail 22mm to 40mm
• Potential gripping range: External dovetail 55mm to 70mm
• Recommended for SK100 and SK114 chucks
• Drawing dimensions taken when jaws form a true circle
• Cylindrical bore supports long, thin blanks
