Axminster Dovetail Jaws
Axminster Dovetail Jaws
Regular price
$87.00 USD
Regular price
Sale price
$87.00 USD
Unit price
per
Couldn't load pickup availability
Dovetail Jaws Type A - SK100 & SK114:
Dovetail Jaws Type A - SK100 & SK114:
- Potential gripping range: Small internal 18mm to 41mm
- Potential gripping range: Large internal 58mm to 71mm
- Potential gripping range: External 96mm to 110mm
- Recommended for SK100 and SK114 chucks
- Drawing dimensions taken when jaws form true circle
- 2 internal dovetails and 1 external dovetail
Dovetail Jaws Type A - GK88:
Dovetail Jaws Type A - GK88:
- Ideal for bowls, plates, vases, goblets and more
- Potential gripping range: External 102mm to 78mm
- Potential gripping range: Large internal 48mm to 72mm
- Potential gripping range: Small internal 12mm to 36mm
Dovetail Jaws Type A Plus:
Dovetail Jaws Type A Plus:
- Potential gripping range: Internal 72mm to 93mm
- Potential gripping range: External 95mm to 116mm
- Drawing dimensions taken when jaws form true circle
- Excellent choice of jaws for big bowl turners
- Suitable for SK100 and SK114 Chucks
Dovetail Jaws Type B:
Dovetail Jaws Type B:
- Potential gripping range: Internal 22mm to 45mm
- Potential gripping range: External 57mm to 71mm
- Recommended for SK100 and SK114 chucks
- Drawing dimensions taken when jaws form true circle
- Deep internal dovetail for longer spigots

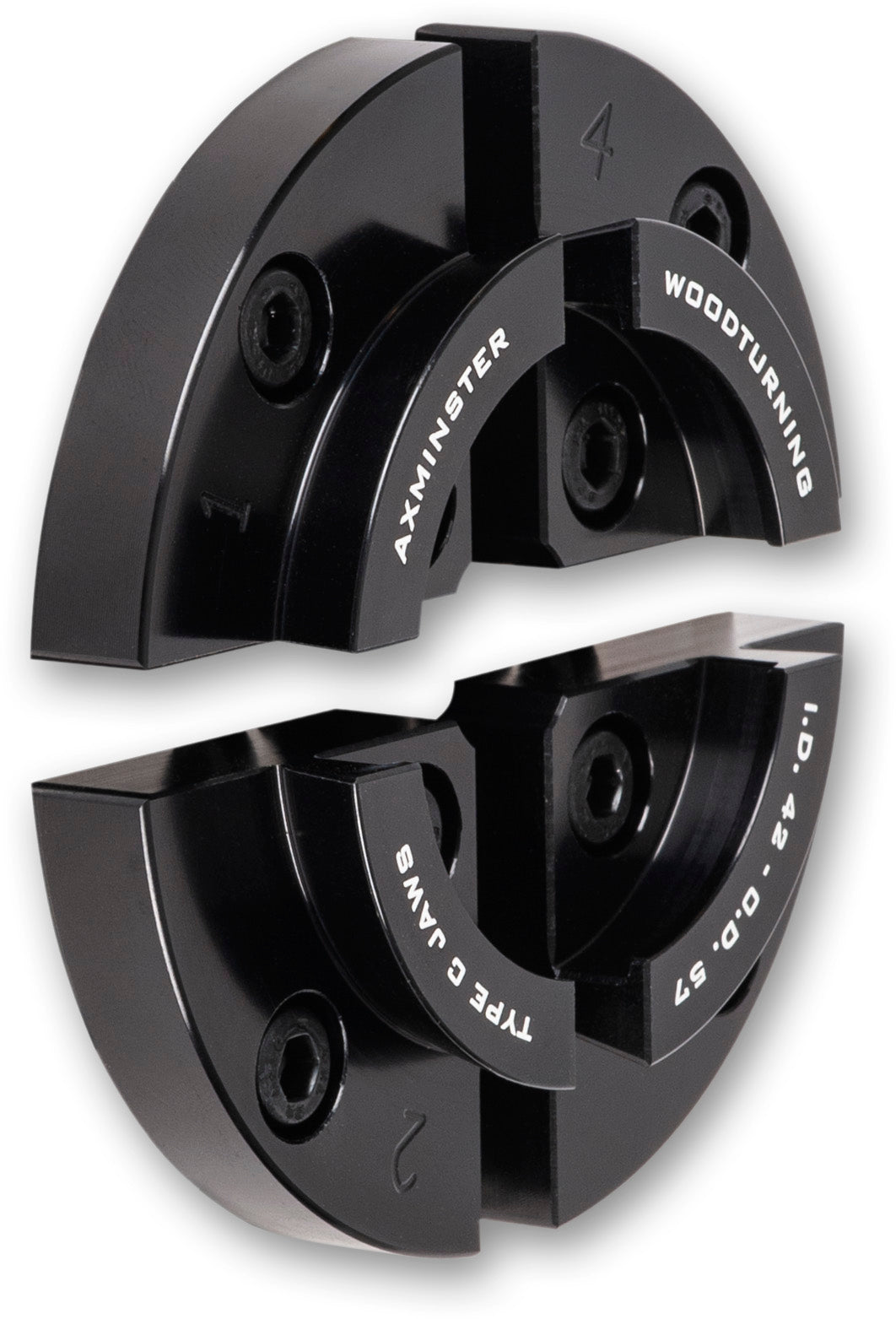

Dovetail Jaws Type C:
Dovetail Jaws Type C:
- Potential gripping range: Internal 52mm to 66mm
- Potential gripping range: External 66mm to 80mm
- Recommended for SK100 chuck and SK114
- External dovetail for bowl turning
- Internal spigot grip for goblets and boxes
- Drawing dimensions taken when jaws form true circle
Dovetail Jaws Type C - SK114:
Dovetail Jaws Type C - SK114:
- Potential gripping range: Internal 52mm to 67mm
- Potential gripping range: External 65mm to 80mm
- Recommended for SK114 chuck
- Drawing dimensions taken when jaws form true circle
- External dovetail for bowl turning
- Internal spigot grip for goblets and boxes
Dovetail Jaws Type C - GK88:
Dovetail Jaws Type C - GK88:
- Recommended for the GK88 chuck
- Potential gripping range: Internal 34mm to 68mm
- Potential gripping range: External 51mm to 86mm
- External dovetail for bowl turning
- Ideal for thin spigots, lace bobbin planks and more
- Use for a variety of projects
Dovetail Jaws Type D:
Dovetail Jaws Type D:
- Potential gripping range: Internal 4mm to 24mm
- Potential gripping range: External 18mm to 36mm
- Recommended for SK100 and SK114 chucks
- Drawing dimensions taken when jaws form true circle
- Excellent for gripping bowls, vases etc with narrow bases
- Internal grip is plain bore for small spigot
Dovetail Jaws Type E - SK100 & SK114:
Dovetail Jaws Type E - SK100 & SK114:
- 100mm Dovetail Jaws -Type E
- Features both an internal and external grip
- Suitable for a variety of projects
- Potential gripping range: Internal 42mm to 60mm
- Potential gripping range: External 62mm to 82mm
Dovetail Jaws Type E - GK88:
Dovetail Jaws Type E - GK88:
- Recommended for the GK88 chuck
- Features both an internal and external grip
- Suitable for a variety of projects
Dovetail Jaws Type M:
Dovetail Jaws Type M:
- Potential gripping range: Internal 91mm to 117mm
- Potential gripping range: External 118mm to 134mm
- Great for both platter and hollow form turning
- Drawing dimensions taken when jaws form true circle
- Suitable for the SK100 and SK114 Chucks
Chuck & Jaw Compatibility Chart
- CNC machined to ensure a precise fit in jaw slides
- Made exclusively by Axminster in Axminster
- Made from stainless steel to protect against corrosion
