*Drop Ship based on Rikon stock, please contact us for estimate
• Powerful 1 HP TEFC Motor
• 16 Spindle Speeds
• Clutch Depth Stop
• Cast Iron Table

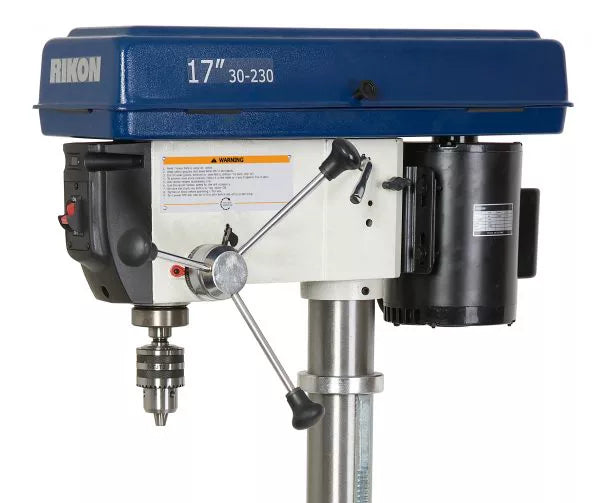

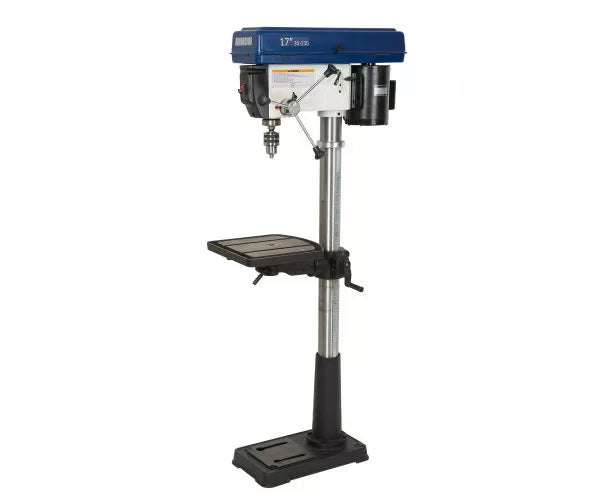

17” Floor Drill Press #30-230 is a workhorse. It has ample power to drive the largest twist drills, forstner bits, hole saws, circle cutters or other types and styles of drill bits. Adjustable, cast iron table with trough perimeter
gives great support for wood and metal drilling work. 16 speed ranges produce all of the RPMs needed to match every material being bored.
Motor
| Horsepower | 1 HP TEFC |
| Amps, Watts | 13.5, 750W |
| Volts | 120V, 60Hz |
| RPM | 1,720 |
| Swing | 17” |
| Chuck Size | 5/8” |
| Chuck Taper | JT3 |
| Drilling Capacity | 1” |
| Spindle Travel | 3-1/8” |
| Spindle Taper | MT2 |
| Head Rotates | 360° |

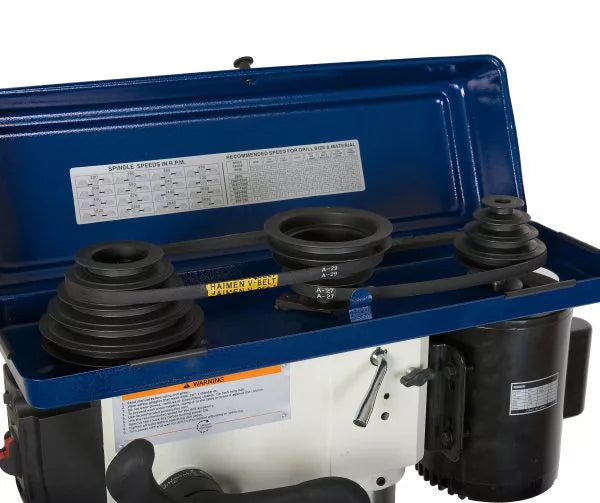

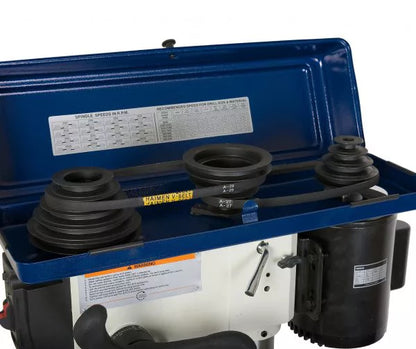

| Speeds | 16 |
| Speed Range (RPM) | 200 – 3,630 |
| Quill Diameter | 66mm |
Table Dimensions
| Table Size | 14” x 14” |
| Table Tilts | 90° |
| Table Rotates | 360° |
| Maximum Chuck to Table | 25-1/4” |
| Maximum Chuck to Base | 44-13/16” |
| Column Diameter | 80mm |
Overall
| Height | 64-3/8” |
| Base Size | 17-1/2” x 22-1/2” |
| Net Weight | 188 lbs. |
| Shipping Weight | 198 lbs. |
| Shipping Carton | 55” x 21” x 9-1/2” |
| Warranty | 5 Years |
