*Drop Ship based on Rikon stock, please contact us for availability
• 5 Spindle Speeds
• Solid Steel and Cast Iron Construction
• Depth Stop

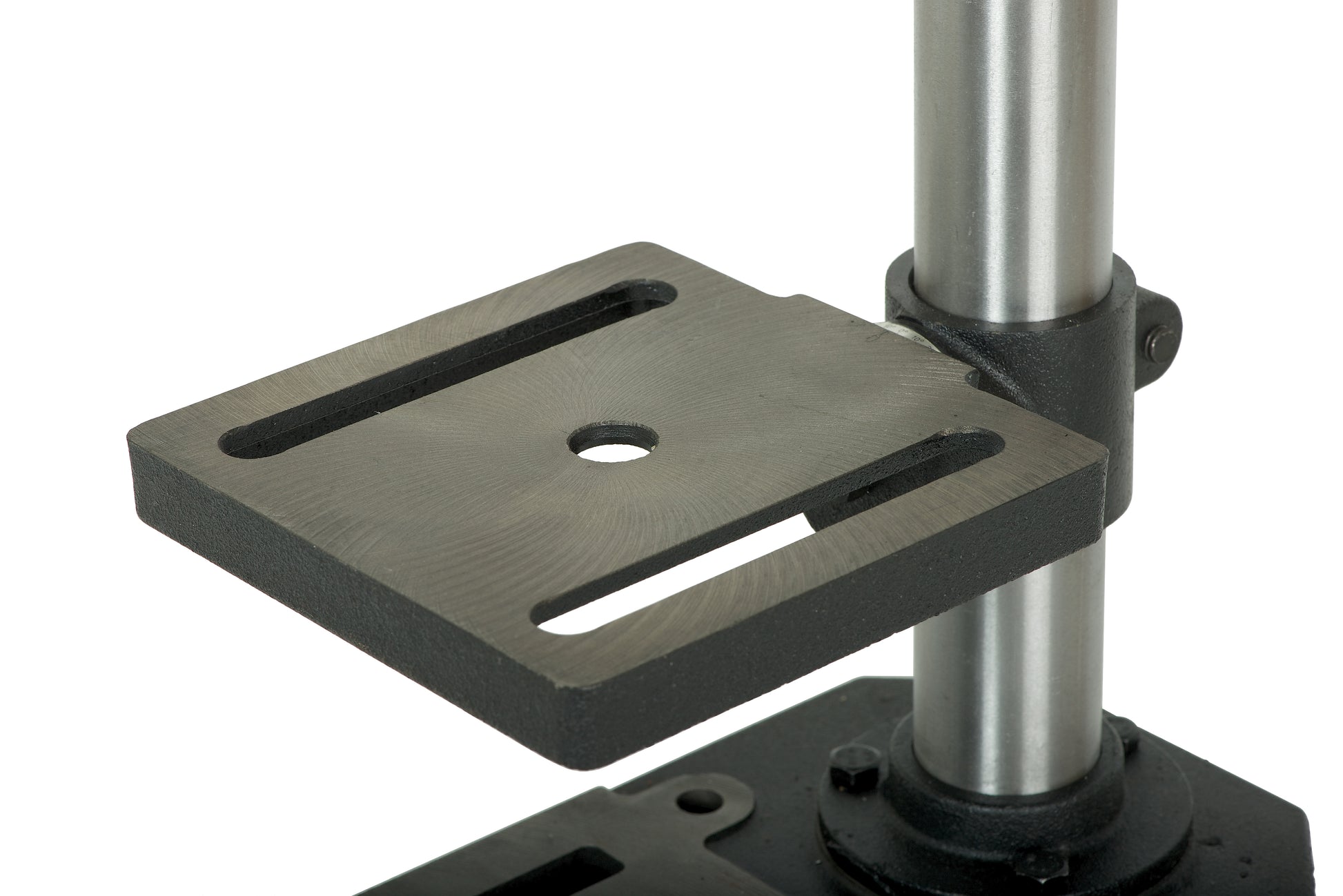

• Cast Iron Table

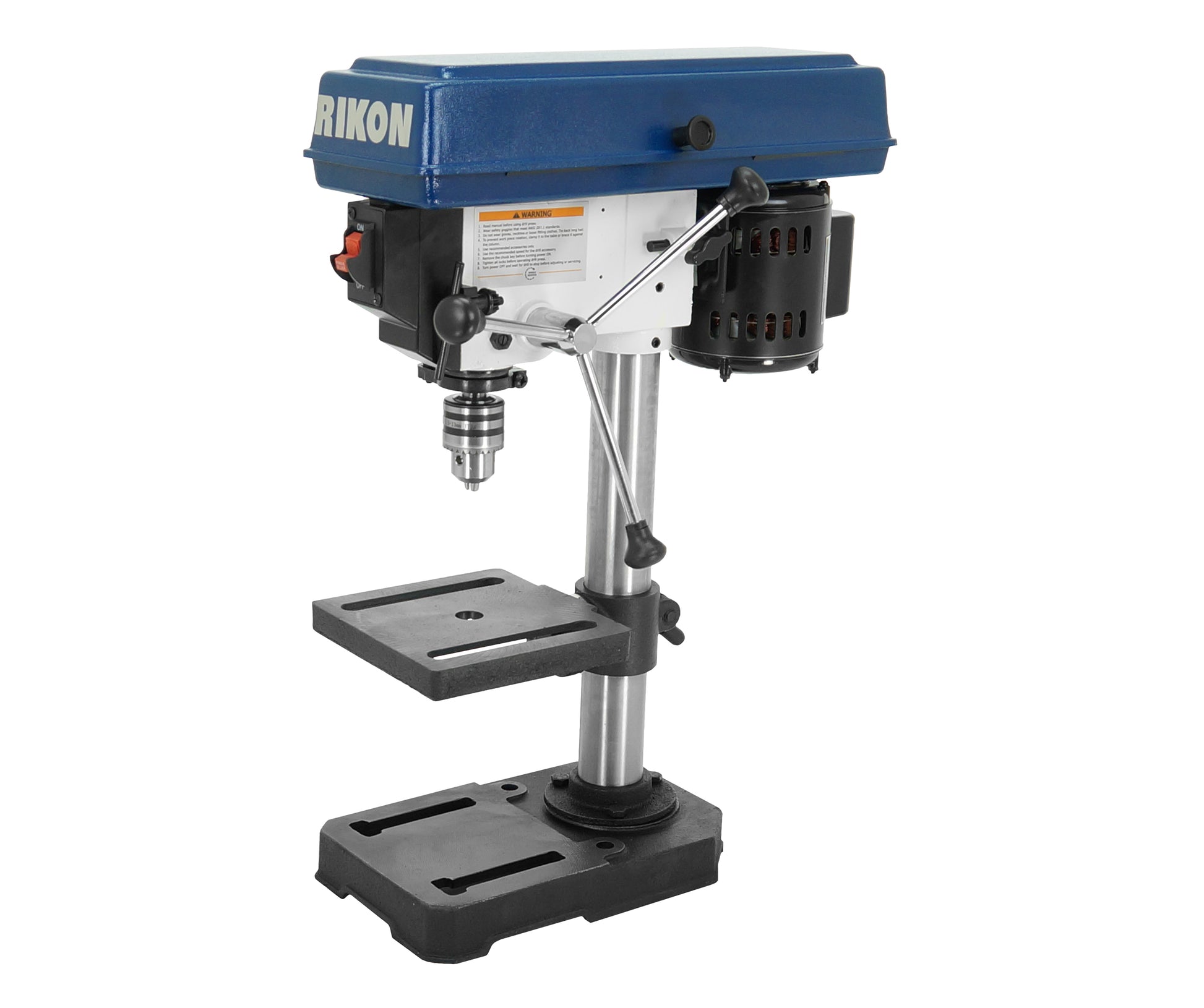

8” Benchtop Drill Press #30-100 is a small size machine that is popular with craftspeople and hobbyists that do not need a lot of power or capacity when drilling small holes in their projects. The small overall size and weight is also perfect for storage and transporting.
| Horsepower |
1/3 HP |
| Amps |
2.5 |
| Volts |
120V, 60Hz |
| RPM |
1,720 |
| Swing |
8” |
| Chuck Size |
1/2” |
| Chuck Taper |
JT33 |
| Drilling Capacity |
1/2” |
| Spindle Travel |
2” |
| Spindle Taper |
JT33 |
| Head Rotates |
360° |
| Speeds |
5 |
| Speed Range (RPM) |
620 – 3,100 |
| Quill Diameter |
1-1/2” |
| Table |
6-5/8” x 6-3/8” |
| Table Tilts |
90° |
| Table Rotates |
360° |
| Maximum Chuck to Table |
7-1/16” |
| Maximum Chuck to Base |
10-1/4” |
| Column Diameter |
1-7/8” |
| Height |
22-3/4” |
| Base Size |
11” x 7-1/8” |
| Net Weight |
32 lbs. |
| Shipping Weight |
36 lbs. |
| Warranty |
5 Years |
