Rikon Model 10-326: 14″ Deluxe Bandsaw

  • Sale
  • Regular price $1,599.99


*Drop Ship based on Rikon stock, please contact us for availability


Model 10-326: 14″ Deluxe Bandsaw

• 13″ Cutting Capacity
• Patented – Spring Loaded Tool-less Guide System

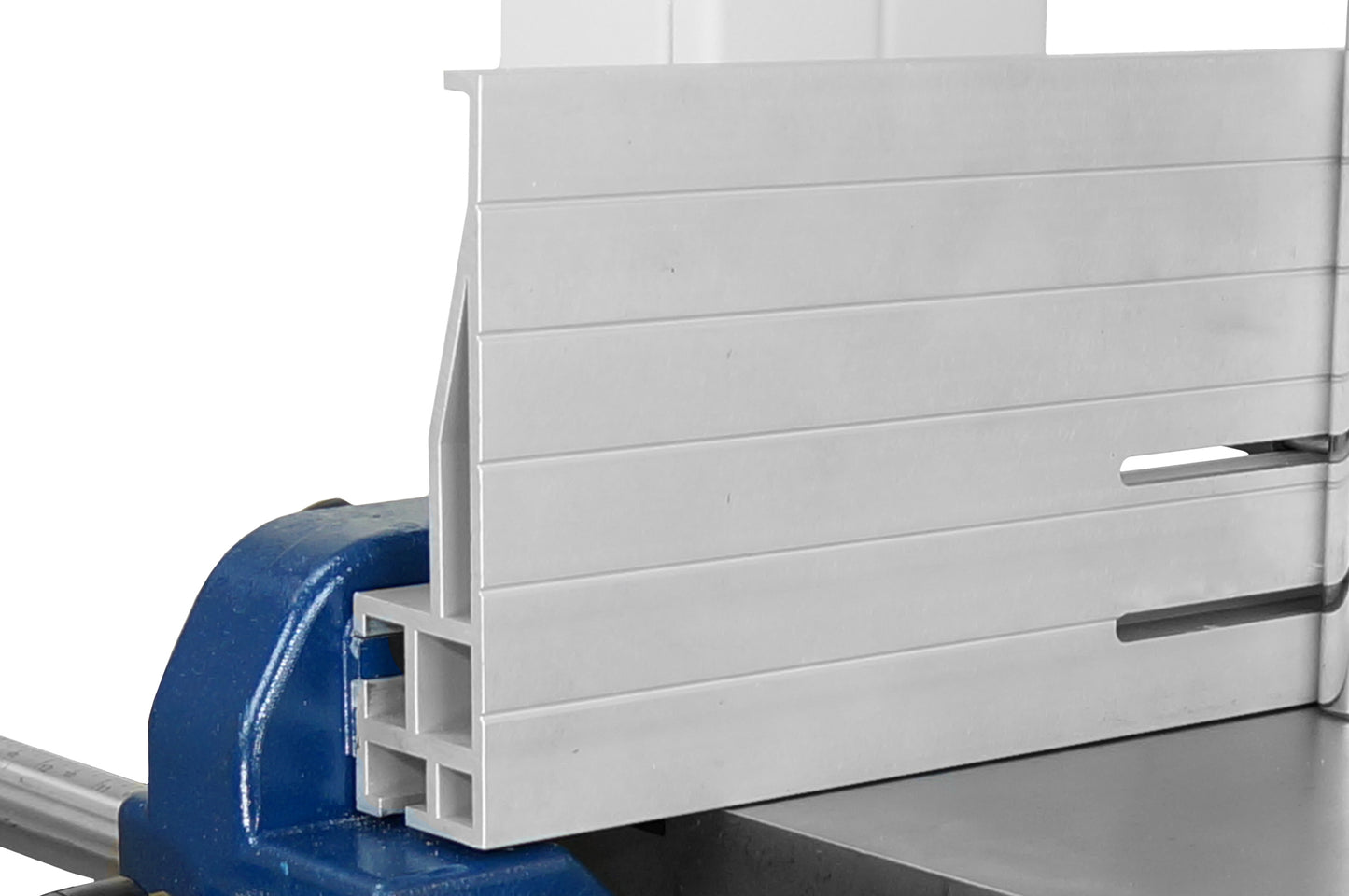

• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence
• Patented – Quick Lock Cast Iron Trunnion System
• 2 Speeds 1,445 / 2,950 FT / MIN.
• Large Cast Iron Table
• Balanced Cast Iron Wheels

14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade guides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.




Motor
Horsepower 1-3/4 HP TEFC
Amps 14/7
Volts 115/230V, 60Hz, 1Ph
Blade Speed 1,445/2,950 FT/MIN
Cutting Capacity
Height 13”
Width 13-5/8”
Blade (Includes 111” x 5/8” , 4 TPI, Reg.)
Width 3/16” – 3/4”
Length 111”
Table
Size 21-1/2” x 15-3/4”
Left Tilt -7°
Right Tilt 45°
Miter Gauge “T” Slot (2) 3/4” x 3/8”
Height to Floor 40-1/2”
Height to Base 20-7/8”
Fence Size 18-3/4” x 1-3/4” x 6”
Overall
Height 75”
Width 33-3/4”
Depth 25”
Base Size 24” x 17-5/8”
Dust Port 1@4”
Net Weight 285 lbs.
Shipping Weight 293 lbs.
Shipping Carton 54-1/2”x17-7/8”x23-7/8”
Warranty 5 Years
