*Drop Ship based on Rikon stock, please contact us for availability

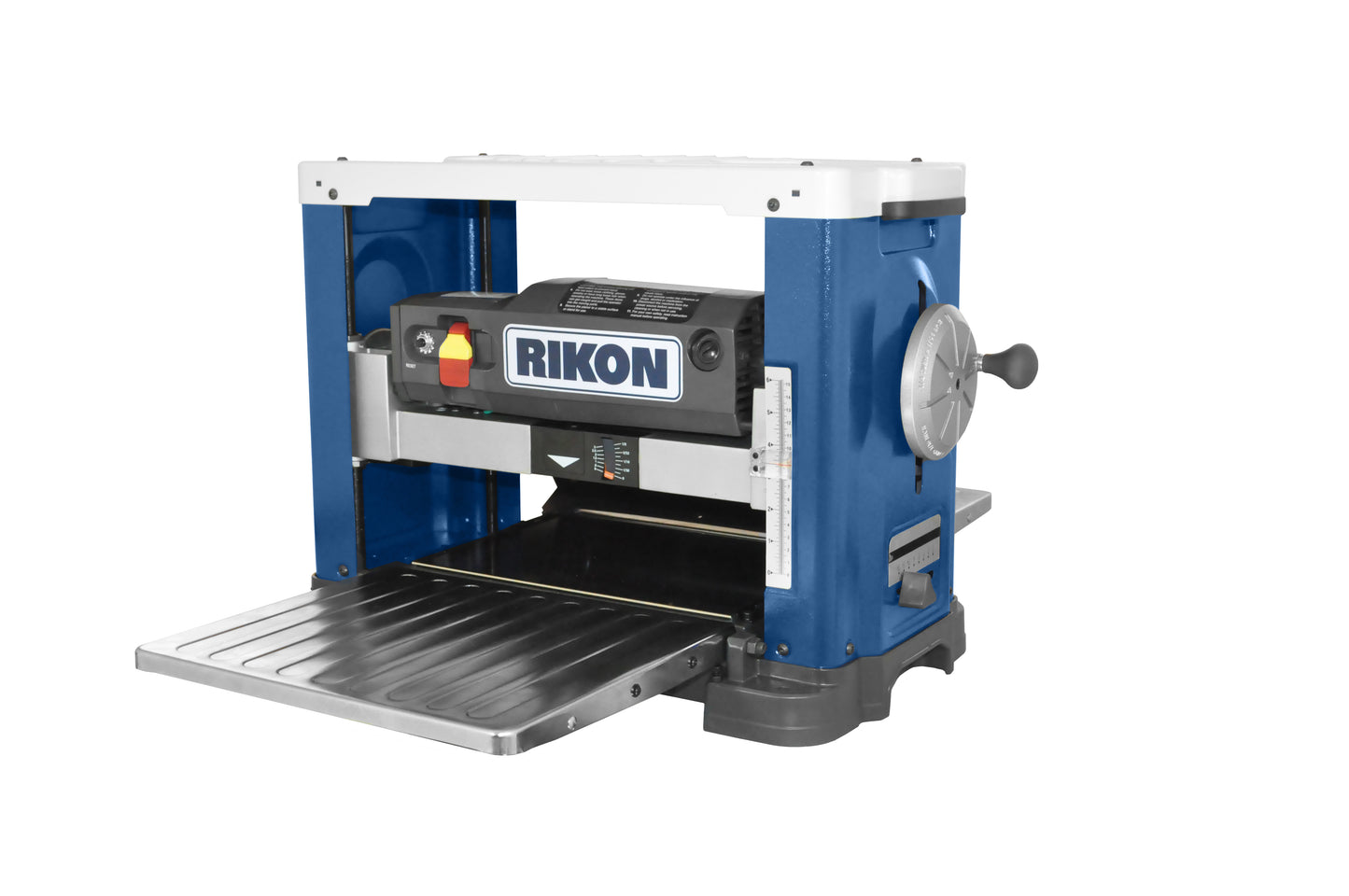

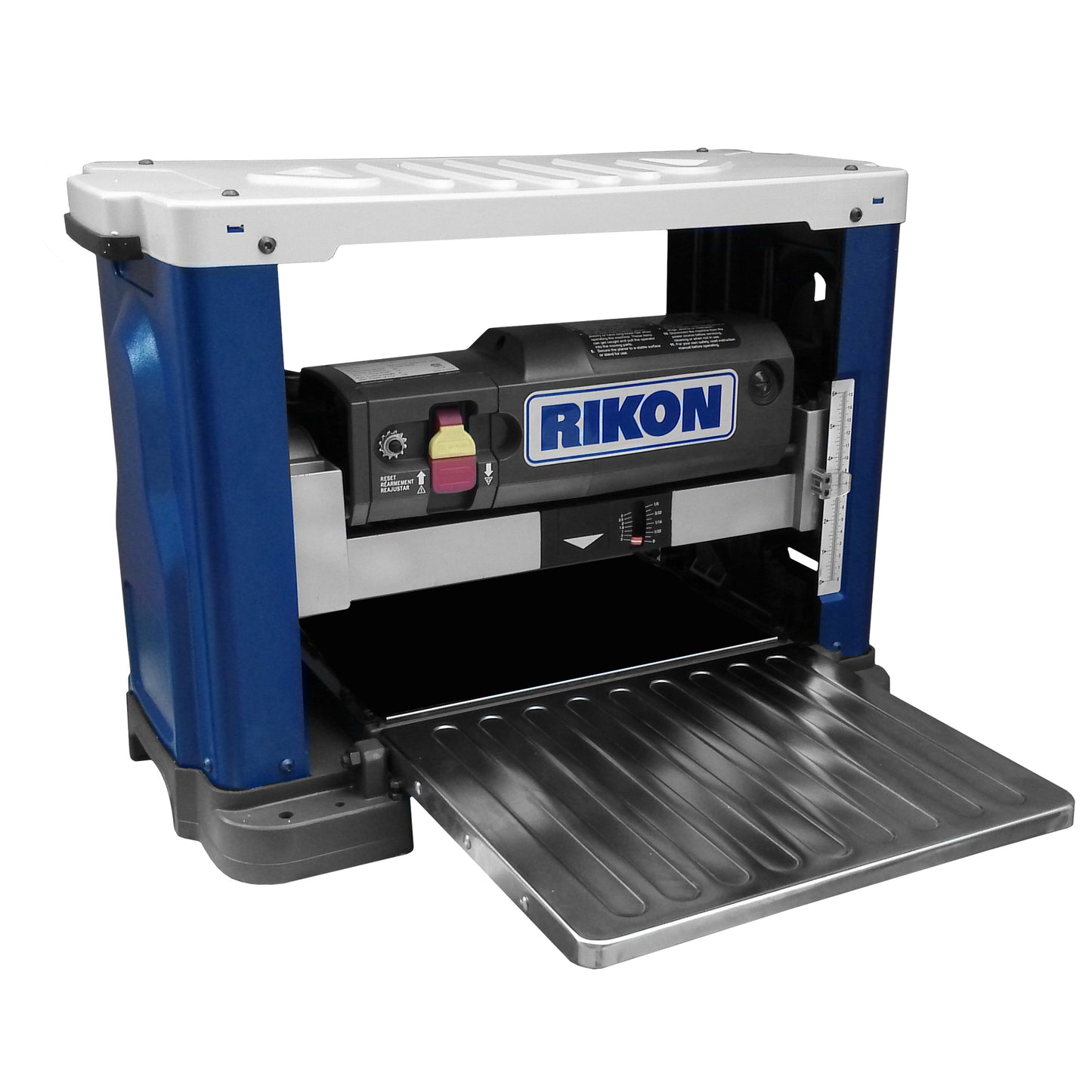

Model 25-135H: 13″ Benchtop Helical Style Planer
• Powerful 15 AMP Motor

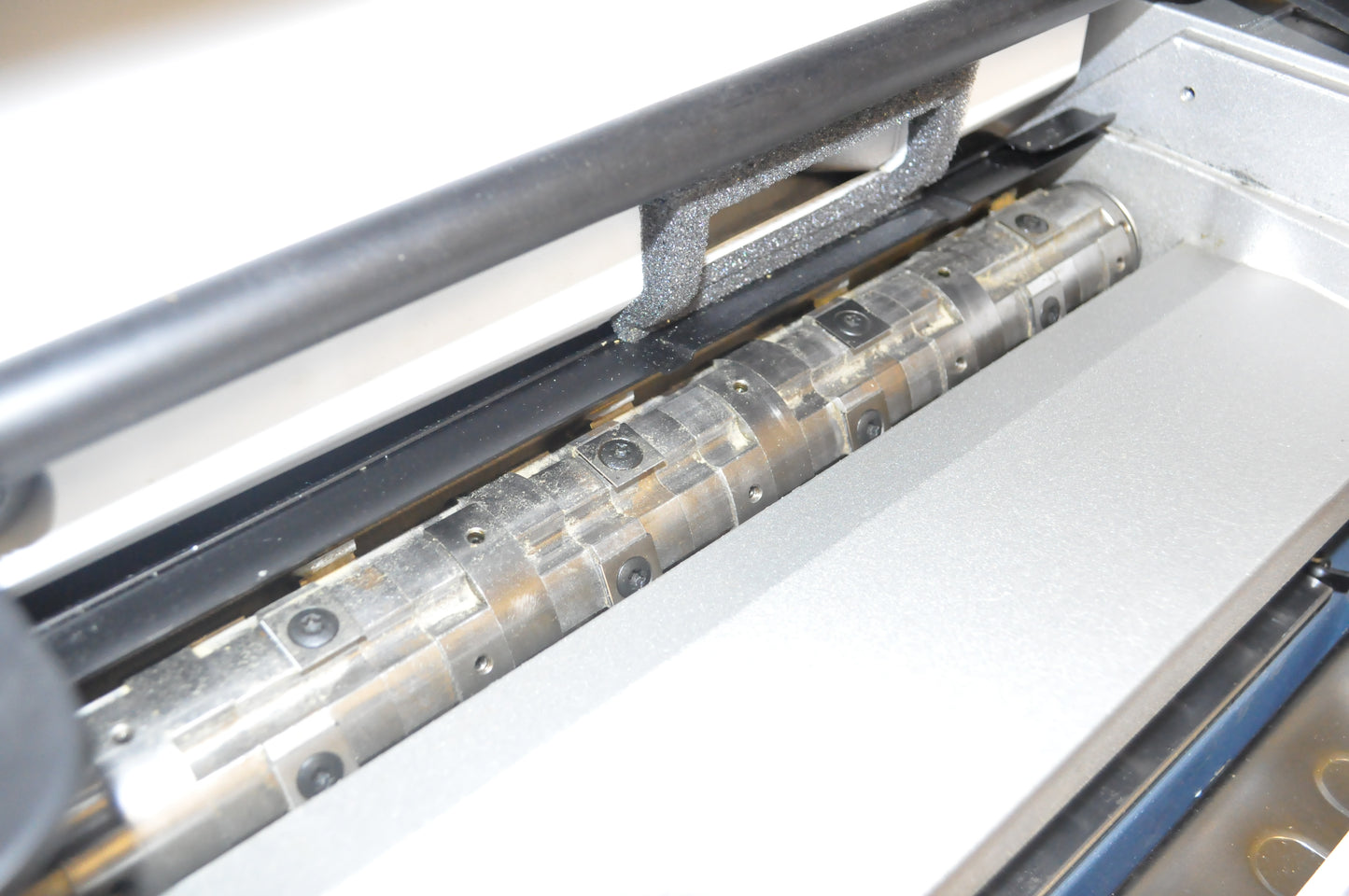

• Helical Style Cutterhead
• All Steel Construction

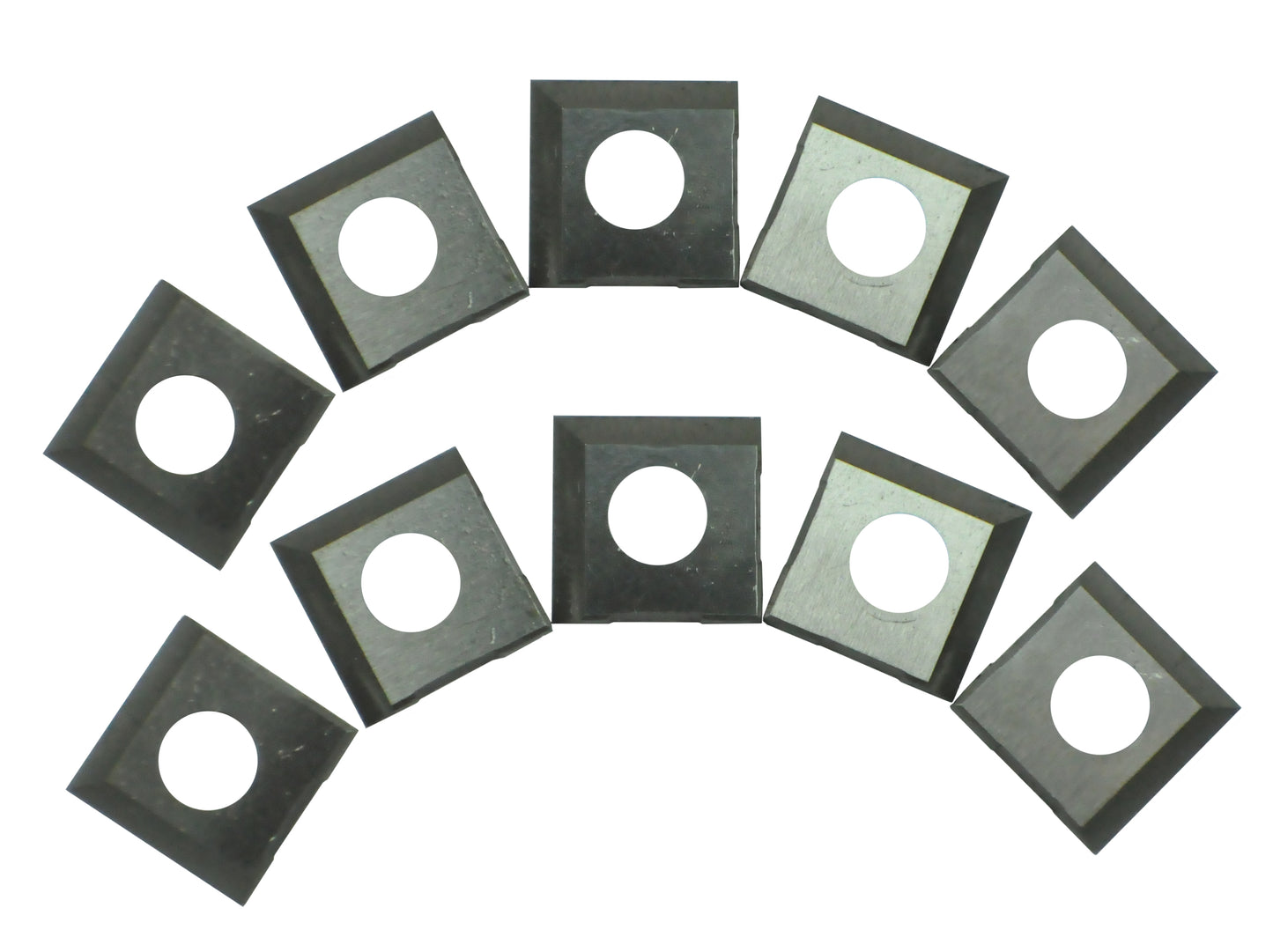

• High Speed Steel Insert Knives

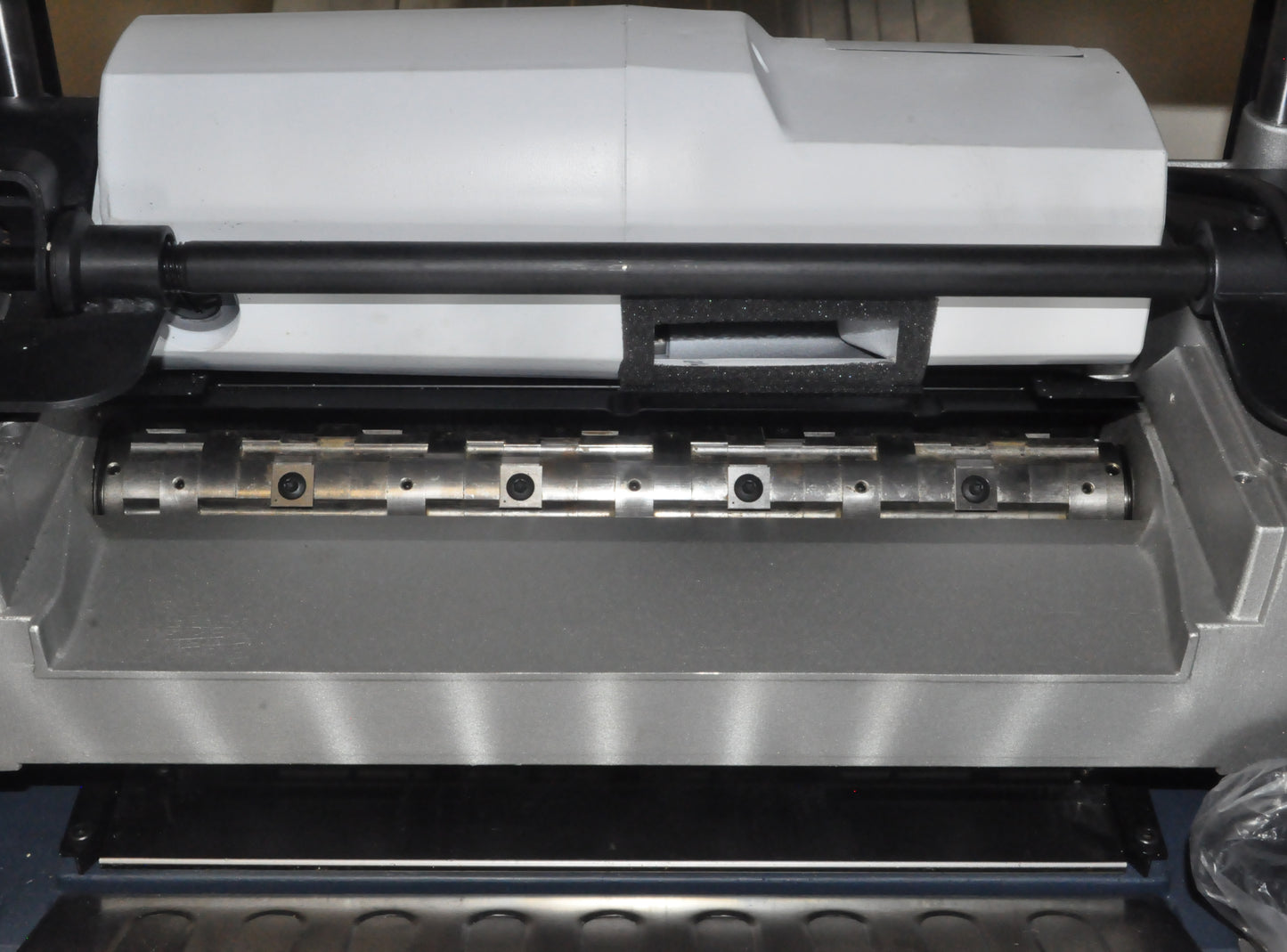

• Easy Blade Access
• Infeed/Outfeed Table Extensions
13” Benchtop Planer #25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or
worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top for stock returning, and side carry handles.
Motor
| Amps | 15 |
| Volts | 115V, 60 Hz |
| Motor Speed (No Load) | 22,000 |
Dust Port
| Dust Port (O.D.) | 4” or 2-1/2“ Diameter |
| Dust Collection Minimum CFM | 650 |
| Noise Level (No Load) | <100dB |
Cutterhead
| Diameter | 2” |
| Speed | 10,000 RPM |
| Number of HSS Inserts (2 Sided) | 26 |
| HSS Insert Size | 14.2mm x 14.2mm x 2mm |
| Number of Insert Rows | 6 |
| Maximum Depth of Cut | 1/8” |
| Maximum Cutting Width | 13” |
| Maximum Cutting Depth (Height) | 6” |
| Minimum Length of Stock | 7” |
| Minimum Width of Stock | 3/4” |
| Minimum Thickness of Stock | 3/16” |
| Feed Speed SF/MIN | 26 SF/MIN |
| Table Size (L x W) | 9-1/4” x 13-1/16” |
| Extension Tables (2) (L x W) | 12” x 14” |
Overall
| Height | 17-5/16” |
| Width | 26-1/4” |
| Depth | 34-1/4” |
| Base Size | 22” x 13-1/4” |
| Net Weight | 73 lbs. |
| Shipping Weight | 77 lbs. |
| Shipping Carton | 26”x15-3/4”x20-3/4” |
| Warranty | 5 years |
