Label Sizing Templates

Label Sizing Templates

$5.99 USD
$5.99 USD
Sale Sold out

Tube In Rolling Jig Templates - Label Sizing Templates

Clear acrylic template that has been laser cut to identify and size the label dimensions required for the specified pen tube size.


  • AARON JUNIOR CAP - 1.56" x 2.01"
  • AARON JUNIOR BODY - 1.30" x 2.21"
  • AERO TWIST - 1.13" x 2.02"
  • ATLAS / POLARIS - 2.88" x 1.20"
  • BARON CAP - 1.81" x 1.45"
  • BARON BODY - 2.13" x 1.20"
  • BOLT ACTION - 2.01" x 1.20"
  • CAT UPPER - 1.66" x 1.25"
  • CAT LOWER - 2.02" x 1.25"
  • CIGAR CAP - 1.25" x 1.98"
  • CIGAR BODY - 1.25" x 2.13"
  • COWBOY CAP (PSI) - 1.74" x 1.02"
  • COWBOY BODY (PSI) - 1.61" x 1.02"
  • DESIGNER CAP (non tenon)  2.07" x 0.90"
  • DESIGNER CAP (tenon)  2.165" x 0.90"
  • DESIGNER BODY - 2.42" x 0.90"
  • DOG CLICK / GOTHICA - 3.35" x 1.20"
  • DRAGON TWIST UPPER- 1.64" x 1.20"
  • DRAGON TWIST LOWER - 1.49" x 1.20"
  • DURA CLICK EDC - 2.81" x 1.03"
  • EMPEROR CAP - 2.01" x 1.83"
  • EMPEROR BODY - 2.30" x 1.45"
  • EXECUTIVE / CIVIL WAR - 2.92 x 1.20"
  • FIREMAN - 1.93" x 1.24"
  • FLY FISHING KIT - 2.96" x 1.20"
  • GEAR SHIFT - 2.24" x 1.20"
  • KNURL - 3.01" x 1.20"
  • LEVER ACTION - 1.88" x 1.25"
  • MAGNETIC VERTEX - 2.42" x 1.30"
  • MAJESTIC CAP - 2.01" x 1.83"
  • MAJESTIC BODY - 2.19" x 1.45"
  • MAJESTIC JUNIOR CAP - 1.92" x 1.55"
  • MAJESTIC JUNIOR BODY - 2.07" x 1.29"
  • MAJESTIC SQUIRE - 1.20" x 2.04"
  • MISTRAL CAP - 1.47" x 1.86"
  • MISTRAL BODY - 2.60" x 1.25"
  • MOTORCYCLE (PSI) -  2.32" x 1.25"
  • NAUTICAL - 2.66" x 1.20"
  • ORION CAP - 1.85" x 1.45"
  • ORION BODY - 2.79" x 1.25"
  • POLICEMAN CLICK - 2.13" x 1.20"
  • PROFESSOR - 2.68" x 1.15"
  • RACE CAR - 2.67" x 1.20"
  • RAZOR - 3.04" x 0.90"
  • SEAM RIPPER - 3.17" x 1.02"
  • SEMI-AUTO RIFLE - 2.41" x 1.25"
  • SHAKESPEARE CAP - 1.94" x 1.55"
  • SHAKESPEARE BODY - 2.79" x 1.31"
  • SIERRA - 2.25" x 1.33"
  • SIERRA CLICK - 2.46" x 1.33"
  • SKULL TWIST UPPER - 1.40" x 1.20"
  • SKULL TWIST LOWER - 1.75" x 1.20"
  • SLIMLINE - 0.90" x 2.13"
  • STEAMPUNK - 1.89" x 1.20"
  • TINY GIANT - 2.63" x 1.03"
  • VERTEX SUPREME CAP - 1.73" x 1.56"
  • VERTEX SUPREME BODY - 2.67" x 1.30"

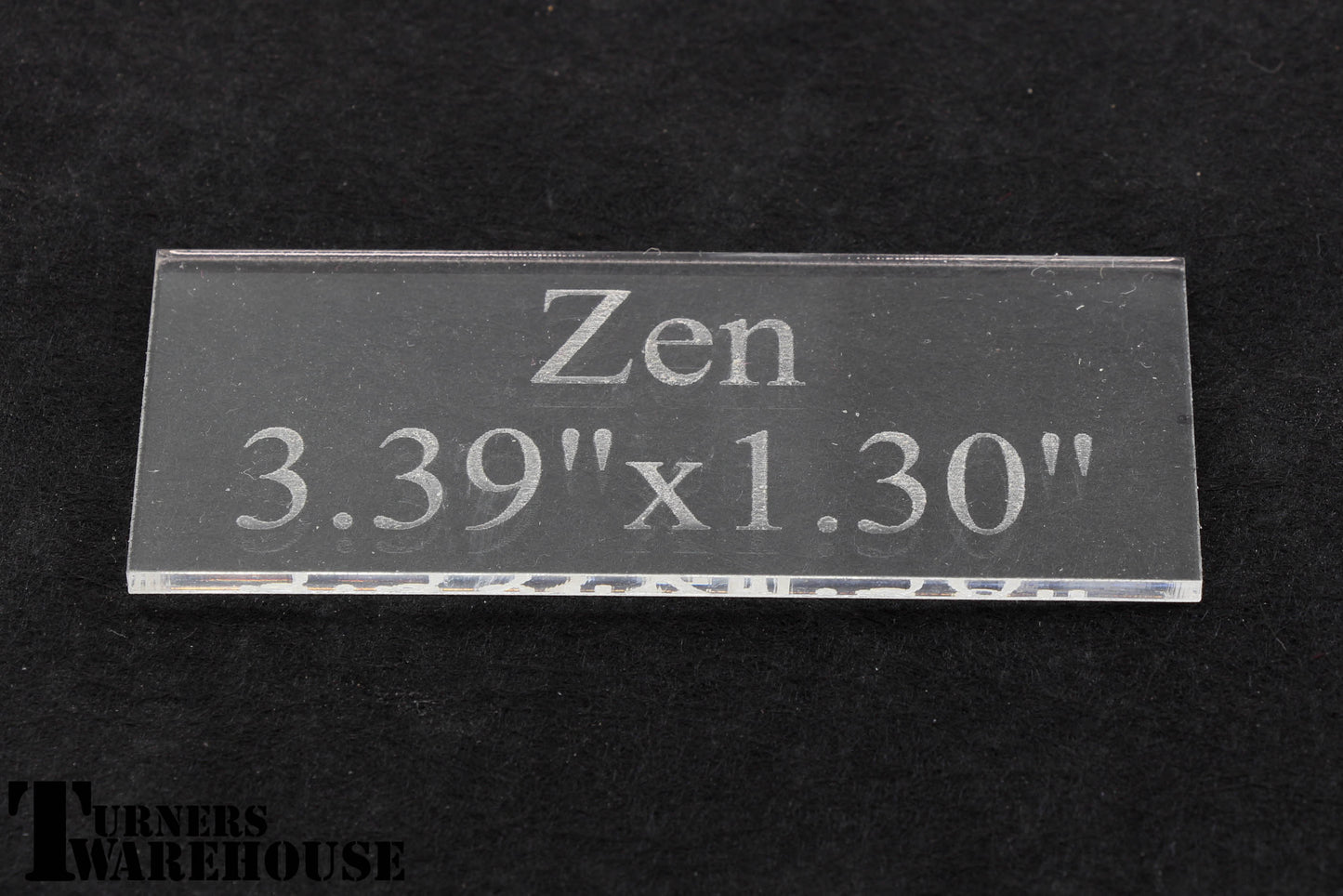

  • ZEN - 3.39" x 1.30"
