Drop Ship based on Rikon stock, please contact us for availability
• 13″ Cutting Capacity
• Patented – Spring Loaded Tool-less Guide System

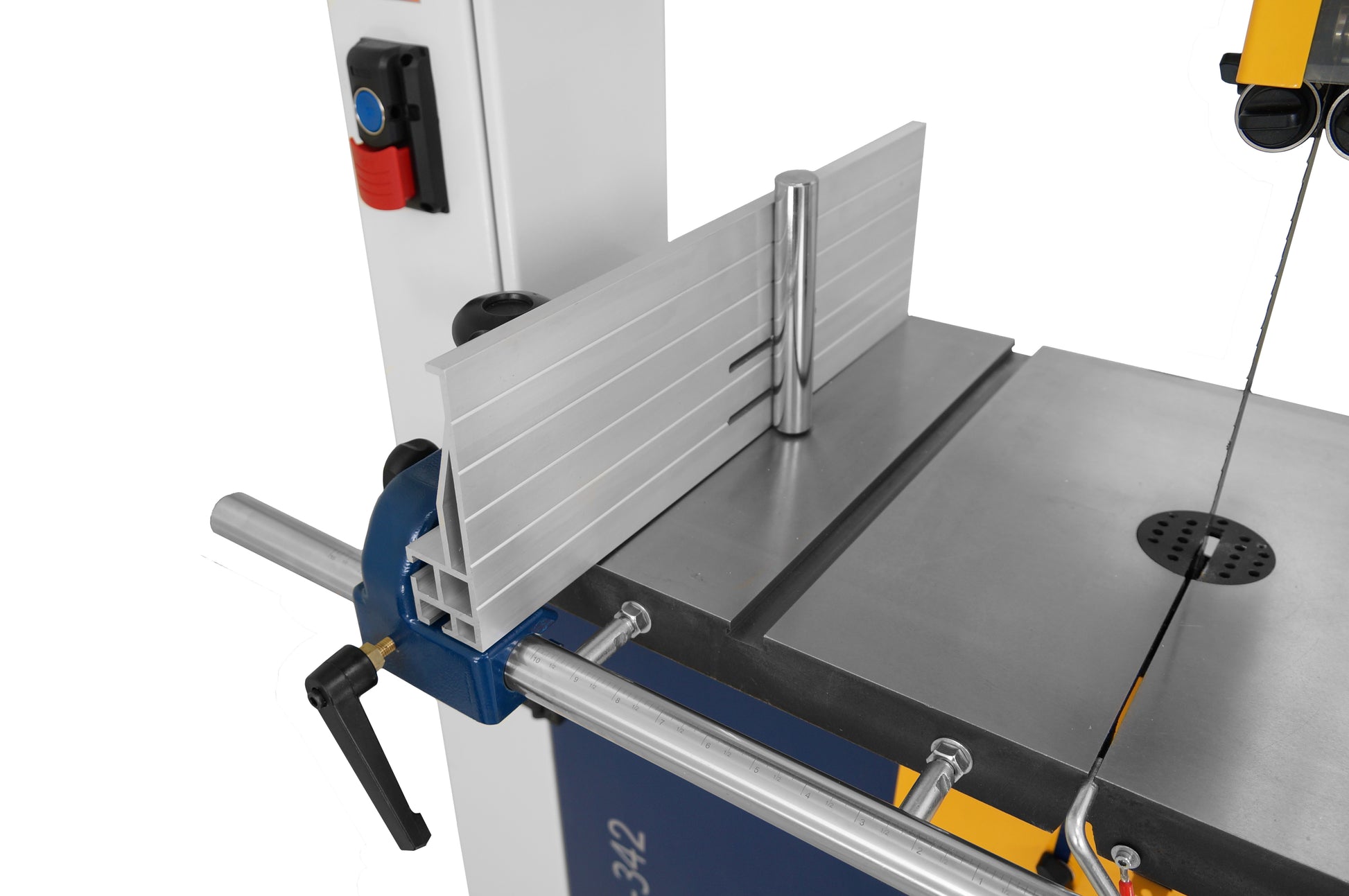

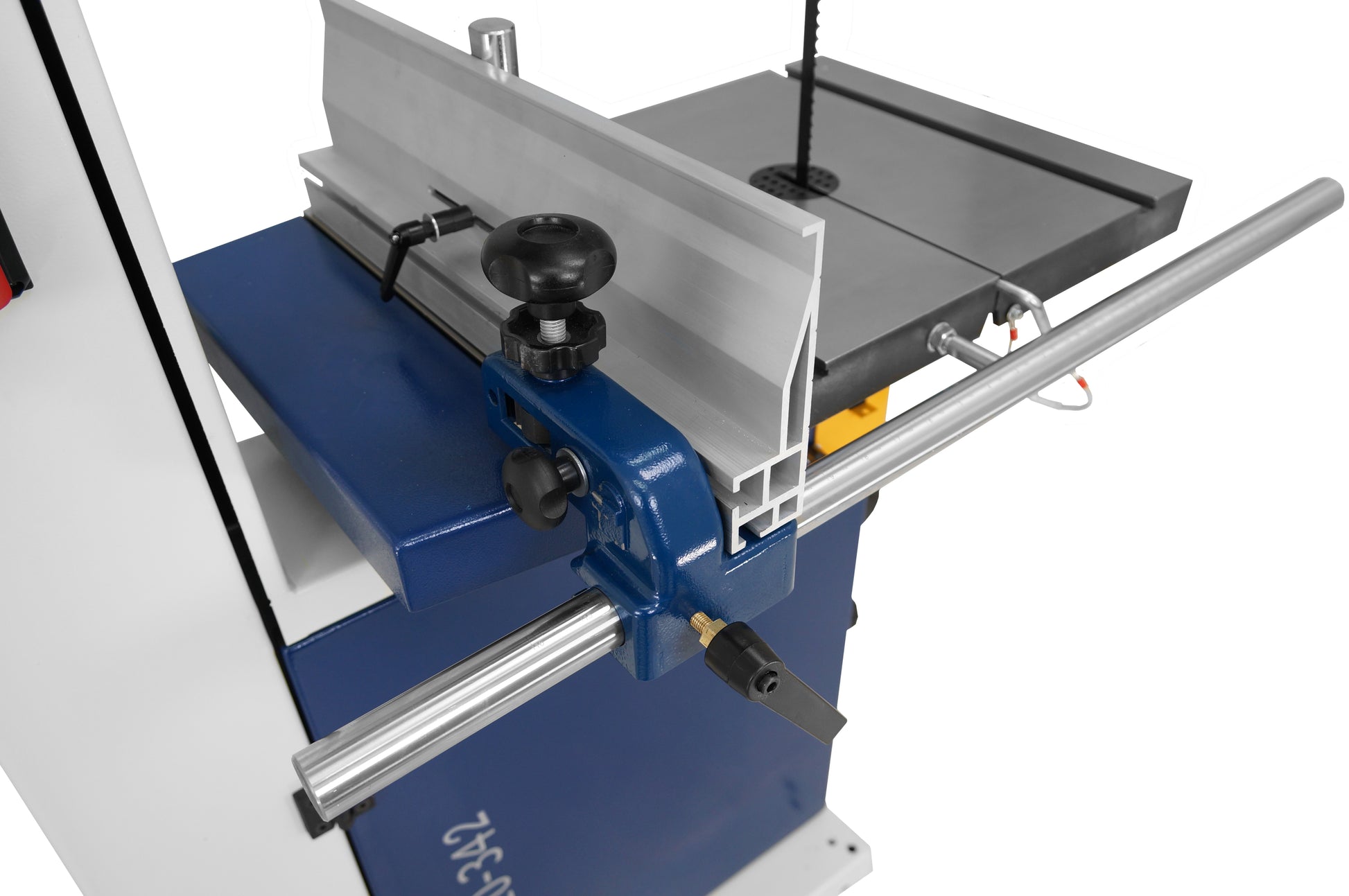

• Patented – Quick Adjust 6″ Tall Fence System
• Patented – Quick Adjust Trunnion System
• Quick Release Blade Tension

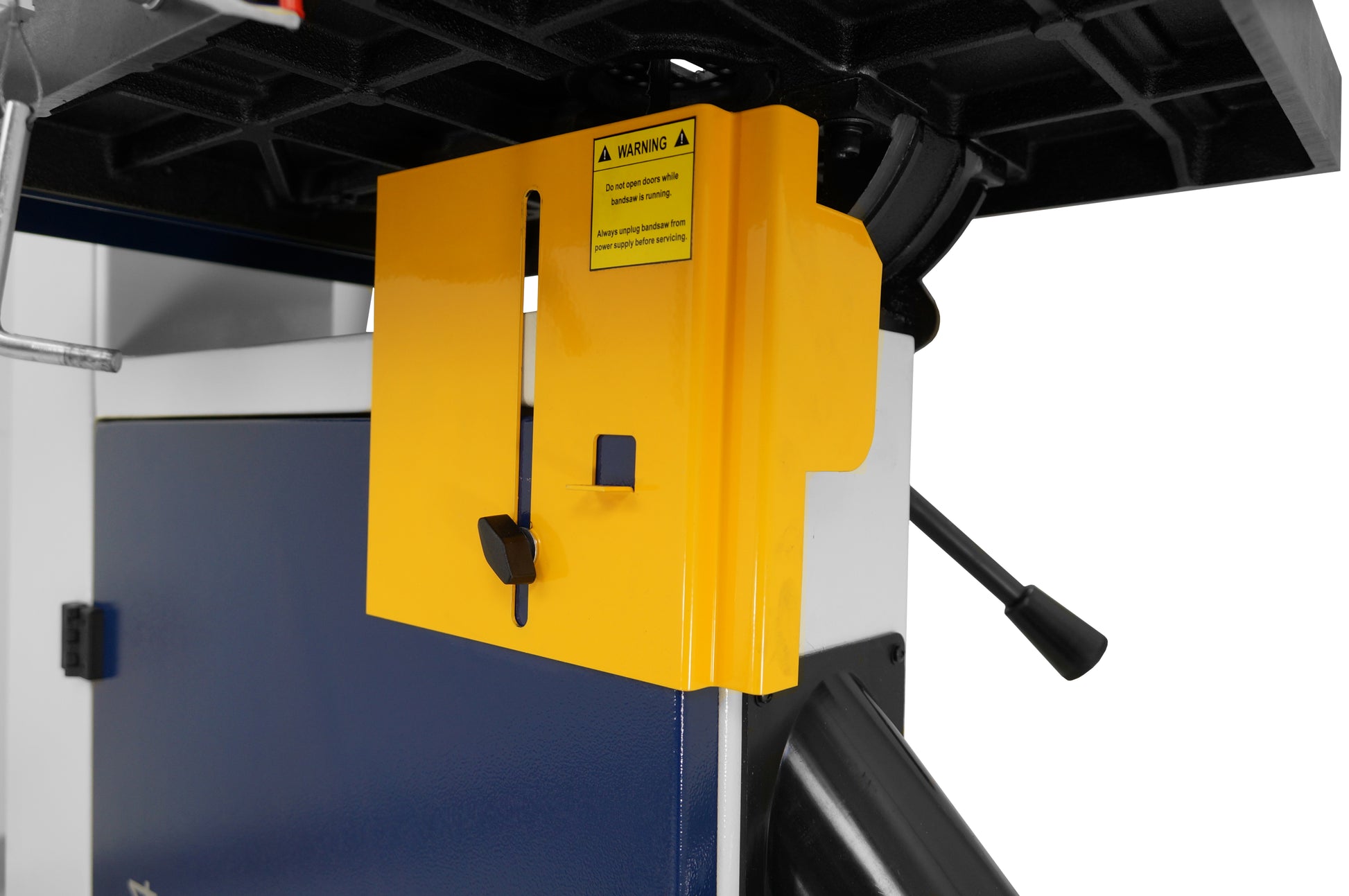

• Hinged Blade Guard With Sight Window

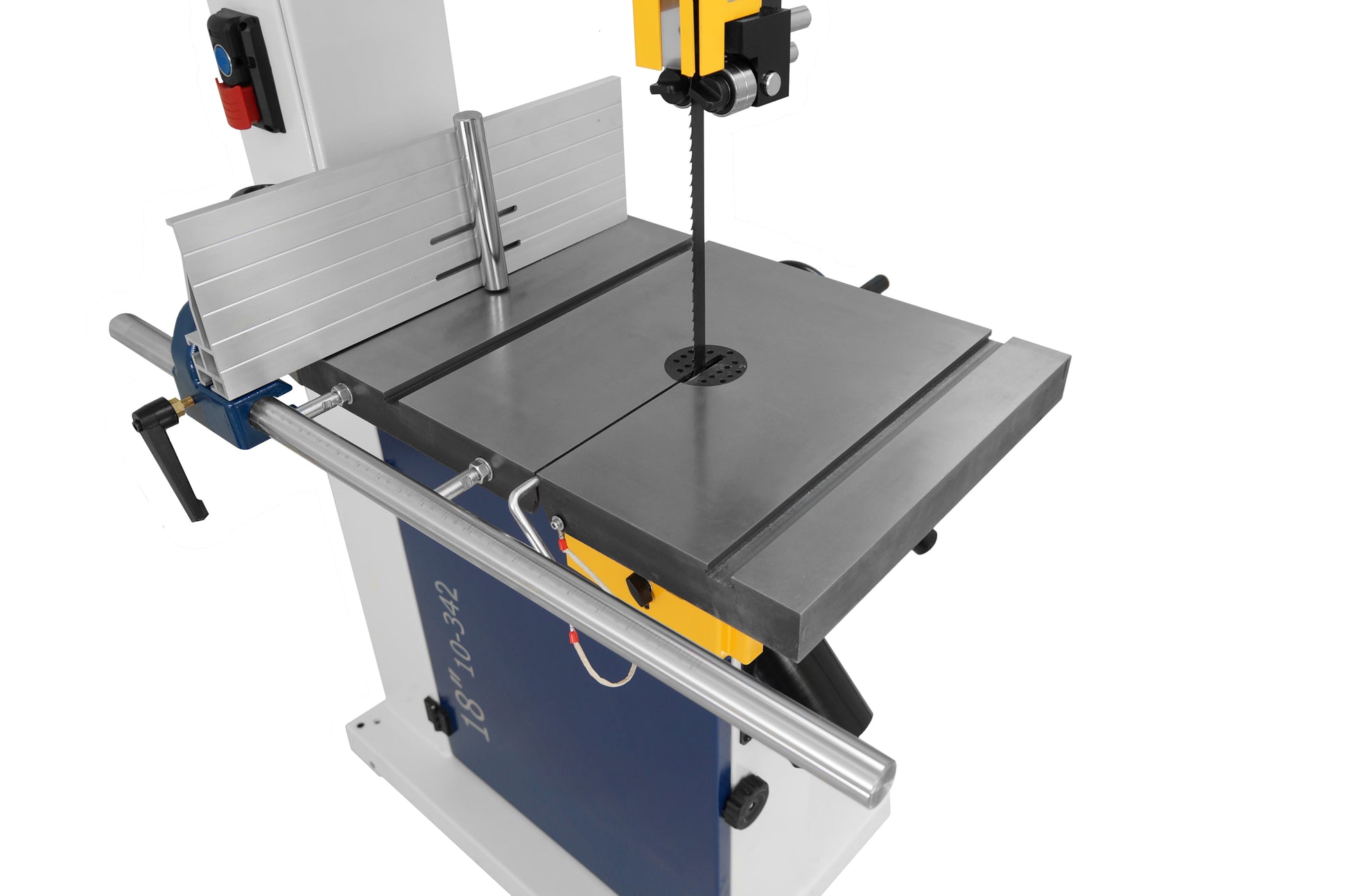

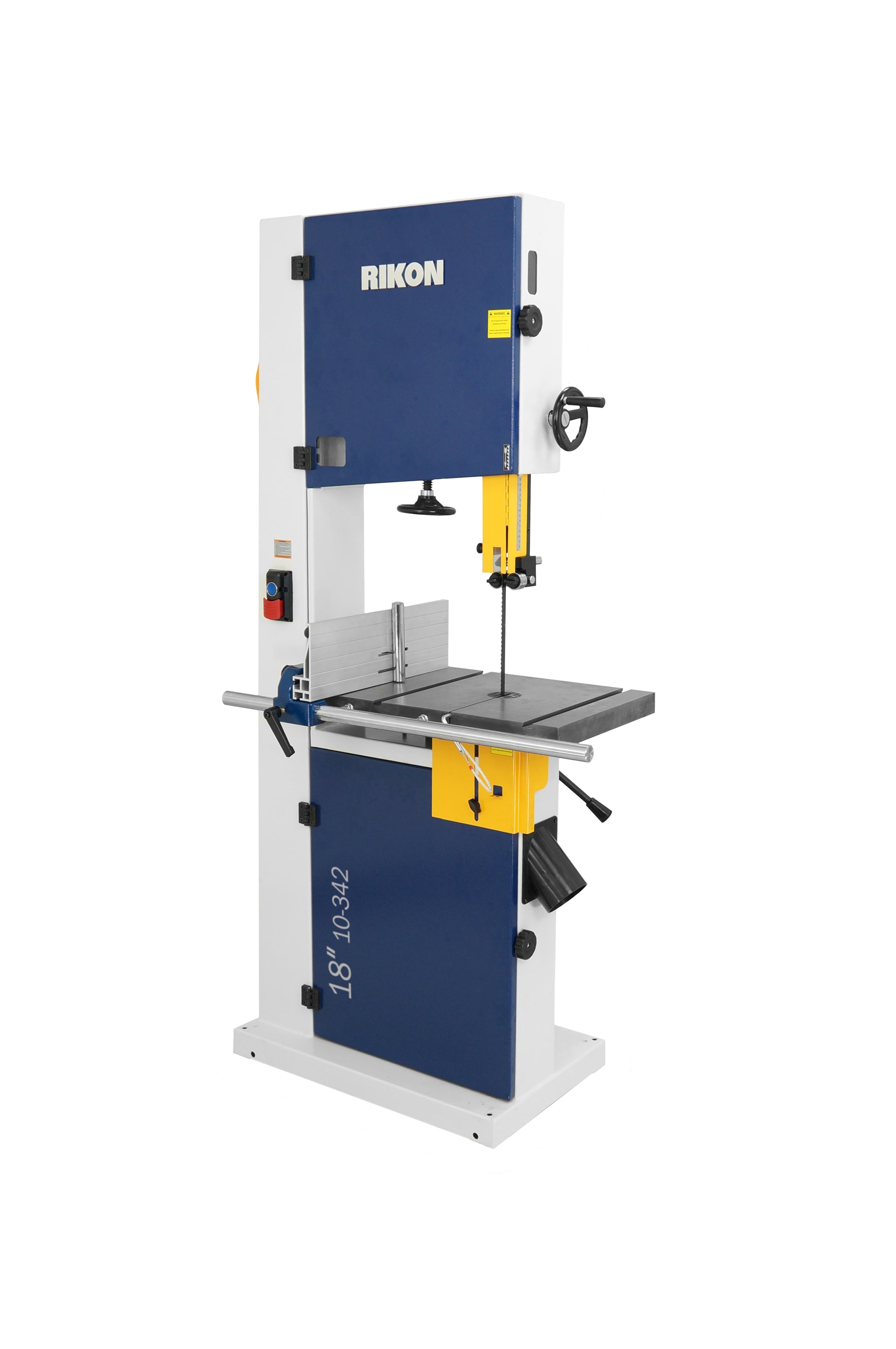

18” Bandsaw #10-342 is an entry level machine to this larger capacity category. Ample 2 HP motor provides plenty of power behind the single 3,200 ft/min blade speed of the machine. Cast iron table includes a single
‘T’ slot for use with miter gauges (available separately) or other cutting jigs. Includes 120V electrical outlet on rear of machine. Machine requires 4-wire electrical plug.
Motor
Horsepower | 2 HP TEFC |
Amps | 7.5 |
Volts | 220V, 60Hz, 1Ph |
Blade Speed | 3,280 FT/MIN |
Cutting Capacity
Height | 13” |
Width | 17-1/2” |
Blade (Includes 153” x 5/8” , 3 TPI, Reg.)
Width | 1/4” – 1-3/8” |
Length | 153” |
Table
Size | 21-1/2” x 15-3/4” |
Left Side Extension | 4-3/8” x 15-3/4” |
Left Tilt | -10° |
Right Tilt | 45° |
Miter Gauge “T” Slot | (2) 3/4” x 3/8” |
Height to Floor | 35-1/2” |
Fence Size | 20-7/8” x 1-7/8” x 6” |
Overall
Height | 72-7/8” |
Width | 38-1/2” |
Depth | 28-1/8” |
Base Size | 29-5/16” x 18-1/8” |
Dust Port | 2@4” |
Net Weight | 324 lbs. |
Shipping Weight | 464 lbs. |
Shipping Carton | 33-3/4”x22-1/4”x79-3/8” |
Warranty | 5 Years |
