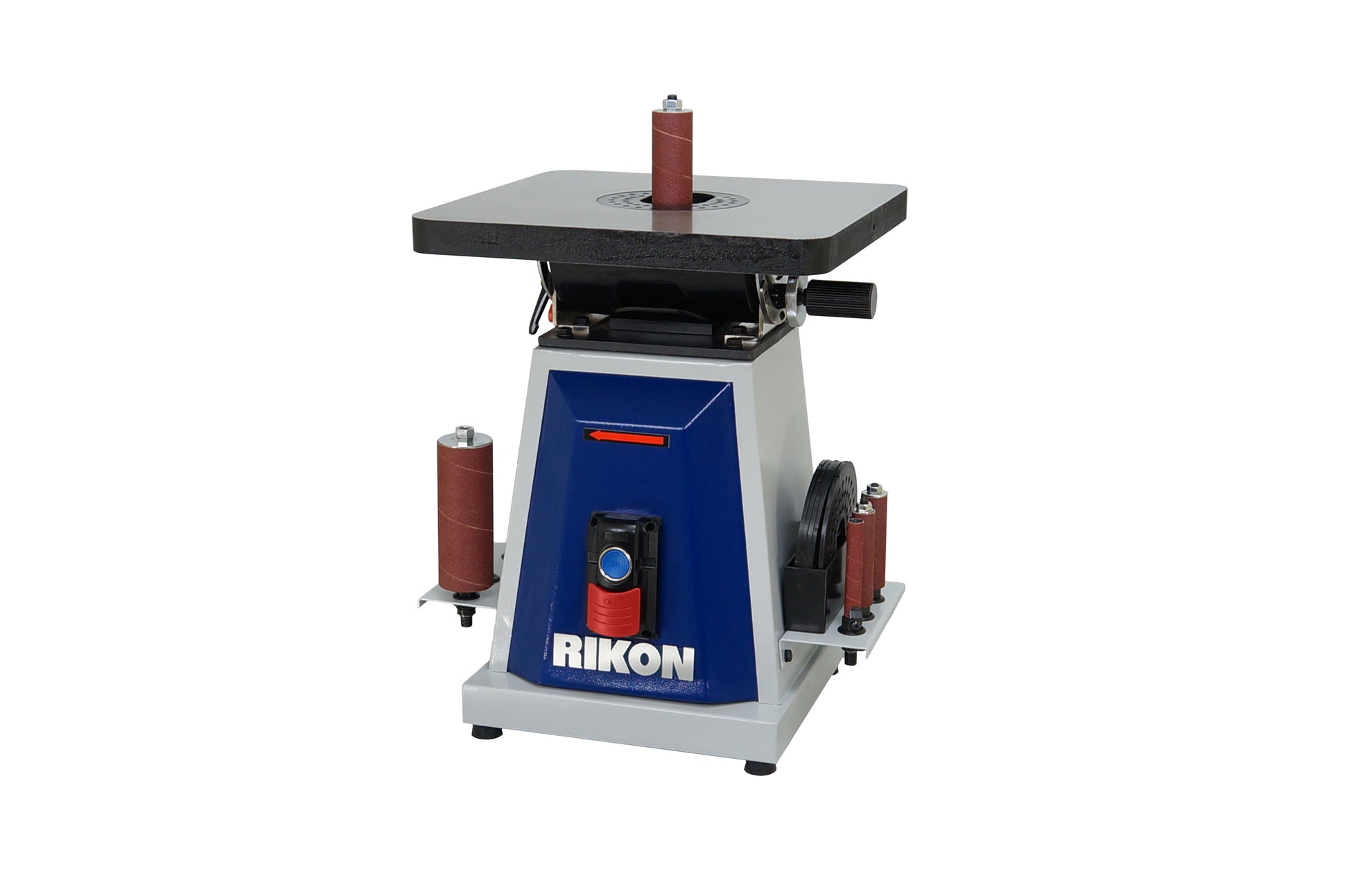

Model 50-300: Oscillating Spindle Sander
• 1/2 HP Motor

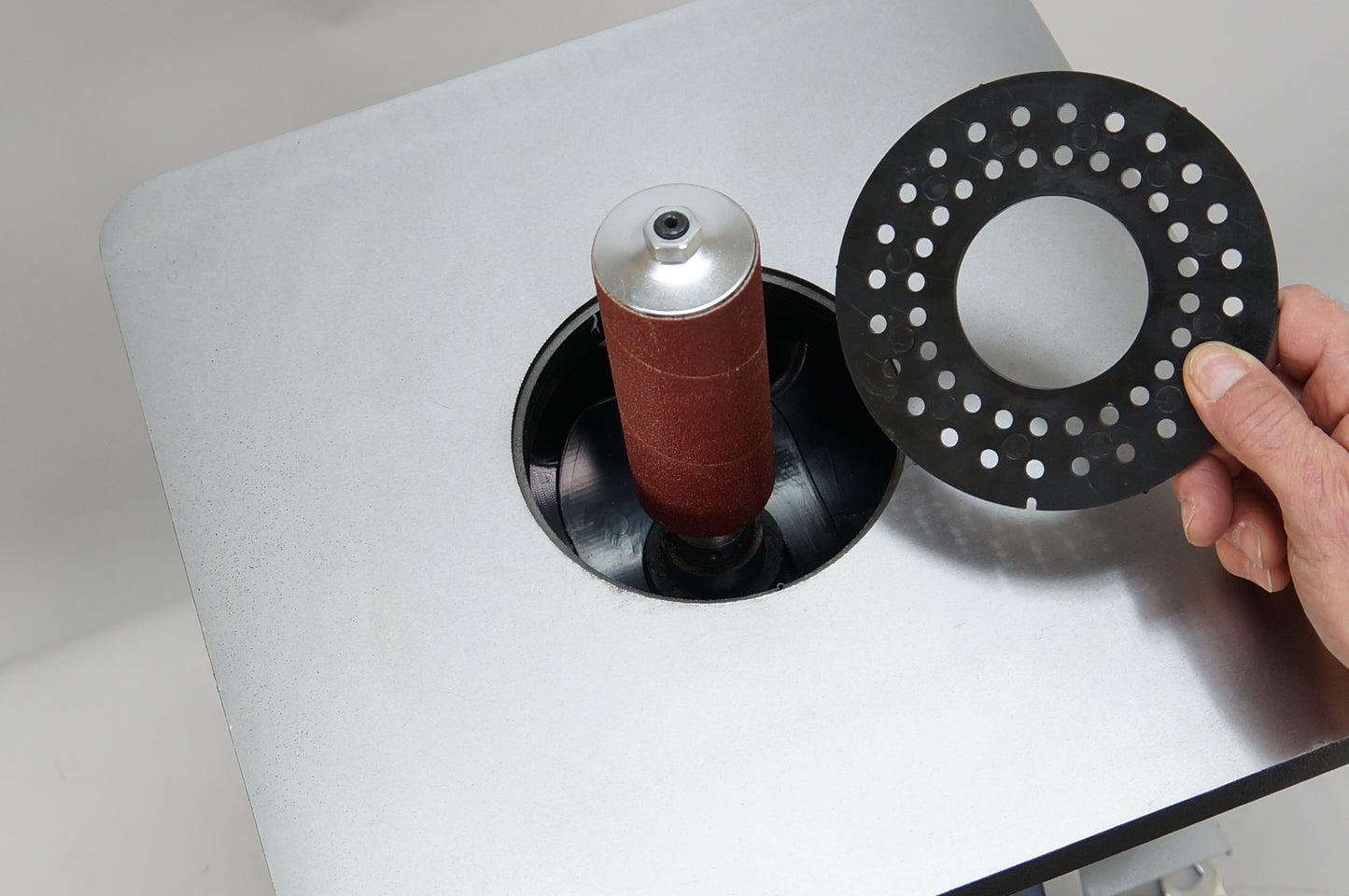

• Multiple Inserts Included
• Multiple Spindles Included

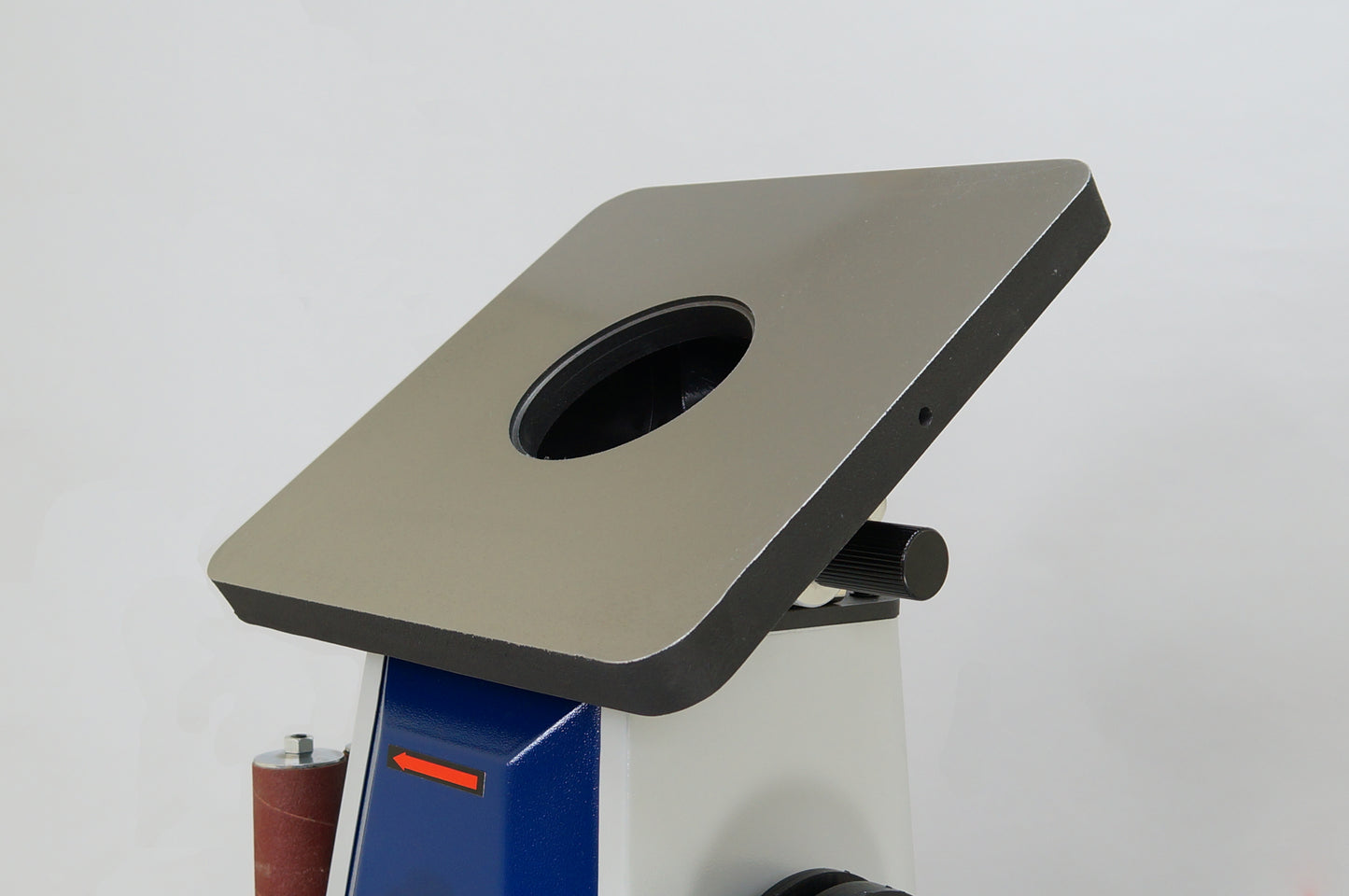

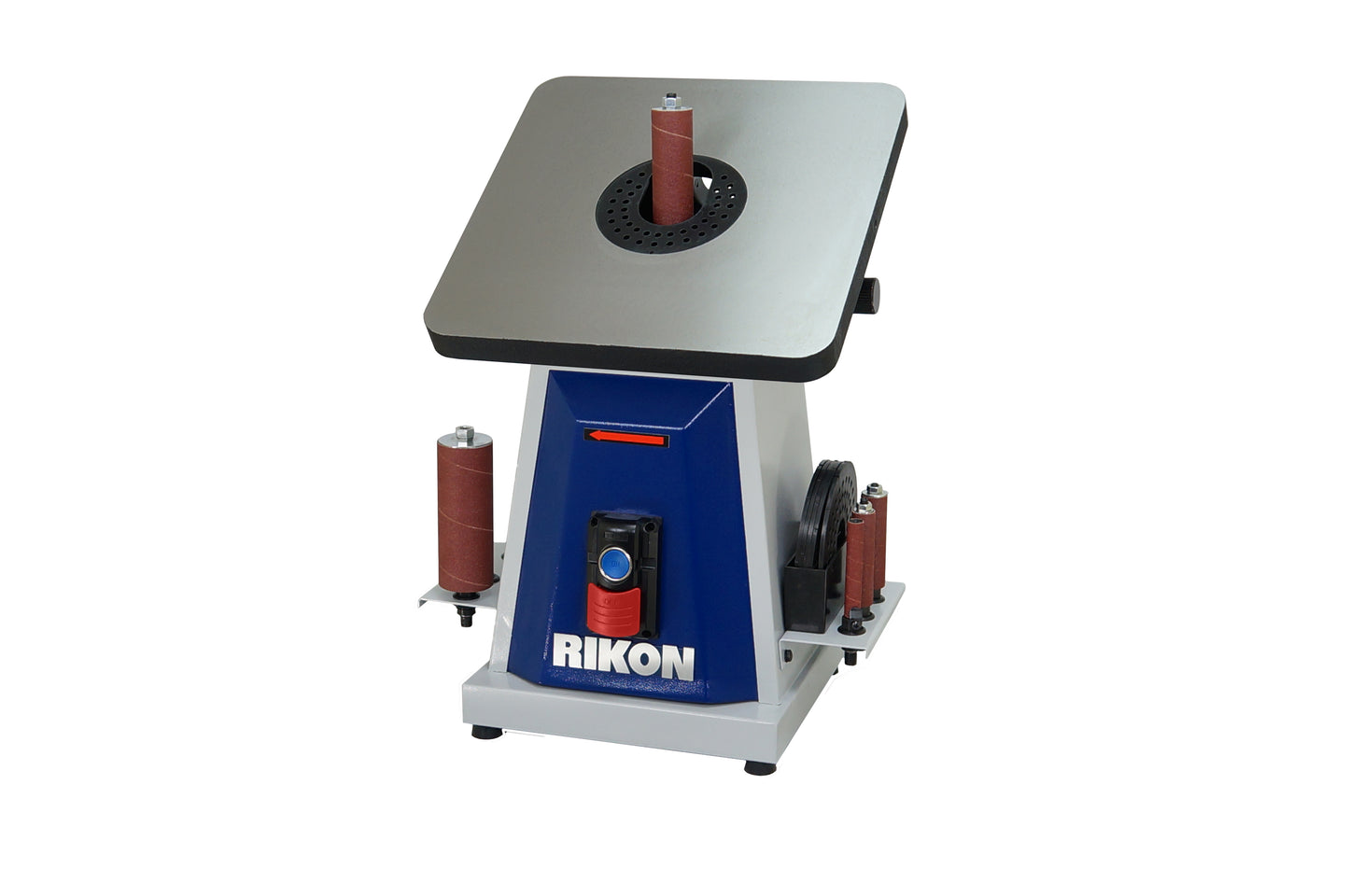

• Table Tilt 0-45° Forward

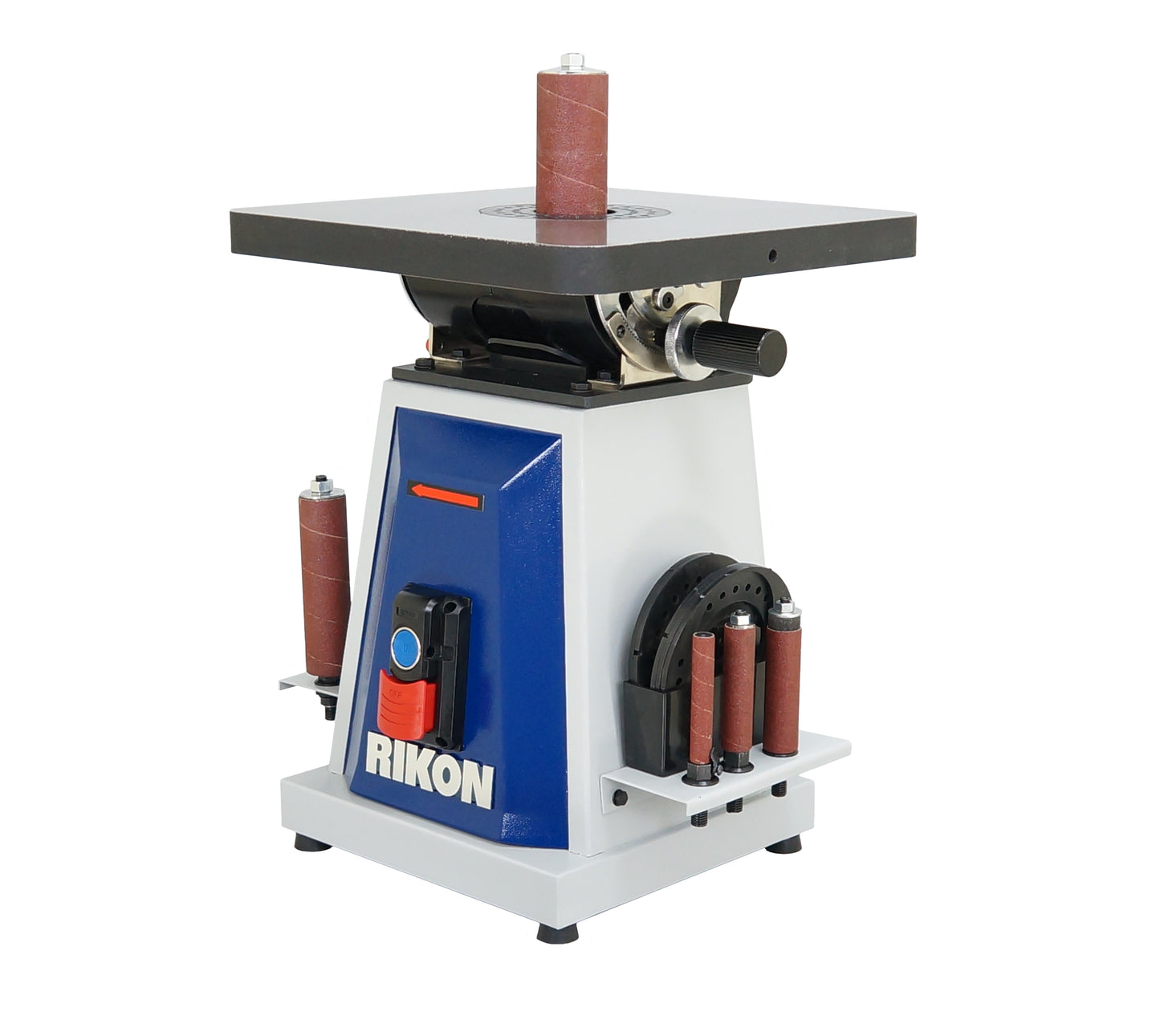

• Dual Tool Holders
• 2″ Dust Ports

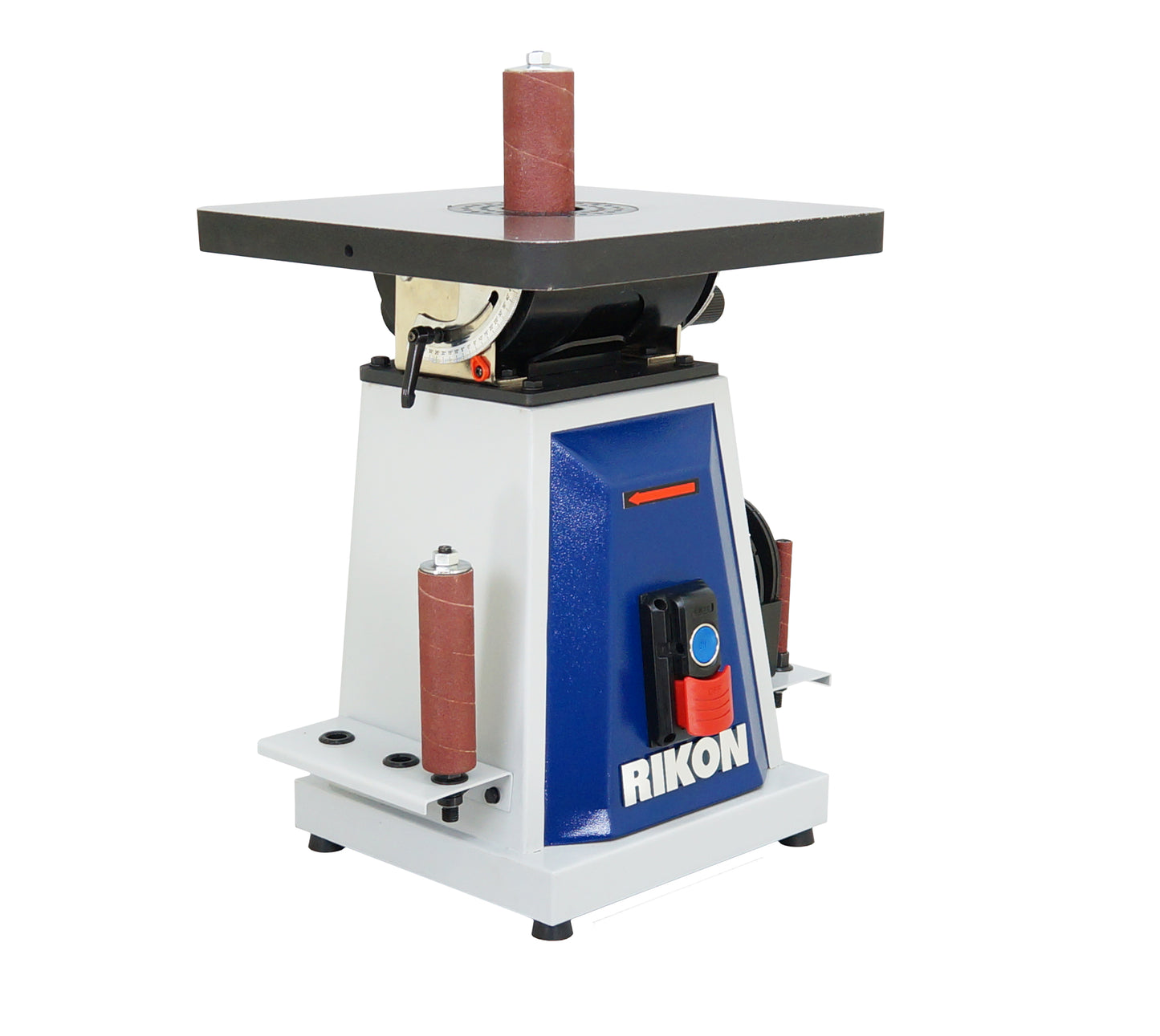

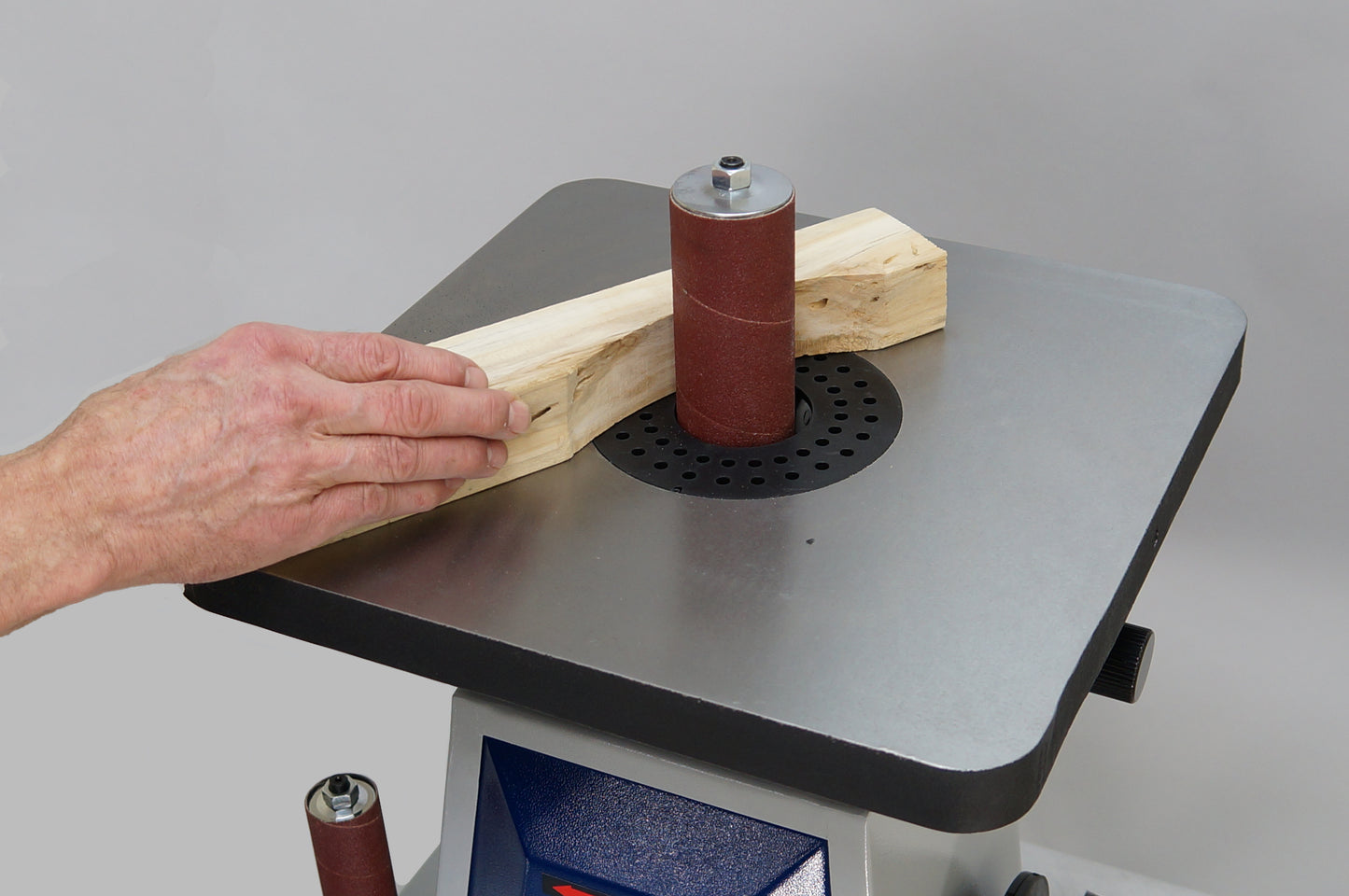

Oscillating Spindle Sander #50-300 is a specialized sander for the fast and accurate sanding of curved board edges. Abrasive sleeves mounted on the machine’s spindles oscillate up-and-down 15/16″, 29 time per minute while
the spindle spins, providing more efficient abrasive cutting action. Powerful 1/2 HP motor, all steel gearing, ample cast iron tilting table, metal housing and 5 spindle diameters (1/2″ – 2″) with 6 table inserts make this a valuable machine for every shop. 4-1/2″ long abrasives. Weighs 76
| Horsepower | 1/2 HP |
| Amps | 3.4 |
| Volts | 110V, 60 Hz |
| Speed (No Load) | 1,700 RPM |
Table
| Table Size | 14-3/4” x 14-3/4” |

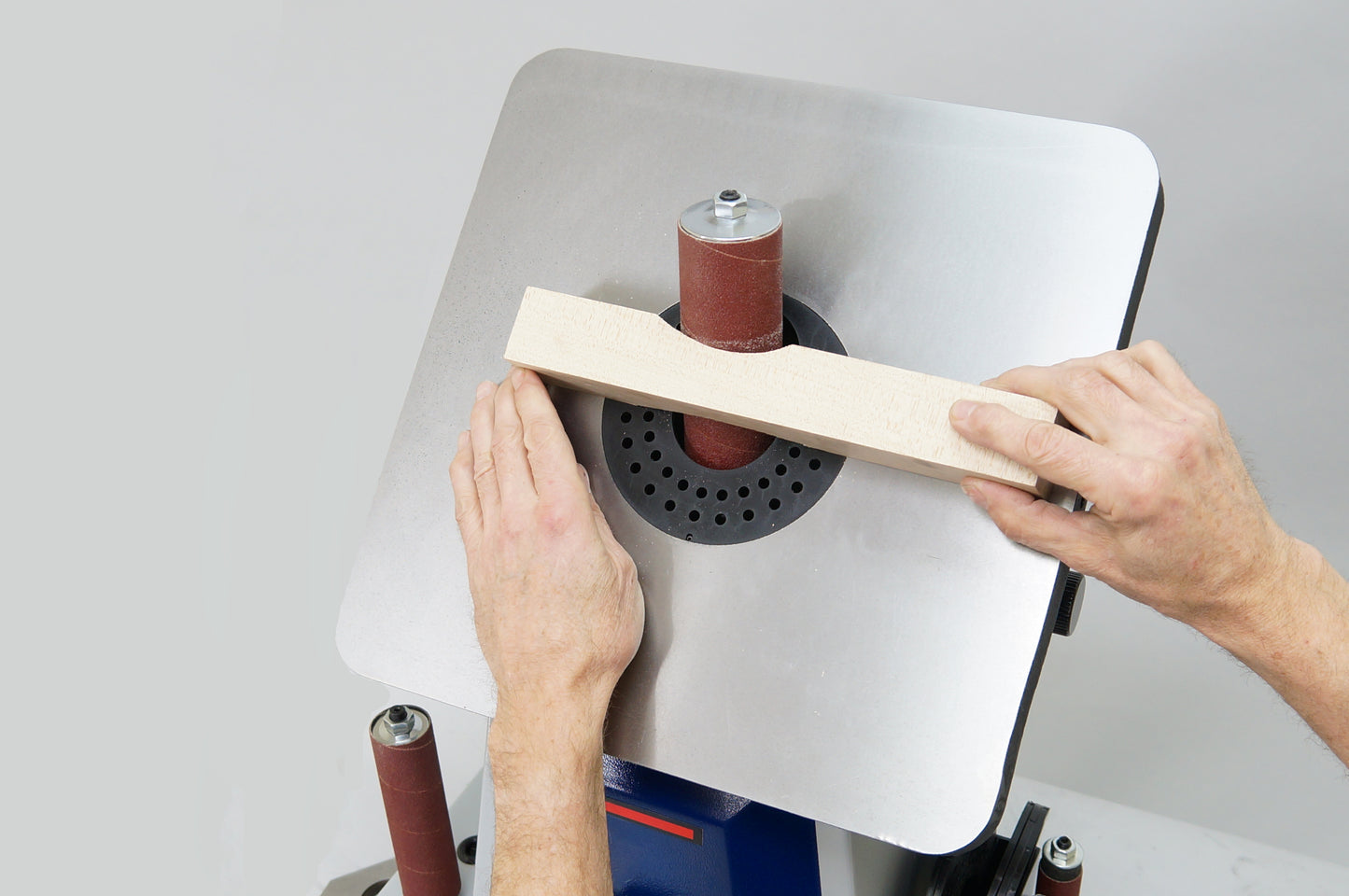

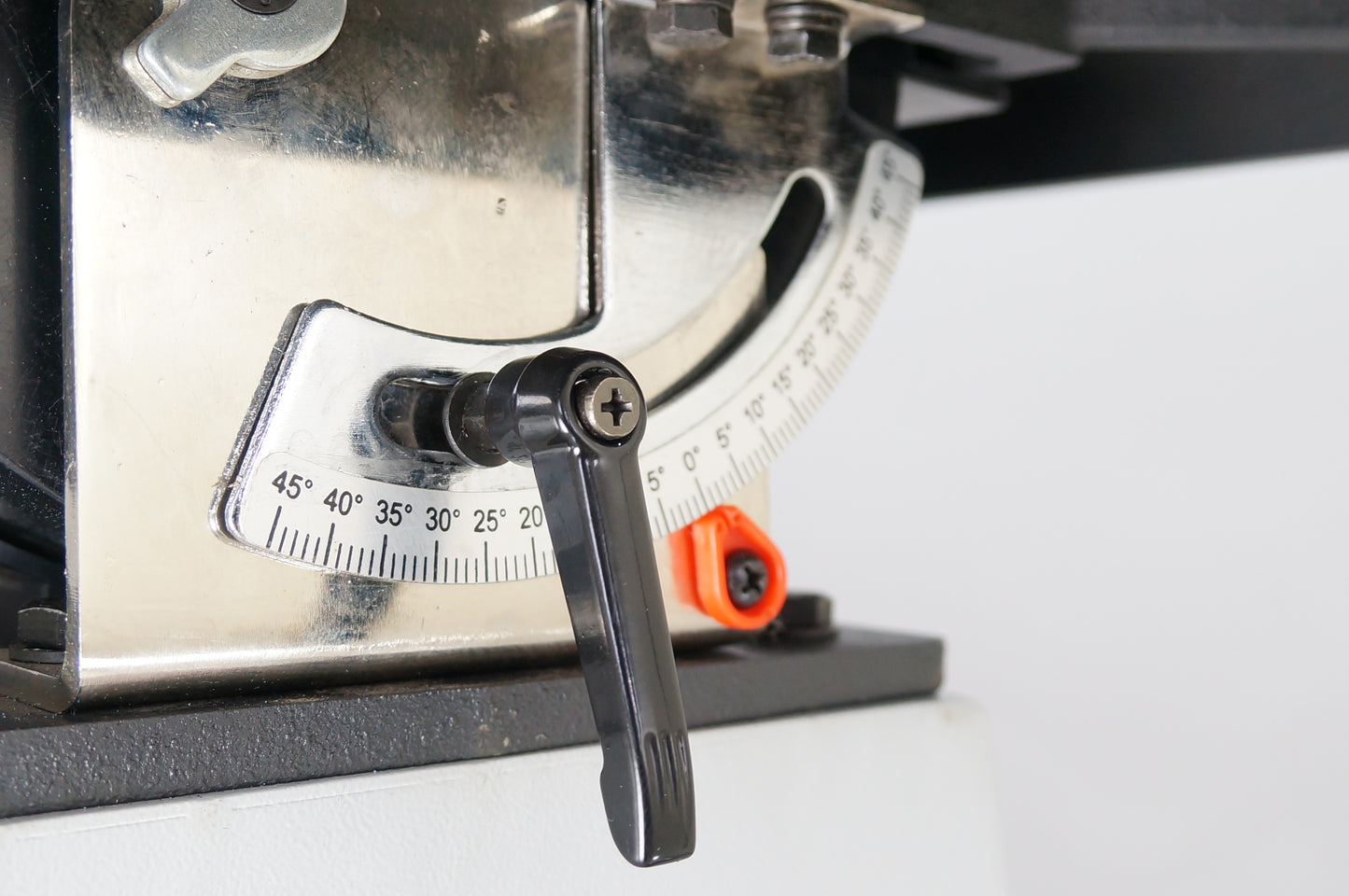

| Table Tilt | 0° to 45° Forward |
Spindle Sander

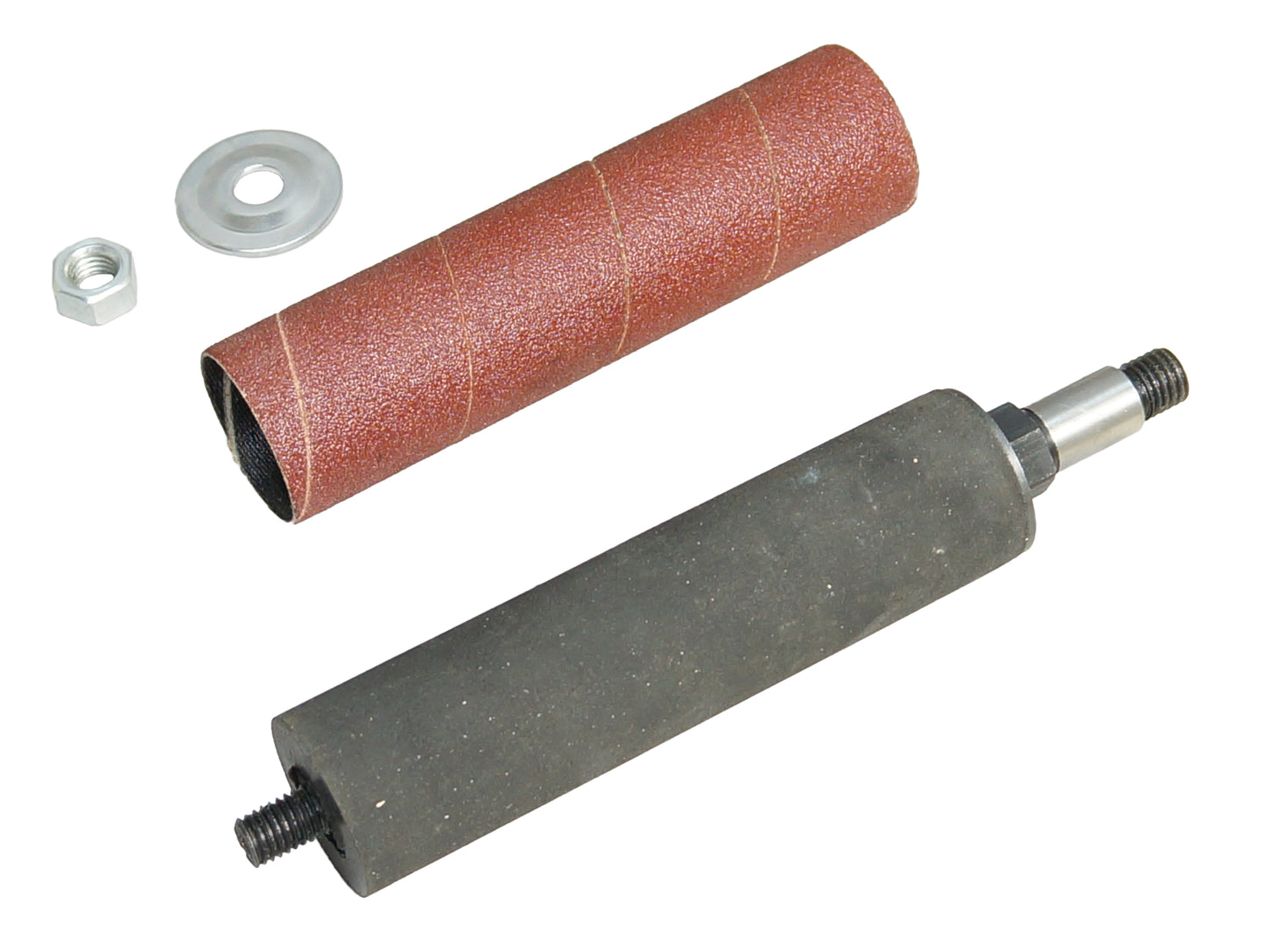

| Spindle Length | 4-1/2” |
| Spindle Dia. Included(5) | 1/2”, 3/4”, 1”, 1-1/2”, 2” |
| Max. Spindle Dia. Allowed | 3”(Available Separately) |
| Spindle Oscillation | 15/16” |
| Oscillations Per Minute | 29 |

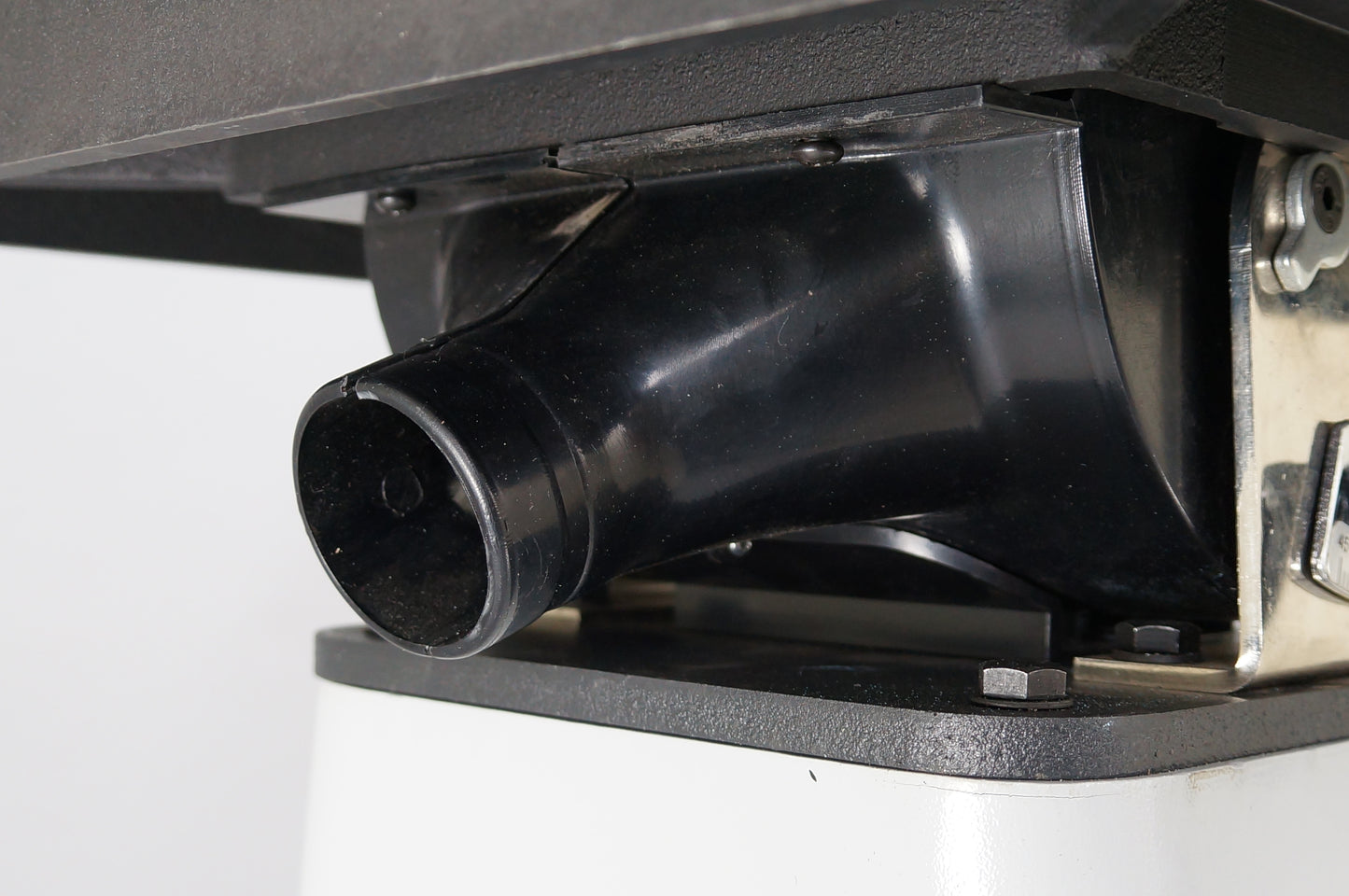

| Dust Outlet | 2” O.D. or 1-3/4” I.D. |
| Sound Power Level | < 76 dB |
Overall
| Height | 23-1/2” |
| Width | 17-1/4” |
| Depth | 14-3/4” |
| Base Size | 11-13/16” x 11” |
| Net Weight | 76 lbs. |
| Shipping Weight | 80 lbs. |
| Shipping Carton | 17” x 17” x 20-5/8” |
| Warranty | 5 Years |
