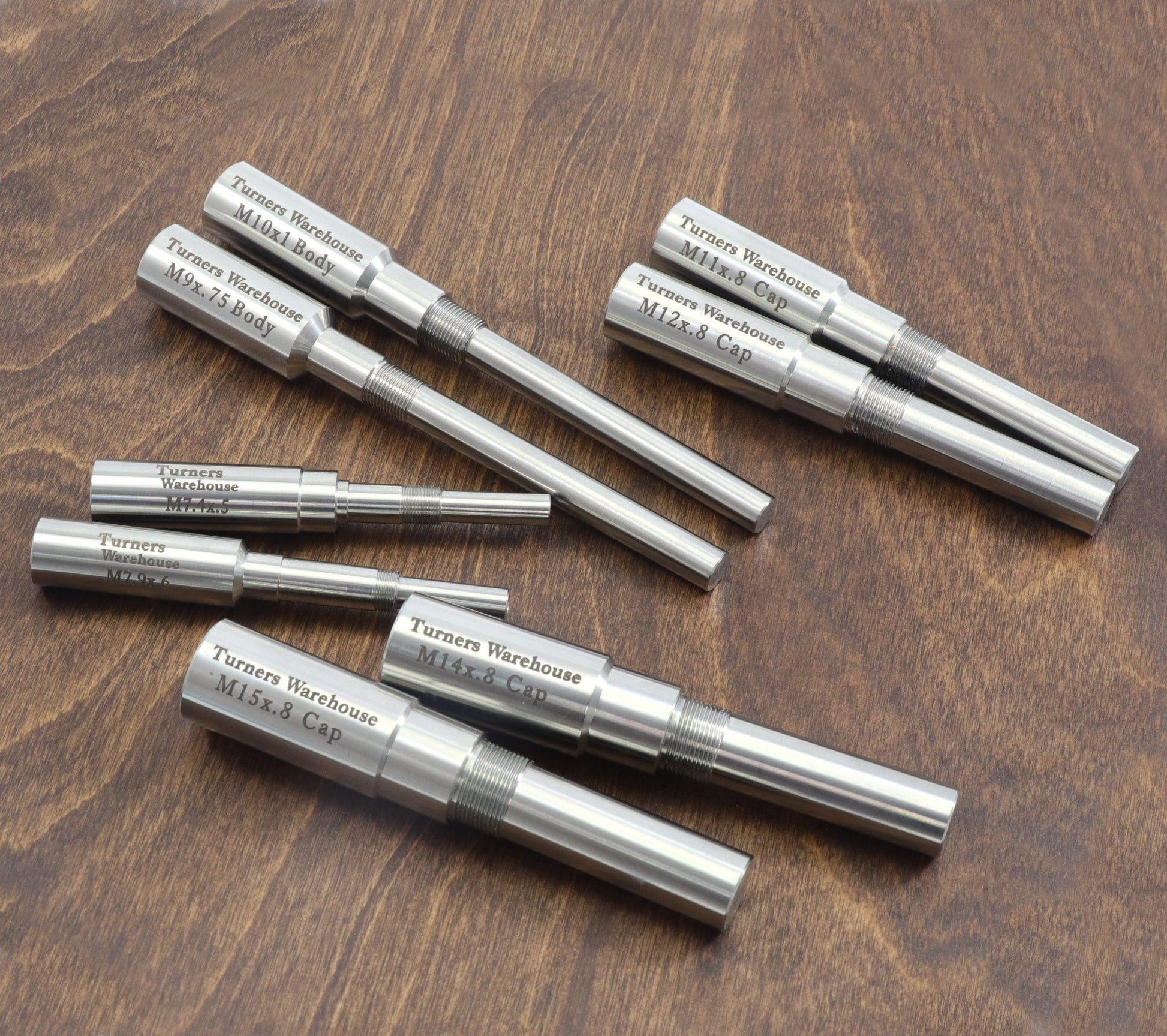

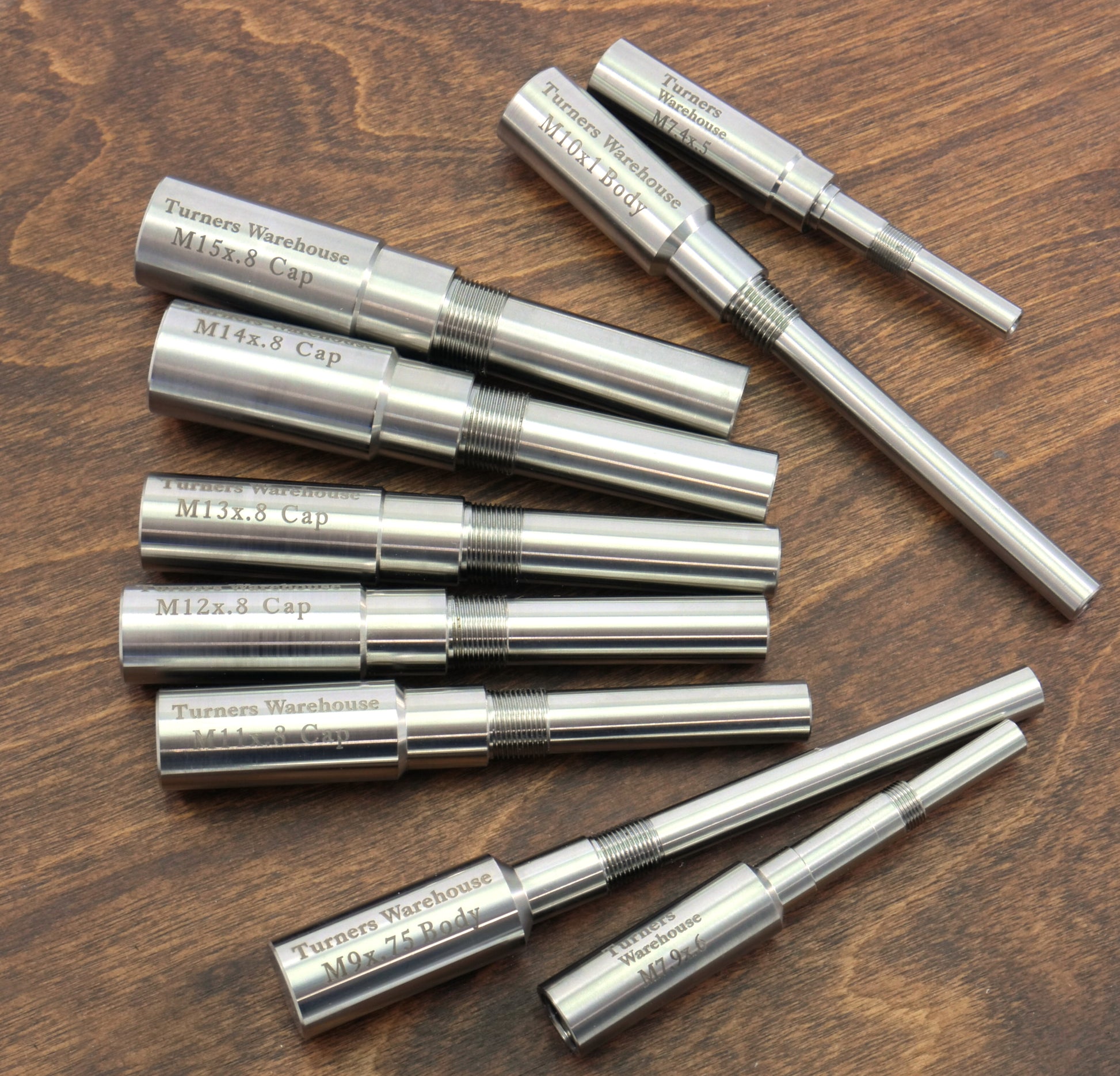

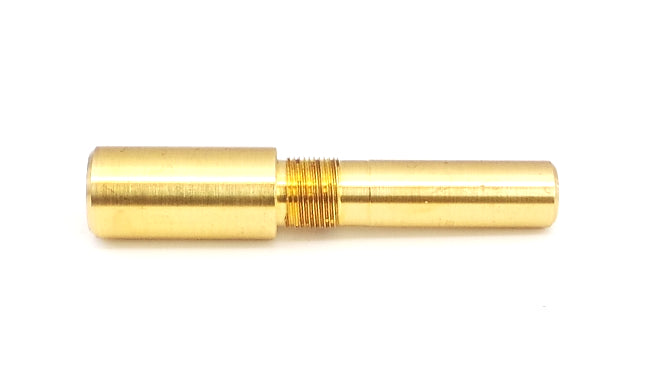

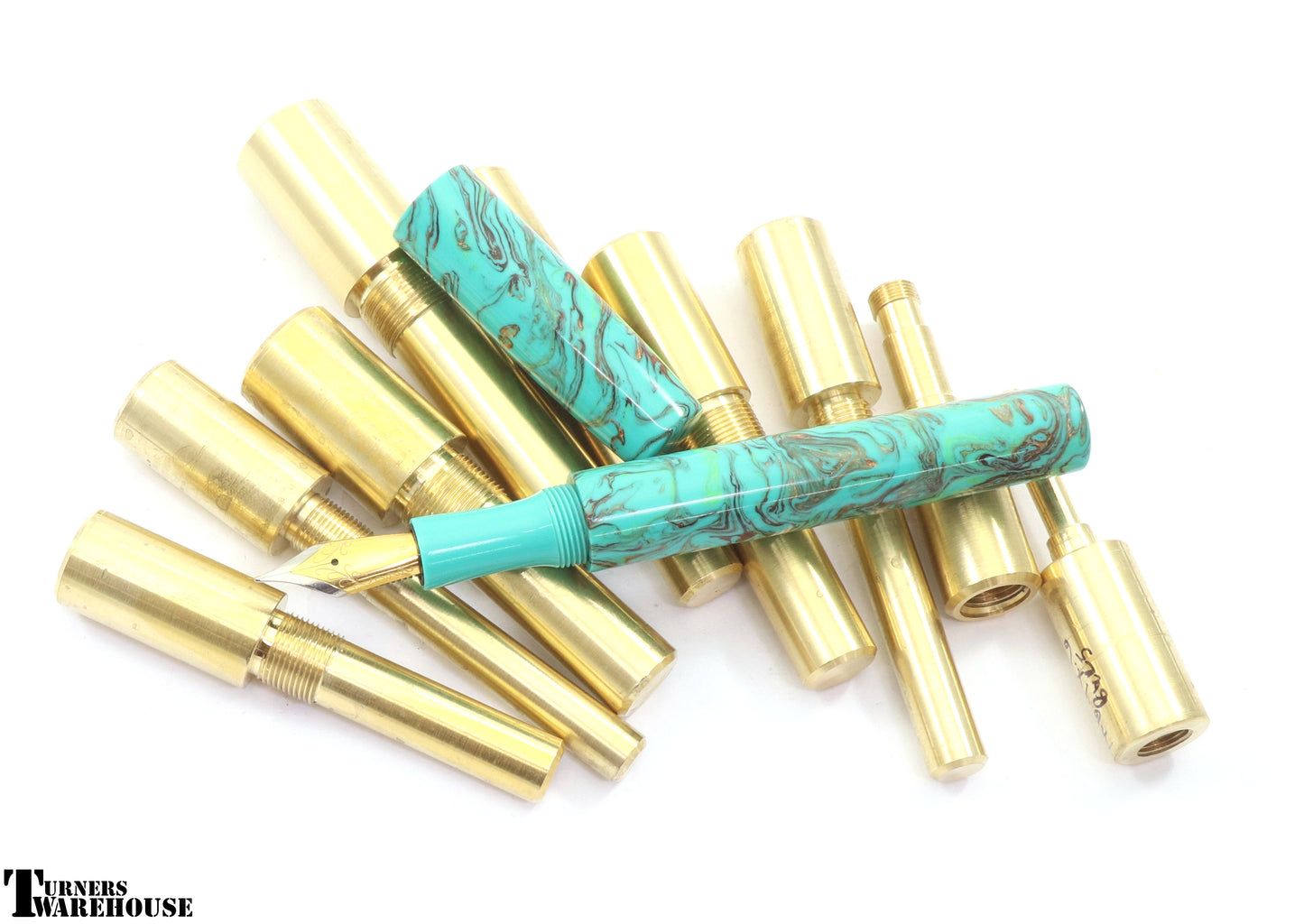

Kitless and Custom Mandrels

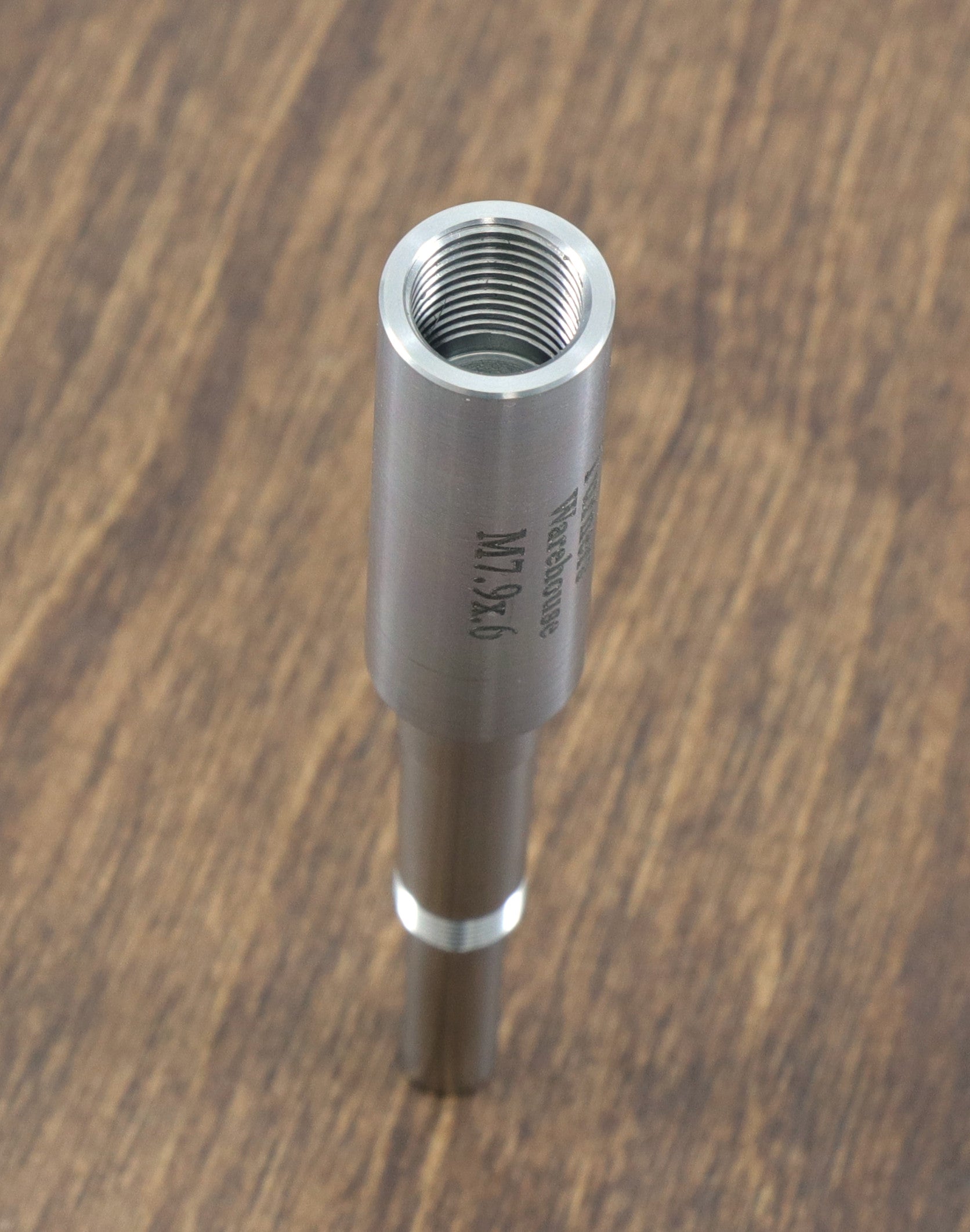

• Precision Machined Stainless Steel
• Laser Markings for easy identification

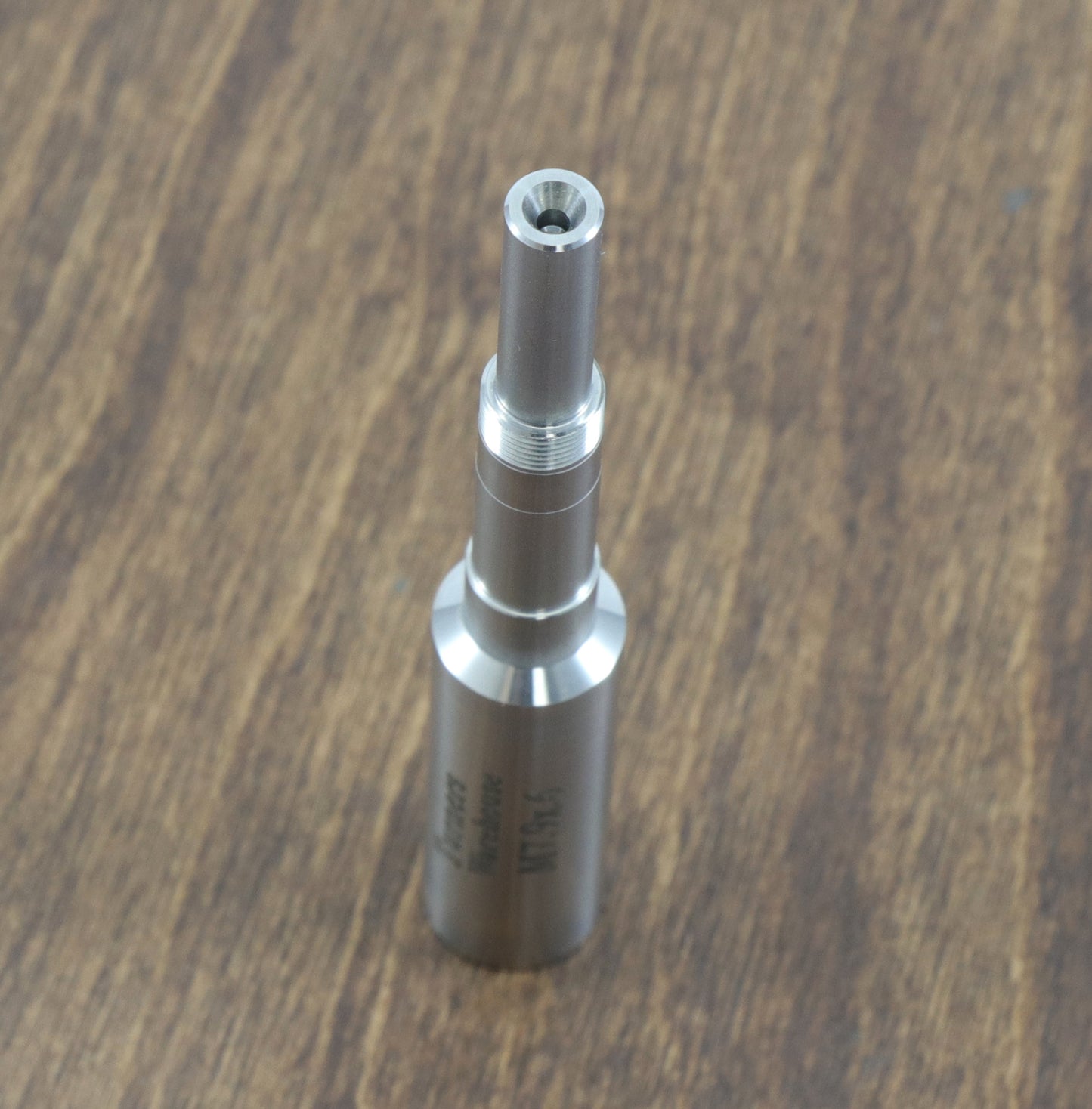

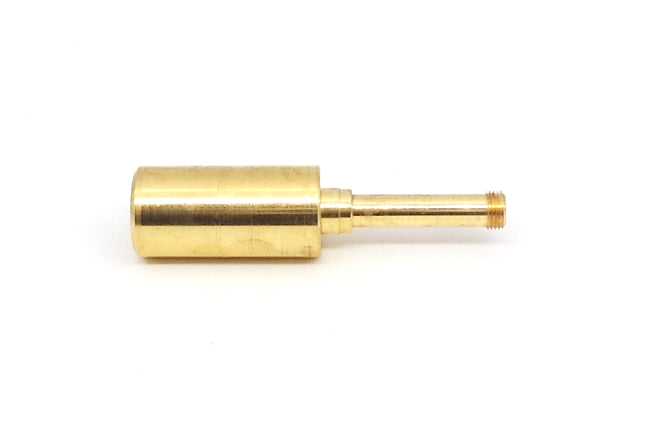

• Section Mandrels features 60 degree on end to allow for tailstock support while working on sections
• Section mandrel can be threaded onto either end

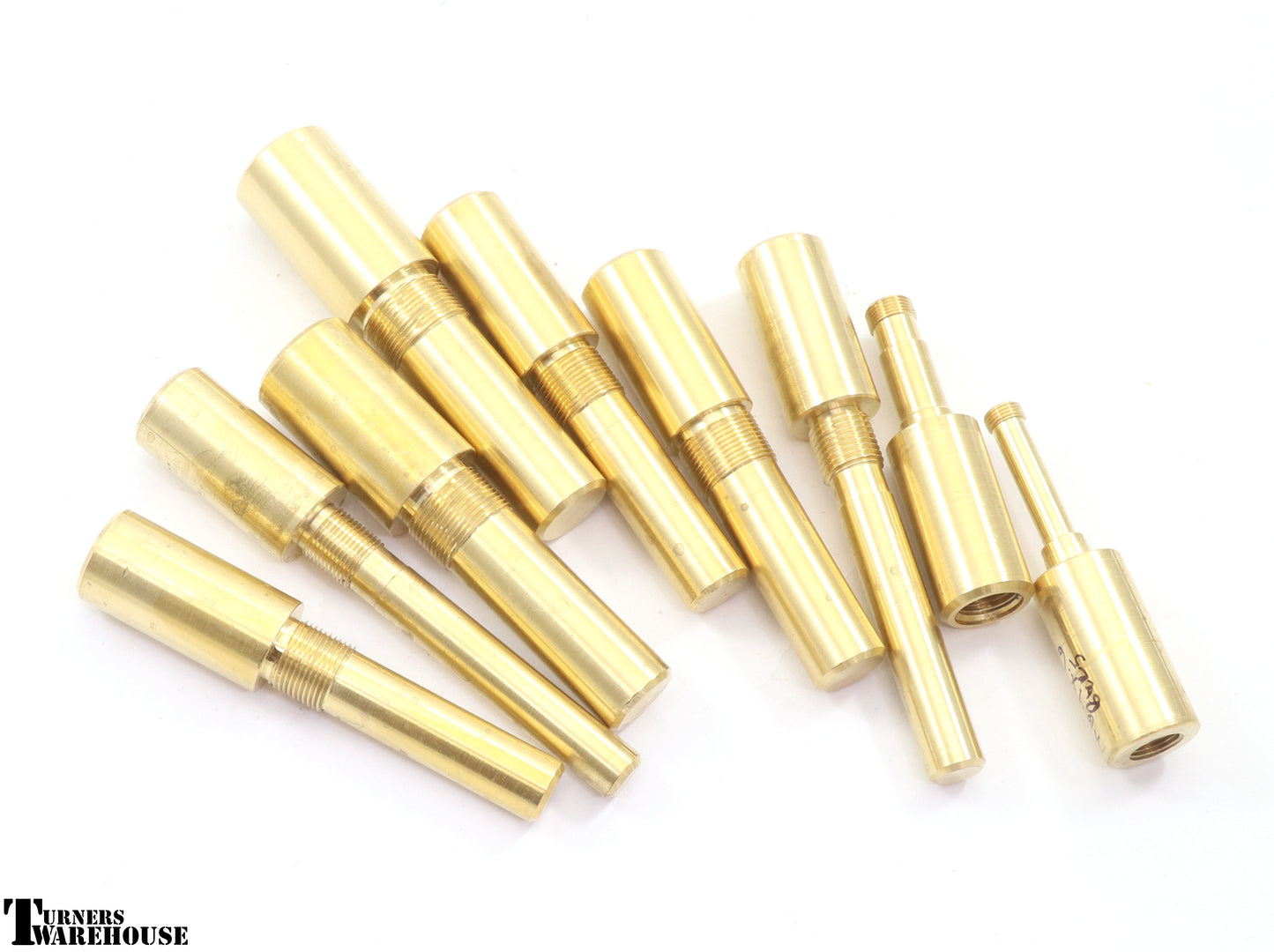

• Made from solid brass
• UK Made
• Section mandrels are reversible

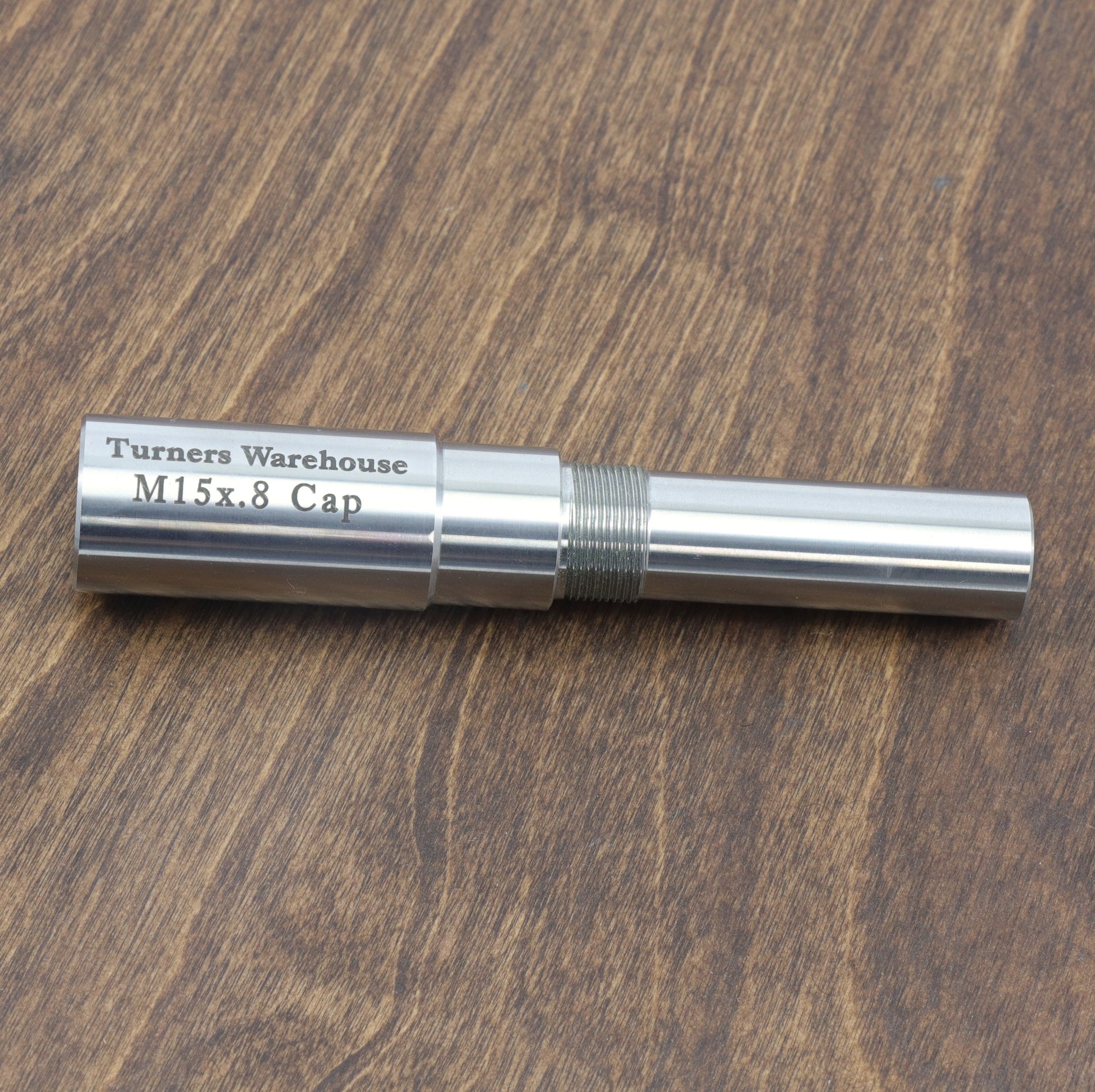

• M15x.8 - 13/32"

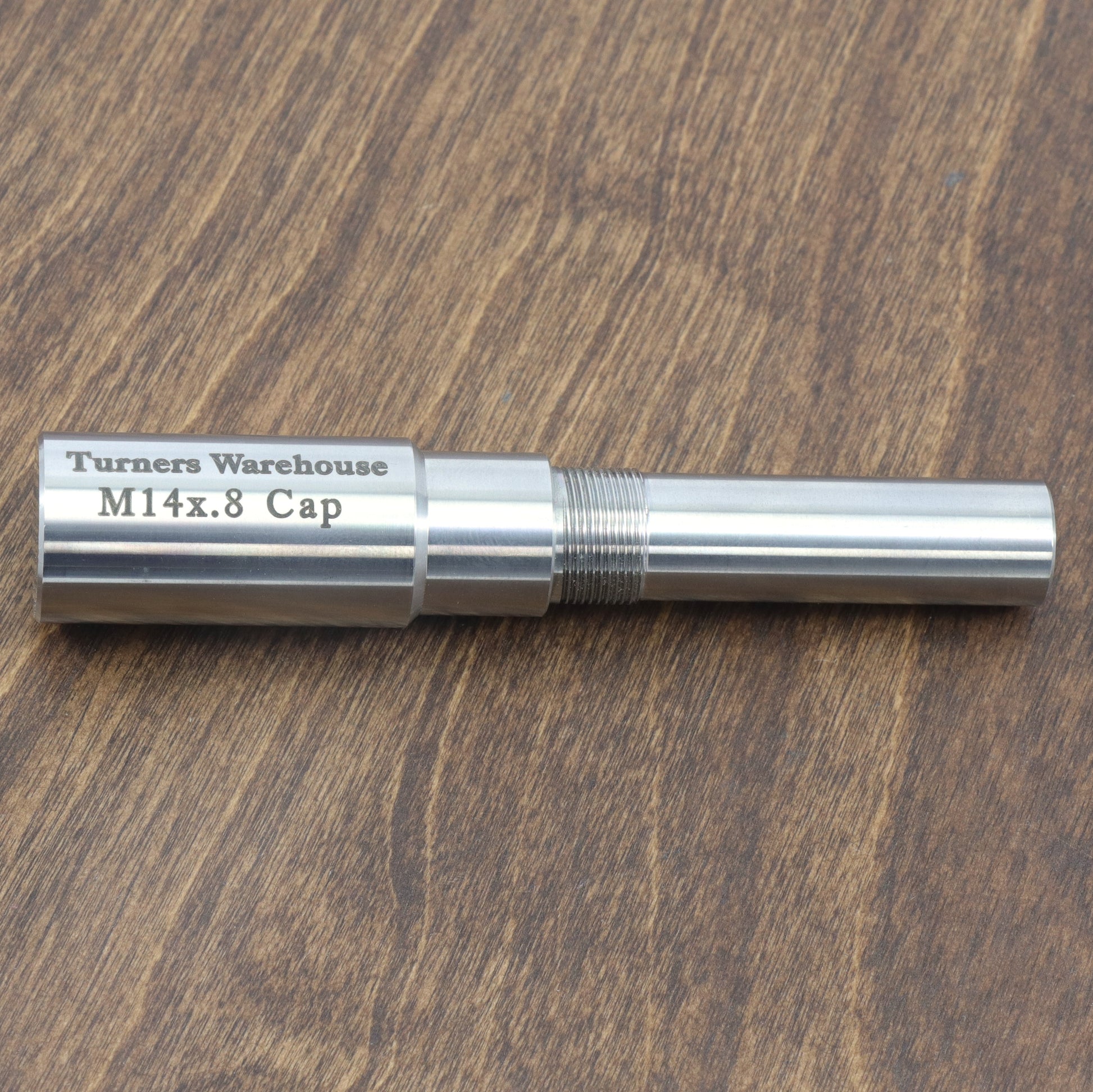

• M14x.8 - 33/64"

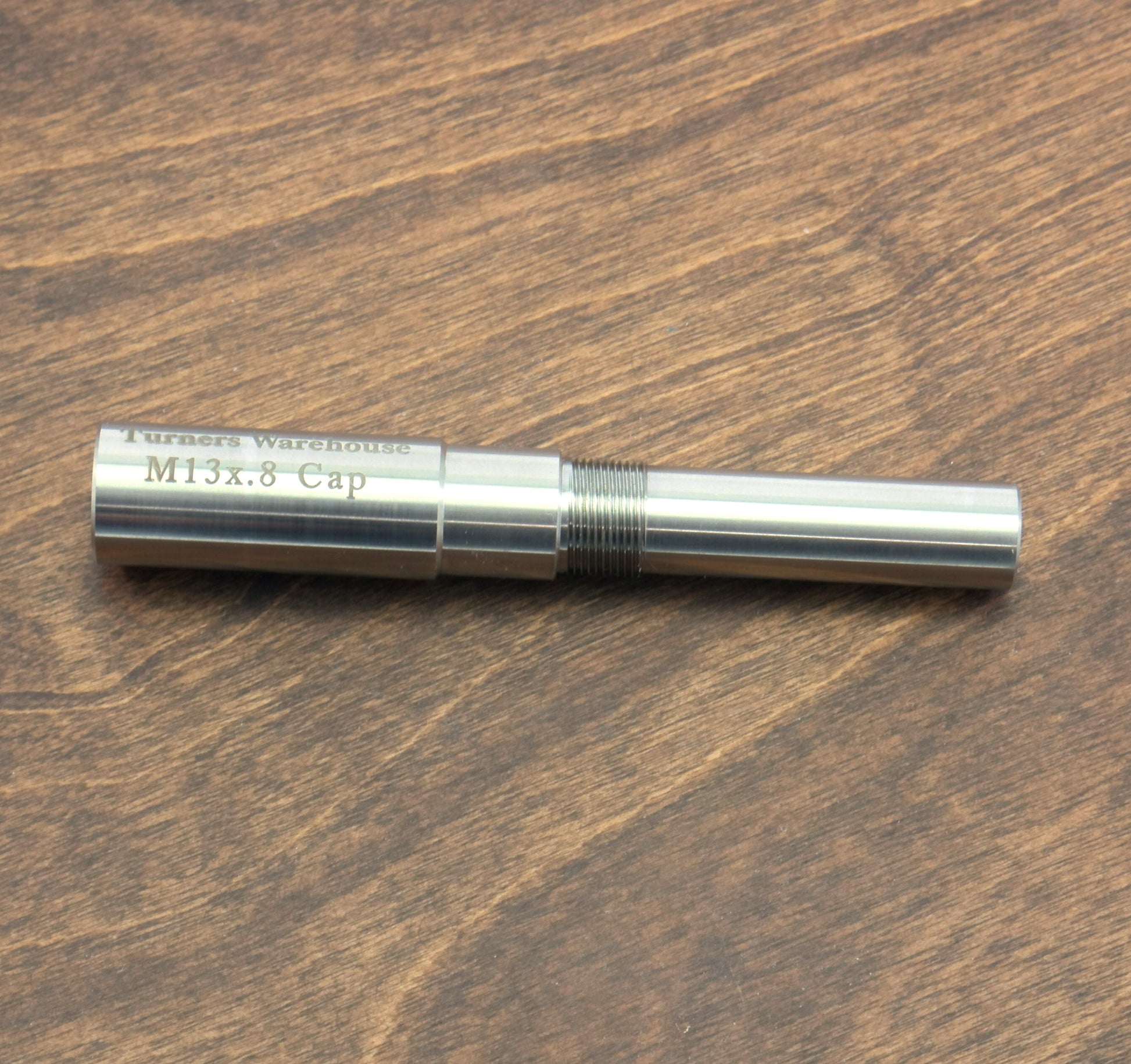

• M13x.8 - 31/64"

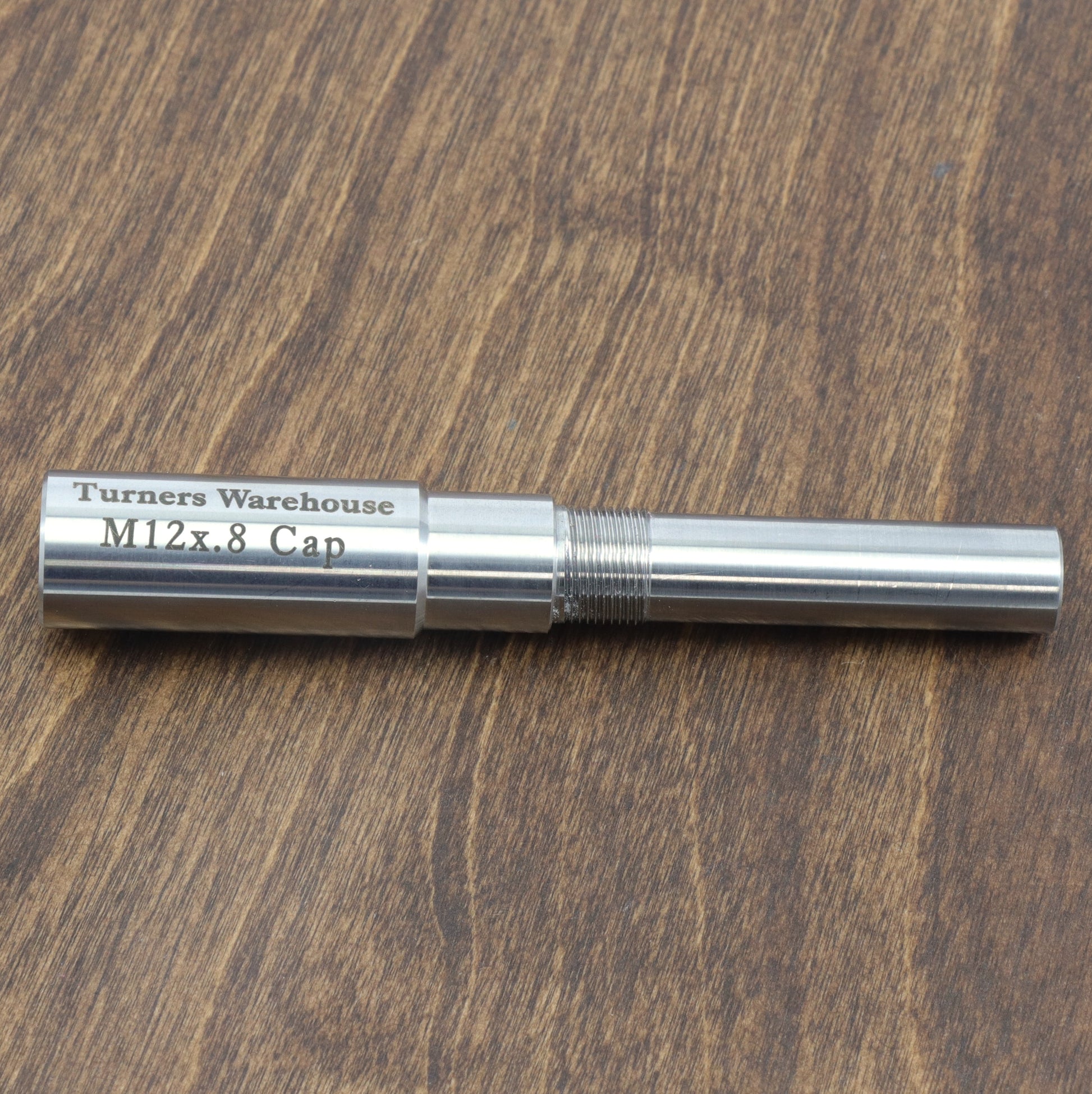

• M12x.8 - 7/16"

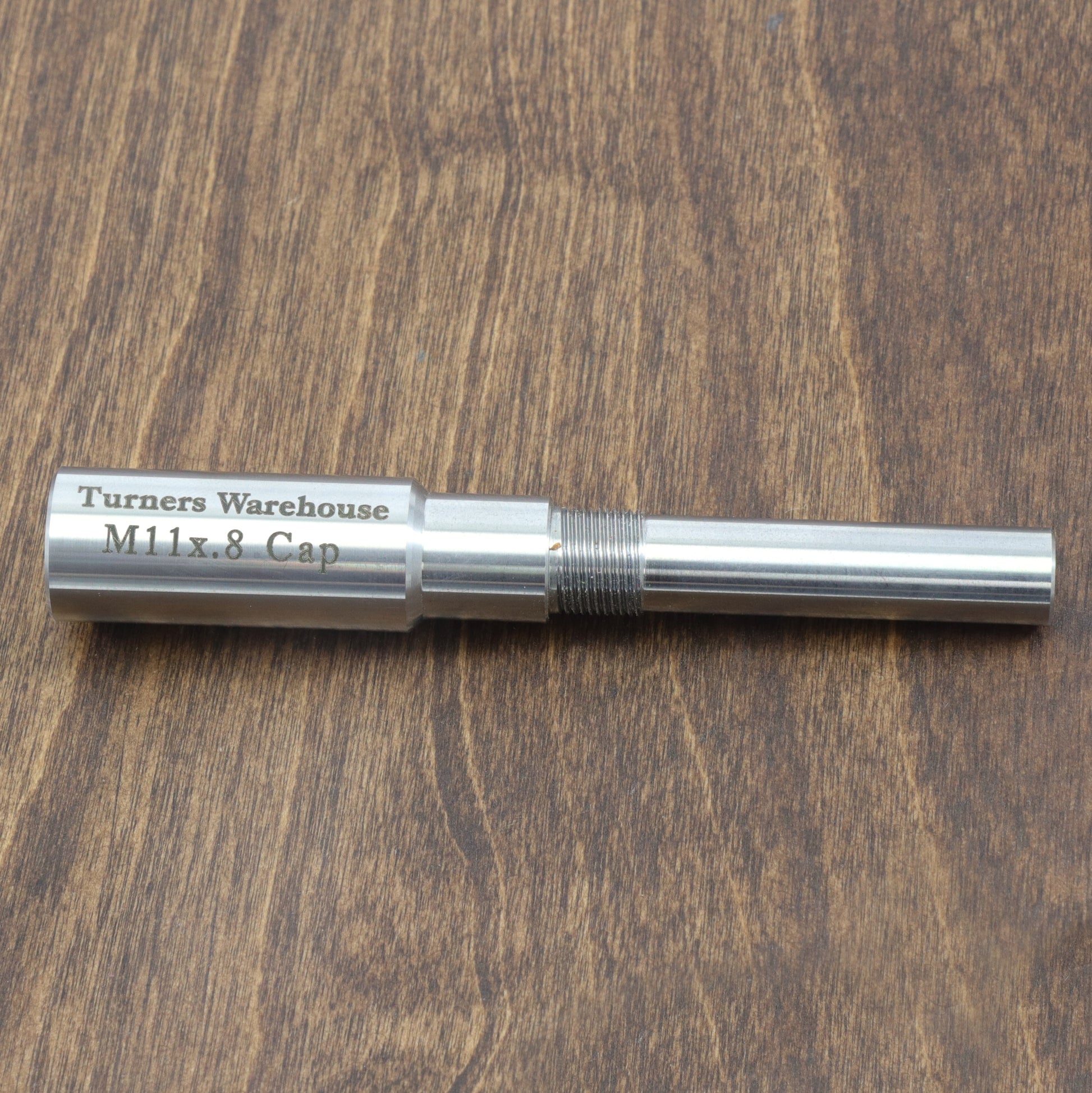

• M11x.8 - 13/32"

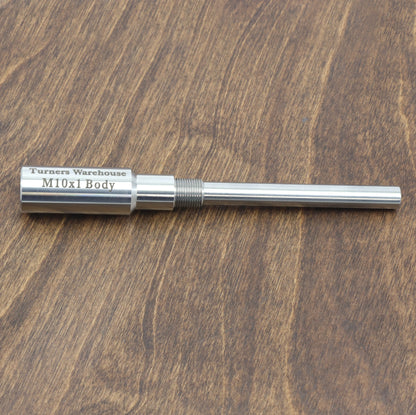

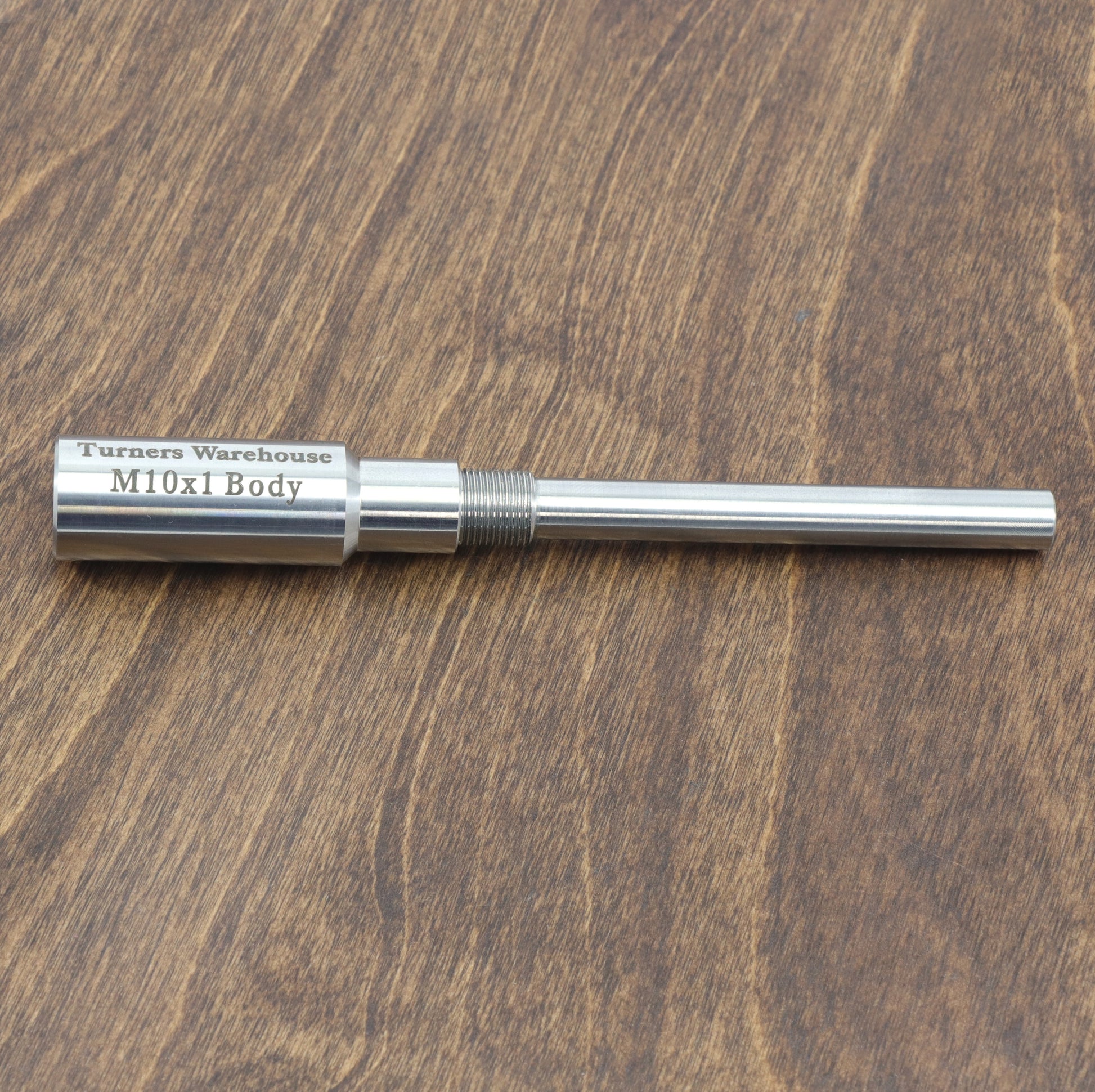

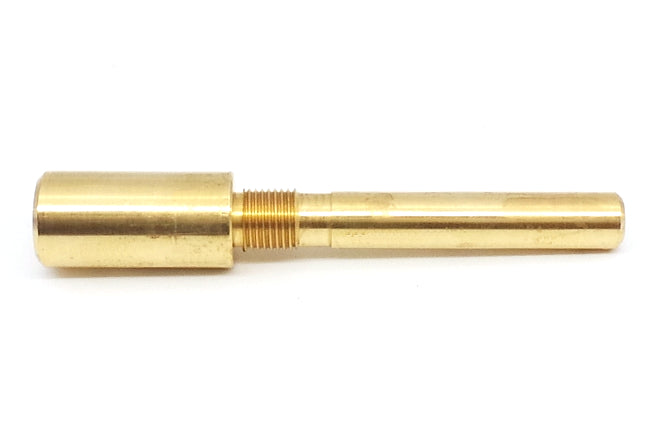

• M10x1 - 23/64"

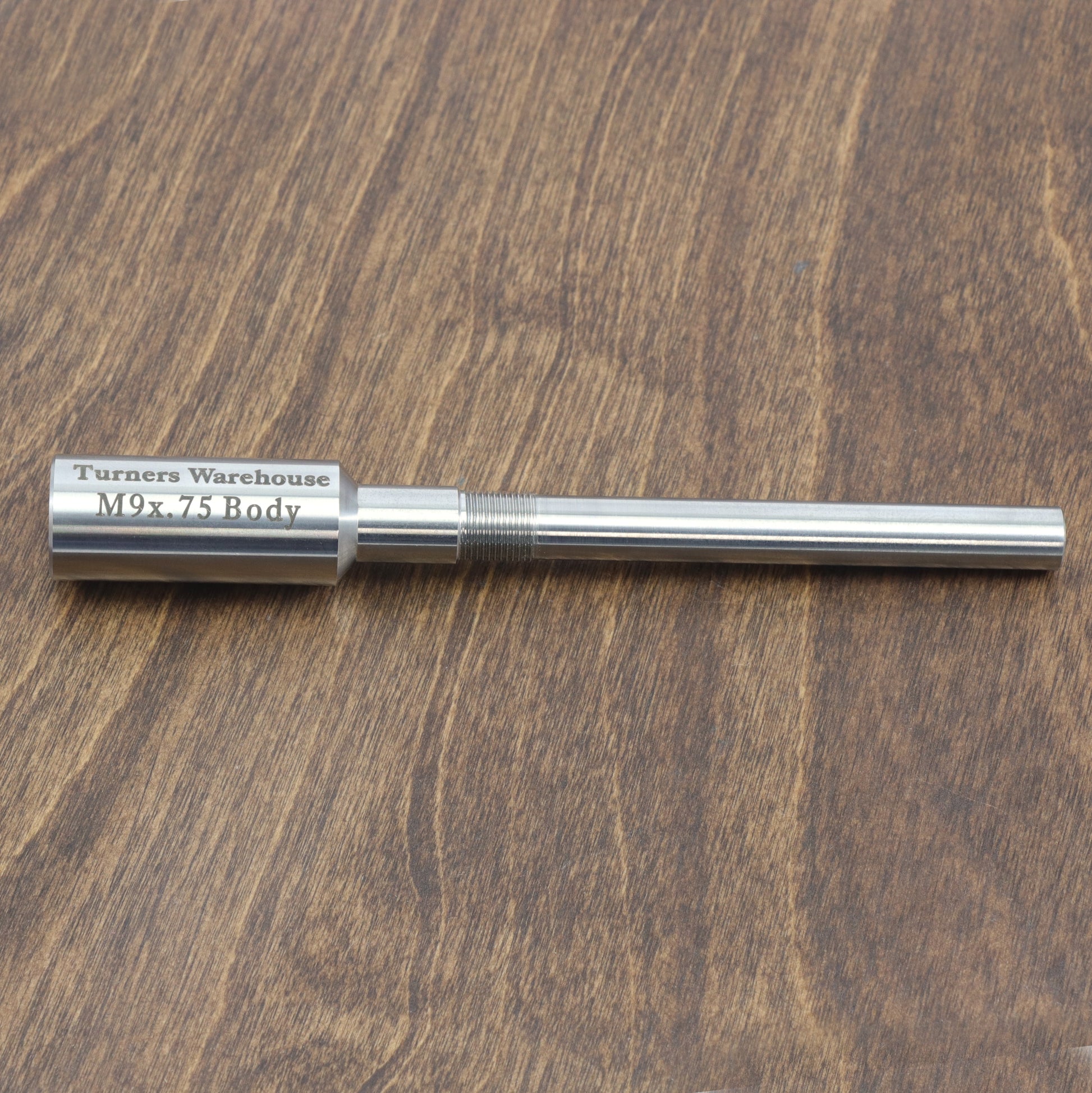

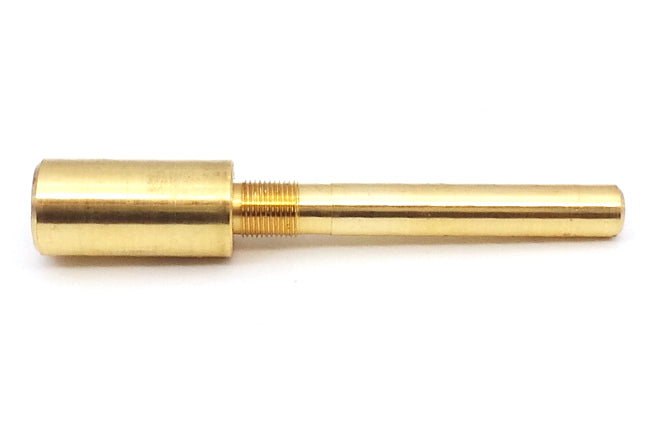

• M9x.75 - 21/64"

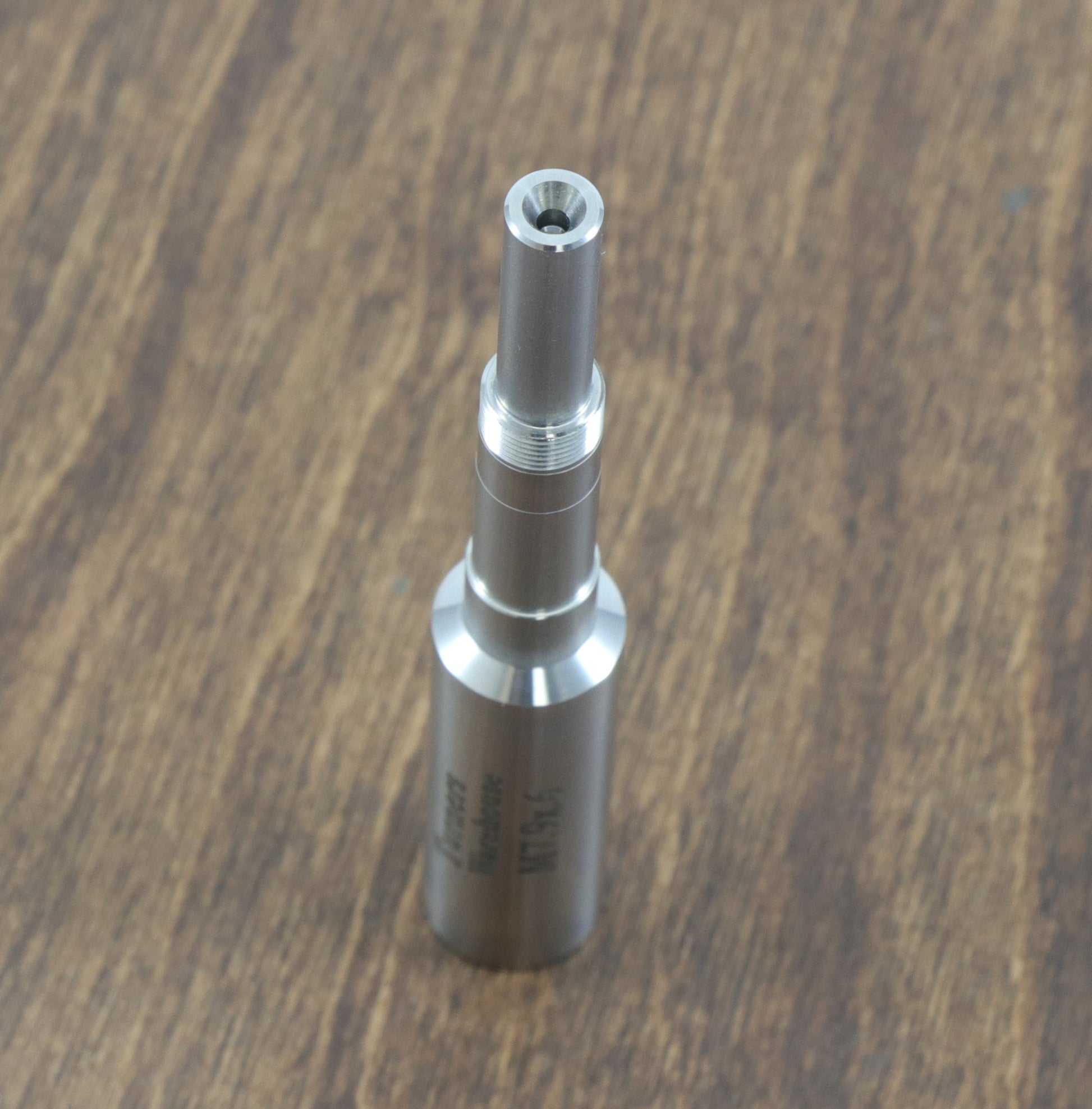

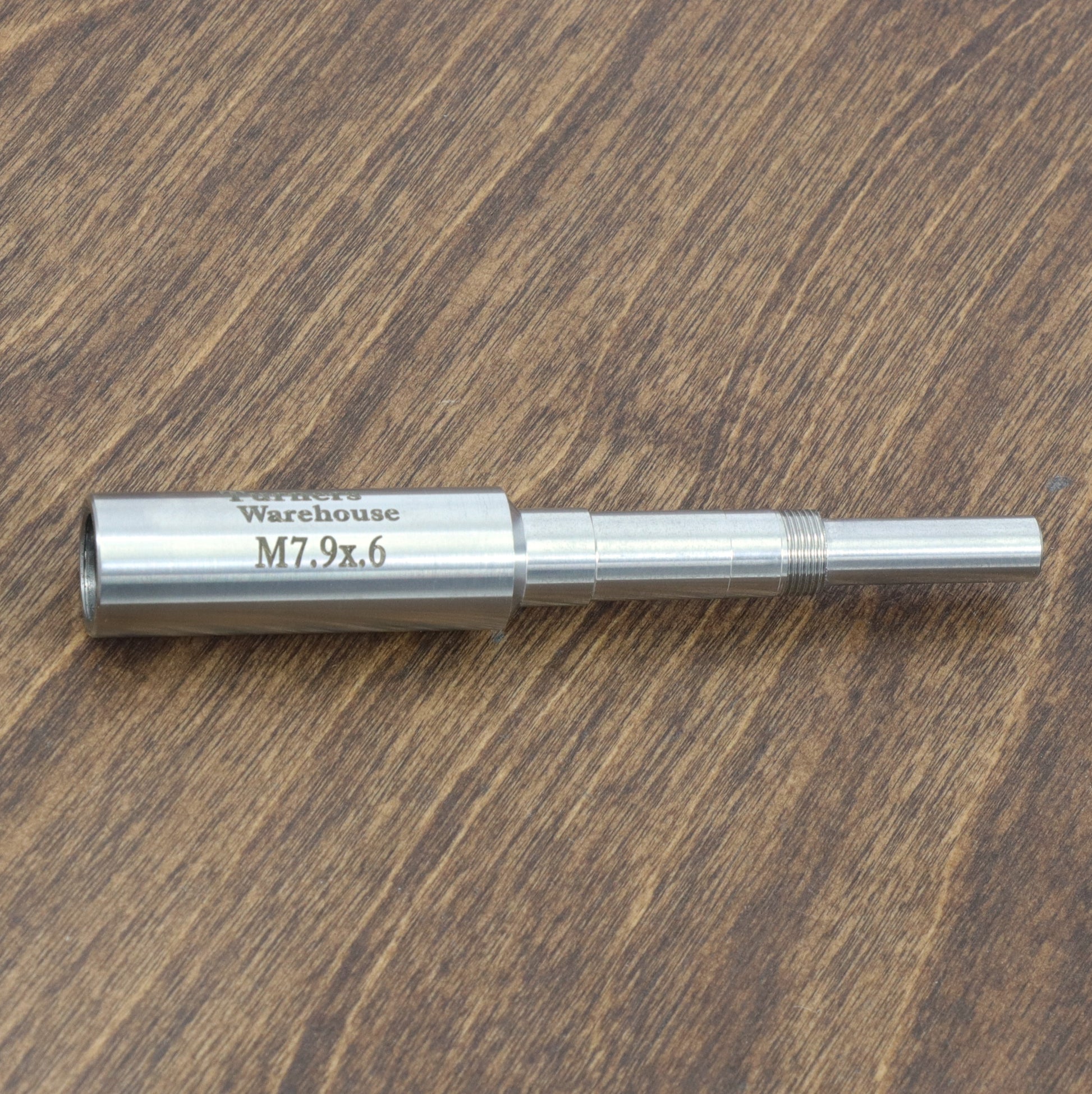

• M7.9x.6 - 19/64"

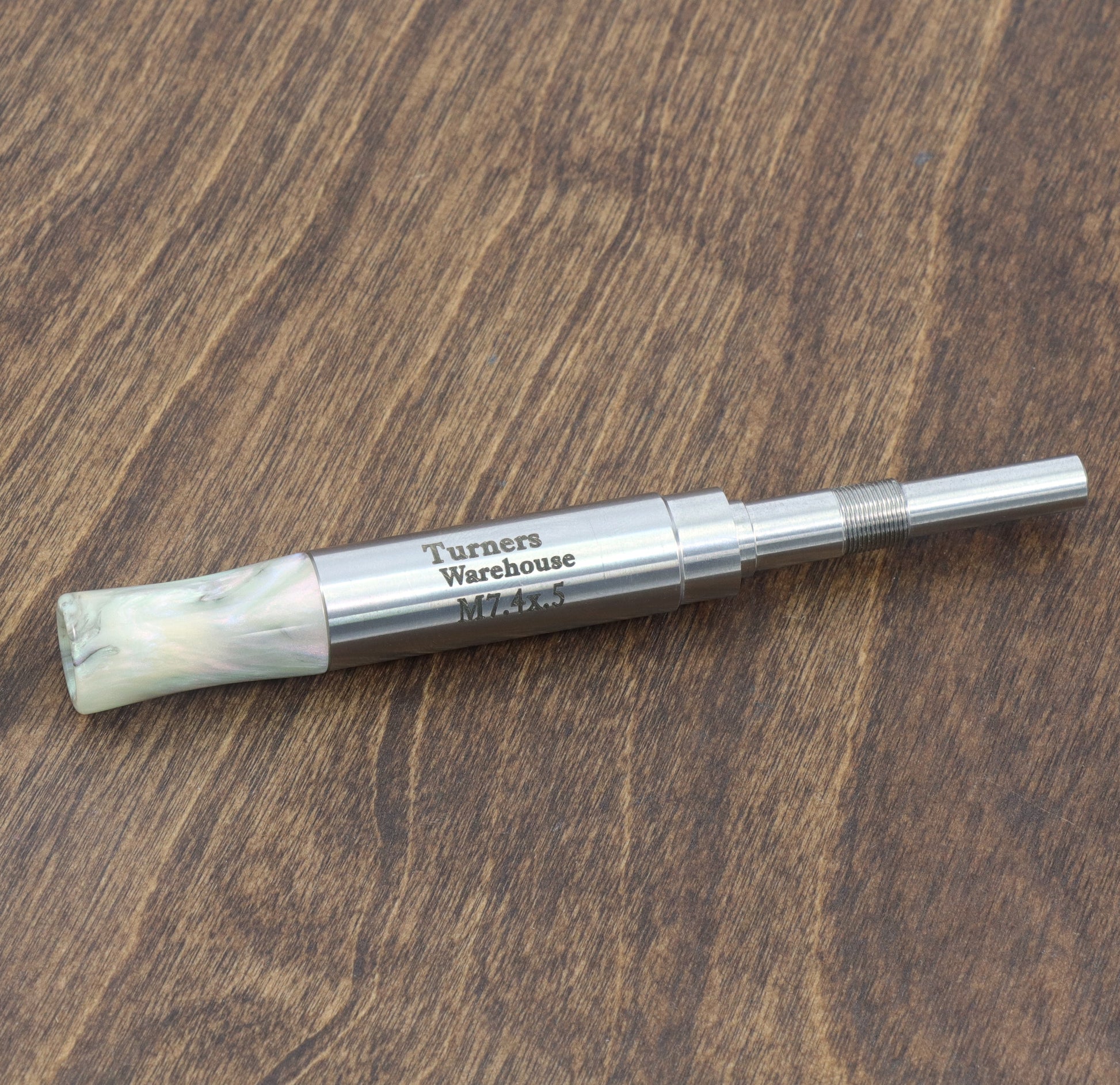

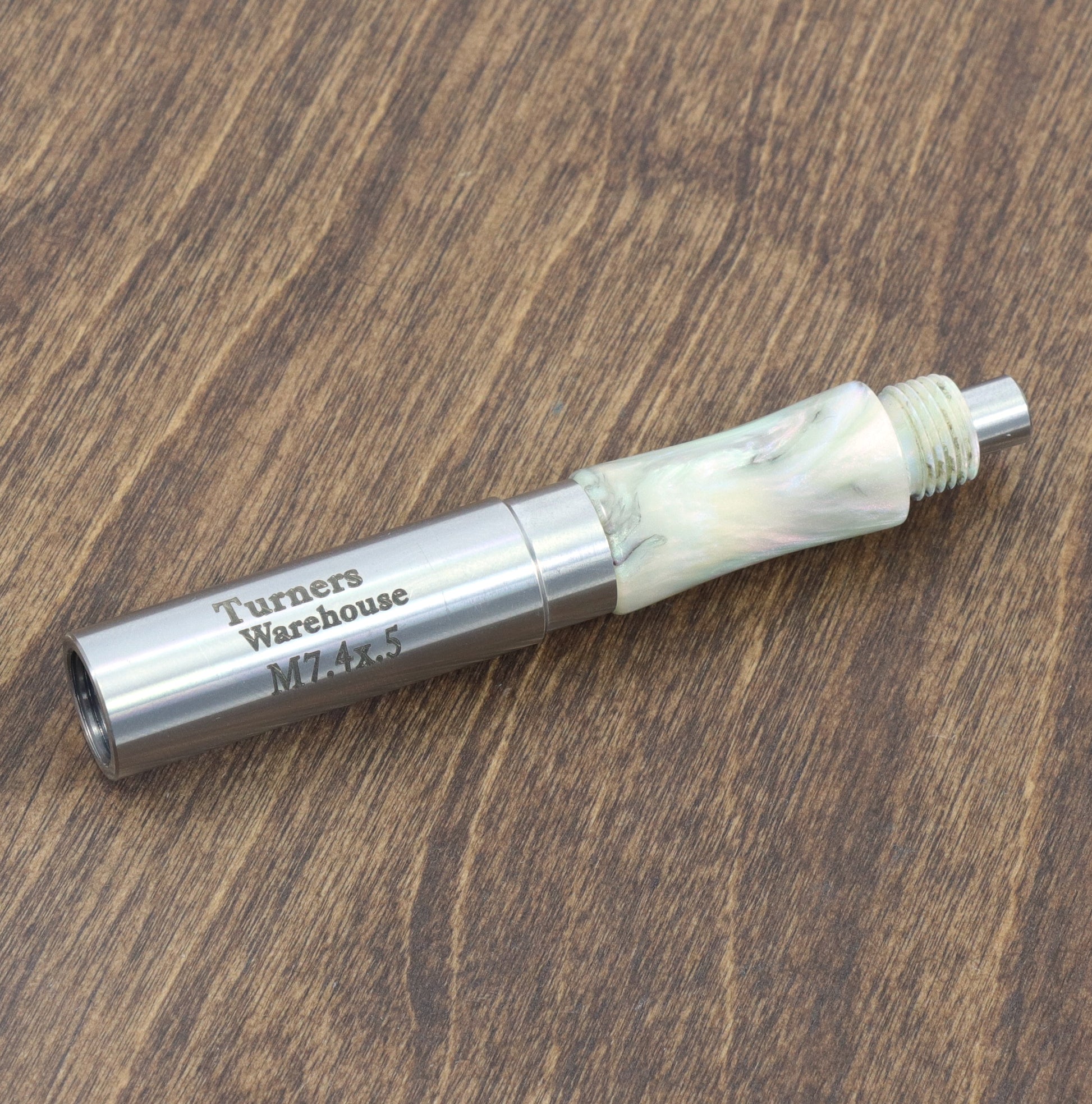

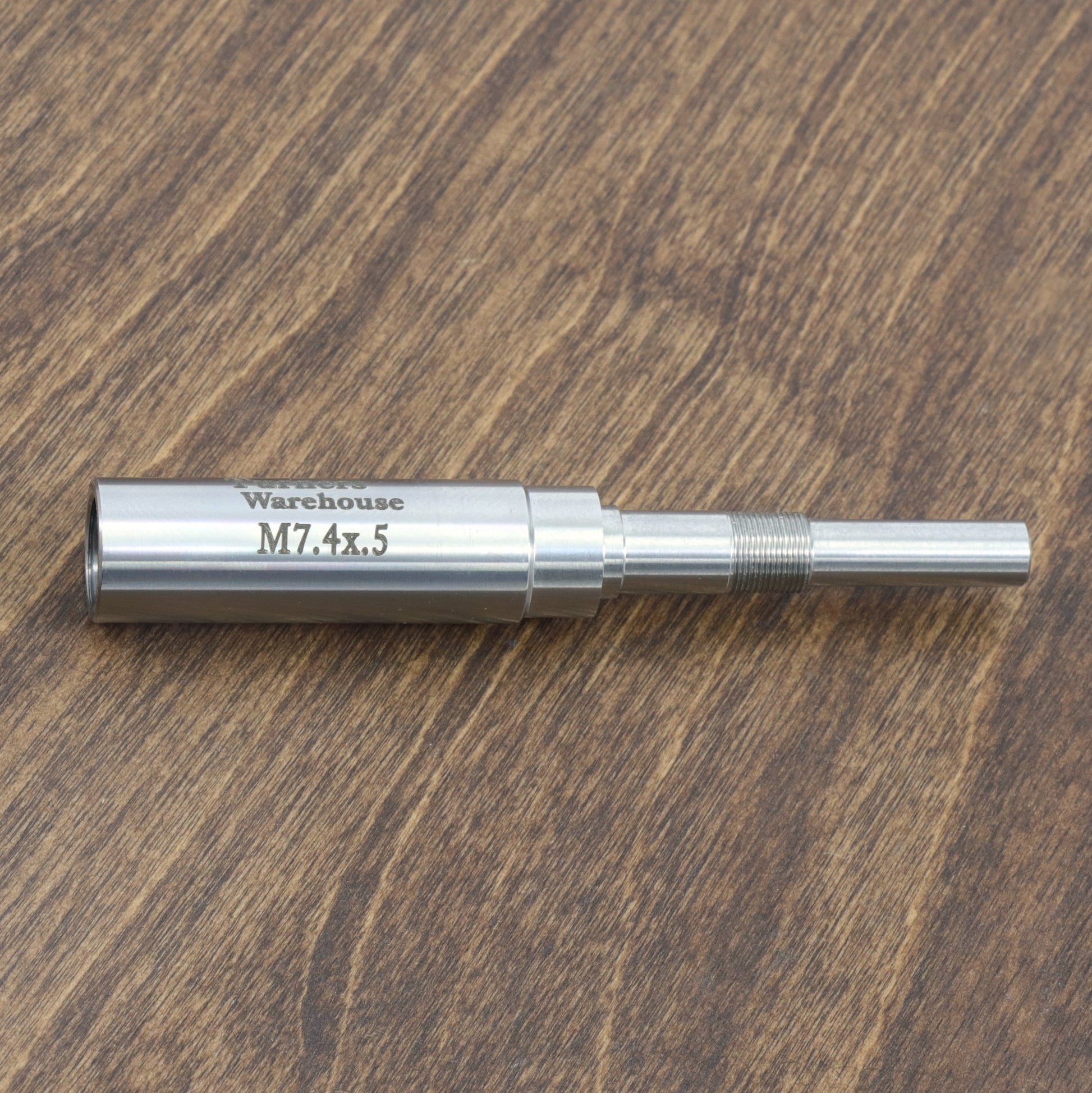

• M7.4x.5 - 9/32"

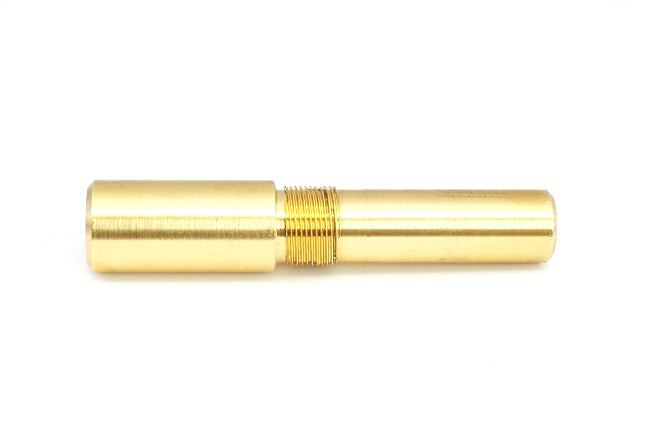

• Triple Start: M11, M12, M13, M14, M15
• Single Start: M9x.75, M10x1
• M7.4x.5 = Jowo 6 Nib Housing

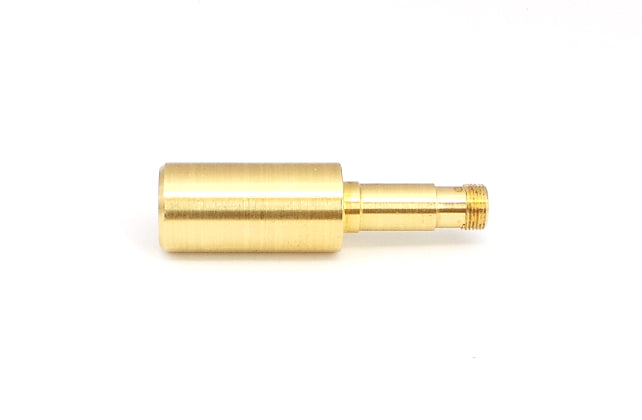

• M7.9x.6 = Bock #6 Nib Housing
• 15mm rear tenon can be held on the lathe in a collet chuck
• Once the pen component is drilled and threaded, it can be held securely and accurately on the mandrel in order to turn and finish its outside profile.
• Suitable for caps, barrels and sections.
