Angle Gauges - Stuart Batty Tools

• The only angle-setting tool that works on both curved and flat surfaces.
• Rest assured, our angle-setting is more than just accurate. It's 100% accurate on 8” diameter wheels (+1° for 6” & -1° for 10”) and 100% accurate on all flat surfaces, such as belt grinders or table saw fences.

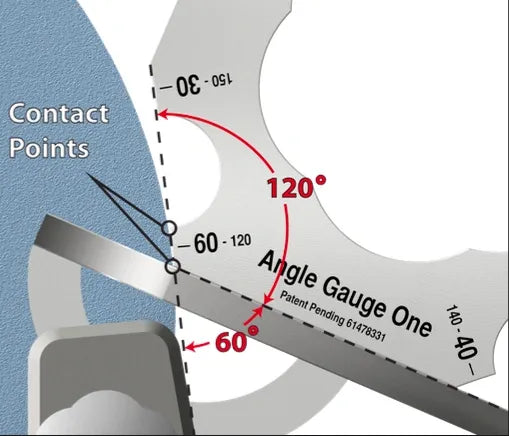

• Stuart Batty angle gauges go the extra mile by compensating for the curvature of the wheel and the thickness of the blade being sharpened. This unique feature sets the cutting angle at the EDGE of the blade, not at the heel of the curved bevel, ensuring precision and efficiency in your work.
• Precision machined 1/2” thick x 4” square anodized aluminum gauges make setting accurate blade edge angles fast and easy.
• Sold individually or as a set, please select desired gauge from drop down

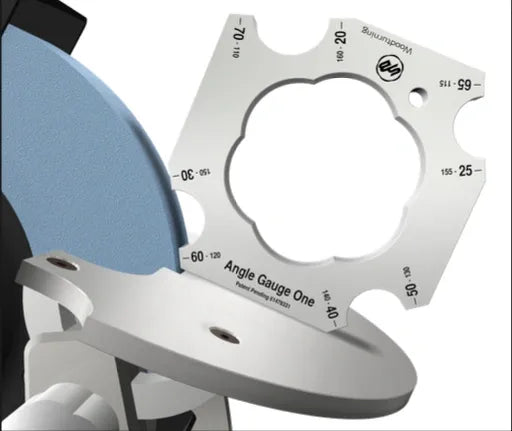

• Angle Gauge # 1 - 9 Different Edge Angles

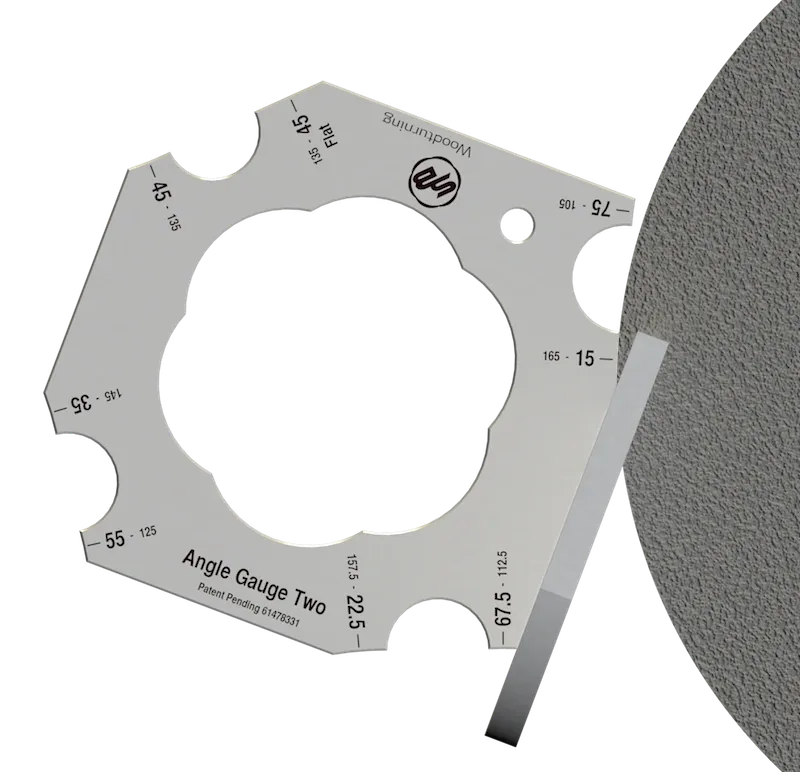

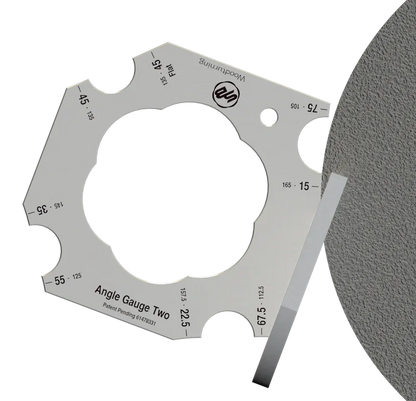

• Angle Gauge # 2 - 8 Different Edge Angles

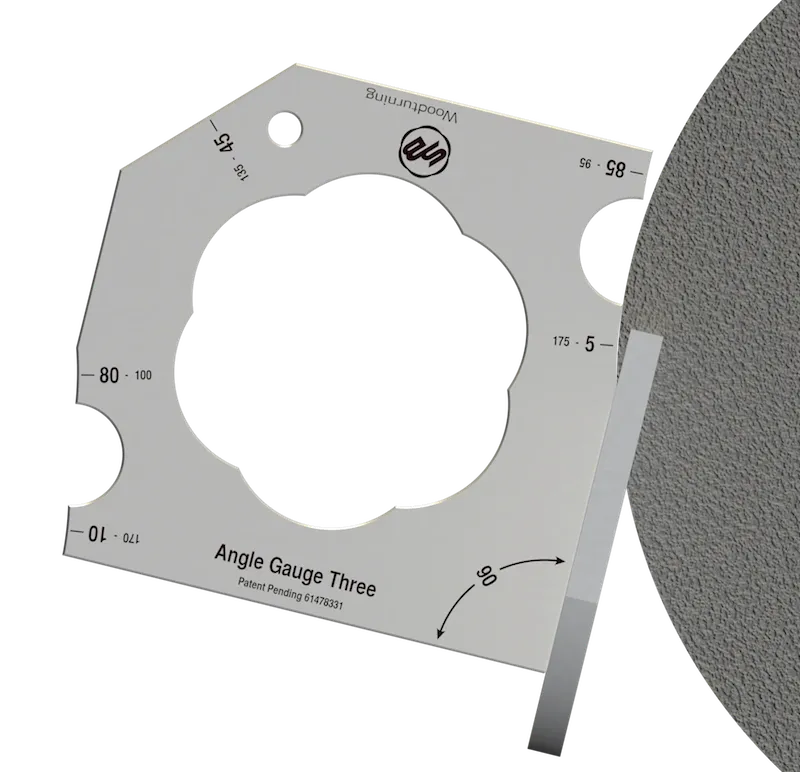

• Angle Gauge # 3 - 6 Different Edge Angles

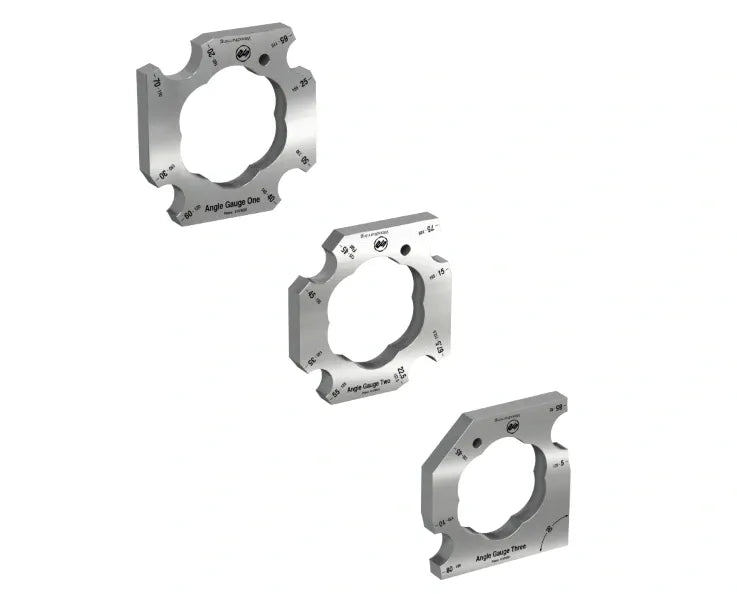

• All three combined Angle Gauges have 23 different blade edge angles from 5° to 85° or 23 different included angles from 90° to 175°.

Instructions Page
