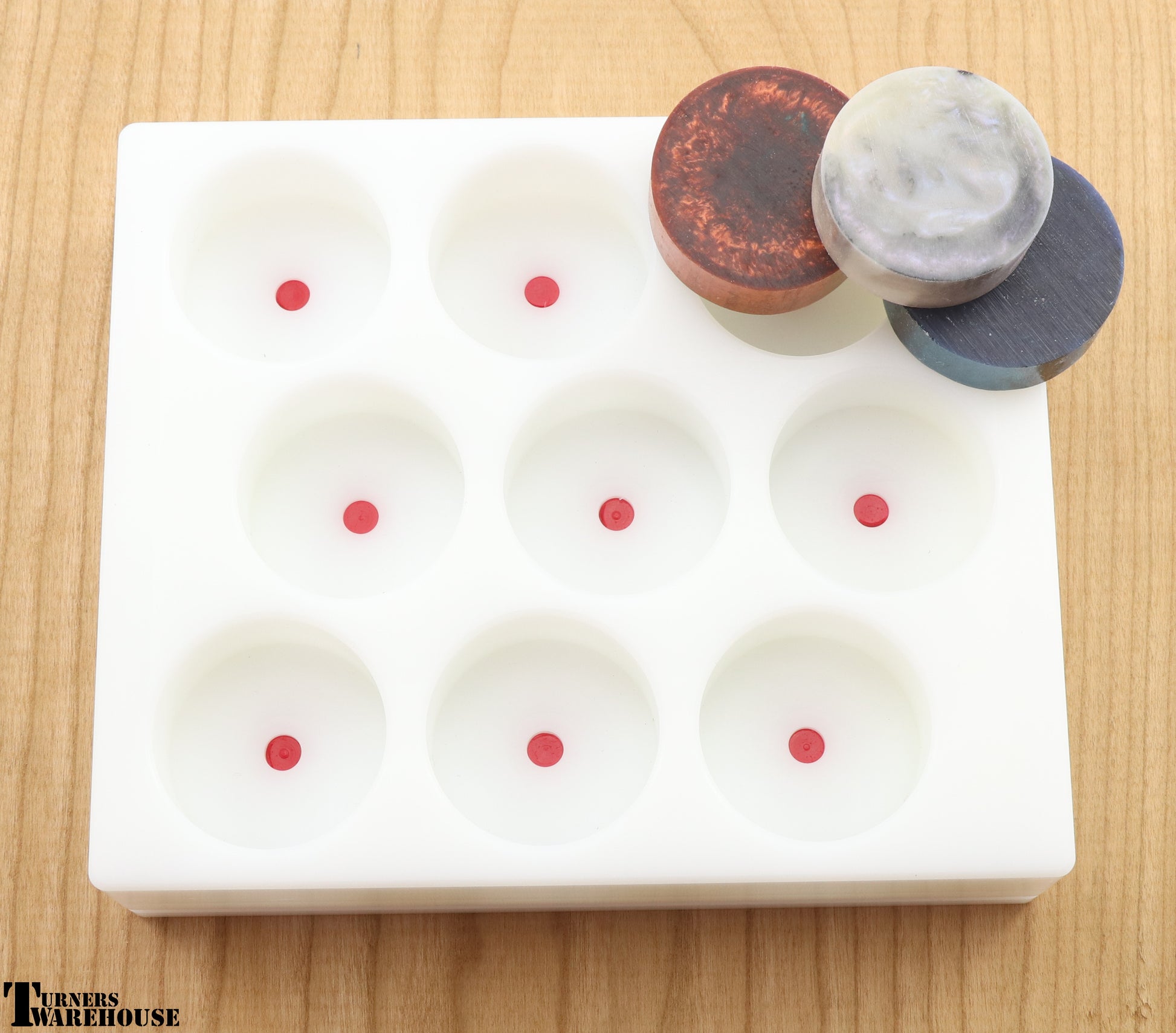

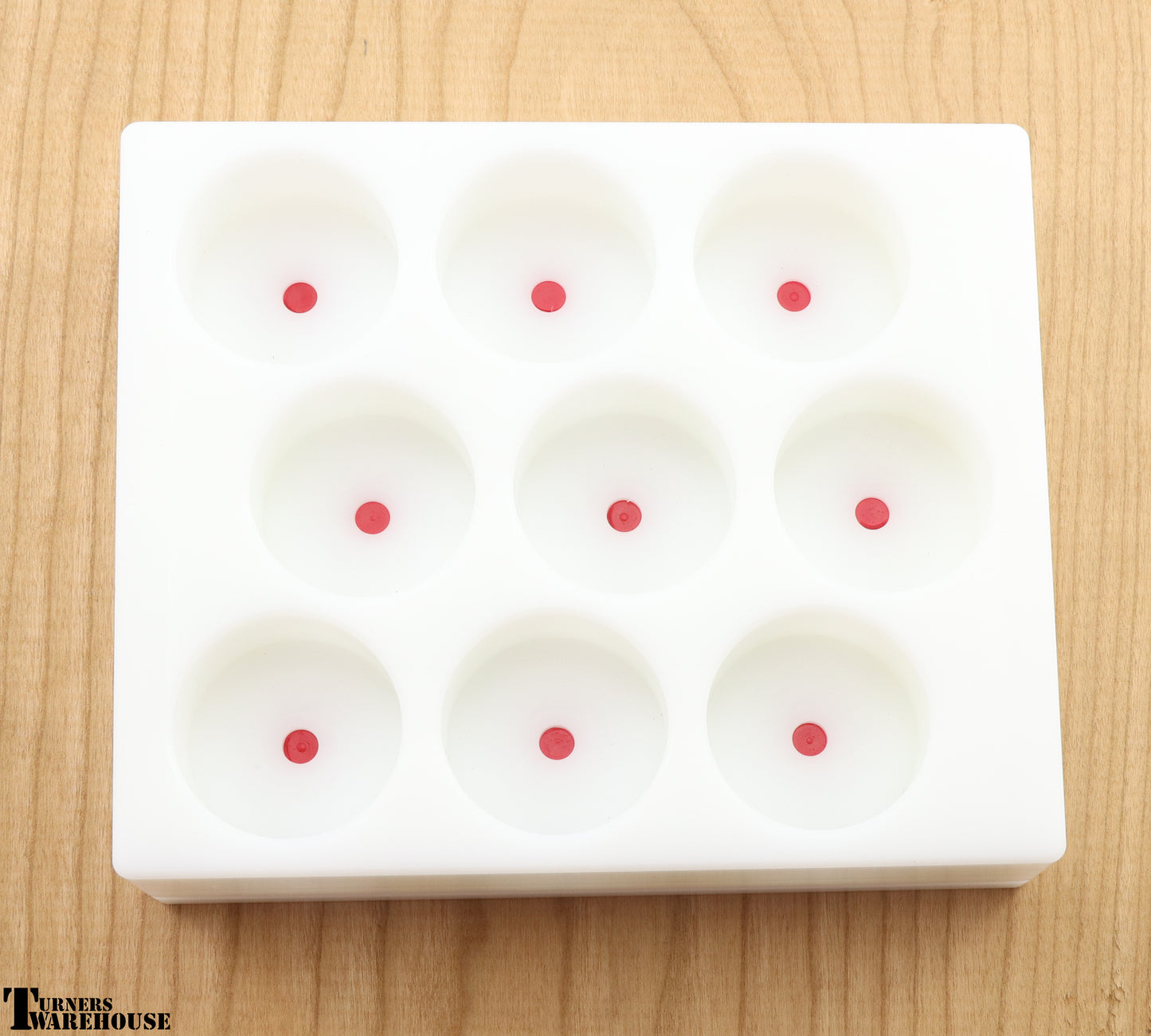

Ring Blank Casting Mold - Maker Select HDPE Ring Mold

Ring Blank Casting Mold - Maker Select HDPE Ring Mold

Product Specs

  • For Alumilite or Epoxy
  • Mold release 100% required for Epoxy Resins or you will stick the cast in the mold.
  • Measures approximately - 6.25" x 5.25" x 1.5"
  • 9 ring cavities each measures approximately - 1.5" diameter x .75" deep

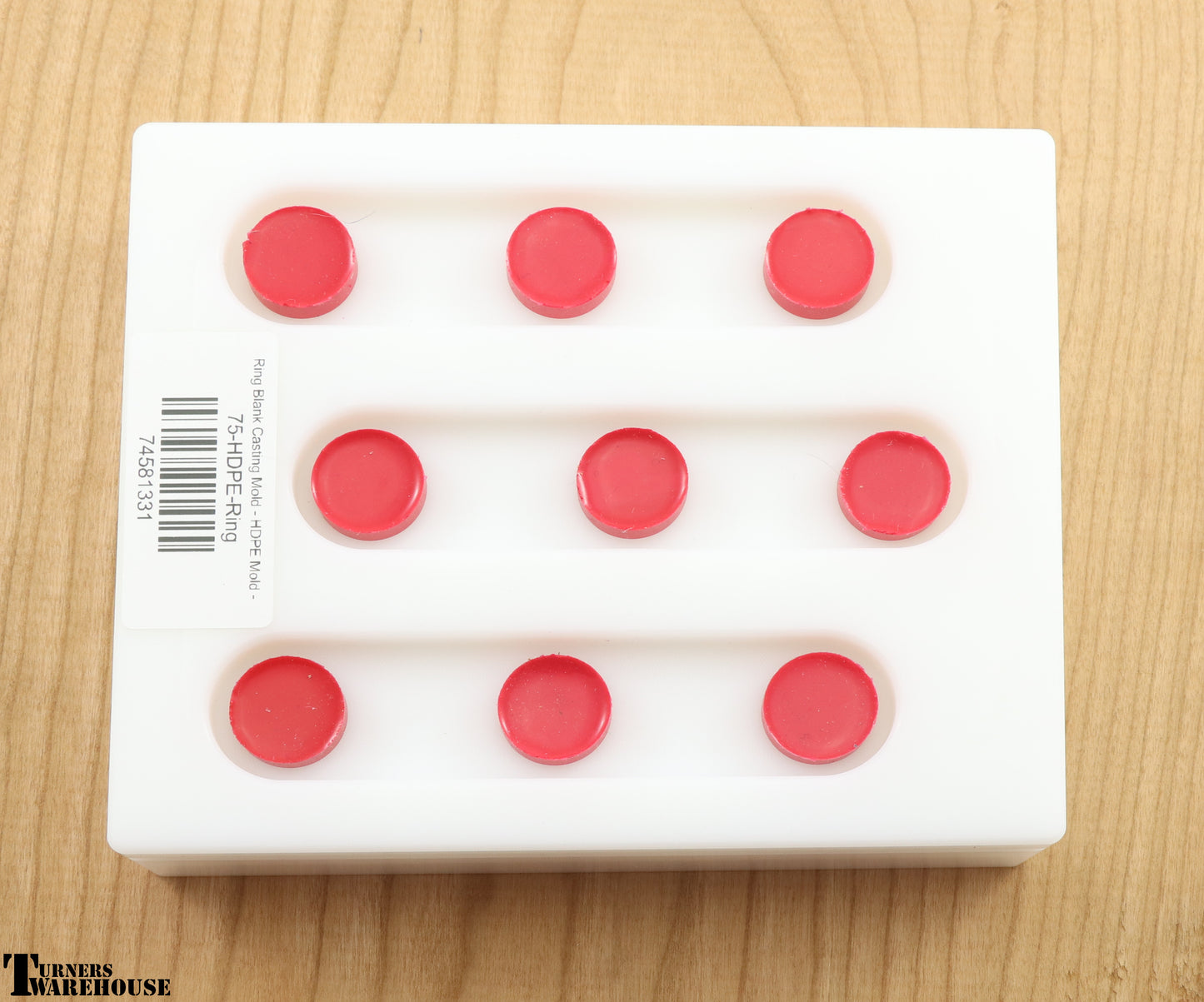

  • Removable plugs make for easy de-molding, especially when used in conjunction with the de-mold rack
  • First time use demolding tip: If the blanks don't come out easily with air or a tap try whacking the mold upside down on the table. This creates some air behind the blanks and they should pop out more easily.
  • Made in USA

How to calculate volume

  • How to determine resin needed for a rectangle or square mold (this is a good place to start, you should verify during pour and make adjustments in future) There is .554oz in 1 cubic inch of resin
  • liquid volume = ( length x width x height ) x .554
  • example- if your mold is 6" x 5.5" x 1" = 33 cubic inches take 33 cubic inches x .554 ox per cubic inch = 18.28 oz

Pairs well with

$53.99 USD
$53.99 USD
Sale Sold out




View full details

Maker Select

Designed and made right here in Arizona, USA
Innovative design by Makers, Turners and Casters with years of experience.
Quality materials & well planned products.
